Black adjustable bracket for grooved handrail 21x5 mm

Name: Black adjustable bracket for grooved handrail 21x5 mm
Brand: Levigne
SKU: AX760
Price: 9.64 EUR
Availability: InStock

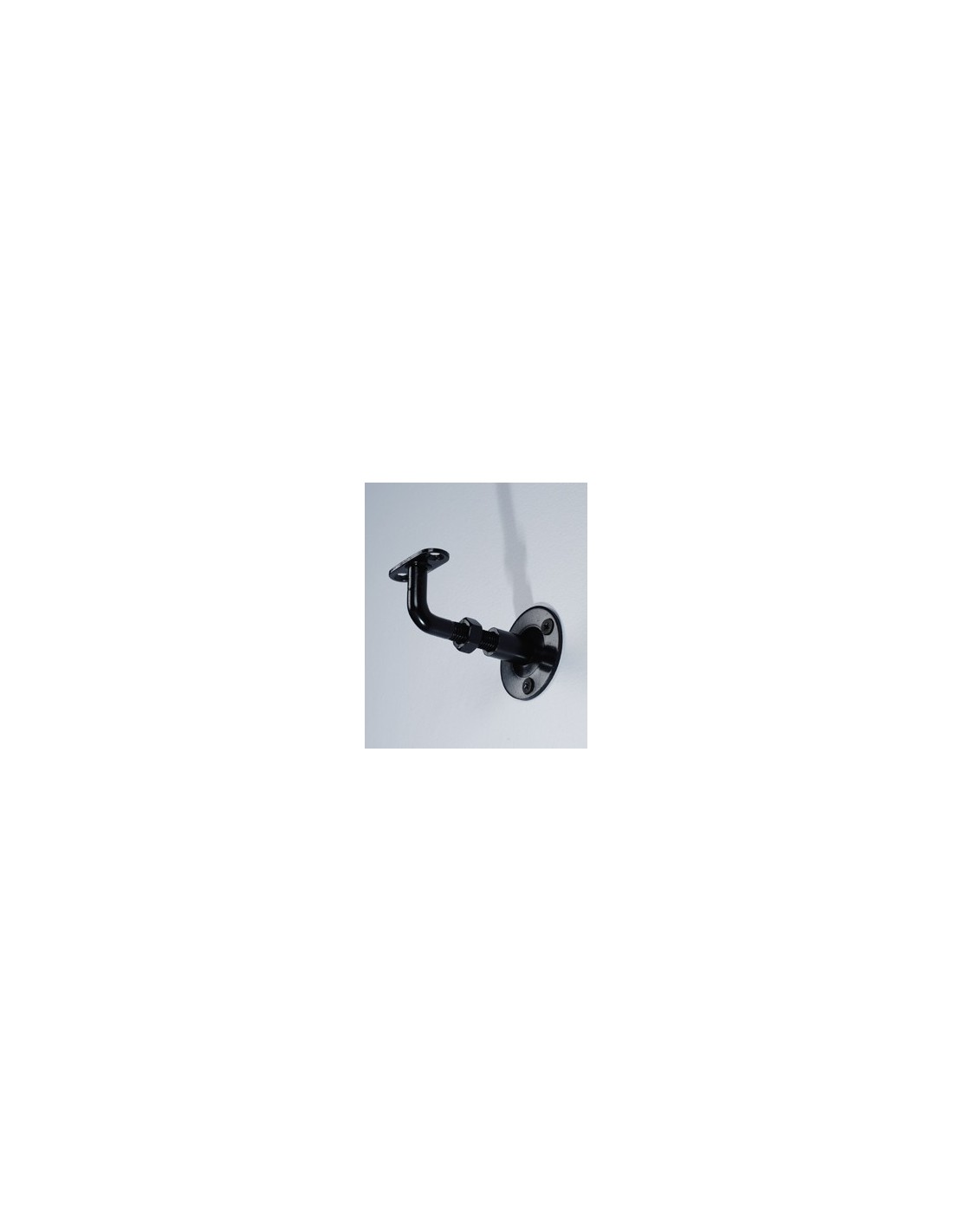

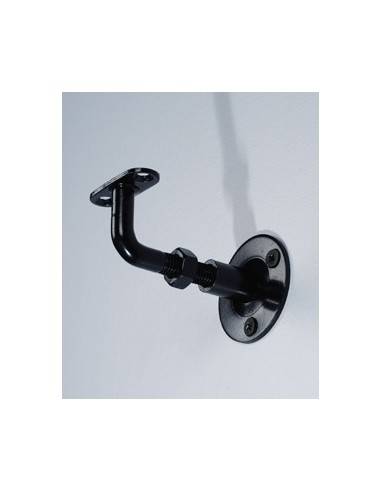

Adjustable black bracket for handrail with 21x5 mm groove. 2 cm adjustment to compensate for wall or staircase irregularities. Compatible with 21x5 mm groove handrails: moulded 50x50 mm (fir, beech, oak, douglas). Wall fixings not included — to be sourced according to the wall material. Indoor use only. Space brackets 80 to 100 cm maximum apart. More flexible than a fixed bracket for staircase configurations that are not perfectly straight.

Reference AX760

€9.64 incl. tax

In stock Delivery within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

AX760 adjustable black bracket for handrail with 21x5 mm groove

The adjustable black bracket is designed for handrails with a 21x5 mm groove. It offers a 2 cm adjustment that compensates for a slight irregularity in the wall or staircase, making installation easier on configurations that are not perfectly straight. Wall fixings not included — to be sourced according to the wall material. Indoor use only.

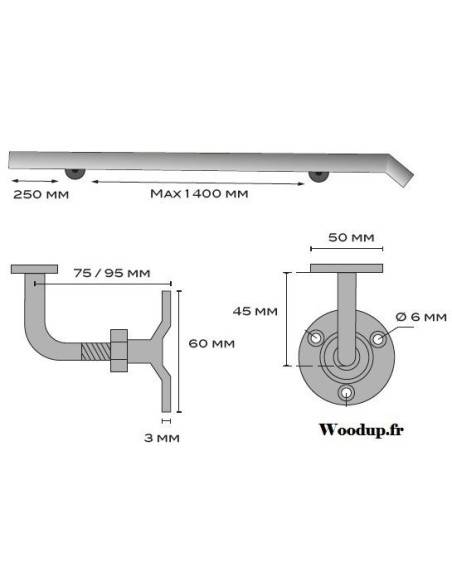

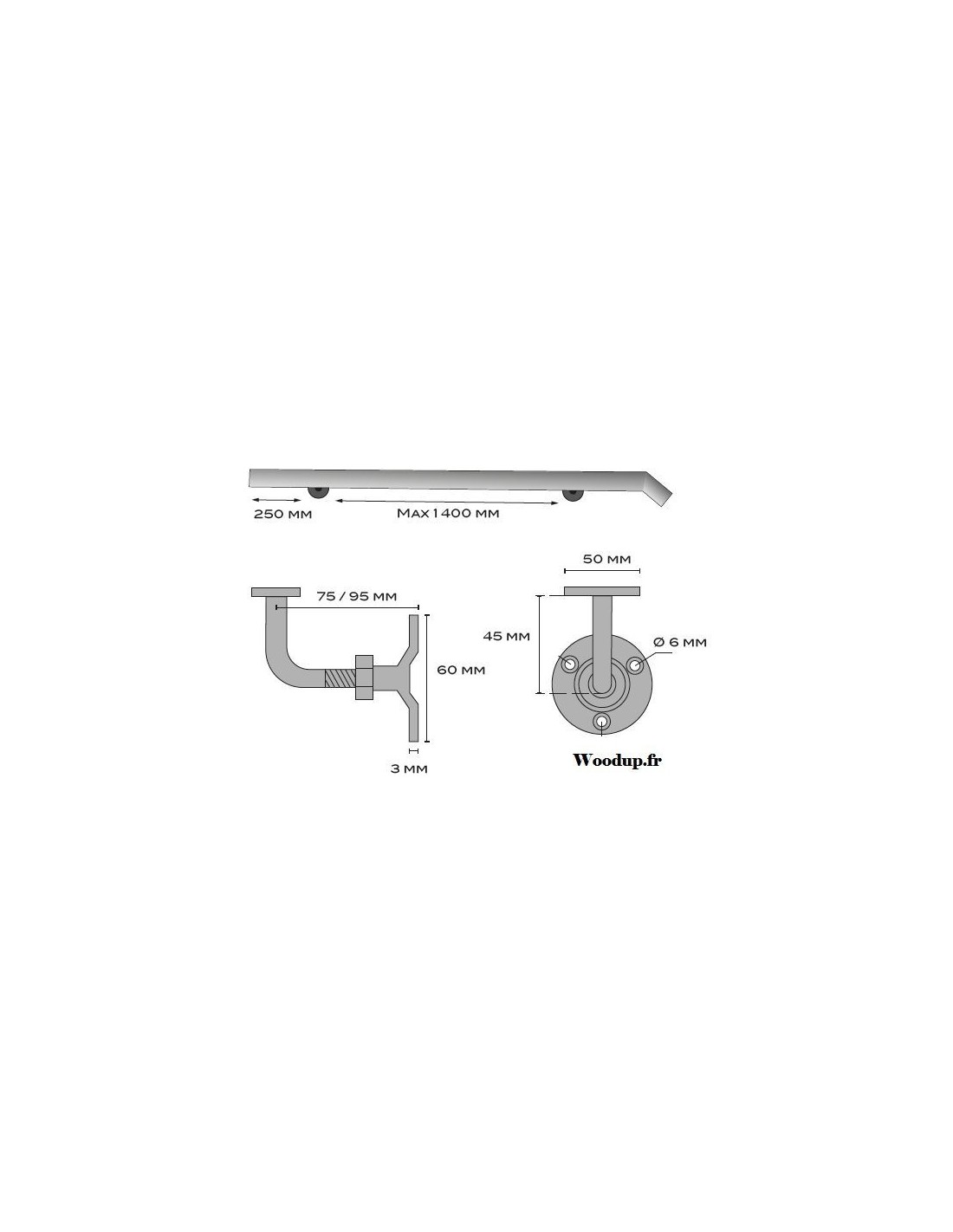

Main specifications

Specification	Description
Type	Adjustable bracket
Reference	AX760
Compatible groove	21 x 5 mm
Adjustment	2 cm
Colour	Black
Screws	Not included — to be sourced according to the wall material
Compatible handrails	Moulded 50x50 mm, flat 70x28 mm
Use	Indoor

Key points

2 cm adjustment: compensates for wall irregularities
21x5 mm groove: compatible with all WoodUp moulded handrails
Black finish: matches dark handrails
Screws not included: to be sourced according to the wall material and the handrail material
Easier installation: more flexible than a fixed bracket

Installation advice

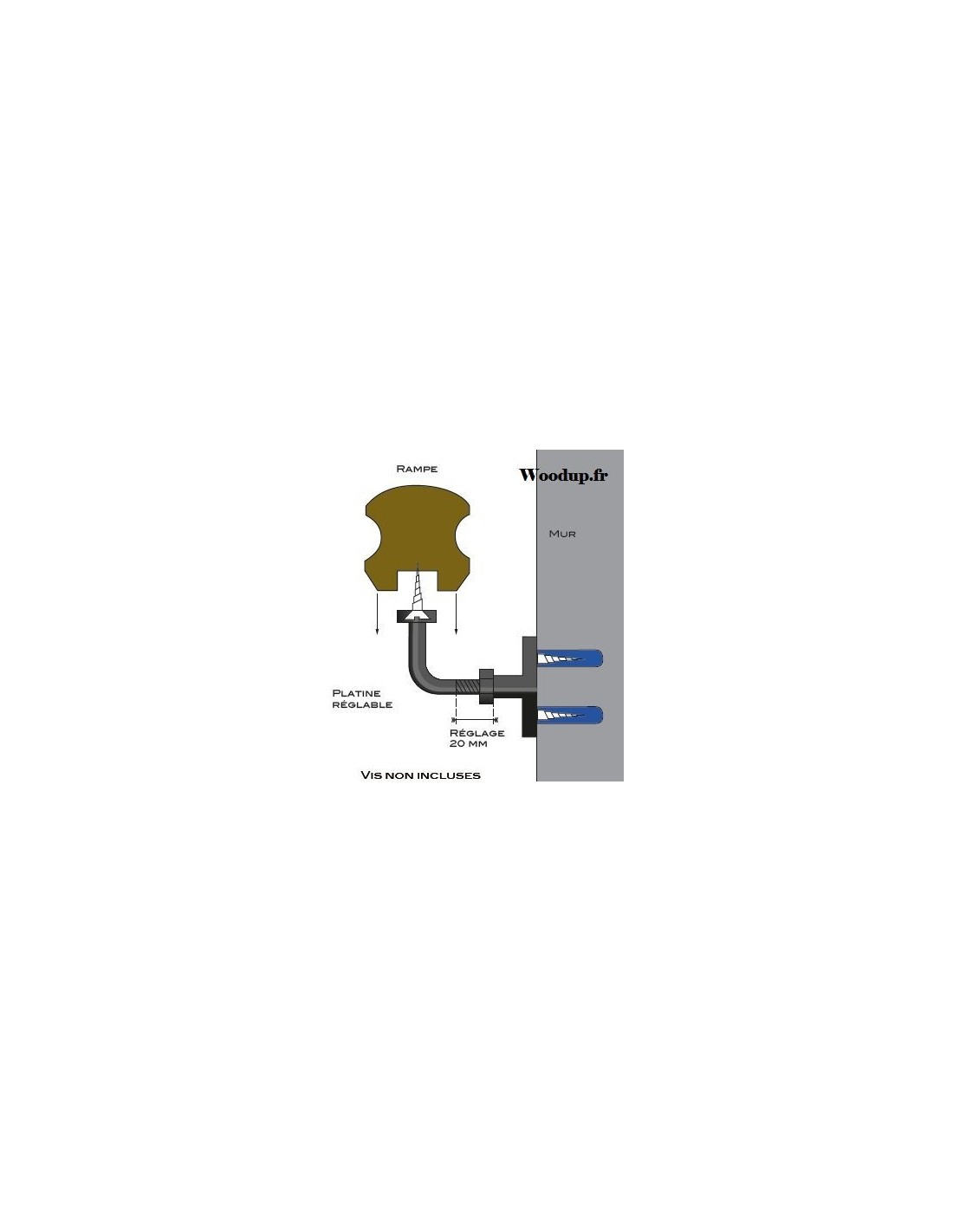

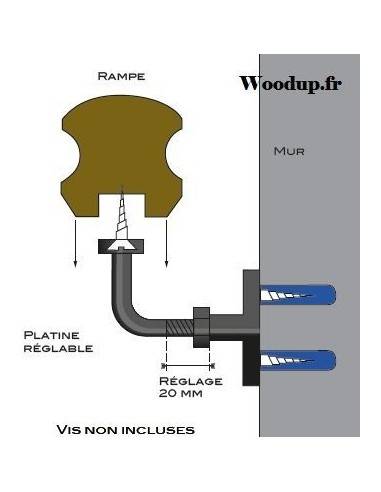

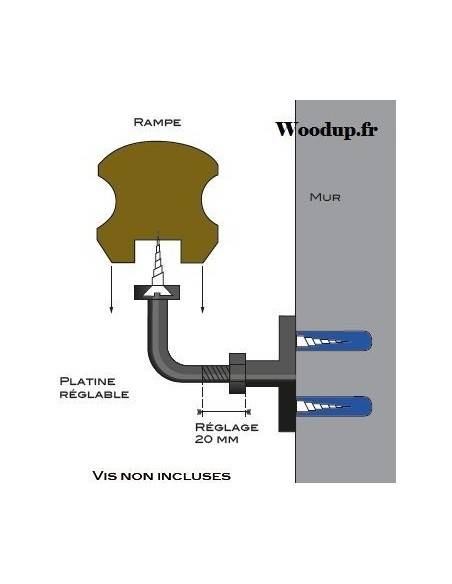

Position the bracket against the wall, adjust the setting length according to the desired inclination and tighten the locking mechanism. Drill and plug according to the wall material. Space the brackets 80 to 100 cm maximum apart.

Maintenance and protection

The finish withstands normal indoor use. An annual clean with clean water and a soft cloth is sufficient. Avoid abrasive products.

Frequently asked questions

Which handrails is this bracket compatible with?

This bracket is compatible with handrails with a 21x5 mm groove (moulded 50x50 mm, flat 70x28 mm, etc.).

Is this bracket supplied with the wall fixings?

No, the wall fixings are not included. They must be sourced according to the wall material (concrete, brick, plaster) and the handrail material (wood, metal, aluminium) to ensure a suitable hold.

What is the recommended spacing between brackets?

The recommended spacing is 80 to 100 cm maximum between each bracket for optimal hold. At the beginning and end of the handrail, place a bracket less than 30 cm from the ends.

Is this bracket suitable for outdoor use?

Check the bracket material before outdoor installation. Stainless steel brackets are suitable for outdoor use. Zinc-plated metal brackets are suitable for sheltered outdoor use. Painted brackets are for indoor use only.

What is the difference between a fixed bracket and an adjustable bracket?

A fixed bracket is screwed directly into the wall at a predefined angle — simpler to install. An adjustable bracket allows you to adjust the inclination (generally by 2 cm) to compensate for a slight irregularity in the wall or staircase, making installation easier on non-standard configurations.
