Railing ROCLES GOULES 180 interior side spindles for ROCLES/GOULES DQT 180 WoodUp staircase. wooden spindles 65 x 20 mm, posts 70 x 70 mm, handrail 50 x 50 mm, bottom rail 50 x 35 mm, screws included. Available in Oak LC / Beech LC / Fir LC according to choice, raw unfinished wood to be varnished or painted - satin varnish 2 coats recommended for the handrail subject to contact. Non-reversible: you must check the quarter turn configuration before ordering. Interior use only.

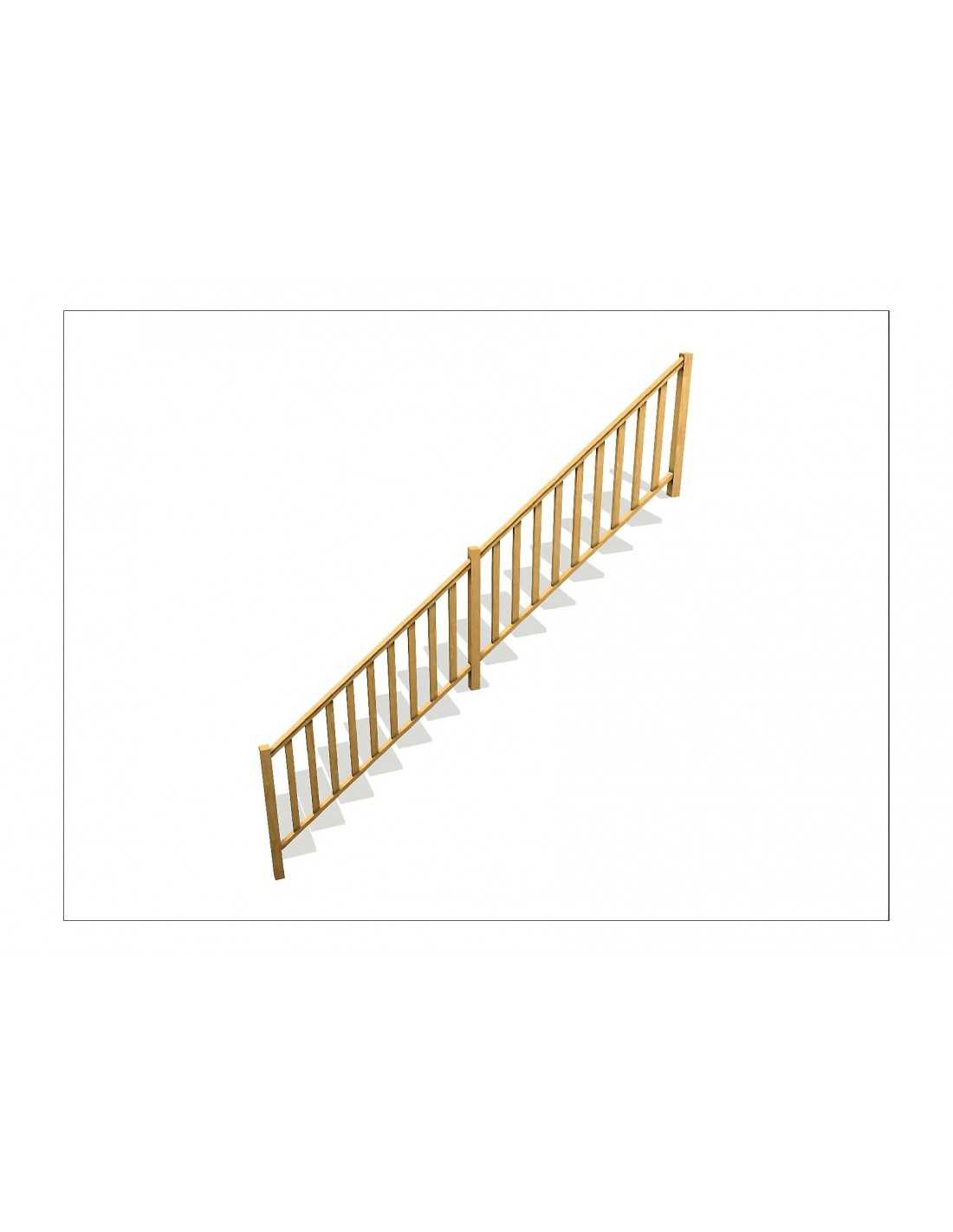

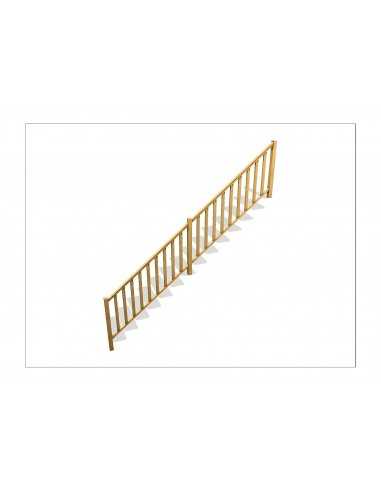

The ROCLES GOULES 180 interior side spindles railing is a wooden spindle balustrade 65 x 20 mm for the ROCLES/GOULES DQT 180 staircase. It includes wooden spindles 65 x 20 mm, posts 70 x 70 mm, a handrail 50 x 50 mm and a bottom rail 50 x 35 mm. Screws included. Available in Oak LC / Beech LC / Fir LC. Non-reversible: you must check the position of the quarter turn and the direction of ascent before ordering.
Interior use only - LC species are not suitable for exterior use. To be installed simultaneously with the staircase.
| Characteristic | Description |
|---|---|
| Compatible staircase | ROCLES/GOULES DQT 180 (ID 277/278) |
| Position | Interior side |
| Wooden spindles | 65 x 20 mm |
| Posts | 70 x 70 mm |
| Handrail | 50 x 50 mm |
| Bottom rail | 50 x 35 mm |
| Available species | Oak LC / Beech LC / Fir LC |
| Screws | Included |
| Reversibility | Non-reversible |
| Use | Interior only |
To be installed simultaneously with the staircase. Fix the posts, bottom rail, spindles then handrail in that order. Check the height of 90 cm minimum from the nosing and spacing less than 11 cm (standard NF P01-012). Apply varnish or paint before final fixing. Two people recommended.
The wood is delivered unfinished and untreated. Apply a protective finish before use: satin varnish 2 coats (maximum resistance), oil-wax (natural look, renewal every 1–2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.
Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

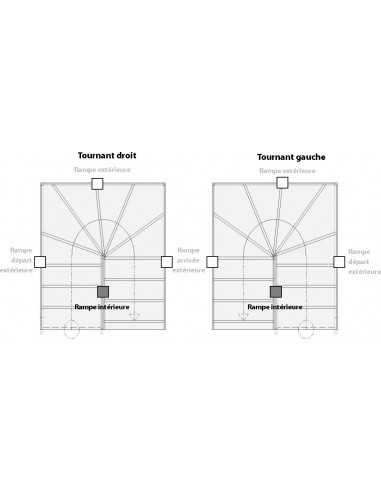

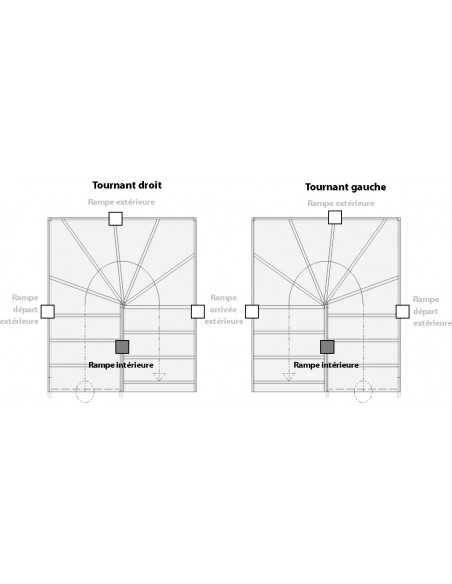

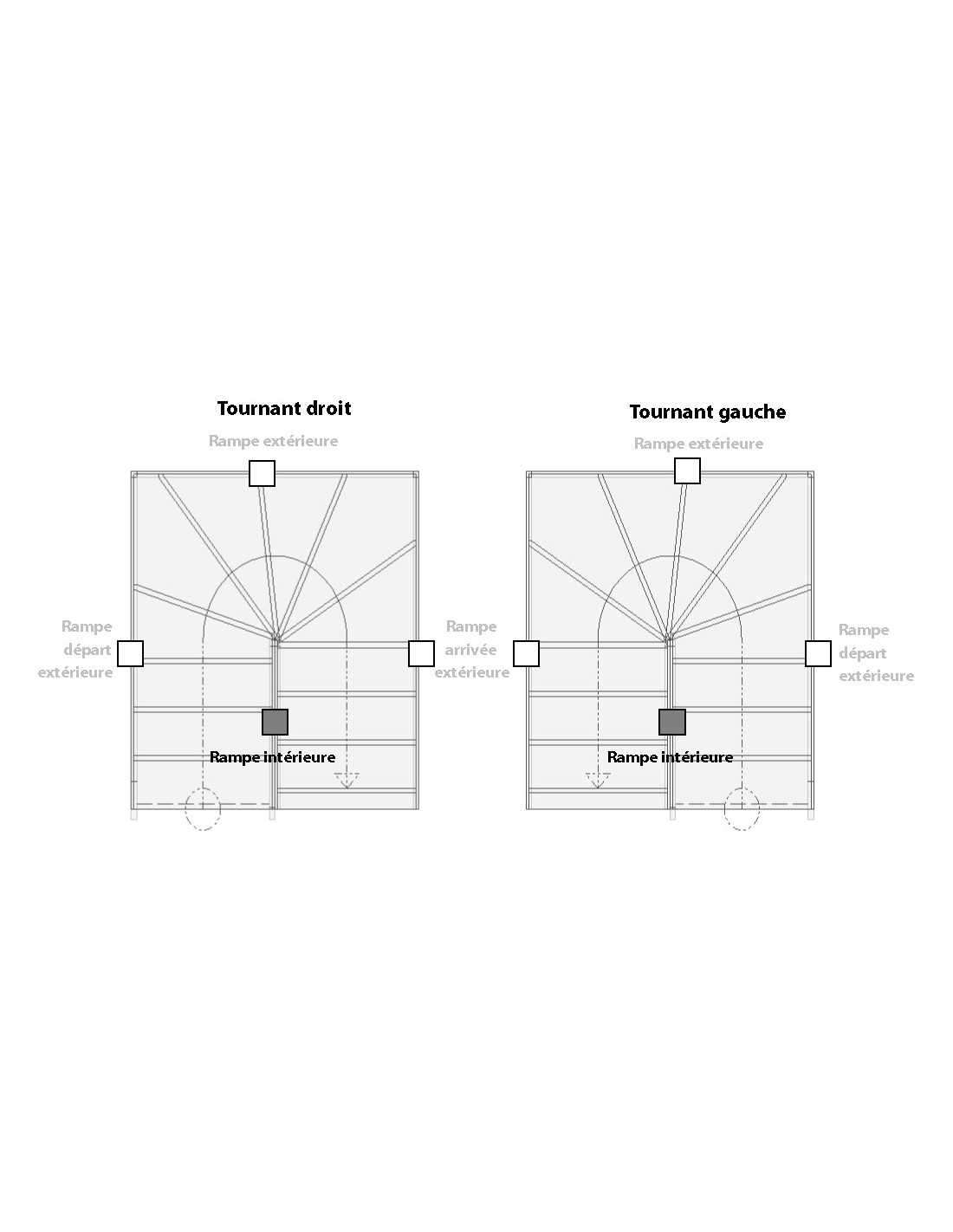

On a quarter-turn staircase, a distinction is made between the interior side (the side towards which the staircase turns, inside the curve) and the exterior side (the side opposite the curve, the free side of the flight). This railing is positioned on the exterior side. To determine it, go up your staircase and observe which side the quarter turn is on.
The geometry of the quarter turn imposes a specific shape on the railing. A railing on the exterior side cannot be turned around to become the interior side - the angles and lengths of each section differ. You must check your configuration before ordering: position of the quarter turn and direction of ascent.
This railing must be installed simultaneously with the staircase - some fixings are only accessible during assembly. Plan the installation at the same time.
The handrail, subject to daily contact, requires an abrasion-resistant finish: satin varnish 2 coats is recommended. For the spindles and posts, an oil-wax (natural look) or paint depending on the décor. Apply the finish before final fixing to treat concealed areas.
The spacing must be less than 11 cm to prevent the passage of an 11 cm sphere (standard NF P01-012). Check the actual spacing after installation depending on the configuration of your staircase, particularly at the bottom of the flight where the railing is more open.
