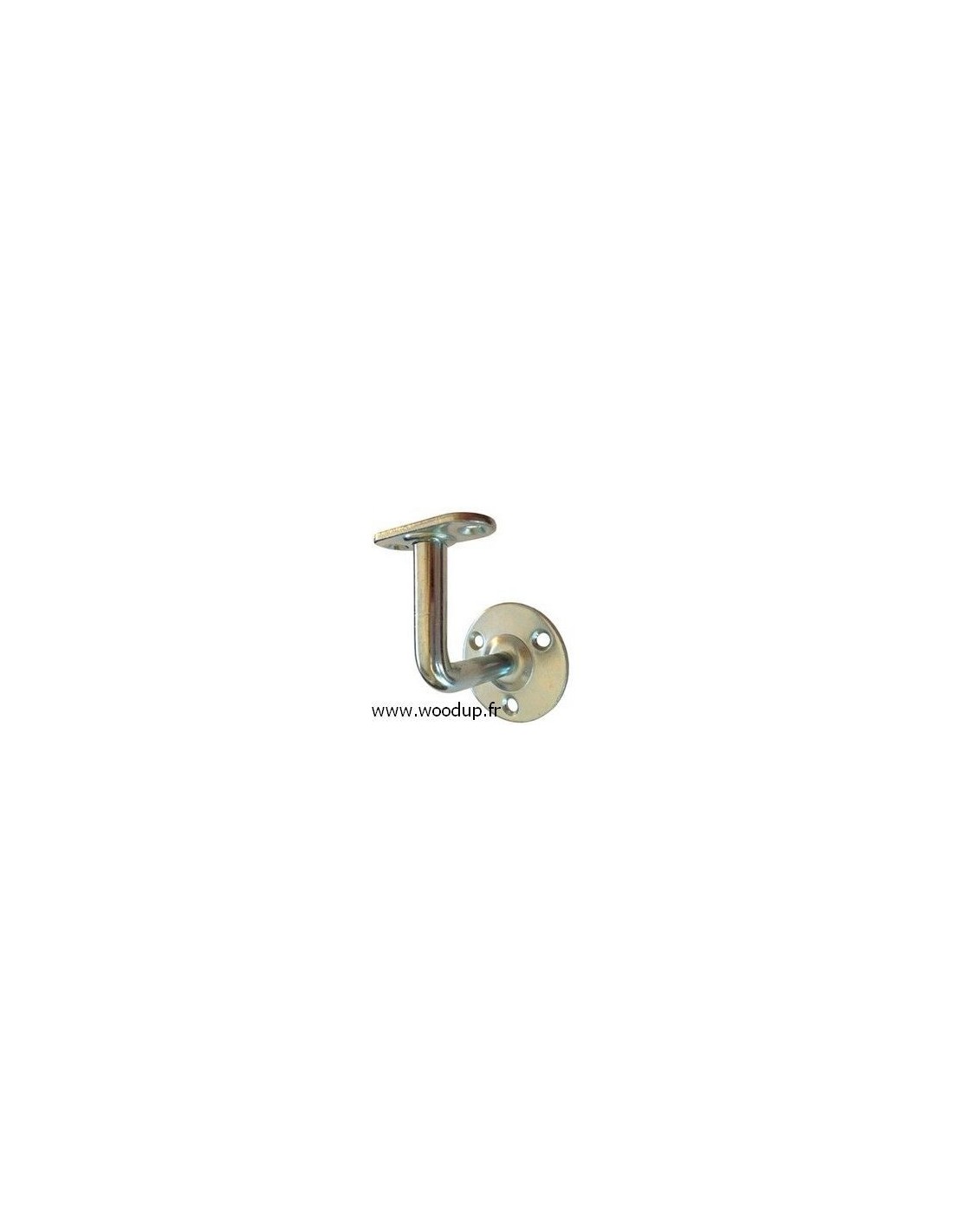

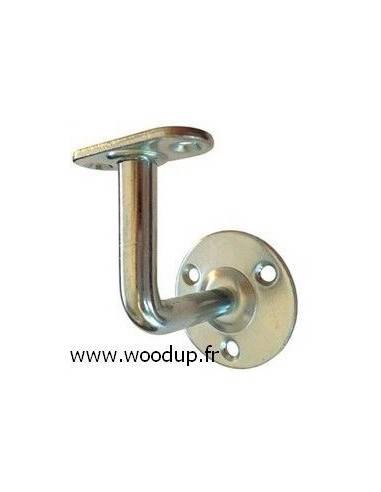

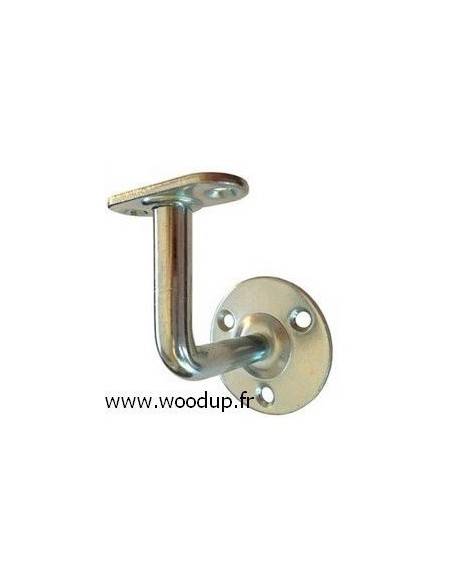

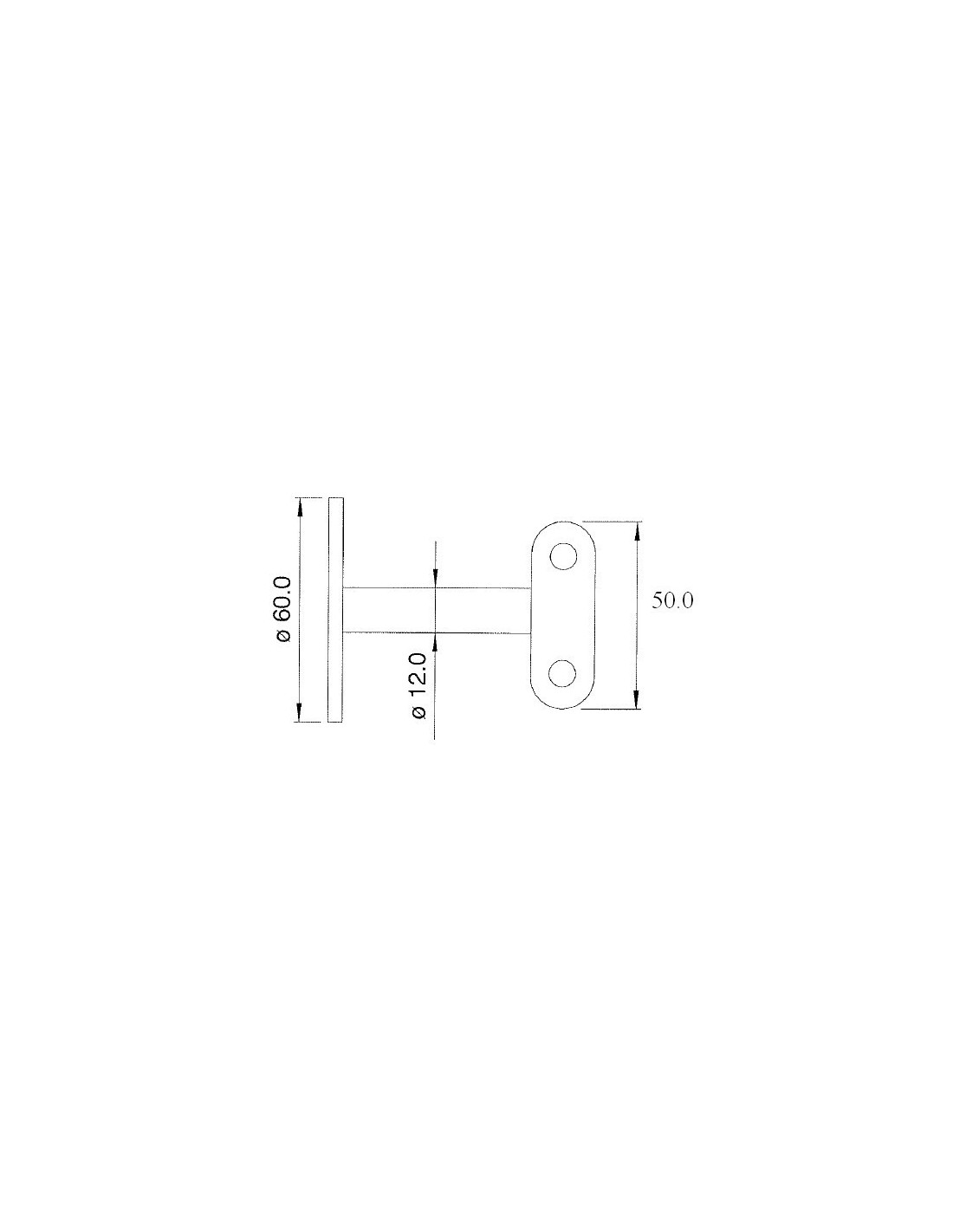

Fixed metal bracket for grooved handrail

Fixed metal bracket for handrail with 21x5 mm groove. Available in 3 colours: black, white and grey zinc-plated. Wall fixings not included — to be sourced according to the wall material. Compatible with 21x5 mm groove handrails: moulded 50x50 mm (fir, beech, oak, Douglas fir) and flat 70x28 mm. Wall offset to be checked according to the bracket model. Indoor use. Space brackets 80 to 100 cm apart maximum, with one bracket within 30 cm of each end.

Colour

Black
White
Galvanised

Disabled Access Standard (PRM)

Reference AX757PMR

€8.16 incl. tax

In stock Delivery within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Fixed metal bracket for handrail with 21x5 mm groove

The fixed metal bracket is designed to fix a handrail with a 21x5 mm groove to a wall. Available in 3 colours — black, white and grey zinc-plated — to match the desired finish. Wall fixings not included — to be sourced according to the wall material. Compatible with moulded 50x50 mm and flat 70x28 mm handrails from the WoodUp range.

Main specifications

Specification	Description
Type	Fixed bracket
Groove compatibility	21 x 5 mm
Available colours	Black, White, Grey zinc-plated
Screws	Not included — to be sourced according to the wall material
Compatible handrails	Moulded 50x50 mm, flat 70x28 mm
Use	Indoor

Key points

3 colours: black, white or grey zinc-plated depending on the finish
21x5 mm groove: compatible with WoodUp moulded handrails
Screws not included: to be sourced according to the wall material and the handrail material
Fixed bracket: simple and direct installation
Compatible with the WoodUp range: moulded 50x50 mm and flat 70x28 mm

Installation advice

Space the brackets 80 to 100 cm maximum apart and place one less than 30 cm from each end of the handrail. Mark the positions with a spirit level before drilling. Choose the appropriate wall plugs for the wall material. Check the wall offset according to the bracket model to ensure the handrail is at the correct distance.

Maintenance and protection

The painted finish (white, grey, black) withstands normal indoor use. An annual clean with clean water and a soft cloth is sufficient. Avoid abrasive products. In the event of a scratch, touch-up with a brush using a compatible metal paint is possible.

Frequently asked questions

Which handrails is this bracket compatible with?

This bracket is compatible with handrails with a 21x5 mm groove (moulded 50x50 mm, flat 70x28 mm, etc.).

Is this bracket supplied with the wall fixings?

No, the wall fixings are not included. They must be sourced according to the wall material (concrete, brick, plaster) and the handrail material (wood, metal, aluminium) to ensure a suitable hold.

What is the recommended spacing between brackets?

The recommended spacing is 80 to 100 cm maximum between each bracket for optimal hold. At the beginning and end of the handrail, place a bracket less than 30 cm from the ends.

Is this bracket suitable for outdoor use?

Check the bracket material before outdoor installation. Stainless steel brackets are suitable for outdoor use. Zinc-plated metal brackets are suitable for sheltered outdoor use. Painted brackets are for indoor use only.

What is the difference between a fixed bracket and an adjustable bracket?

A fixed bracket is screwed directly into the wall at a predefined angle — simpler to install. An adjustable bracket allows you to adjust the inclination (generally by 2 cm) to compensate for a slight irregularity in the wall or staircase, making installation easier on non-standard configurations.
