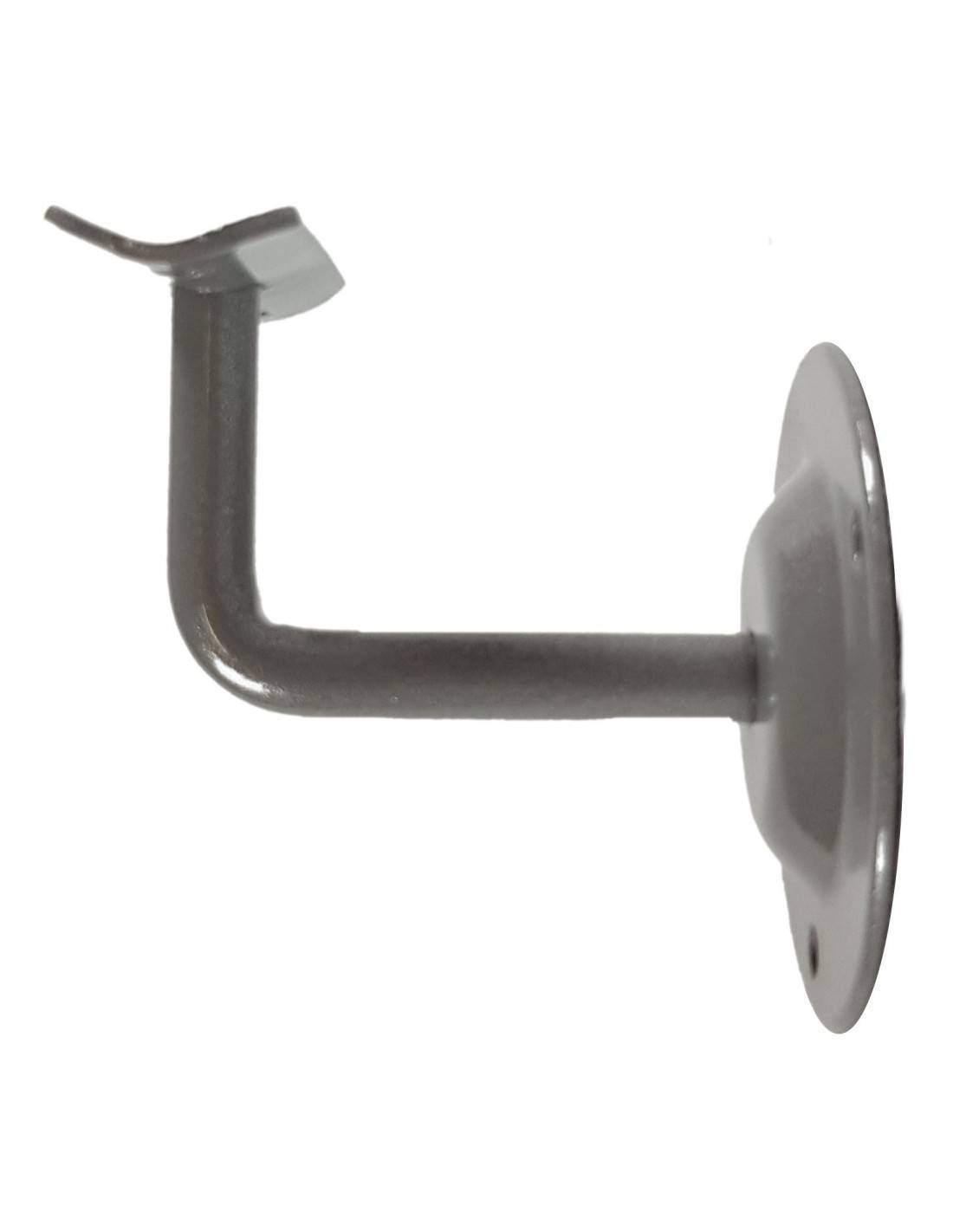

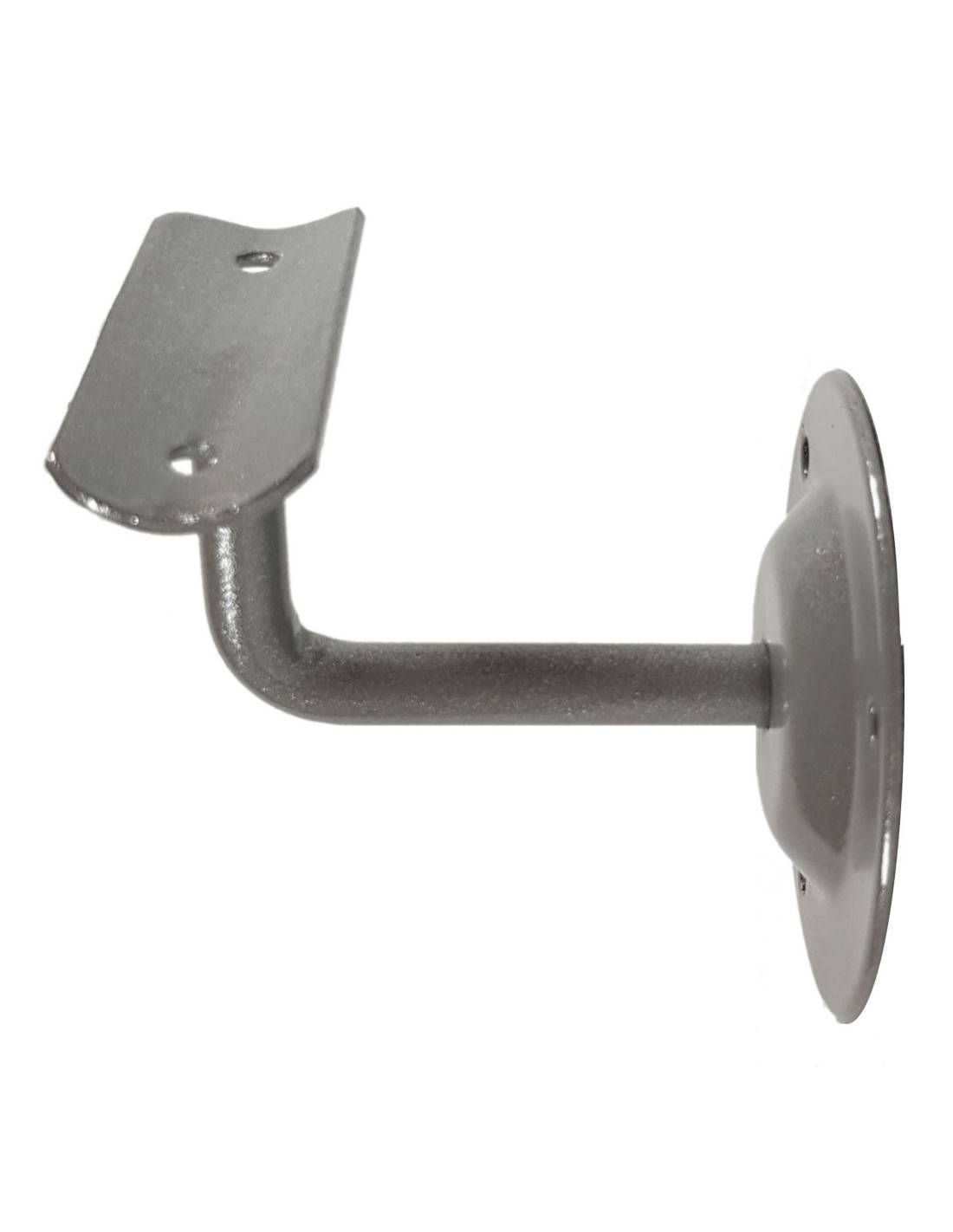

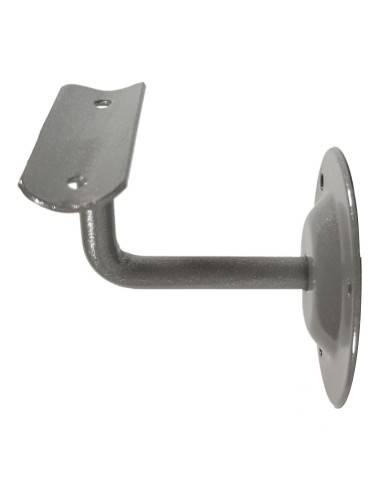

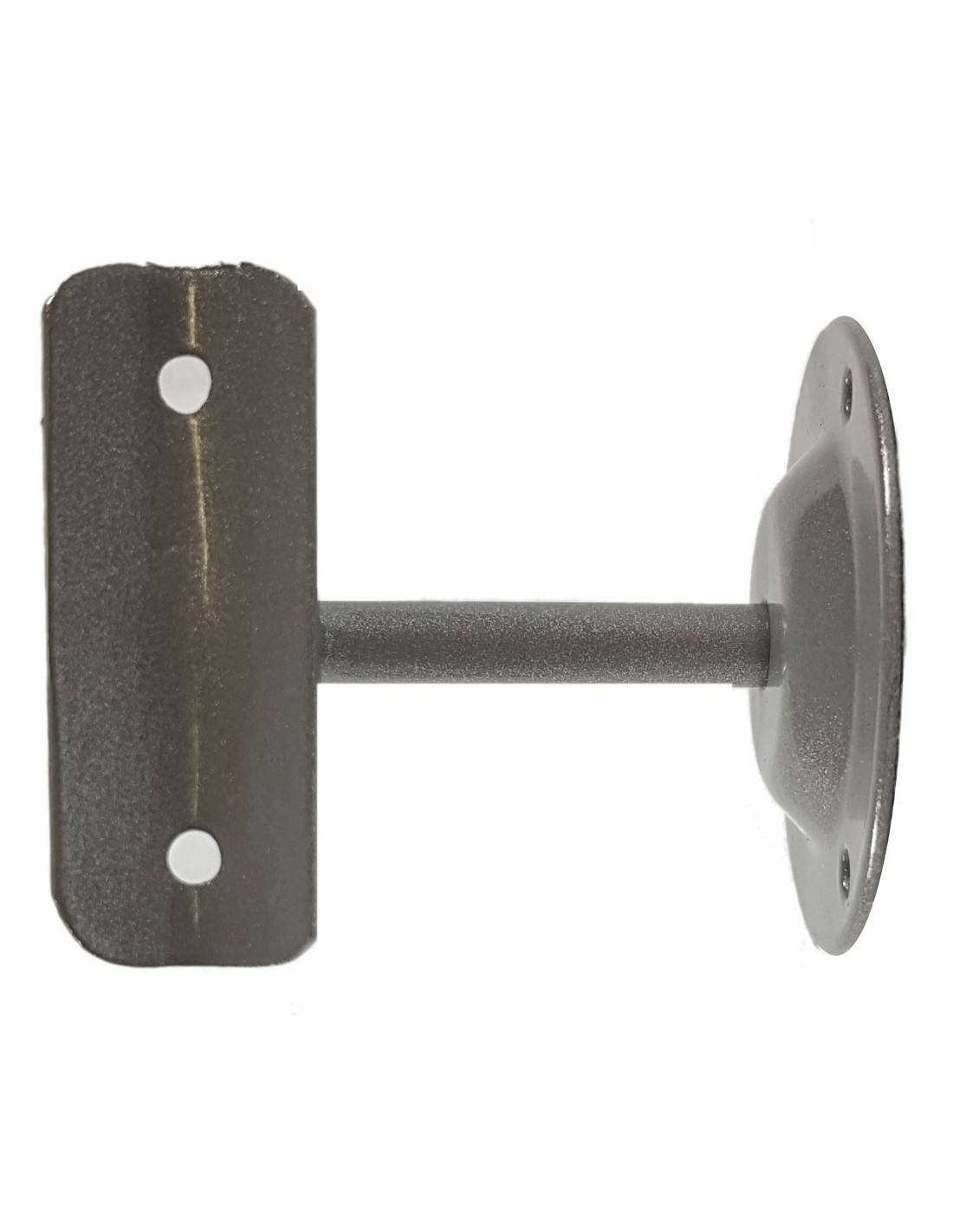

Metal bracket for round handrail diam. 42 mm

Metal bracket for round handrail diam. 42 mm. Compatible with round handrails in wood (beech, oak, fir, douglas) or metal of diam. 42 mm. Available in black, white and grey to match the desired finish. Wall fixing screws not included — to be provided according to the wall material. Fixed bracket, indoor use. Space the brackets 80 to 100 cm maximum apart and place a bracket within 30 cm of each end. Regulatory height: 90 cm minimum.

Colour

Black
White
Grey

Reference AX759

€12.50 incl. tax

In stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Metal bracket for round handrail diam. 42 mm

The metal bracket for round handrails is designed for handrails of diam. 42 mm, wood (beech, oak, fir, douglas) or metal. Available in black, white and grey to suit the desired finish. Wall fixing screws not included — to be selected according to the wall material. Indoor use only.

Main specifications

Specification	Description
Material	Metal
Compatible diameter	42 mm
Available colours	Black, White, Grey
Screws	Not included — to be selected according to the wall material
Compatible handrails	Round wood or metal diam. 42 mm
Use	Indoor

Key features

3 colours: black, white or grey depending on the finish
Compatible diam. 42 mm: wood (beech, oak, fir) and metal
Screws not included: to be selected according to the wall material and handrail material
Fixed bracket: direct wall installation
Compatible with the WoodUp range: all round handrails 42 mm

Installation advice

Space the brackets 80 to 100 cm apart maximum and place them within 30 cm of each end. Mark the positions with a level before drilling. Match the wall plugs to the wall material. Regulatory height: minimum 90 cm from the nosing of the step.

Maintenance and protection

The painted finish (white, grey, black) withstands normal indoor use. Annual cleaning with clean water and a soft cloth is sufficient. Avoid abrasive products. In the event of a scratch, touch-up with a brush using a compatible metal paint is possible.

Frequently asked questions

Which handrails is this bracket compatible with?

This bracket is compatible with handrails of diameter 42 mm.

Is this bracket supplied with wall fixing screws?

No, the wall fixing screws are not included. They should be selected according to the wall material (concrete, brick, plaster) and the handrail material (wood, metal, aluminium) to ensure a suitable hold.

What is the recommended spacing between brackets?

The recommended spacing is 80 to 100 cm maximum between each bracket for optimal hold. At the start and end of the handrail, place a bracket within 30 cm of each end.

Is this bracket suitable for outdoor use?

Check the material of the bracket before outdoor installation. Stainless steel brackets are suitable for outdoor use. Galvanised metal brackets are suitable for sheltered outdoor use. Painted brackets are for indoor use only.

What is the difference between a fixed bracket and an adjustable bracket?

A fixed bracket is screwed directly into the wall at a predefined angle — simpler to fit. An adjustable bracket allows the inclination to be adjusted (generally over 2 cm) to compensate for a slight irregularity in the wall or staircase, making installation easier on non-standard configurations.
