BAVAT CHENE

Name: BAVAT CHENE
Brand: Levigne
SKU: EQTHCHD
Price: 1342 EUR
Availability: PreOrder

Top quarter-turn staircase in glued laminated oak – 13+½ steps, width 80 cm, footprint 273 cm, section 210×30 mm. Support post included. Delivered in 4 parcels. With or without risers. Handrail to be ordered separately.

Riser

Quarter turn

Top left
Top right

Reference EQTHCHD

€1,342.00 VAT included

Including €3.00 for ecotax

Made to order. 6–8 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Top Quarter-Turn Staircase in Glued Laminated Oak – BAVAT 80 cm Kit with Support Post Included

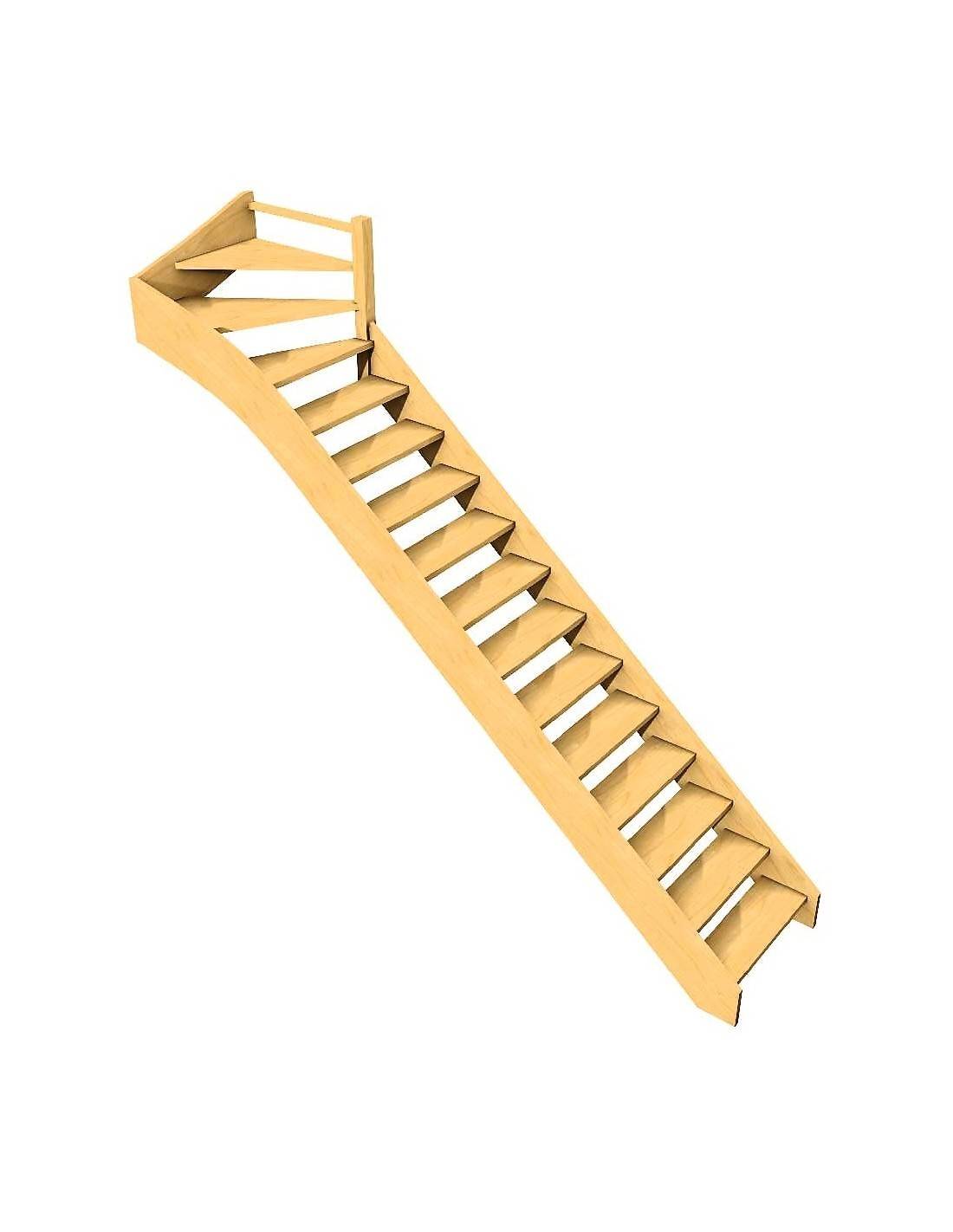

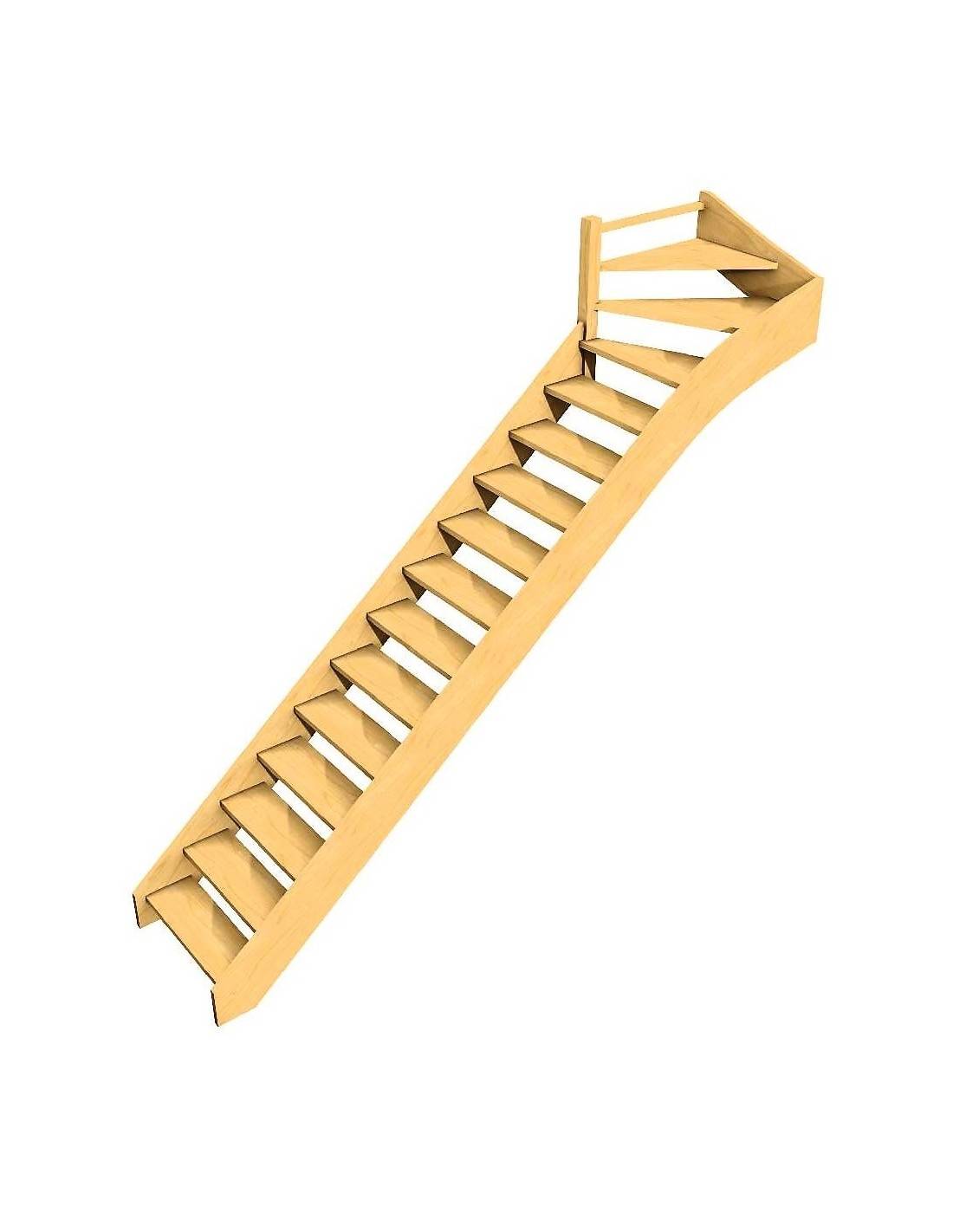

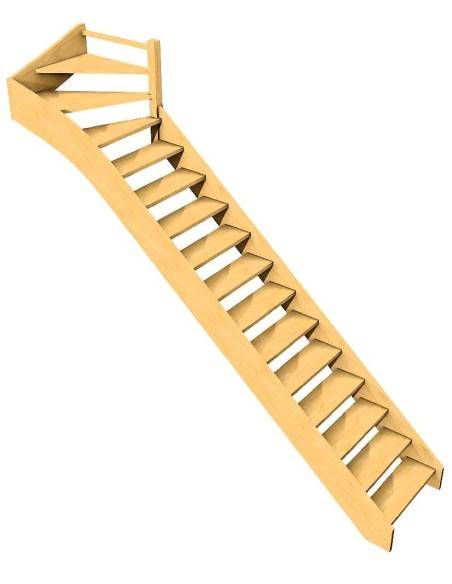

This top quarter-turn staircase in glued laminated oak is designed for residential interiors requiring a change of direction at the top of the flight, just before reaching the landing. With a width of 80 cm, a footprint of 273 cm and a floor-to-floor height of 280 cm for 13 steps + ½, it suits standard configurations. The steps have a section of 210×30 mm. A support post is included to ensure structural stability at the top turn.

Delivered in 4 parcels (stringers / top quarter turn / steps / risers), available with or without risers, and in left or right orientation to be specified when ordering. The handrail is not supplied: it must be ordered separately and installed simultaneously during assembly. Delivered raw, a protective finish is mandatory before first use.

Main characteristics

Characteristic	Description
Type	Top quarter-turn staircase, interior
Material	Glued laminated oak
Range	Standard
Width	80 cm
Footprint	273 cm
Floor-to-floor height	280 cm
Number of steps	13 + ½ (14 in total)
Step section	210×30 mm
Risers	With or without, your choice
Support post	Included
Handrail	Not supplied – compatible BAVAT handrail available separately, to be installed at the same time
Orientation	Left or right, to be specified when ordering
Finish	Raw wood, ready to treat
Use	Interior use only

Key points

✓ Top quarter turn: turn at the top of the flight, ideal for turning towards a corridor or landing on arrival

✓ Support post included: ensures stability at the turn module

✓ 4 separate parcels: makes handling and delivery to a flat or building site easier

✓ Glued laminated oak: pronounced grain, warm tone, dimensional stability superior to solid wood

✓ Handrail not included: compatible BAVAT handrail available in the WoodUp range – to be ordered before assembly

✓ Orientation of your choice: left or right, to be specified when ordering

Installation advice

Preparation: Choose the orientation (left or right) before ordering. Check the footprint of 273 cm in the direction of ascent. If a handrail is planned, order it before starting: the BAVAT handrail is installed simultaneously with the staircase.

Support post: Position and fix the post first, before assembling the top quarter-turn module. Check its plumb carefully — it determines the stability of the entire structure at the turn.

Assembly: Follow the order indicated in the instructions: stringers → quarter turn (with post) → steps of the straight flight → steps of the quarter turn. Two people are required for handling, particularly for the oak stringers.

Finishing: Apply the protective treatment preferably before fitting to treat the hidden faces. On oak, allow 2 to 3 coats of varnish.

Maintenance and protection

The glued laminated oak is delivered raw. Apply a protective finish before first use.

Aqua-polyurethane staircase varnish: 2 to 3 coats, renewal every 5 to 7 years
Oil-wax: natural finish enhancing the grain of the oak, annual renewal
Polyurethane varnish: shine, impact resistance

Routine cleaning: slightly damp cloth, pH-neutral product. Recommended humidity: 45 to 65%. Check the tightness of fixings once a year.

Frequently asked questions

What is the difference between the BAVAT CHÊNE and the BAVAT HÊTRE?

Both models have the same geometry: top quarter turn, width 80 cm, height 280 cm, footprint 273 cm, section 210×30 mm, 4 parcels. The difference is the wood species: the BAVAT HÊTRE has a regular grain and a light, slightly pinkish hue; the BAVAT CHÊNE offers a more pronounced grain and a warmer, golden tone. Oak is generally slightly more expensive.

What is a top quarter-turn staircase?

A top quarter-turn staircase makes a 90° turn at the top of the flight, just before reaching the landing. To be distinguished from the bottom quarter turn, which turns at the start. This type is useful when the stairwell opening is not aligned with the direction of ascent, or to turn towards a corridor upon arriving at the upper floor.

What is the support post included in the kit for?

The support post takes the mechanical loads at the top quarter-turn module. It must be positioned and fixed before assembling the steps of the turn. Its plumb is critical: a post that is out of plumb can cause creaking and instability throughout the staircase.

Can a handrail be added after assembling the BAVAT CHÊNE?

No, for the interior handrail. It must be ordered separately and installed at the same time as the staircase. If you have already assembled the staircase without a handrail, contact WoodUp customer service to find out about exterior handrail options that can be fitted afterwards.

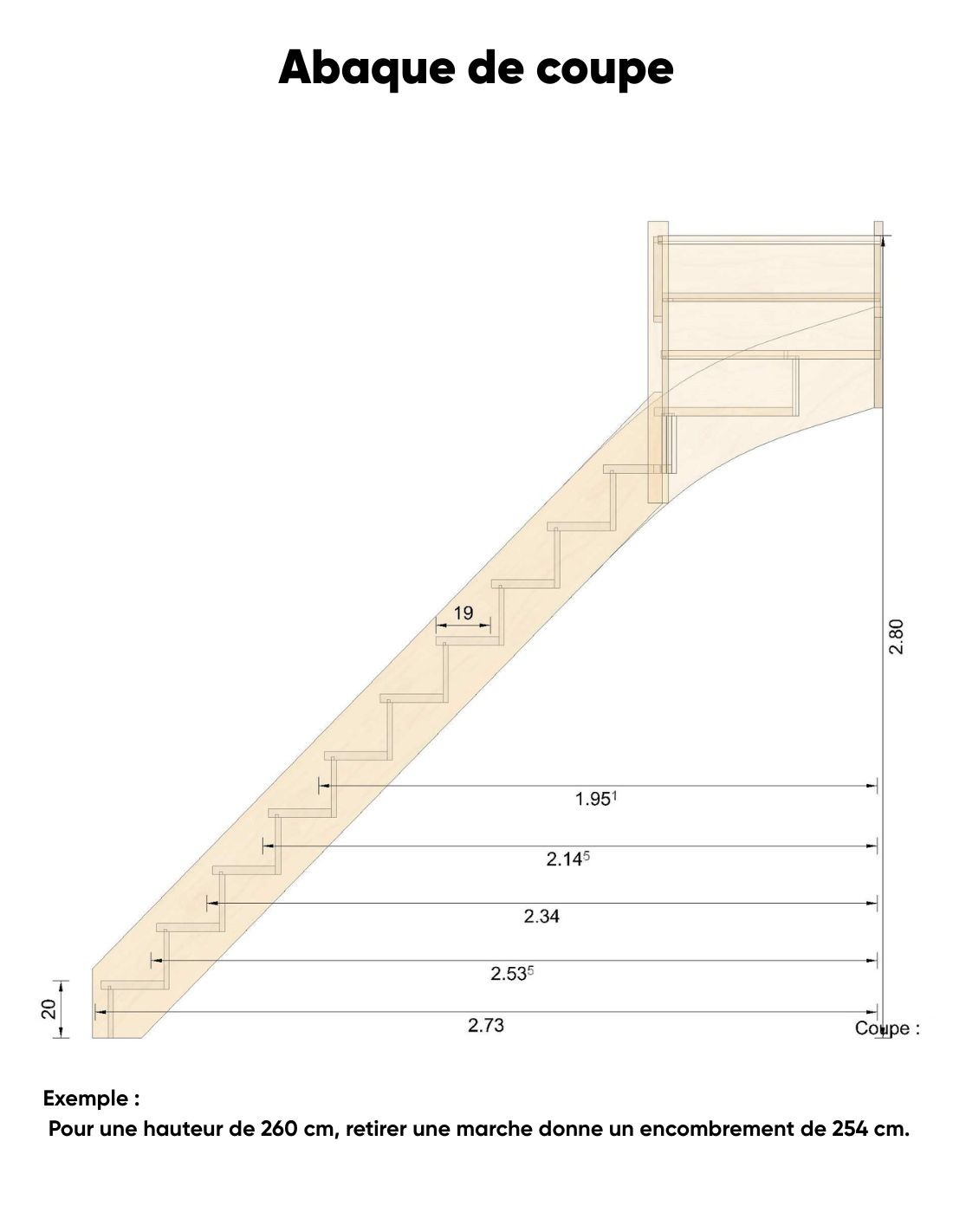

Can the BAVAT CHÊNE be cut down in height?

The staircase can be cut from the bottom to adjust the floor-to-floor height if it is less than 280 cm. Check the permissible cutting range with WoodUp customer service before ordering.
