AUBRAC Extra-High Wooden Loft Ladder, 330 cm, 26 mm Insulated Hatch

Name: AUBRAC Extra-High Wooden Loft Ladder, 330 cm, 26 mm Insulated Hatch
Brand: Levigne
SKU: ECBGH26330
Price: 415 EUR
Availability: PreOrder

AUBRAC 330 loft ladder, all wood, 15 treads, 4 casing sizes from 130 x 60 to 140 x 70 cm.

20 mm insulation and a 26 mm hatch. For ceiling heights up to 330 cm; requires 145 cm of floor space and 205 cm of opening clearance. Maximum load 160 kg; EN 14975 standard.

Handrail included. For an older home or a very high-ceilinged room, up to 3.30 m, where standard loft ladders stop at 280 or 310 cm. The tallest in our range.

Box dimension

Reference ECBGH26330

€415.00 incl. tax

On order 5-6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

AUBRAC Extra-High Wooden Loft Ladder, 330 cm, 26 mm Insulated Hatch

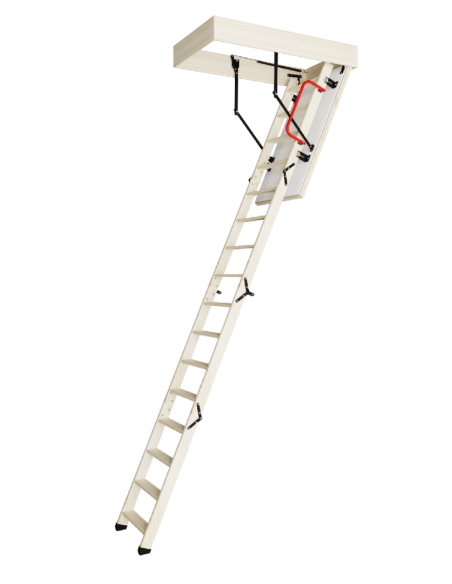

The AUBRAC 330 is the tallest loft ladder in our range: it reaches ceiling heights of up to 330 cm. Its wooden ladder is 40 cm wide and has 15 treads.

The casing comes in 130 x 60, 130 x 70, 140 x 60 or 140 x 70 cm sizes. The 26 mm hatch, containing 20 mm of insulation, helps limit draughts. The handrail is supplied.

Key features

Feature	Description
Model	AUBRAC 330
Construction	Wood
Hatch thickness	26 mm
Insulation thickness	20 mm
Available casing sizes	4 sizes: 130 or 140 cm long by 60 or 70 cm wide
Maximum ceiling height	330 cm
Number of treads	15
Ladder width	40 cm
Floor space required	145 cm
Opening clearance	205 cm
Height when folded	58 cm
Casing height	135 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included

Package contents

Ladder with casing and hatch
Handrail

Key points

✓ Extra-high reach: for ceiling heights up to 330 cm, the highest in our range
✓ Wooden ladder: 15 treads, 40 cm wide
✓ 20 mm insulation: 26 mm hatch
✓ 4 casing sizes: from 130 x 60 to 140 x 70 cm
✓ Handrail included
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Loft ladders for high ceilings: the features that matter when choosing, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
EVIRES 26	20 mm (26 mm hatch)	Wood-and-metal ladder, wooden casing	290 cm	195 to 210 cm	160 kg	-
ABANTOS 26	20 mm (26 mm hatch)	Metal (ladder and casing)	290 cm	195 to 210 cm	160 kg	-
EVIRES 86	80 mm (86 mm hatch)	Wood-and-metal ladder, wooden casing	290 cm	210 cm	160 kg	-
AUBRAC 26	20 mm (26 mm hatch)	Wood	310 cm	172 cm	160 kg	Included
AUBRAC 46	40 mm (46 mm hatch)	Wood	310 cm	165 cm	160 kg	Included
EVIRES GH 26	20 mm (26 mm hatch)	Metal ladder, wooden casing	310 cm	205 or 220 cm	160 kg	Included
AUBRAC 330	20 mm (26 mm hatch)	Wood	330 cm	145 cm	160 kg	Included

Choosing the right loft ladder

Above 310 cm, standard loft ladders are no longer sufficient. The AUBRAC 330 suits older homes and rooms with ceiling heights of up to 3.30 m.

It requires a casing at least 130 cm long, 145 cm of floor space and 205 cm of opening clearance. Its 26 mm hatch provides limited insulation: improve the insulation around the casing if the loft is cold.

Installation advice

Ceiling opening: prepare an opening to fit the chosen casing, allowing approximately 5 mm of clearance all around. Check that there is at least 135 mm of clear height above the ceiling to accommodate the casing.

Fixing: secure the casing to the floor structure (joists and trimmer joists) using screws suitable for the material, following the instructions. Check that it is square before fully tightening: a twisted casing will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the final section so it rests flat on the floor. Fit the handrail. Finally, join the loft insulation around the casing to avoid thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and make sure the hatch opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the treads.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and casing, which provides the airtight seal.

Frequently asked questions

Which loft ladder suits a ceiling height of 3.30 m?

The AUBRAC 330 reaches ceiling heights of up to 330 cm with 15 wooden treads. It requires a casing 130 or 140 cm long.

How much floor space is needed to unfold the AUBRAC 330?

Allow 145 cm of floor space and 205 cm of clearance to open the hatch and unfold the ladder.

What is the difference between the AUBRAC 26 and AUBRAC 330?

The AUBRAC 26 reaches up to 310 cm with 12 treads; the AUBRAC 330 reaches 330 cm with 15 treads and a casing 130 or 140 cm long.

How do I choose the casing size for a loft ladder?

Choose the casing to suit the ceiling opening: its dimensions correspond to the opening required in the ceiling, allowing approximately 5 mm of clearance around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the casing closest in size without exceeding it.

Does a loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied to suit the maximum height and is trimmed at the bottom so the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it as directed in the instructions.
