AUBRAC High-Ceiling Loft Ladder, 310 cm, 46 mm Insulated Hatch

Name: AUBRAC High-Ceiling Loft Ladder, 310 cm, 46 mm Insulated Hatch
Brand: Levigne
SKU: ECBGH46
Price: 459.85 EUR
Availability: InStock

AUBRAC 46 loft ladder, all-wood construction, 12 treads, 9 frame sizes from 120 x 55 to 140 x 70 cm.

40 mm of insulation and a 46 mm hatch. Suitable for ceiling heights up to 310 cm, with a 165 cm floor space requirement, 167 cm opening clearance, a maximum load of 160 kg and compliance with EN 14975.

Handrail included. For an older home or a room with high ceilings where a standard loft ladder limited to 280 cm is not long enough. The AUBRAC 330 is available for even taller rooms.

Box dimension

Reference ECBGH4612060

€459.85 incl. tax

Including €0.85 for ecotax

3 Products In stock Last items in stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

AUBRAC High-Ceiling Loft Ladder, 310 cm, 46 mm Insulated Hatch

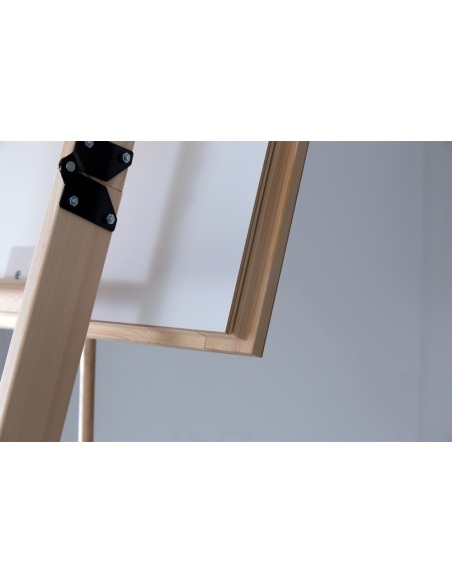

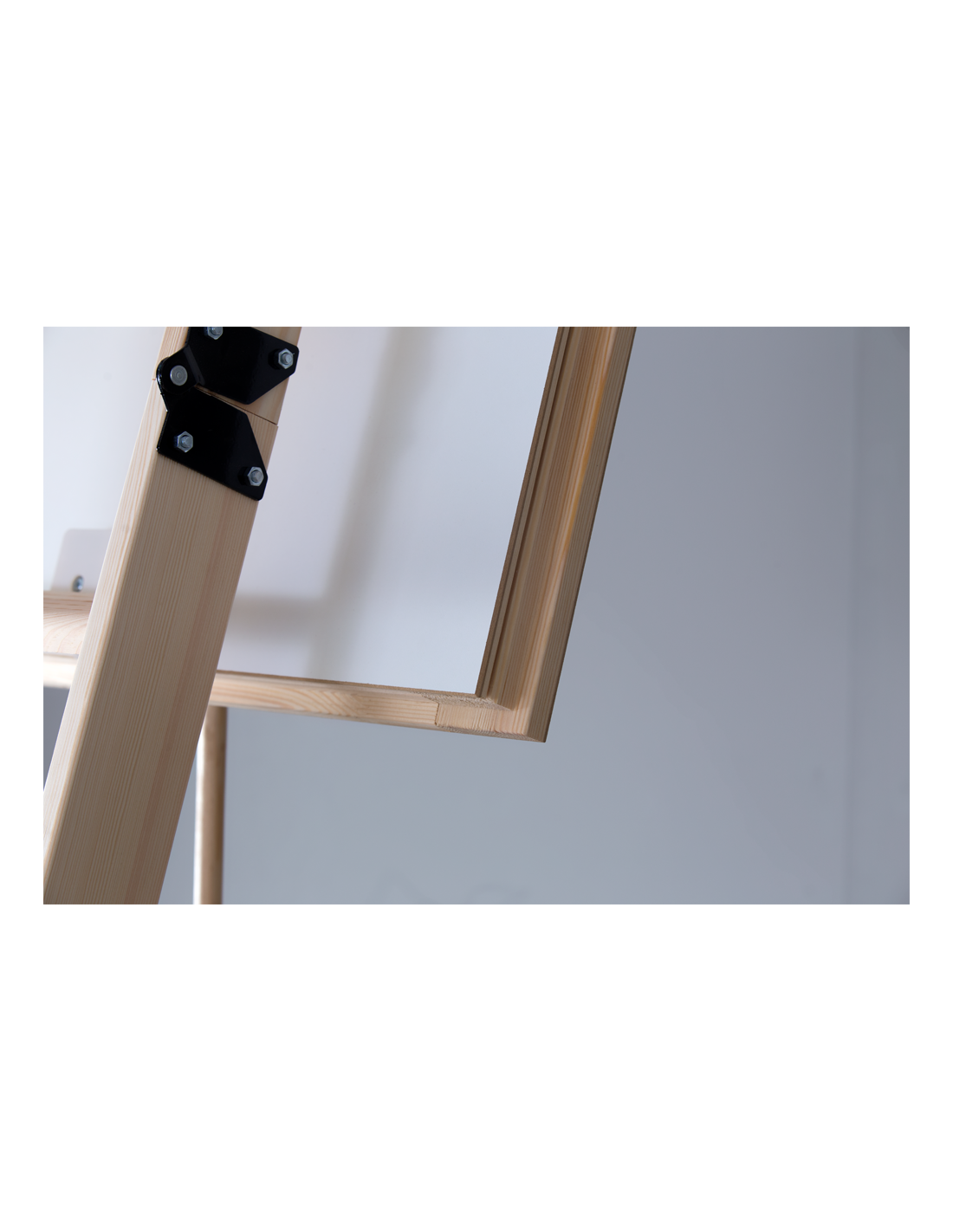

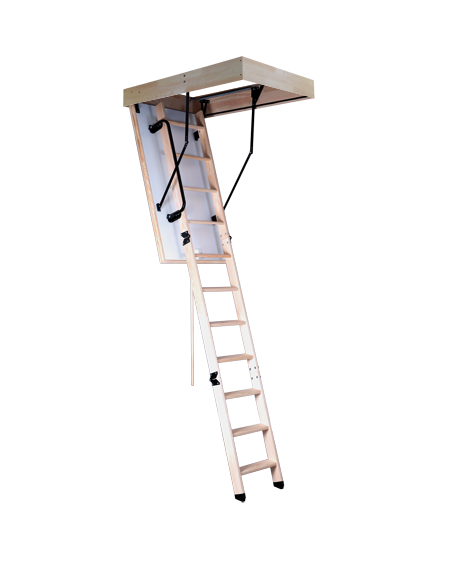

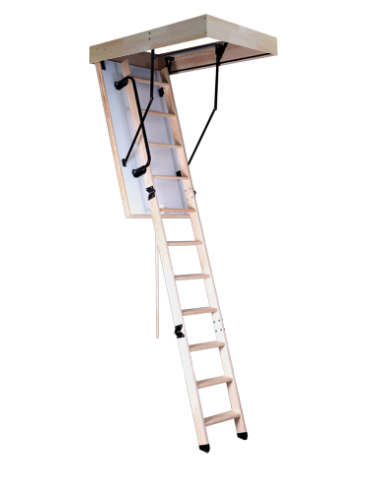

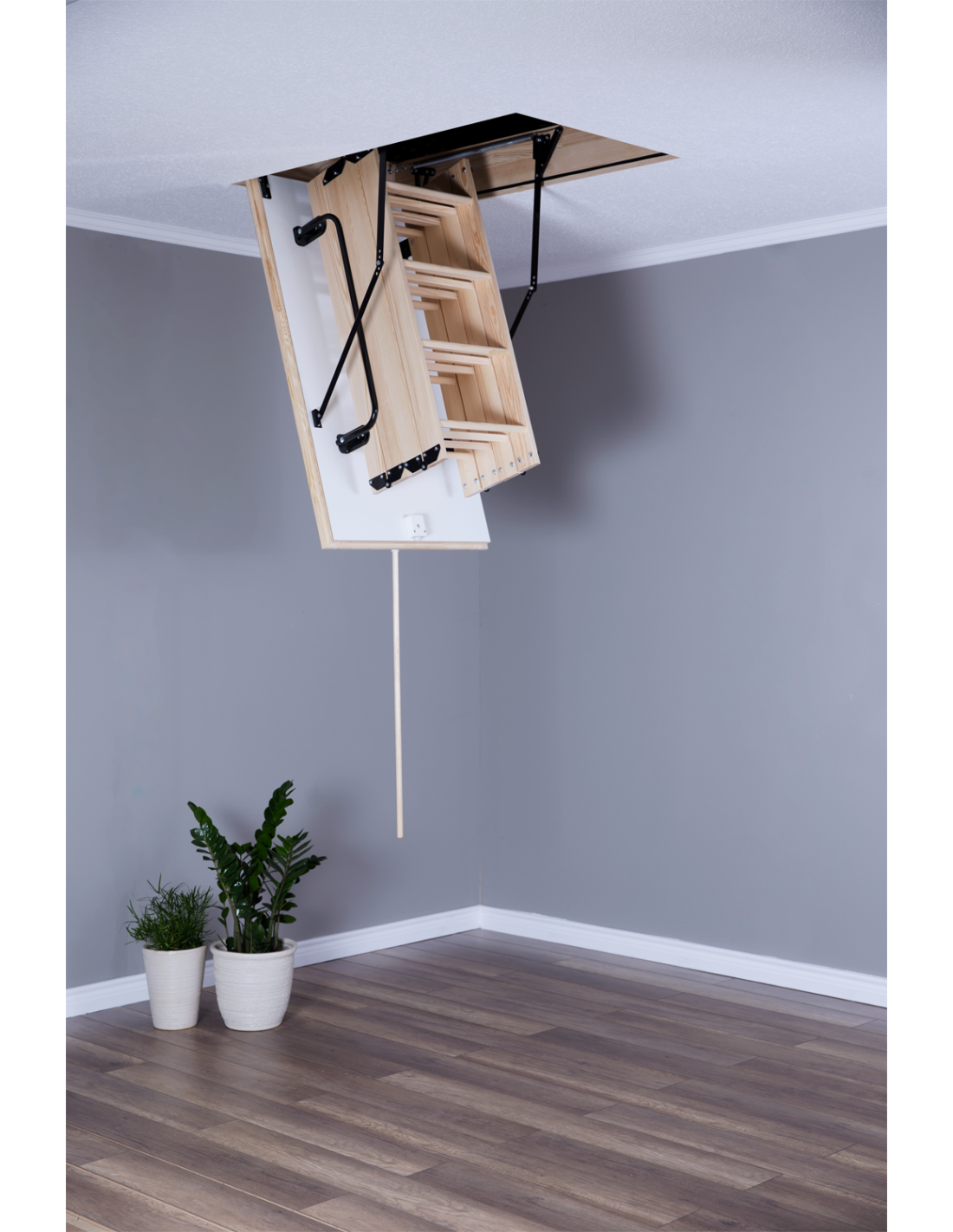

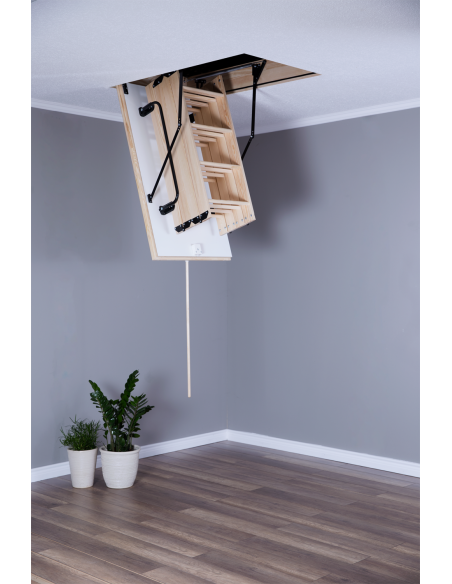

The AUBRAC 46 is a wooden loft ladder for high ceilings of up to 310 cm. Its 46 mm hatch, including 40 mm of insulation, helps insulate the loft in a home with high ceilings.

The 40 cm-wide ladder has 12 treads and folds into a 170 mm-deep frame. Nine sizes are available, from 120 x 55 to 140 x 70 cm. A handrail is supplied.

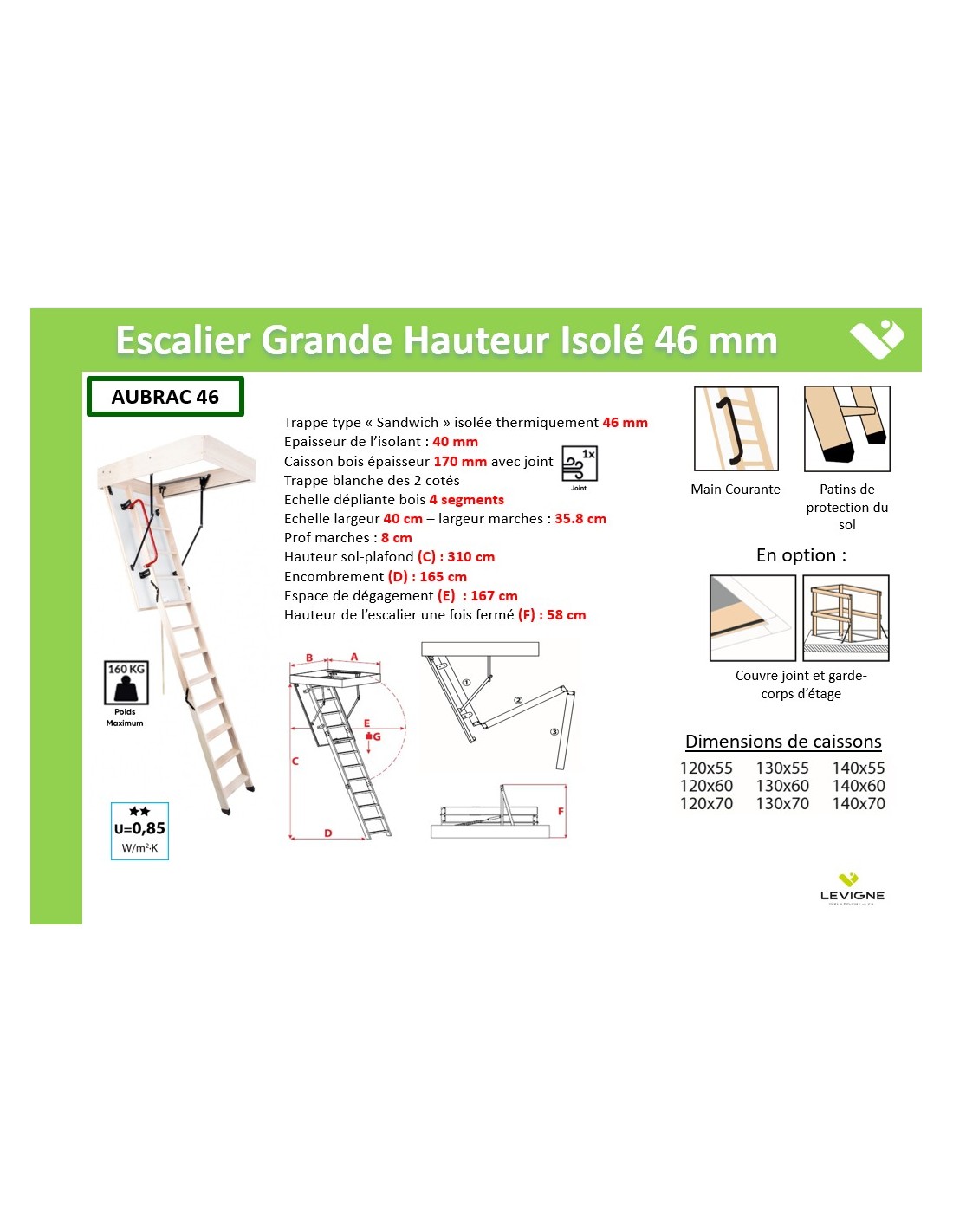

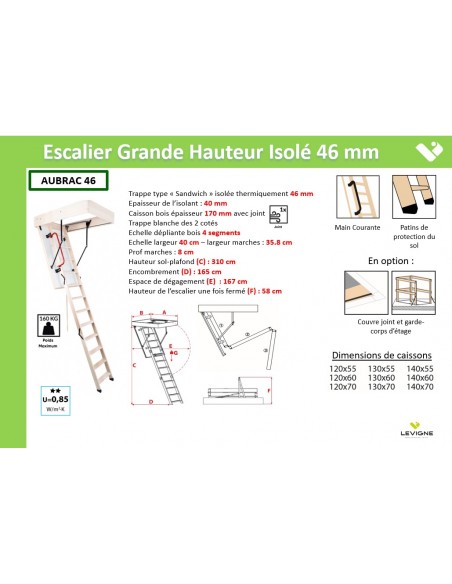

Key features

Feature	Description
Model	AUBRAC 46
Construction	Wood
Hatch thickness	46 mm
Insulation thickness	40 mm
Available frame sizes	9 sizes: 120, 130 or 140 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	310 cm
Number of treads	12
Ladder width	40 cm
Floor space required	165 cm
Opening clearance	167 cm
Folded height	58 cm
Frame depth	170 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included

Package contents

Ladder with frame and hatch
Handrail

Key points

✓ For high ceilings: up to 310 cm
✓ 40 mm of insulation: 46 mm hatch
✓ All wood: ladder and frame, 12 treads
✓ 9 frame sizes: from 120 x 55 to 140 x 70 cm
✓ Handrail included
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

High-ceiling loft ladders: the features to consider when choosing, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
EVIRES 26	20 mm (26 mm hatch)	Wood and metal ladder, wooden frame	290 cm	195 to 210 cm	160 kg	-
ABANTOS 26	20 mm (26 mm hatch)	Metal (ladder and frame)	290 cm	195 to 210 cm	160 kg	-
EVIRES 86	80 mm (86 mm hatch)	Wood and metal ladder, wooden frame	290 cm	210 cm	160 kg	-
AUBRAC 26	20 mm (26 mm hatch)	Wood	310 cm	172 cm	160 kg	Included
AUBRAC 46	40 mm (46 mm hatch)	Wood	310 cm	165 cm	160 kg	Included
EVIRES GH 26	20 mm (26 mm hatch)	Metal ladder, wooden frame	310 cm	205 or 220 cm	160 kg	Included
AUBRAC 330	20 mm (26 mm hatch)	Wood	330 cm	145 cm	160 kg	Included

Choosing the right loft ladder

Standard loft ladders accommodate ceiling heights up to 280 cm. The AUBRAC 46 reaches 310 cm and offers better insulation than the AUBRAC 26. For an even taller room, the AUBRAC 330 reaches 330 cm.

The extra height calls for space: 165 cm of floor space and 167 cm of clearance.

Installation tips

Ceiling opening: prepare an opening to fit the chosen frame, allowing around 5 mm of clearance all round. Check that there is at least 170 mm of clear space above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimming joists) with fixings suited to the material, following the instructions. Check that the frame is square before fully tightening the fixings: a twisted frame will prevent the hatch from closing properly.

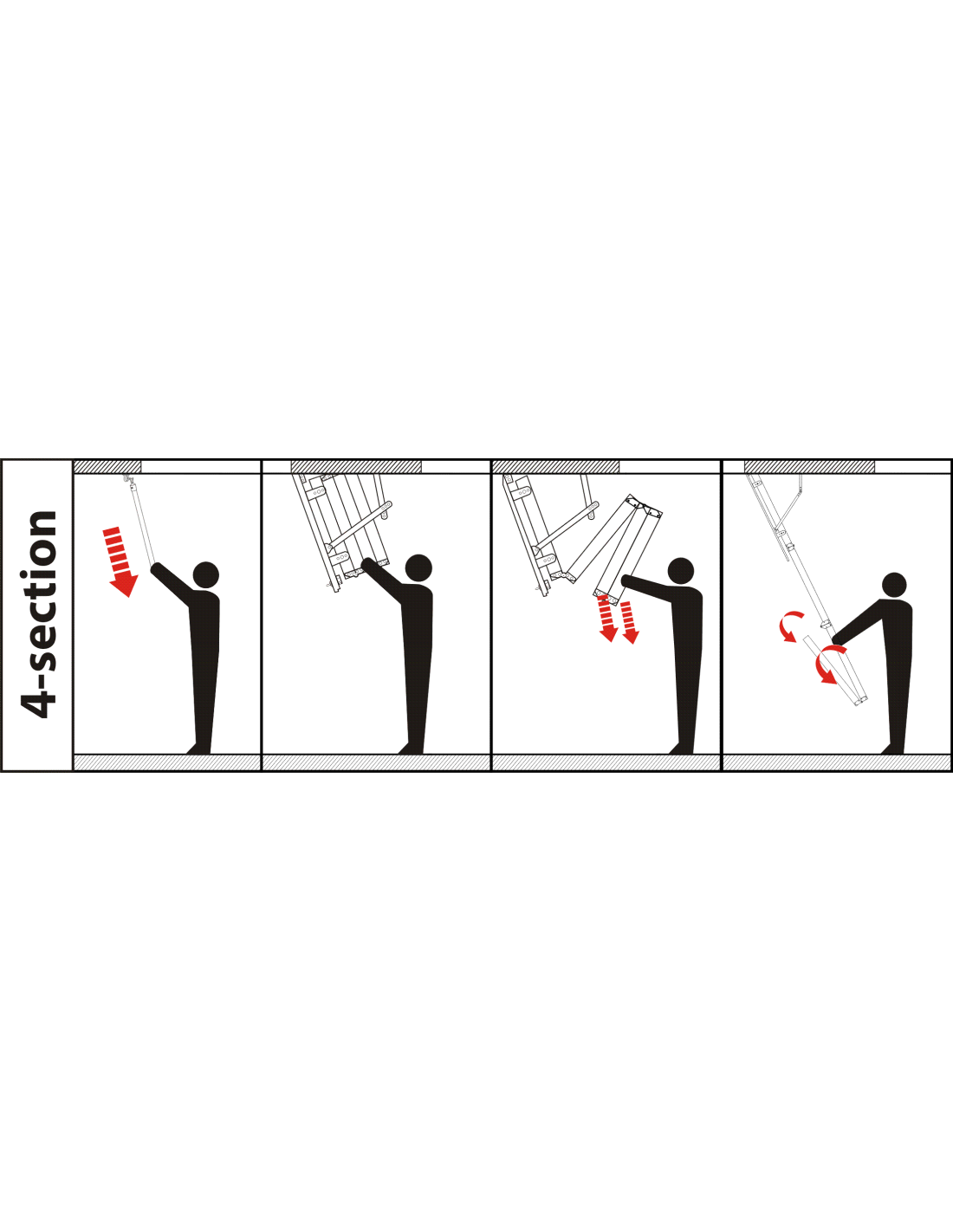

Adjustment: unfold the ladder, measure the ceiling height and trim the final section so that it rests flat on the floor. Fit the handrail. Finally, connect the loft insulation around the frame to prevent thermal bridging.

Care and protection

Once a year, check that the screws are tight, inspect the joints between sections and check that the hatch opening mechanism works properly. Lubricate the mechanisms if the hatch becomes difficult to open, and dust the treads.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides an airtight fit.

Frequently asked questions

Which loft ladder is suitable for a 3 m ceiling height?

A high-ceiling model such as the AUBRAC 46, suitable for ceiling heights of up to 310 cm. Allow 165 cm of floor space when the ladder is unfolded.

What is the difference between the AUBRAC 26 and AUBRAC 46?

The same high-ceiling wooden ladder, suitable for heights up to 310 cm. The AUBRAC 46 has a 46 mm hatch rather than a 26 mm one, for better insulation where the loft is above a heated room.

How much floor space is needed to unfold the AUBRAC 46?

Allow 165 cm of floor space and 167 cm of clearance to open the hatch and unfold the ladder.

How do you choose the frame size for a loft ladder?

Choose the frame to fit the ceiling opening: its dimensions correspond to the opening needed, with around 5 mm of clearance all round for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Do you need to trim a loft ladder to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and trimmed at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
