EVIRES Insulated Loft Ladder, 86 mm Hatch, 120 cm Frame

Name: EVIRES Insulated Loft Ladder, 86 mm Hatch, 120 cm Frame
Brand: Levigne
SKU: ECBETI86
Price: 1254.19 EUR
Availability: PreOrder

EVIRES 86 loft ladder, wood and metal ladder, wooden frame, 10 steps, 120 x 60 or 120 x 70 cm frame.

80 mm insulation, 86 mm hatch. For ceiling heights up to 290 cm, with 210 cm of floor space required, 245 cm of clearance, a maximum load of 160 kg and compliance with EN 14975.

For a cold loft above a heated room, with a ceiling height of up to 290 cm. Allow 210 cm of floor space when the ladder is fully unfolded.

Box dimension

Reference ECBETI8612060

€1,254.19 incl. tax

Including €0.29 for ecotax

To order. 5 6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

EVIRES Insulated Loft Ladder, 86 mm Hatch, 120 cm Frame

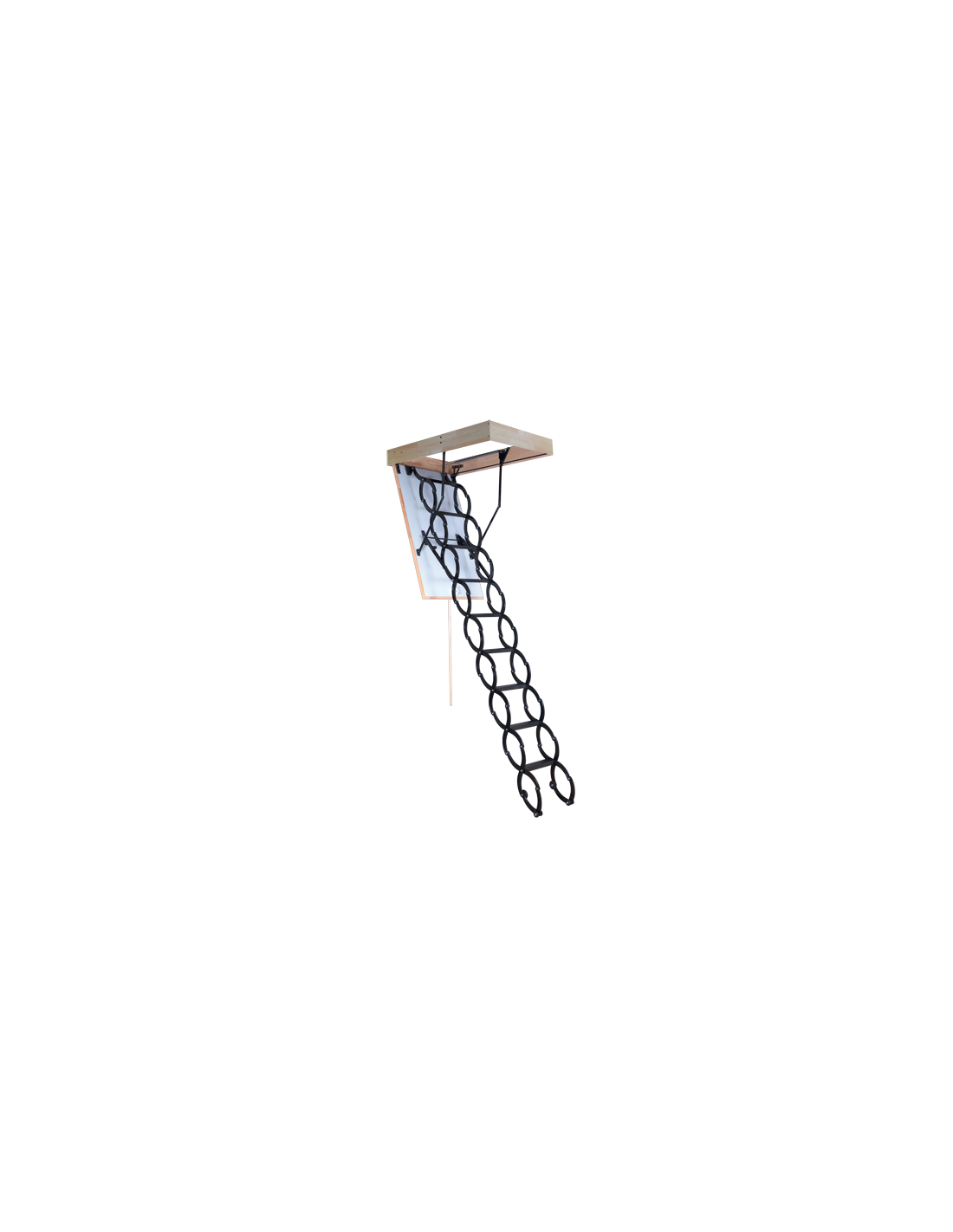

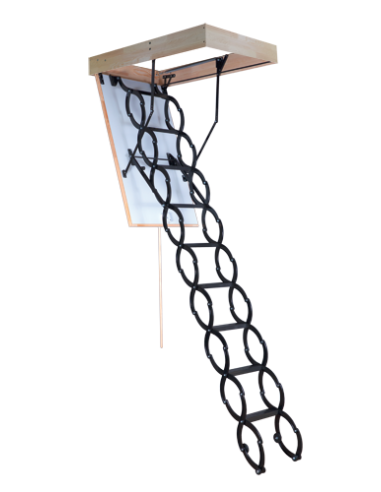

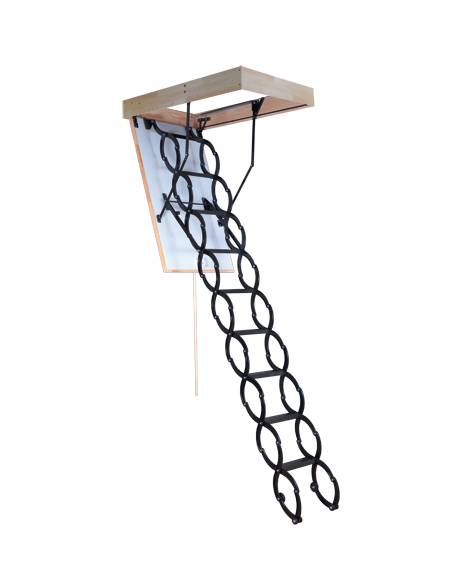

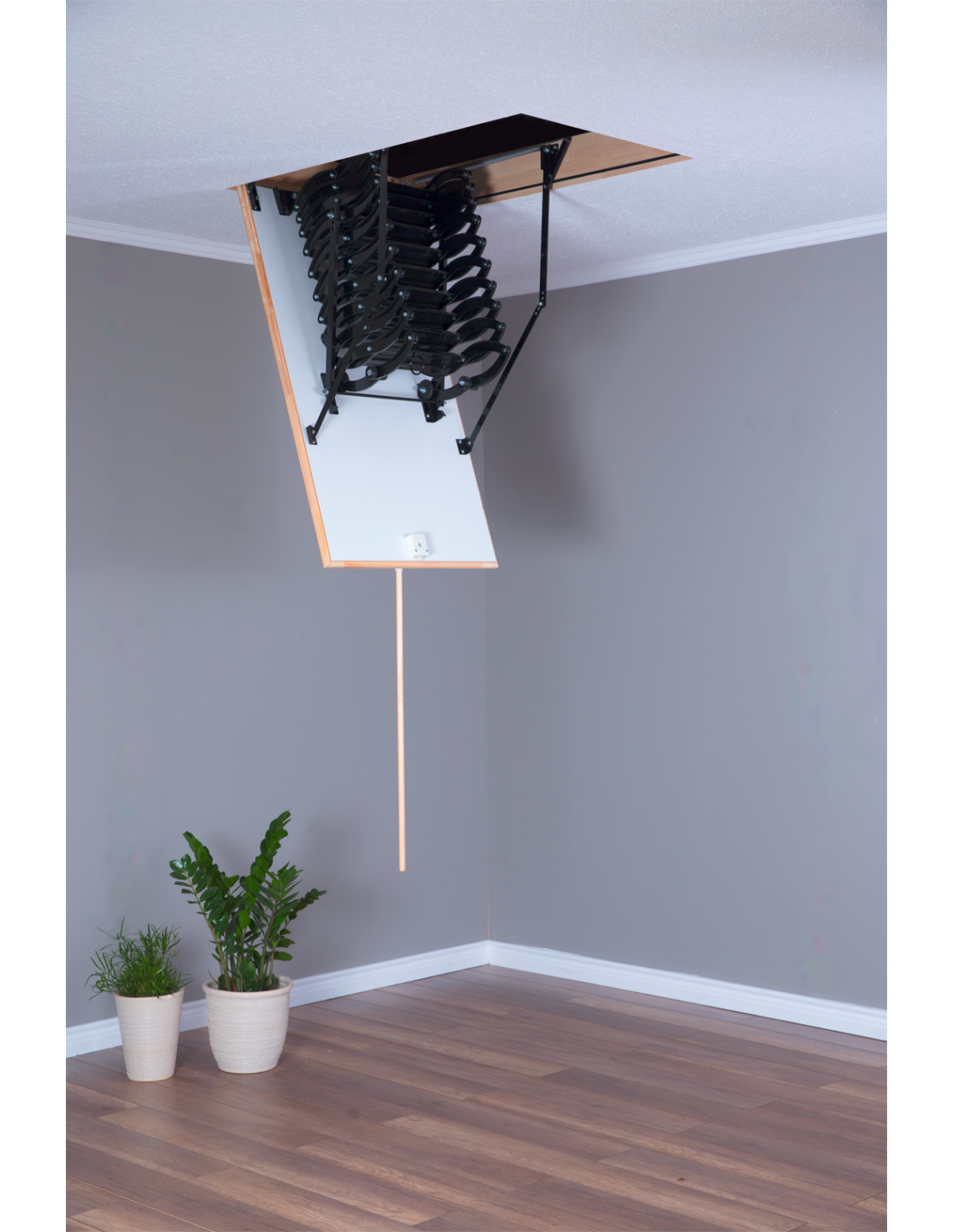

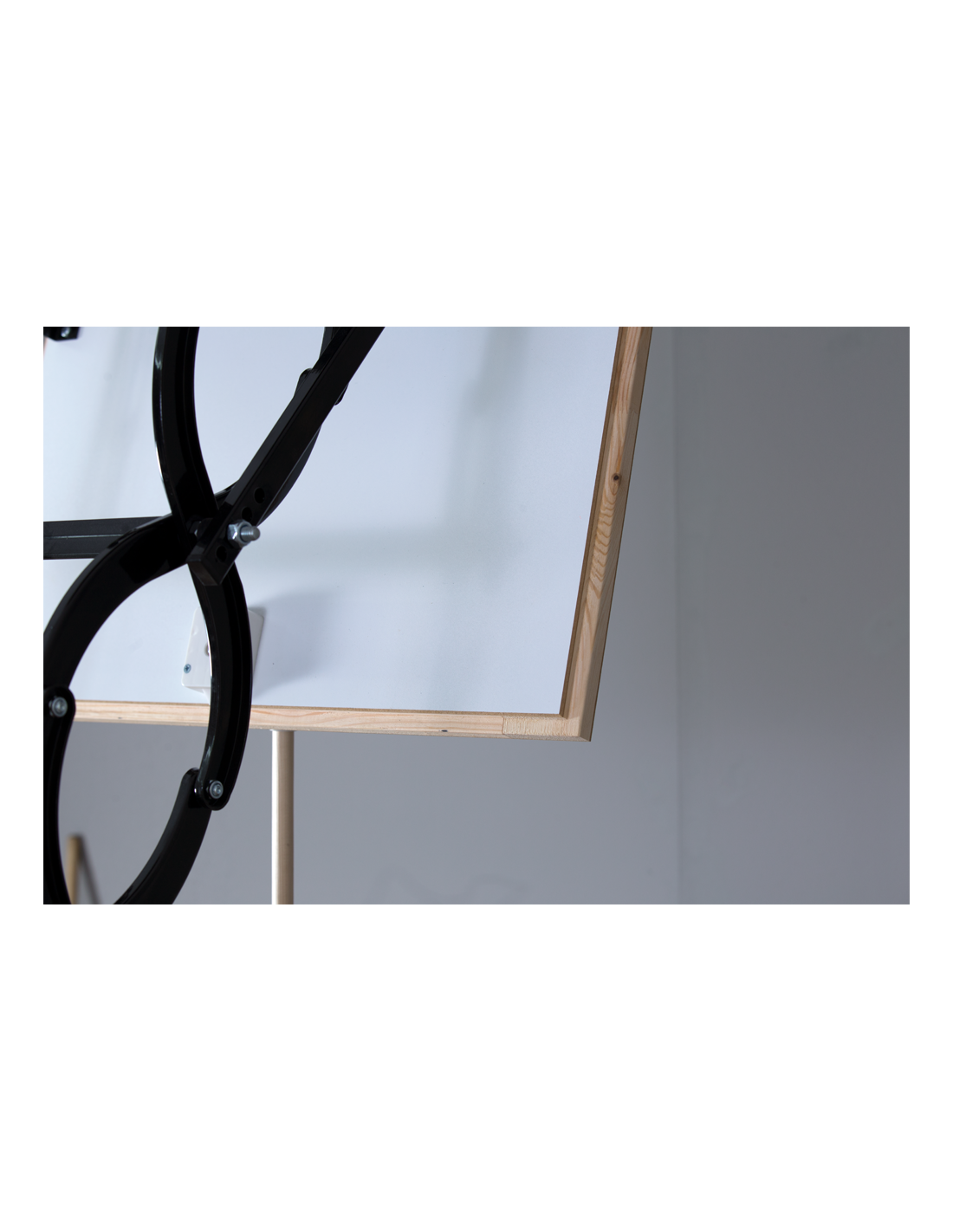

The EVIRES 86 combines an 86 mm insulated hatch, including 80 mm of insulation, with a wood and metal ladder with 10 steps. It reaches ceiling heights of up to 290 cm.

The frame comes in 120 x 60 or 120 x 70 cm sizes and is 170 mm high. The ladder supports 160 kg and meets the EN 14975 standard for loft ladders.

Key specifications

Feature	Description
Model	EVIRES 86
Construction	Wood and metal ladder, wooden frame
Hatch thickness	86 mm
Insulation thickness	80 mm
Available frame sizes	2 sizes: 120 cm long by 60 or 70 cm wide
Maximum ceiling height	290 cm
Number of steps	10
Ladder width	39 cm
Floor space required	210 cm
Clearance required	245 cm
Height when folded	62 cm
Frame height	170 mm
Maximum load	160 kg
Standard	EN 14975

Package contents

Ladder with frame and hatch

Key points

✓ 80 mm insulation: 86 mm hatch
✓ Ceiling height: up to 290 cm
✓ Wood and metal ladder: 10 steps, 39 cm wide
✓ Frame: 120 x 60 or 120 x 70 cm
✓ Floor space required: 210 cm
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Loft ladders for high ceilings: the features to consider, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
EVIRES 26	20 mm (26 mm hatch)	Wood and metal ladder, wooden frame	290 cm	195 to 210 cm	160 kg	-
ABANTOS 26	20 mm (26 mm hatch)	Metal (ladder and frame)	290 cm	195 to 210 cm	160 kg	-
EVIRES 86	80 mm (86 mm hatch)	Wood and metal ladder, wooden frame	290 cm	210 cm	160 kg	-
AUBRAC 26	20 mm (26 mm hatch)	Wood	310 cm	172 cm	160 kg	Included
AUBRAC 46	40 mm (46 mm hatch)	Wood	310 cm	165 cm	160 kg	Included
EVIRES GH 26	20 mm (26 mm hatch)	Metal ladder, wooden frame	310 cm	205 or 220 cm	160 kg	Included
AUBRAC 330	20 mm (26 mm hatch)	Wood	330 cm	145 cm	160 kg	Included

How to choose the right loft ladder

The EVIRES 86 is suitable for a cold loft above a heated room, with a ceiling height slightly greater than the 280 cm accommodated by standard models.

Its ladder requires 210 cm of floor space and 245 cm of clearance. If space is limited, a more compact model with an 86 mm hatch, such as the CHALANCON 86 or BLUFFY 86, takes up less than 150 cm, but is limited to a ceiling height of 280 cm.

Installation advice

Ceiling opening: prepare an opening to fit the chosen frame, allowing approximately 5 mm around the perimeter. Check that there is at least 170 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmers) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and cut the bottom section so that it rests flat on the floor. Finally, fit the loft insulation around the frame to avoid thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and check that the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the steps.

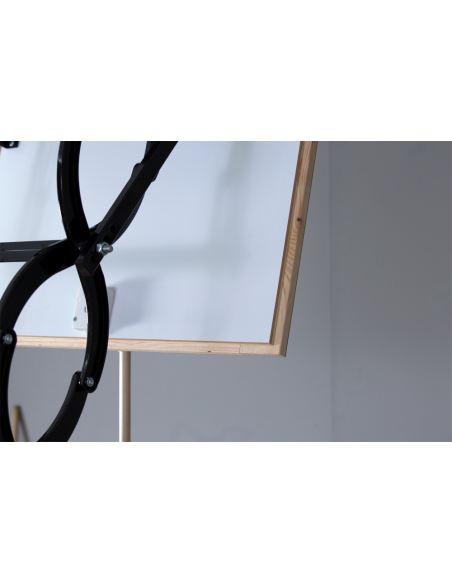

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight barrier.

Frequently asked questions

What does the EN 14975 standard guarantee for a loft ladder?

This is the European standard for loft ladders. It sets requirements for strength, safety and testing. The EVIRES 86 meets this standard, with a load capacity of 160 kg.

How much floor space is needed to unfold the EVIRES 86?

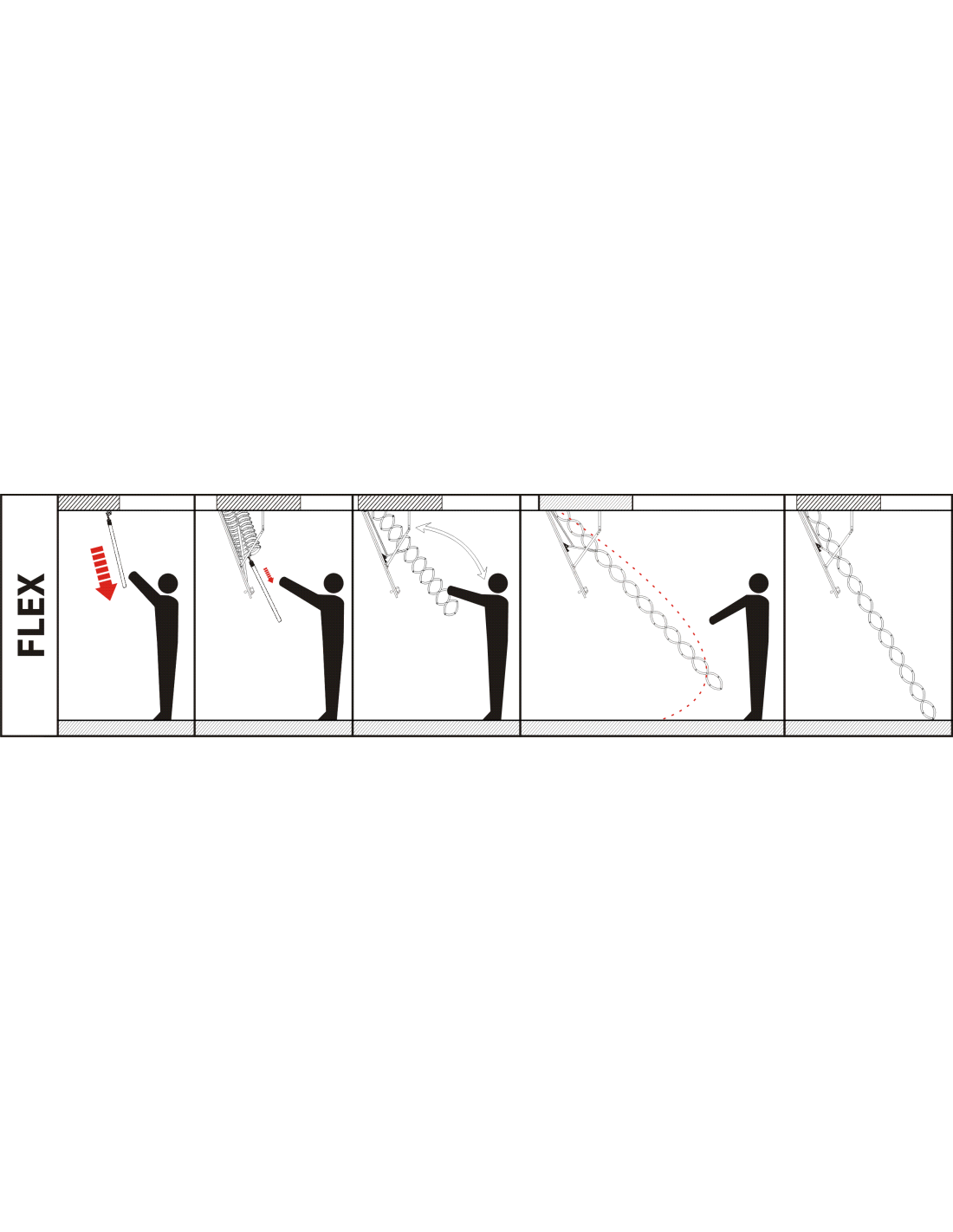

Allow 210 cm of floor space and 245 cm of clearance to open the hatch and unfold the ladder.

Why choose an 86 mm insulated hatch?

The hatch is often the weak point in loft insulation. With 80 mm of insulation, the EVIRES 86 limits heat loss from a heated room into a cold loft.

How do I choose the frame size for a loft ladder?

Choose the frame to fit the ceiling opening: its dimensions correspond to the opening needed, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Do I need to cut a loft ladder to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is cut at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
