ABANTOS Metal Insulated Loft Ladder, 26 mm Hatch, Ceiling Opening from 70 x 50 cm
ABANTOS 26 loft ladder, metal ladder and frame, 10 steps, 18 frame sizes from 70 x 50 to 130 x 70 cm.
20 mm insulation, 26 mm hatch. For ceiling heights up to 290 cm, with 195 to 210 cm of floor space required, 220 to 245 cm of clearance, a maximum load of 160 kg and compliance with EN 14975.
The widest choice of frame sizes in our loft ladder range, including the smallest, 70 x 50 cm. Allow nearly 2 m of floor space when the ladder is unfolded.
ABANTOS Metal Insulated Loft Ladder, 26 mm Hatch, Ceiling Opening from 70 x 50 cm

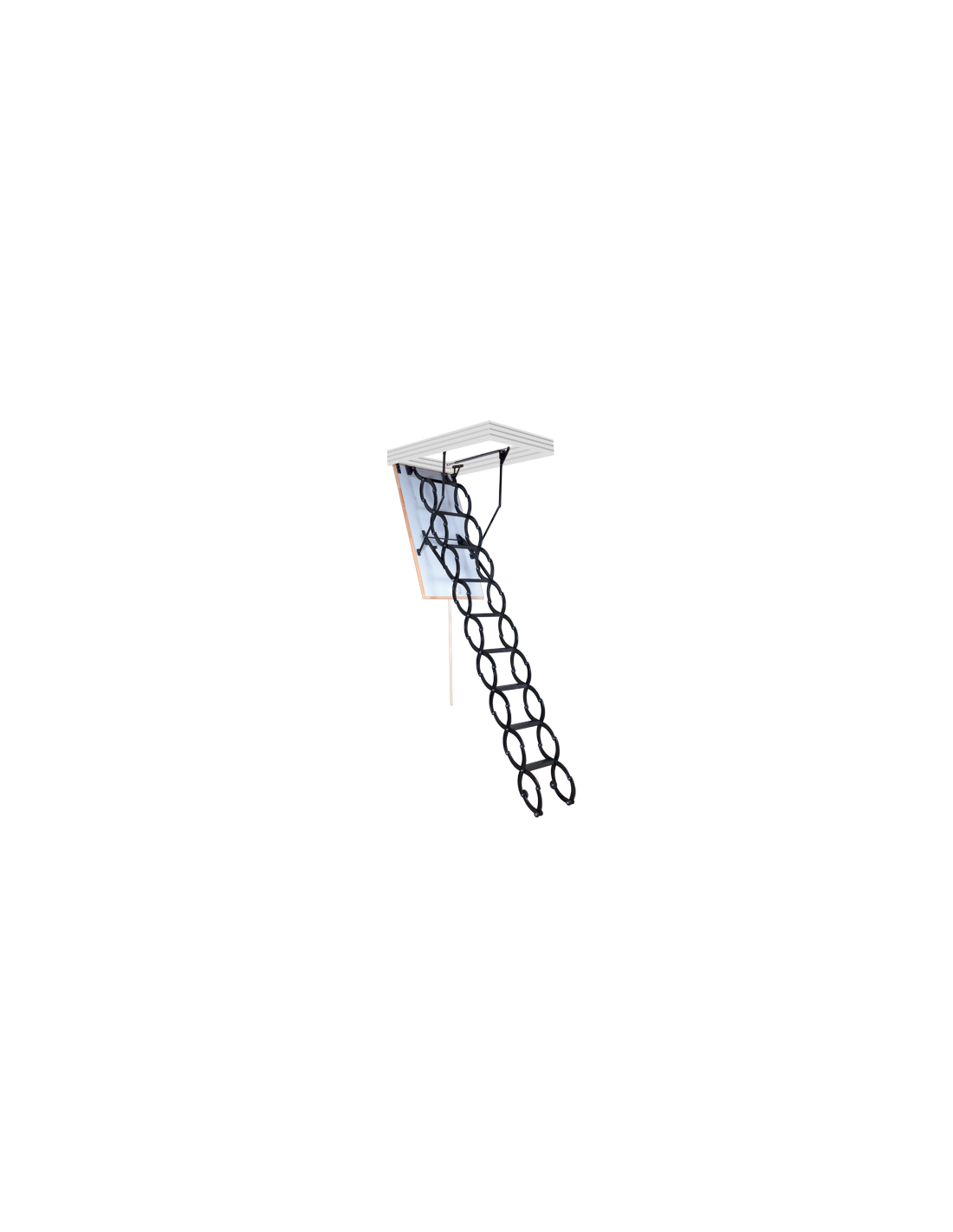

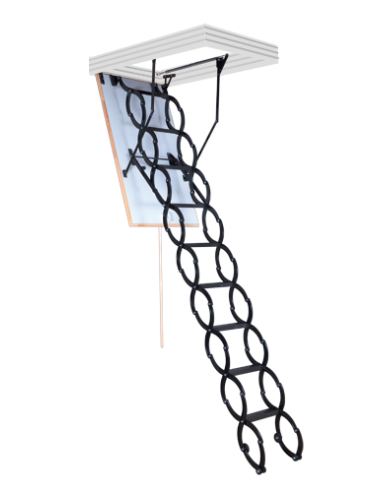

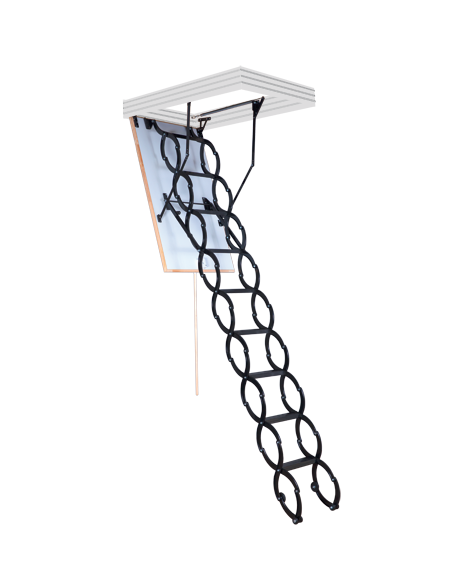

The ABANTOS 26 is an all-metal loft ladder, including both ladder and frame. It comes in 18 frame sizes, the widest range in our selection, from 70 x 50 to 130 x 70 cm.
The 39 cm-wide ladder has 10 steps and reaches ceiling heights of up to 290 cm. The 26 mm hatch, including 20 mm of insulation, limits draughts.

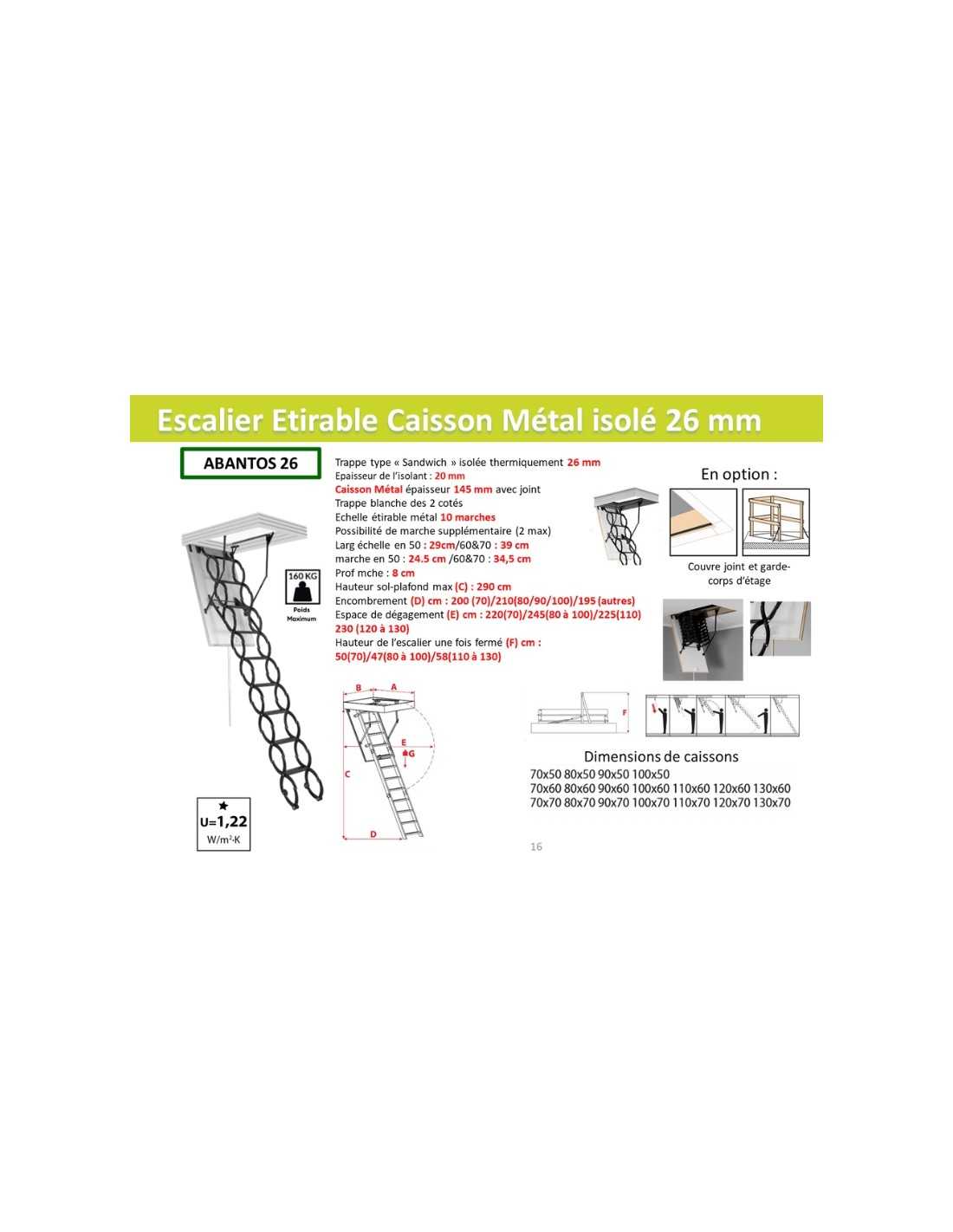

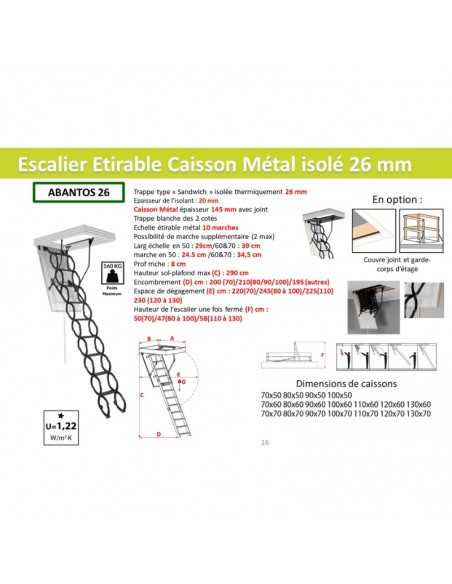

Key specifications
| Feature | Description |
|---|---|
| Model | ABANTOS 26 |
| Construction | Metal (ladder and frame) |
| Hatch thickness | 26 mm |
| Insulation thickness | 20 mm |
| Available frame sizes | 18 sizes: 70 x 50, 70 x 60, 70 x 70, 80 x 50, 80 x 60, 80 x 70, 90 x 50, 90 x 60, 90 x 70, 100 x 50, 100 x 60, 100 x 70, 110 x 60, 110 x 70, 120 x 60, 120 x 70, 130 x 60, 130 x 70 cm |
| Maximum ceiling height | 290 cm |
| Number of steps | 10 |
| Ladder width | 39 cm |
| Floor space required | 195 to 210 cm depending on the frame |
| Clearance required | 220 to 245 cm depending on the frame |
| Height when folded | 47 to 58 cm depending on the frame |
| Maximum load | 160 kg |
| Standard | EN 14975 |
Package contents
- Ladder with frame and hatch
Key points
- ✓ All-metal: ladder and frame
- ✓ 18 frame sizes: from 70 x 50 cm up to 130 x 70 cm
- ✓ Ceiling height: up to 290 cm
- ✓ 20 mm insulation: 26 mm hatch
- ✓ Floor space required: 195 to 210 cm
- ✓ Maximum load: 160 kg, EN 14975 standard
Range comparison
Loft ladders for high ceilings: the features to consider, model by model.
| Model | Insulation thickness | Construction | Maximum height | Floor space required | Load | Handrail |
|---|---|---|---|---|---|---|
| EVIRES 26 | 20 mm (26 mm hatch) | Wood and metal ladder, wooden frame | 290 cm | 195 to 210 cm | 160 kg | - |
| ABANTOS 26 | 20 mm (26 mm hatch) | Metal (ladder and frame) | 290 cm | 195 to 210 cm | 160 kg | - |
| EVIRES 86 | 80 mm (86 mm hatch) | Wood and metal ladder, wooden frame | 290 cm | 210 cm | 160 kg | - |
| AUBRAC 26 | 20 mm (26 mm hatch) | Wood | 310 cm | 172 cm | 160 kg | Included |
| AUBRAC 46 | 40 mm (46 mm hatch) | Wood | 310 cm | 165 cm | 160 kg | Included |
| EVIRES GH 26 | 20 mm (26 mm hatch) | Metal ladder, wooden frame | 310 cm | 205 or 220 cm | 160 kg | Included |
| AUBRAC 330 | 20 mm (26 mm hatch) | Wood | 330 cm | 145 cm | 160 kg | Included |
How to choose the right loft ladder
The metal frame is suitable for spaces where wood is less appropriate, and for very small ceiling openings: 70 x 50 cm is the smallest size in our range. With 18 sizes, there is almost always a frame close to the size of the existing opening.
Allow 195 to 210 cm of floor space when unfolded and 220 to 245 cm of clearance. For a narrow room, check this measurement first.
Installation advice
Ceiling opening: prepare an opening to fit the chosen frame, allowing approximately 5 mm around the perimeter.
Fixing: secure the frame to the floor structure (joists and trimmers) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.
Adjustment: unfold the ladder, measure the ceiling height and cut the bottom section so that it rests flat on the floor. Finally, fit the loft insulation around the frame to avoid thermal bridges.
Care and protection
Once a year, check that the screws are tight, inspect the joints between ladder sections and check that the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the steps.
The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight barrier.
Frequently asked questions
Steel or wooden loft ladder: which should you choose?
Metal provides a rigid frame and ladder and, in this case, a wider range of sizes. Wood blends more easily into an interior. The ABANTOS is entirely metal and comes in 18 frame sizes.
What is the smallest loft ladder available?
In our range, the ABANTOS has the smallest frame option: 70 x 50 cm. Even so, it reaches ceiling heights of up to 290 cm.
How much floor space is needed to unfold the ABANTOS?
Allow 195 to 210 cm of floor space, depending on the frame, and 220 to 245 cm of clearance to open the hatch and unfold the ladder.
How do I choose the frame size for a loft ladder?
Choose the frame to fit the ceiling opening: its dimensions correspond to the opening needed, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.
Do I need to cut a loft ladder to length?
Yes, in most cases. The ladder is supplied for the maximum ceiling height and is cut at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
- Width (cm)
- 39
- Species/material
- Metal
- Number of treads
- 10
- Standard
- EN14975
- Footprint (cm)
- 200 / 210 /195
- Closed staircase height (cm)
- 50/ 47 / 58
- maximum load (kg)
- 160
- clearance space (cm)
- 220 / 225 / 230 / 245
- Insulation thickness (mm)
- 20
- Tread depth (cm)
- 8
- Hatch thickness (mm)
- 26
- Floor-to-ceiling height (cm)
- 290
