EVIRES 26 loft ladder, wood and metal ladder, wooden frame, 10 steps, 14 frame sizes from 70 x 60 to 130 x 70 cm.

20 mm insulation, 26 mm hatch. For ceiling heights up to 290 cm, with 195 to 210 cm of floor space required, 220 to 245 cm of clearance, a maximum load of 160 kg and compliance with EN 14975.

For a short or square ceiling opening, such as 70 x 70 cm. Reaches up to 290 cm, but requires 195 to 210 cm of floor space when the ladder is unfolded.

Box dimension

Reference ECBETI2612060

€459.00 incl. tax

1 Products In stock Last items in stock Restocking in progress

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

EVIRES Insulated Loft Ladder, 26 mm Hatch, Ceiling Opening from 70 x 60 cm

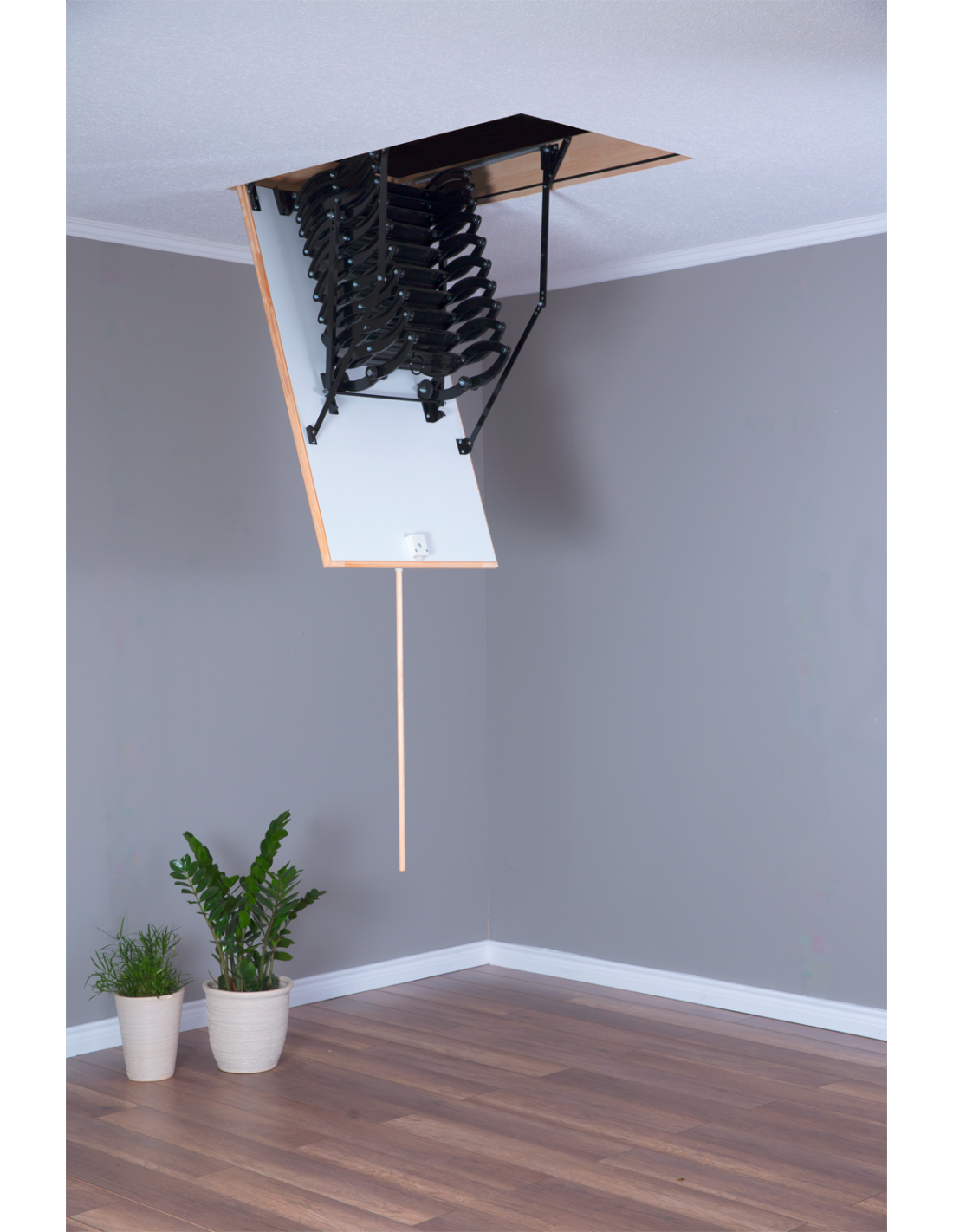

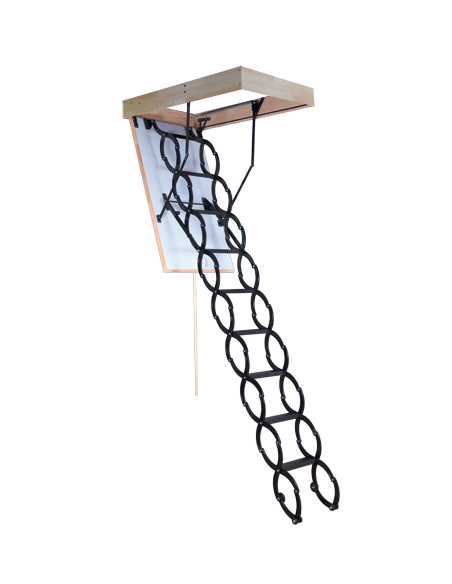

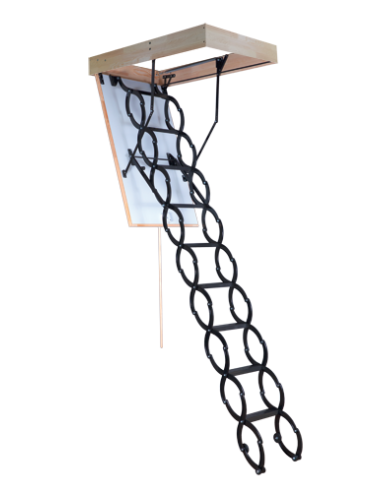

The EVIRES 26 is a loft ladder for a very small ceiling opening: its frame starts at 70 x 60 cm, with 14 sizes up to 130 x 70 cm. It reaches ceiling heights of up to 290 cm.

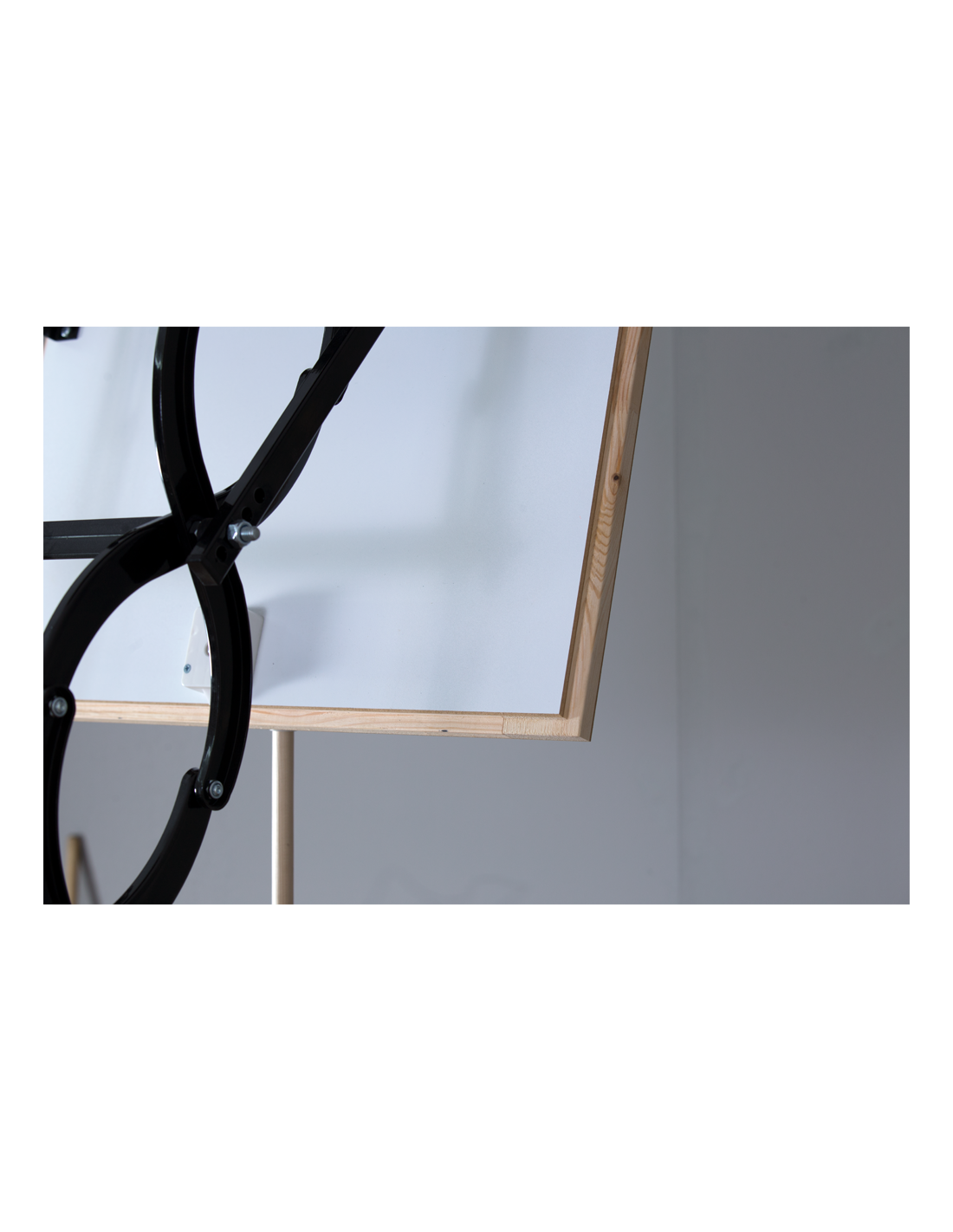

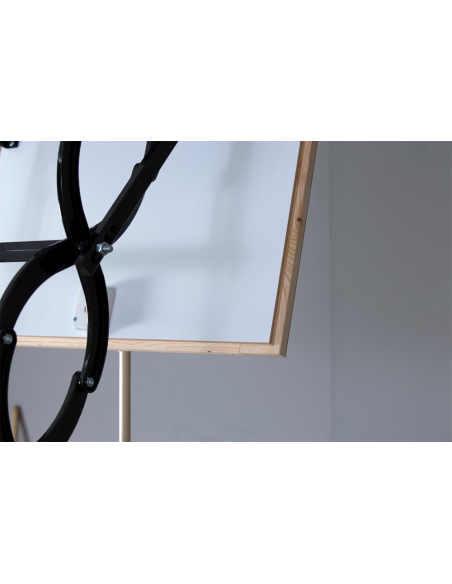

The wood and metal ladder is 39 cm wide and has 10 steps. The 26 mm hatch, including 20 mm of insulation, limits draughts into the loft.

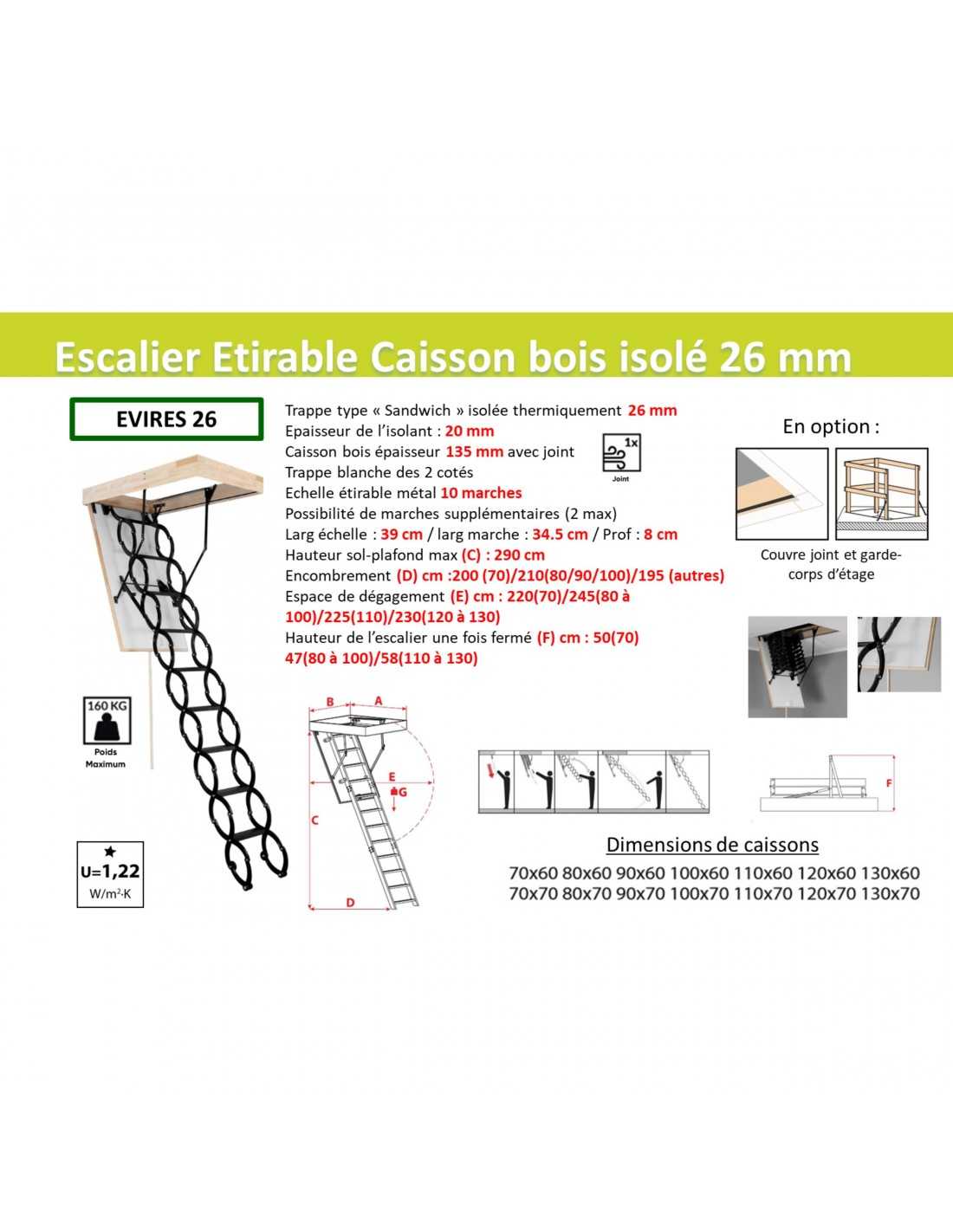

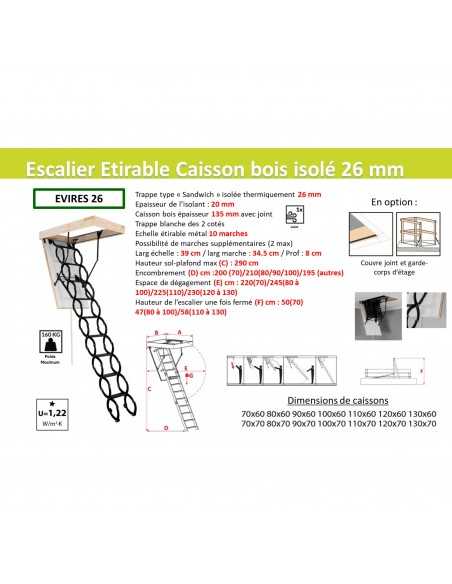

Key specifications

Feature	Description
Model	EVIRES 26
Construction	Wood and metal ladder, wooden frame
Hatch thickness	26 mm
Insulation thickness	20 mm
Available frame sizes	14 sizes: 70, 80, 90, 100, 110, 120 or 130 cm long by 60 or 70 cm wide
Maximum ceiling height	290 cm
Number of steps	10
Ladder width	39 cm
Floor space required	195 to 210 cm depending on the frame
Clearance required	220 to 245 cm depending on the frame
Height when folded	47 to 58 cm depending on the frame
Frame height	135 mm
Maximum load	160 kg
Standard	EN 14975

Package contents

Ladder with frame and hatch

Key points

✓ Very small ceiling opening: from 70 x 60 cm, with 14 frame sizes up to 130 x 70 cm
✓ Ceiling height: up to 290 cm
✓ 20 mm insulation: 26 mm hatch
✓ Wood and metal ladder: 10 steps, 39 cm wide
✓ Floor space required: 195 to 210 cm
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Loft ladders for high ceilings: the features to consider, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
EVIRES 26	20 mm (26 mm hatch)	Wood and metal ladder, wooden frame	290 cm	195 to 210 cm	160 kg	-
ABANTOS 26	20 mm (26 mm hatch)	Metal (ladder and frame)	290 cm	195 to 210 cm	160 kg	-
EVIRES 86	80 mm (86 mm hatch)	Wood and metal ladder, wooden frame	290 cm	210 cm	160 kg	-
AUBRAC 26	20 mm (26 mm hatch)	Wood	310 cm	172 cm	160 kg	Included
AUBRAC 46	40 mm (46 mm hatch)	Wood	310 cm	165 cm	160 kg	Included
EVIRES GH 26	20 mm (26 mm hatch)	Metal ladder, wooden frame	310 cm	205 or 220 cm	160 kg	Included
AUBRAC 330	20 mm (26 mm hatch)	Wood	330 cm	145 cm	160 kg	Included

How to choose the right loft ladder

The EVIRES fits square or short ceiling openings, such as 70 x 70 cm, that most loft ladders cannot accommodate. Yet it still reaches up to 290 cm.

You will, however, need floor space: 195 to 210 cm depending on the frame, plus 220 to 245 cm of clearance. For a narrow room, compare it with the more compact NOZIERES, which is limited to 265 cm.

Installation advice

Ceiling opening: prepare an opening to fit the chosen frame, allowing approximately 5 mm around the perimeter. Check that there is at least 135 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmers) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and cut the bottom section so that it rests flat on the floor. Finally, fit the loft insulation around the frame to avoid thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and check that the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the steps.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight barrier.

Frequently asked questions

Is there a loft ladder for a 70 x 70 cm ceiling opening?

Yes, the EVIRES 26 comes with a 70 x 70 cm frame, as well as a 70 x 60 cm frame. Its 10 steps reach ceiling heights of up to 290 cm.

How much floor space is needed to unfold the EVIRES 26?

Allow 195 to 210 cm of floor space, depending on the frame, and 220 to 245 cm of clearance to open the hatch and unfold the ladder.

Which loft ladder is suitable for a small ceiling opening and a small room?

If floor space is limited, a space-saving model such as the NOZIERES 26 or 46 takes up 101 to 135 cm when unfolded, but requires a frame of at least 80 x 60 cm and reaches only 265 cm.

How do I choose the frame size for a loft ladder?

Choose the frame to fit the ceiling opening: its dimensions correspond to the opening needed, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Do I need to cut a loft ladder to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is cut at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
