EVIRES High-Ceiling Loft Ladder, 310 cm, Metal Ladder, 26 mm Insulated Hatch

Name: EVIRES High-Ceiling Loft Ladder, 310 cm, Metal Ladder, 26 mm Insulated Hatch
Brand: Levigne
SKU: ECBETIGH26
Price: 489.85 EUR
Availability: InStock

EVIRES GH 26 loft ladder, metal ladder, wooden frame, 12 treads, 12 frame sizes from 80 x 60 to 130 x 70 cm.

20 mm insulation, 26 mm hatch. For ceilings up to 310 cm high; requires 205 or 220 cm of floor space and 245 to 265 cm of clearance. Maximum load 160 kg; EN 14975 standard.

Handrail included. Suitable for a high-ceilinged room with a small ceiling opening. Allow more than 2 m of floor space when the ladder is unfolded: measure the room before ordering.

Box dimension

Reference ECBETIGH2612060

€489.85 incl. tax

Including €0.85 for ecotax

1 Item In stock Last items in stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

EVIRES High-Ceiling Loft Ladder, 310 cm, Metal Ladder, 26 mm Insulated Hatch

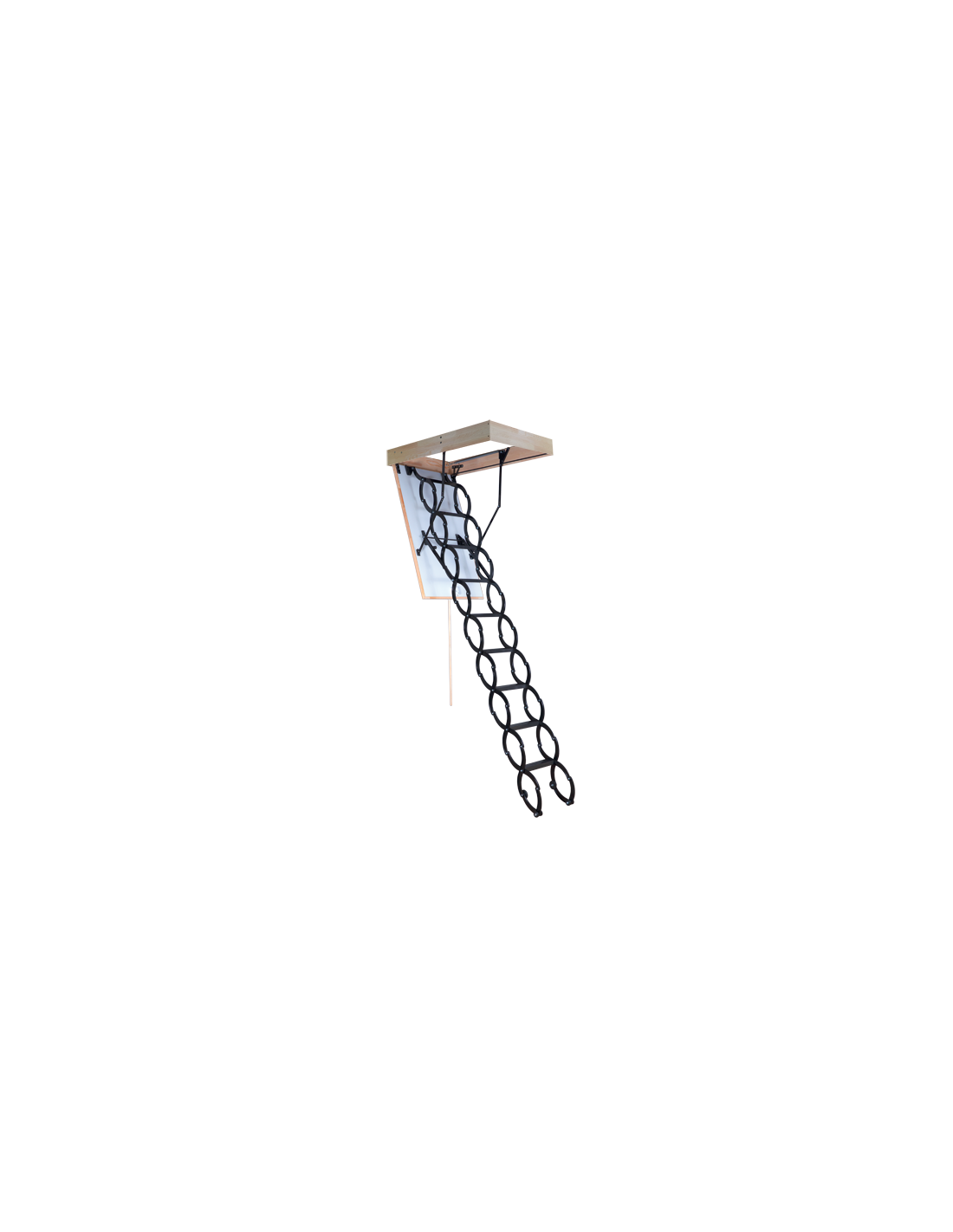

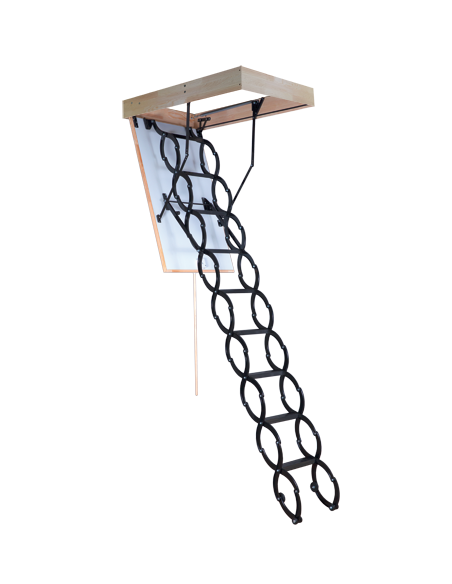

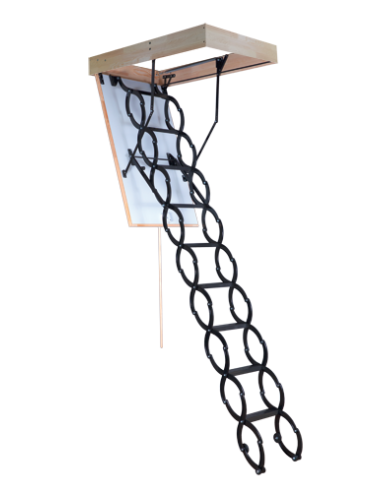

The EVIRES GH 26 is a high-ceiling loft ladder for rooms with ceilings up to 310 cm high. Its metal ladder is 39 cm wide, has 12 treads and folds into a wooden frame.

It comes in 12 frame sizes, from 80 x 60 to 130 x 70 cm, making it suitable for high ceilings even where the ceiling opening is short. The 26 mm hatch, including 20 mm of insulation, limits draughts. A handrail is supplied.

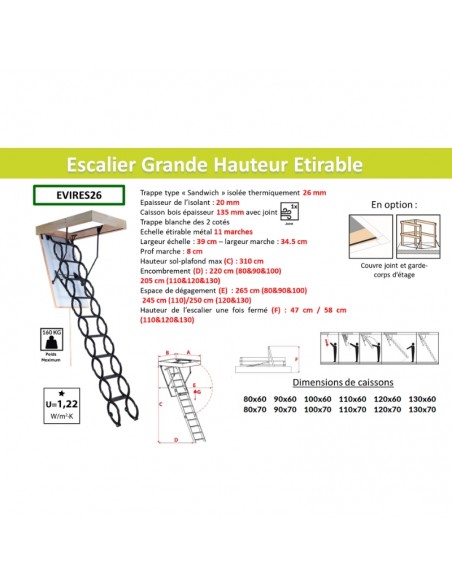

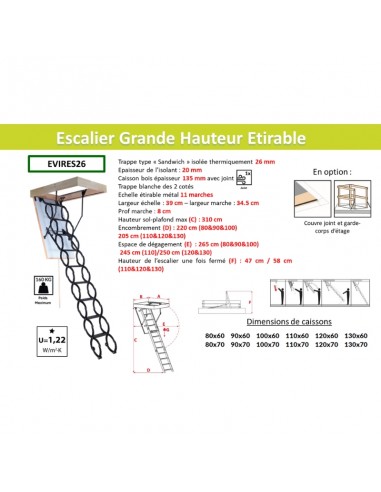

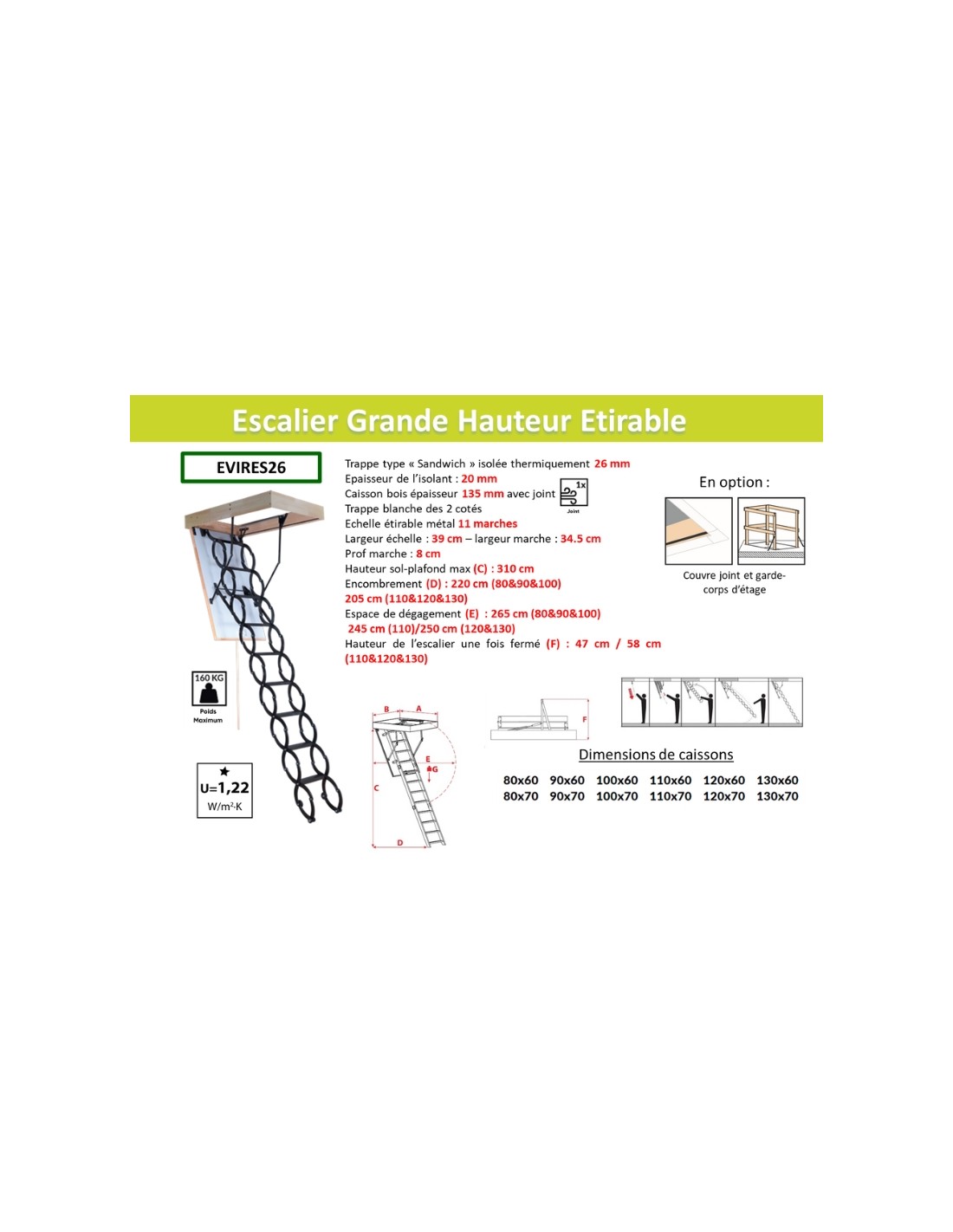

Key specifications

Feature	Description
Model	EVIRES GH 26
Construction	Metal ladder, wooden frame
Hatch thickness	26 mm
Insulation thickness	20 mm
Available frame sizes	12 sizes: 80, 90, 100, 110, 120 or 130 cm long by 60 or 70 cm wide
Maximum ceiling height	310 cm
Number of treads	12
Ladder width	39 cm
Floor space required	205 or 220 cm, depending on the frame
Clearance required	245 to 265 cm, depending on the frame
Height when folded	47 or 58 cm, depending on the frame
Frame height	135 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included

Packaging

Ladder with frame and hatch
Handrail

Key points

✓ For high ceilings: up to 310 cm
✓ Fits a small ceiling opening: from 80 x 60 cm, with 12 frame sizes
✓ 20 mm insulation: 26 mm hatch
✓ Metal ladder: 12 treads, 39 cm wide
✓ Handrail included
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

High-ceiling loft ladders: compare the features that matter, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
EVIRES 26	20 mm (26 mm hatch)	Wood-and-metal ladder, wooden frame	290 cm	195 to 210 cm	160 kg	-
ABANTOS 26	20 mm (26 mm hatch)	Metal (ladder and frame)	290 cm	195 to 210 cm	160 kg	-
EVIRES 86	80 mm (86 mm hatch)	Wood-and-metal ladder, wooden frame	290 cm	210 cm	160 kg	-
AUBRAC 26	20 mm (26 mm hatch)	Wood	310 cm	172 cm	160 kg	Included
AUBRAC 46	40 mm (46 mm hatch)	Wood	310 cm	165 cm	160 kg	Included
EVIRES GH 26	20 mm (26 mm hatch)	Metal ladder, wooden frame	310 cm	205 or 220 cm	160 kg	Included
AUBRAC 330	20 mm (26 mm hatch)	Wood	330 cm	145 cm	160 kg	Included

How to choose the right loft ladder

The high-ceiling AUBRAC models require a frame at least 120 cm long. The EVIRES GH fits a ceiling opening as small as 80 x 60 cm, useful in an older house where the joists limit the size of the opening.

The trade-off is that it needs plenty of floor space: 205 or 220 cm for the unfolded ladder and up to 265 cm of clearance. Measure the room before ordering.

Installation advice

Ceiling opening: prepare an opening to fit the chosen frame, allowing approximately 5 mm around the edge. Check that there is at least 135 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimming joists) with screws suitable for the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and cut the final section so that it rests flat on the floor. Fit the handrail. Finally, connect the loft insulation around the frame to prevent thermal bridging.

Care and protection

Once a year, check that the screws are tight, inspect the joints between the sections and make sure the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the treads.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight barrier.

Frequently asked questions

Which loft ladder suits an 80 x 60 cm ceiling opening and a 3 m ceiling height?

The EVIRES GH 26 fits an 80 x 60 cm frame and reaches ceilings up to 310 cm high. You will, however, need more than 2 m of floor space to unfold the ladder.

How much floor space is needed to unfold the EVIRES GH 26?

Allow 205 or 220 cm of floor space, depending on the frame, and 245 to 265 cm of clearance. That is considerably more than for a standard loft ladder.

Is a 26 mm hatch sufficient beneath a loft?

It limits draughts but provides little insulation. If a cold loft is above a heated room, add insulation around the frame or choose a thicker hatch.

How do I choose the frame size for a loft ladder?

Choose the frame to suit the ceiling opening: its dimensions correspond to the opening required, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Does a loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is cut at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
