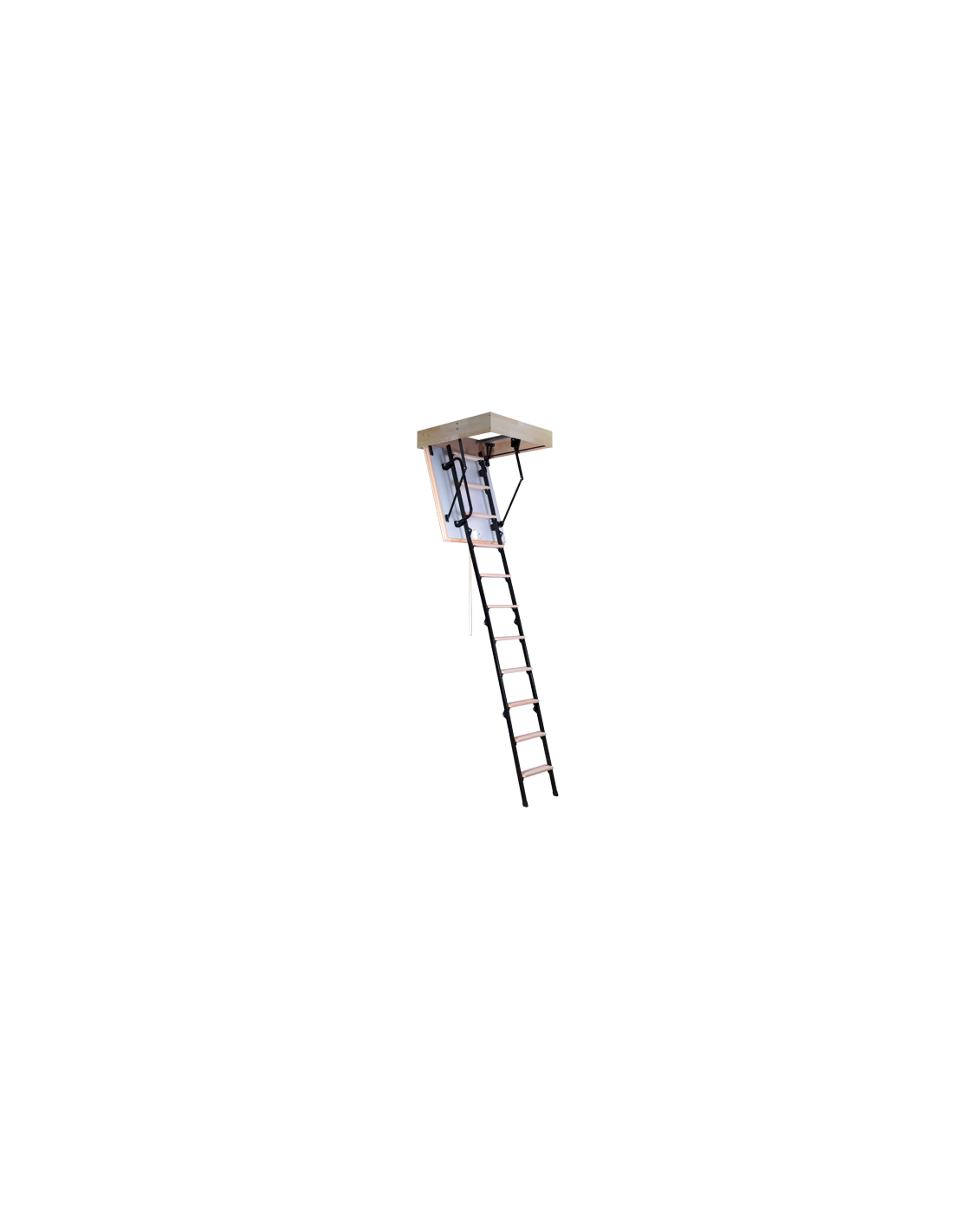

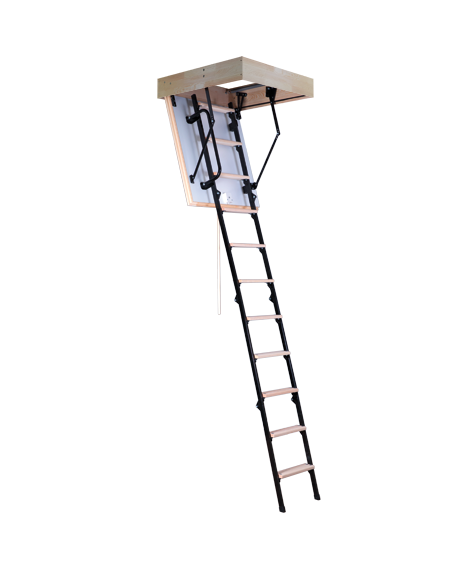

NOZIERES Insulated Folding Loft Ladder, 26 mm Hatch, for Small Openings from 80 x 60 cm

NOZIERES 26 folding loft ladder, with metal stiles, wooden treads, 12 treads and 6 frame sizes from 80 x 60 to 100 x 70 cm.

20 mm insulation, 26 mm hatch. For ceiling heights up to 265 cm; 101 or 135 cm of floor space and 115 to 126 cm of clearance required. Maximum load 160 kg; EN 14975 standard.

For a hallway, landing or small room where a conventional folding loft ladder will not fit. Ceiling height is limited to 265 cm: above that, choose a model for higher ceilings.

Box dimension

Reference ECBE1610060

€309.79 incl. tax

Including €0.79 for ecotax

2 Products In stock Last items in stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

NOZIERES Insulated Folding Loft Ladder, 26 mm Hatch, for Small Openings from 80 x 60 cm

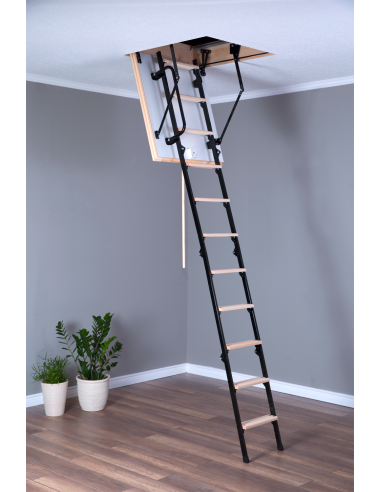

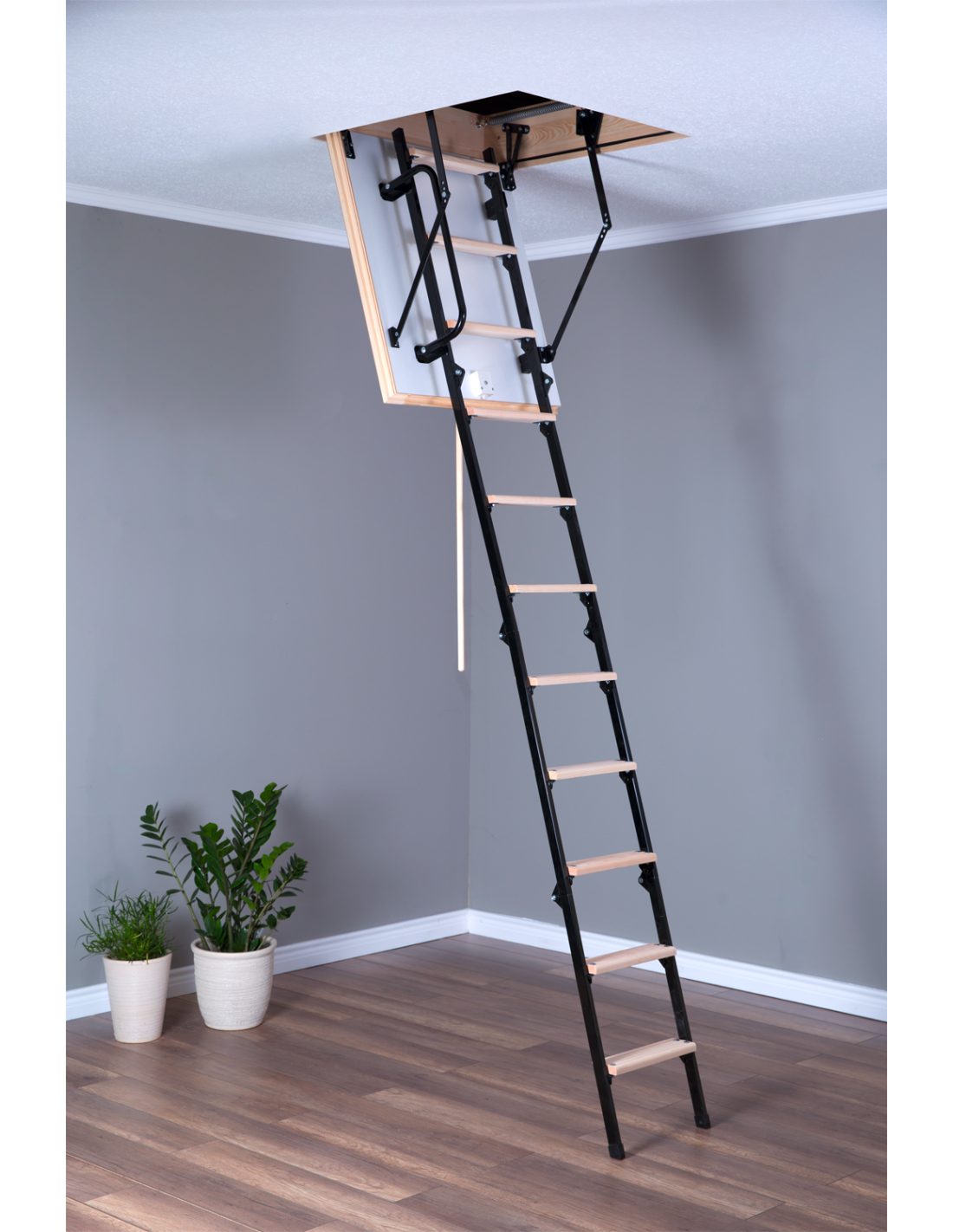

The NOZIERES 26 is a space-saving folding loft ladder for narrow openings. Its smallest frame measures 80 x 60 cm, and in this size the unfolded ladder takes up just 101 cm of floor space.

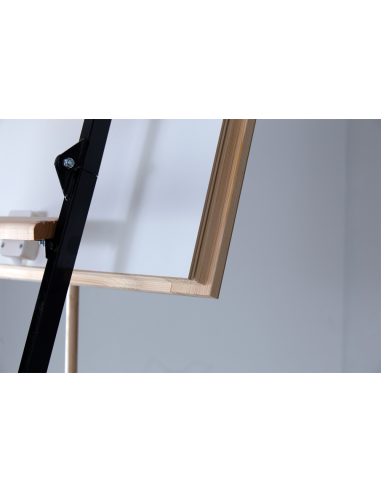

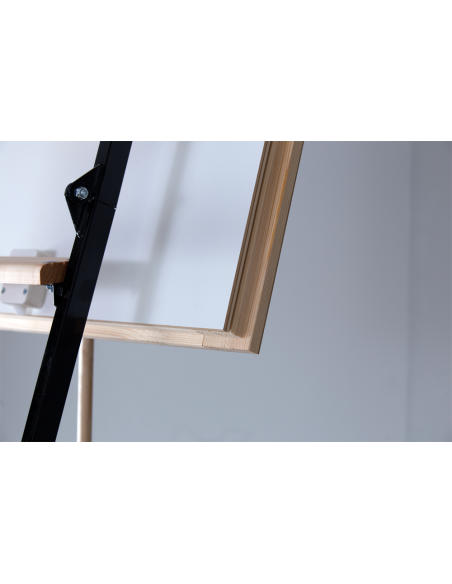

The ladder combines metal stiles with 12 wooden treads. The 26 mm hatch, including 20 mm of insulation, limits draughts. Six frame sizes are available, from 80 x 60 to 100 x 70 cm, for ceiling heights of 260 to 265 cm.

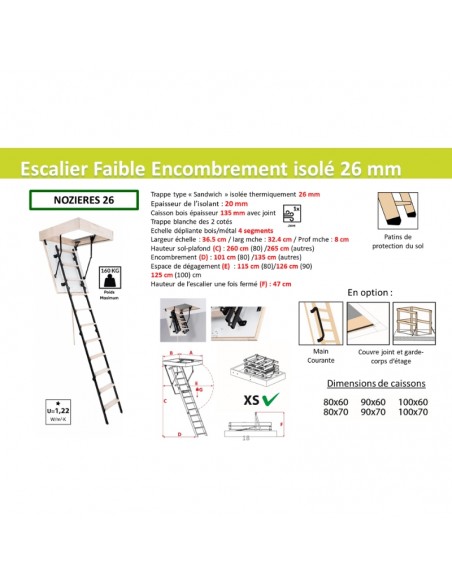

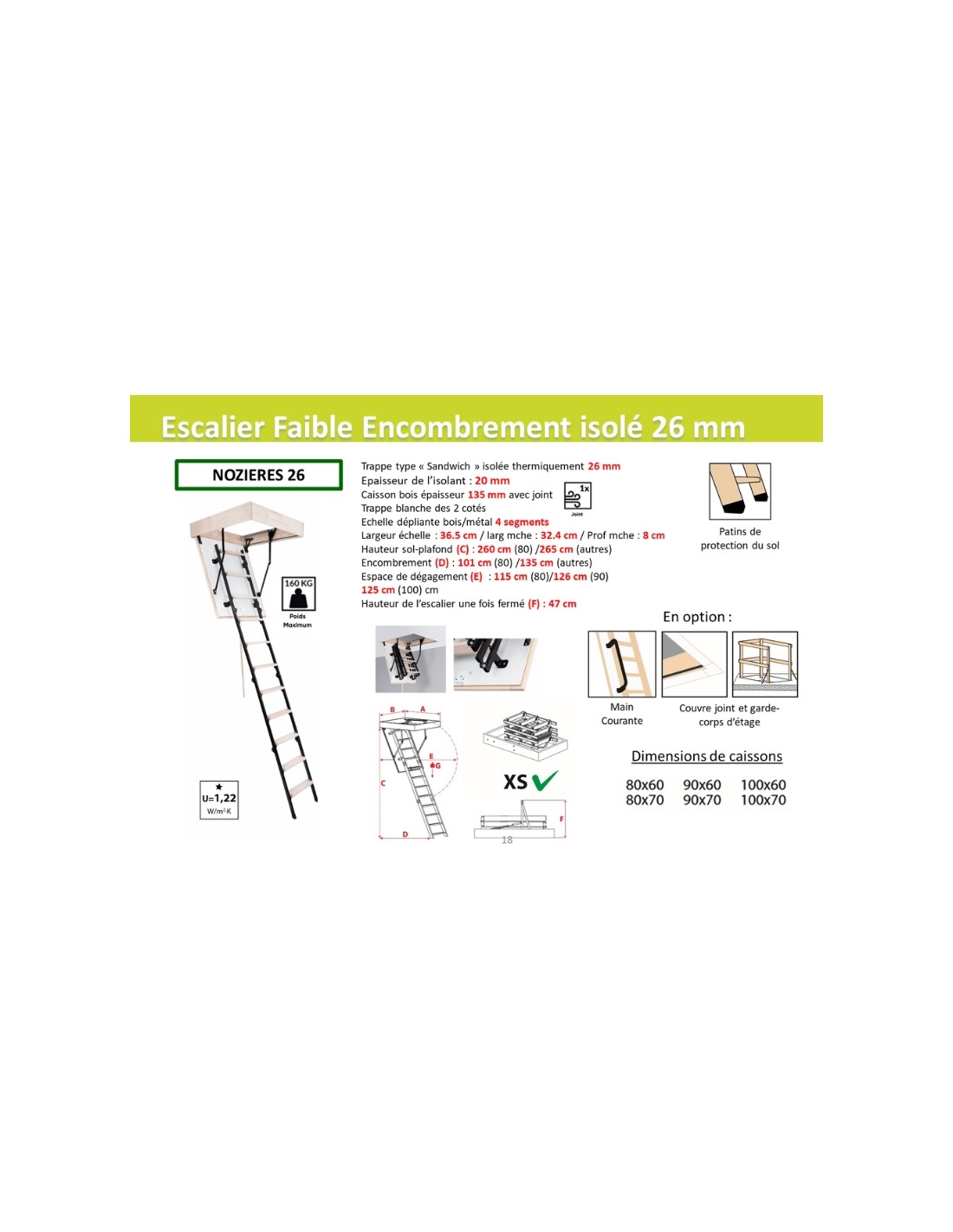

Key features

Feature	Description
Model	NOZIERES 26
Construction	Metal stiles, wooden treads
Hatch thickness	26 mm
Insulation thickness	20 mm
Available frame sizes	6 sizes: 80, 90 or 100 cm long by 60 or 70 cm wide
Maximum ceiling height	260 cm (80 cm frame) or 265 cm
Number of treads	12
Ladder width	36.5 cm
Floor space required	101 or 135 cm, depending on frame size
Clearance required	115 to 126 cm, depending on frame size
Height when folded	47 cm
Frame height	135 mm
Maximum load	160 kg
Standard	EN 14975

Packaging

Ladder with frame and hatch

Key points

✓ Small loft opening: frame sizes from 80 x 60 cm
✓ Space-saving: requires 101 cm of floor space
✓ 20 mm insulation: 26 mm hatch
✓ Metal stiles, wooden treads: 12 treads
✓ Ceiling height: 260 to 265 cm, depending on frame size
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Space-saving folding loft ladders: the features to consider, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
NOZIERES 26	20 mm (26 mm hatch)	Metal stiles, wooden treads	265 cm	101 or 135 cm	160 kg	-
NOZIERES 46	40 mm (46 mm hatch)	Metal stiles, wooden treads	265 cm	103 or 130 cm	160 kg	Included
NOZIERES 86	80 mm (86 mm hatch)	Metal stiles, wooden treads	265 cm	142 or 149 cm	160 kg	Included except with 50 cm frames
NOZIERES 66, 45-minute fire-rated	60 mm (66 mm hatch)	Metal stiles, wooden treads	265 cm	130 cm	160 kg	Included

How to choose the right folding loft ladder

The NOZIERES suits hallways, landings and small rooms where a conventional folding loft ladder, which needs almost 150 cm of floor space, will not fit. With the 80 cm-long frame, it takes up 101 cm; with the 90 and 100 cm frames, 135 cm.

Its limitation is ceiling height: 260 cm with the 80 cm frame and 265 cm with the others. For better insulation, the same ladder is available with a 46 mm or 86 mm hatch.

Installation advice

Loft opening: prepare an opening to suit the chosen frame, allowing around 5 mm of clearance all round. Check that there is at least 135 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmers) with screws suitable for the substrate, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the last section so that it rests flat on the floor. Finally, join the loft insulation around the frame to prevent thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and make sure the hatch-opening mechanism works properly. Lubricate the mechanisms if the hatch becomes difficult to open, and dust the treads.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides an airtight fit.

Frequently asked questions

Is there a folding loft ladder for a 60 x 60 cm opening?

Not in this range: the smallest NOZIERES frame measures 80 x 60 cm. In our selection, the shortest frames measure 70 x 50 cm (ABANTOS) and 70 x 60 cm (EVIRES). A 60 x 60 cm opening must therefore be enlarged, generally along the joists.

Which folding loft ladder suits an 80 x 60 cm opening?

The NOZIERES 26 is available with an 80 x 60 cm or 80 x 70 cm frame. In these sizes, it takes up just 101 cm of floor space when unfolded and suits ceiling heights up to 260 cm.

How much space is needed to unfold a space-saving loft ladder?

The NOZIERES 26 requires 101 cm of floor space with the 80 cm frame and 135 cm with the 90 and 100 cm frames. Also allow 115 to 126 cm of clearance to open the hatch.

How do you choose the frame size for a folding loft ladder?

Choose the frame size to suit the loft opening: its dimensions correspond to the opening needed in the ceiling, with a clearance of around 5 mm all round for installation. Measure the existing opening, or the one you can create between the joists, then choose the largest frame that will fit without exceeding its dimensions.

Do you need to trim a folding loft ladder to length?

Yes, usually. The ladder is supplied for the maximum ceiling height and is trimmed at the bottom so that its last section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
