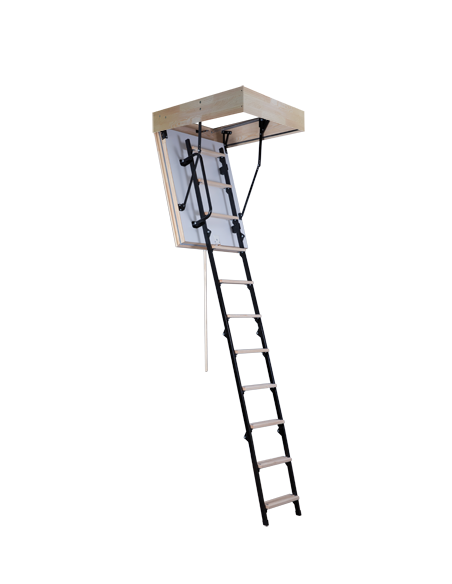

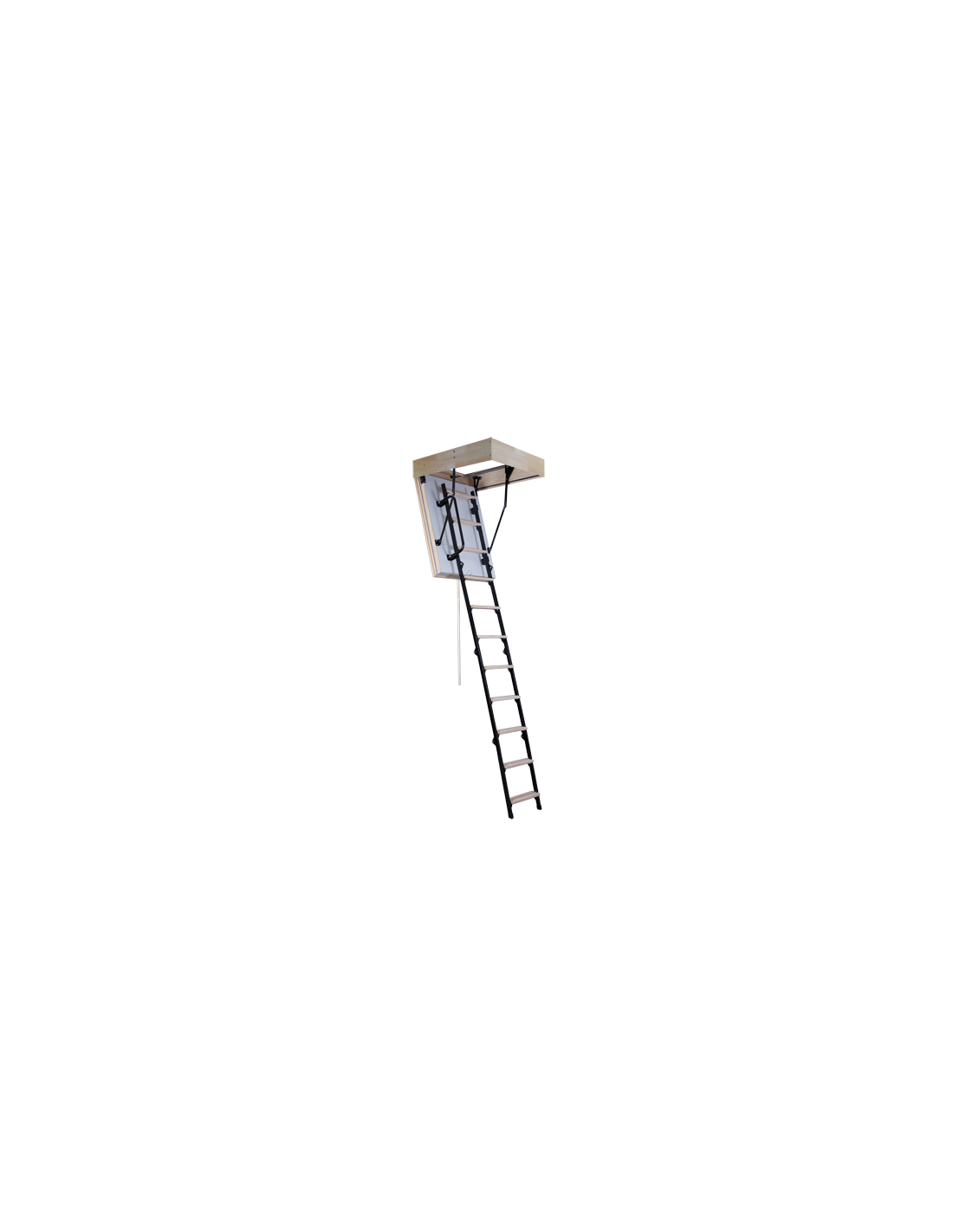

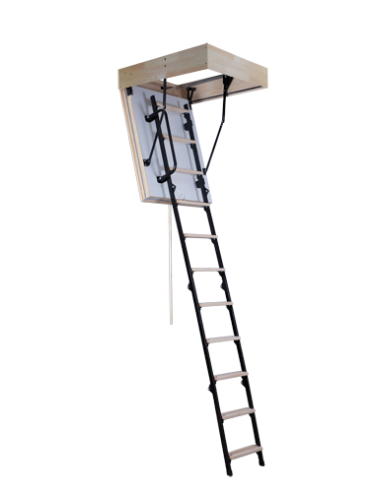

NOZIERES 86 MM

Low footprint loft ladder, perfect for small hatch openings. 86 mm insulated hatch (U = 0.36 W/m².K), metal side rails, wooden treads. Supplied with protective feet pads. Options: cover trims, balustrade. Handrail supplied except for 50 cm wide housings.

Box dimension

Reference ECBE8611060

€599.85 VAT included

Including €0.85 for ecotax

2 Items In stock Last items in stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Enhanced thermal insulation and compact footprint for your loft.

Product overview

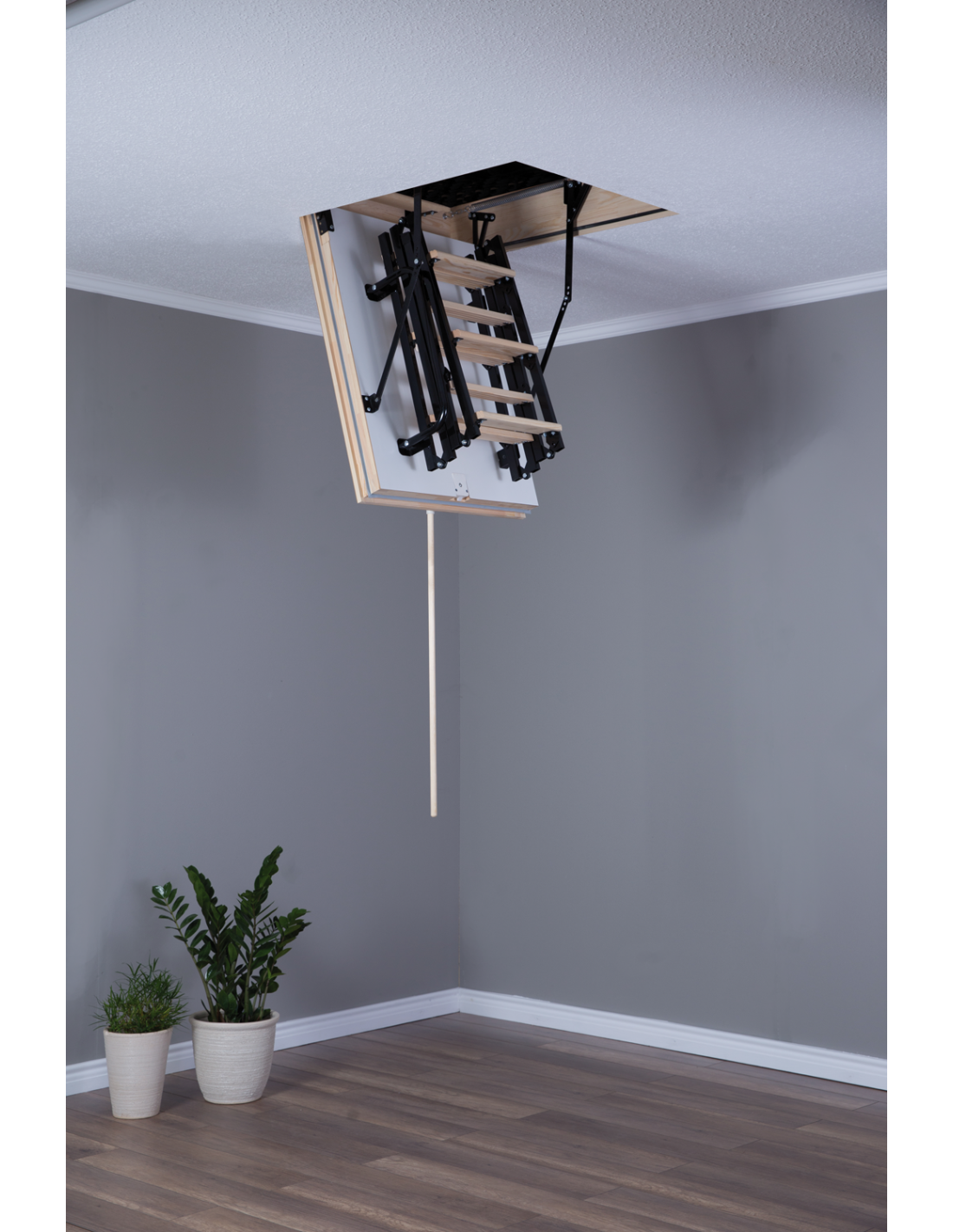

The Low Footprint Insulated 86 mm loft ladder is ideal for optimising your space while ensuring quality thermal insulation. Designed with metal side rails and wooden treads, it is robust, attractive and practical. The 86 mm insulated hatch offers a high-performance thermal coefficient (U = 0.36 W/m².K), limiting heat loss.

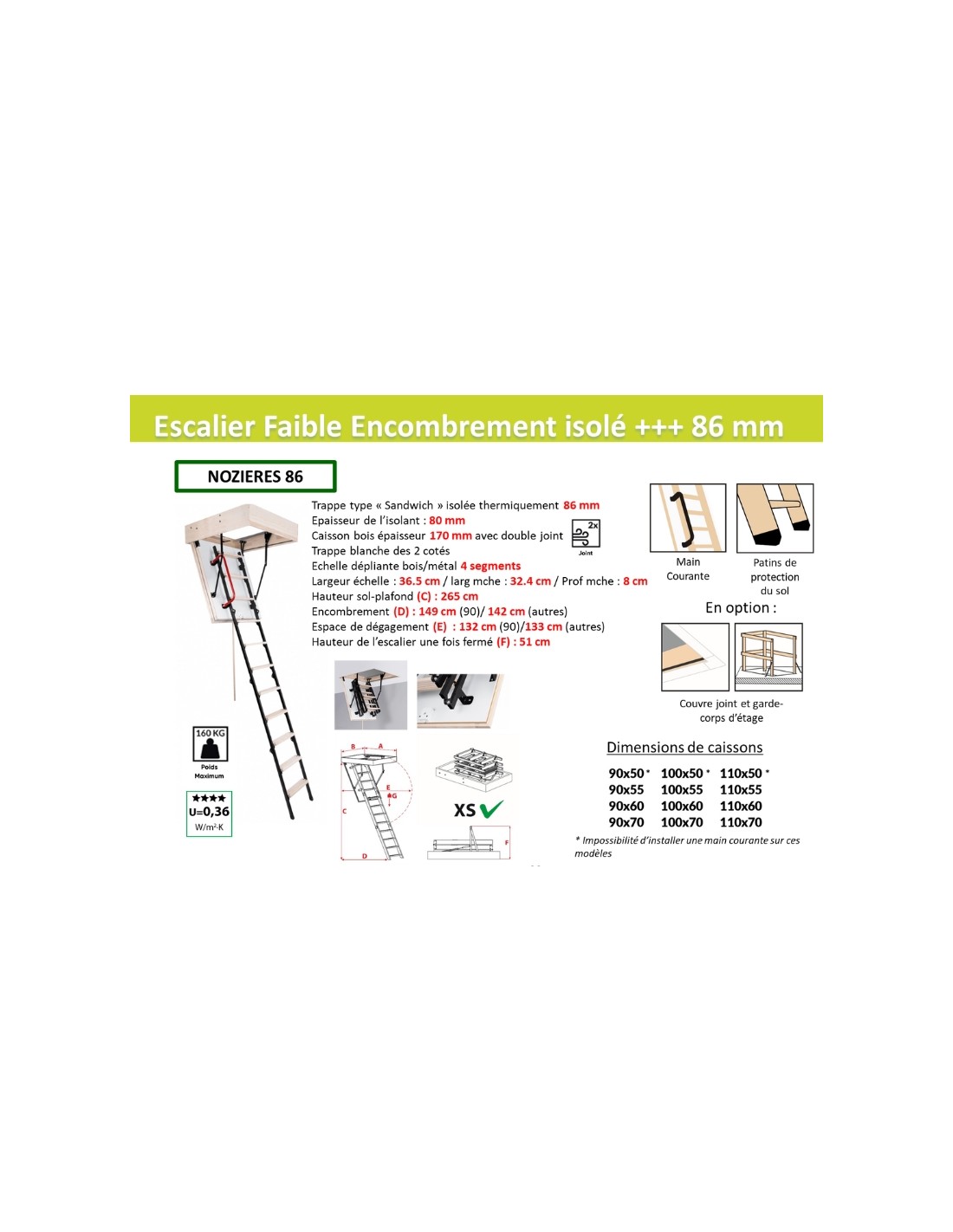

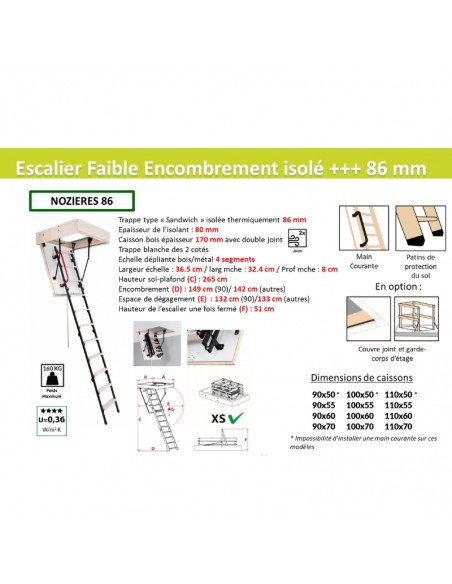

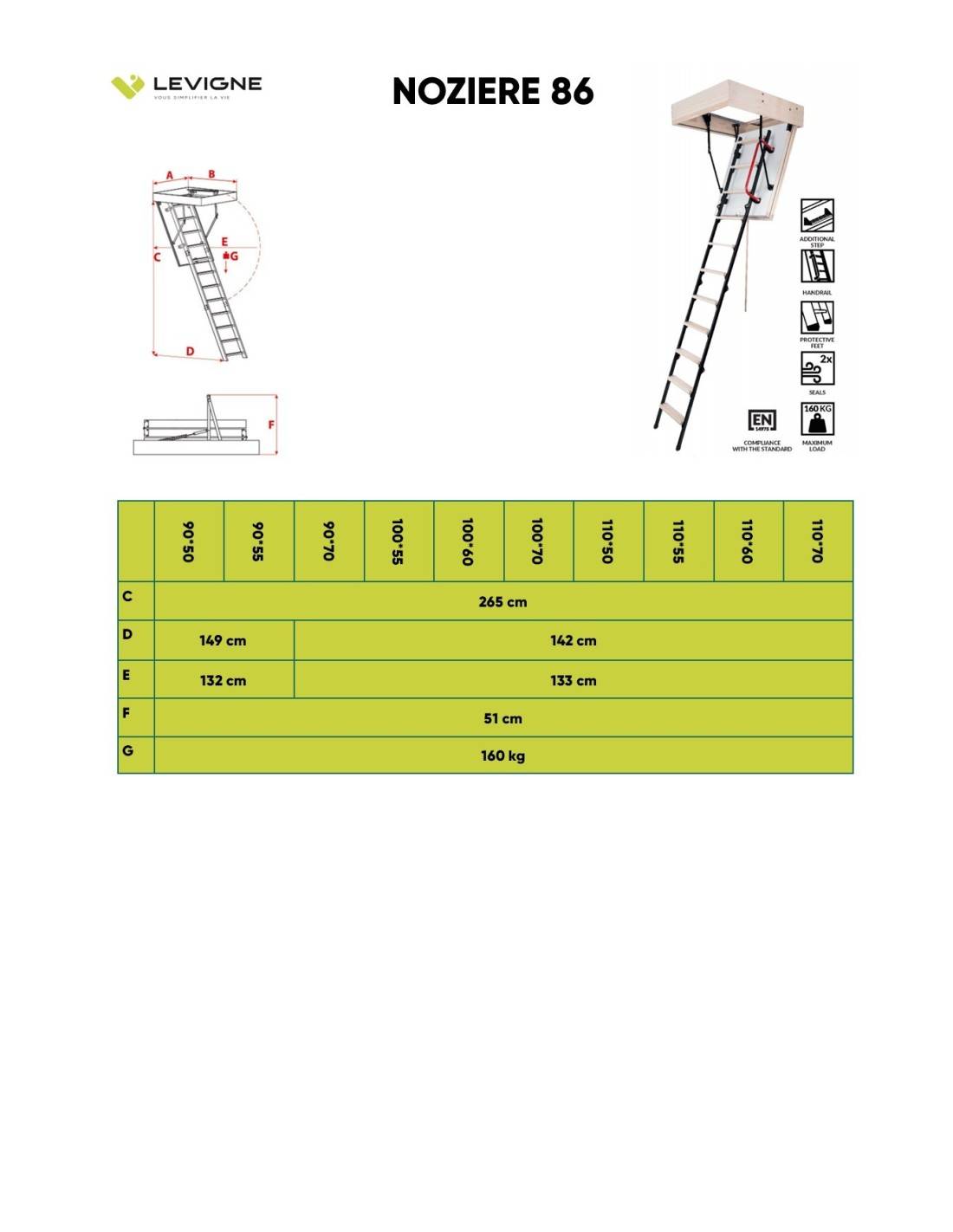

Main specifications

Characteristic	Description
Material	Metal side rails, wooden treads

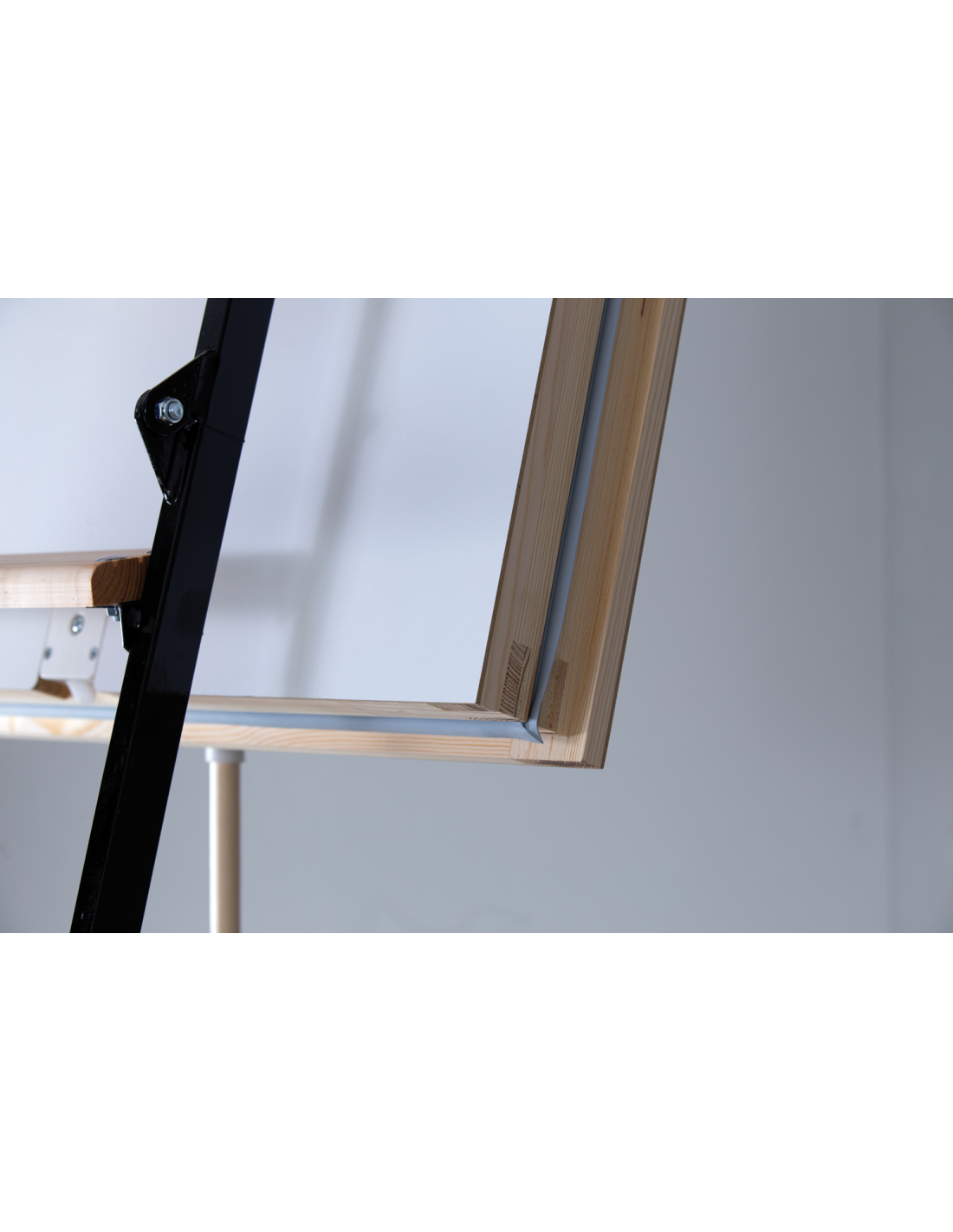

Insulated hatch	86 mm thick, white (paintable)
Thermal insulation	U = 0.36 W/m².K
Floor-to-ceiling height (C)	265 cm
Ladder width	36.5 cm
Tread width	32.4 cm
Tread depth	8 cm
Footprint (D)	149 cm (90x50 cm housing) / 142 cm (other housings)
Clearance space (E)	132 cm (90x50 cm housing) / 133 cm (other housings)
Folded height (F)	51 cm

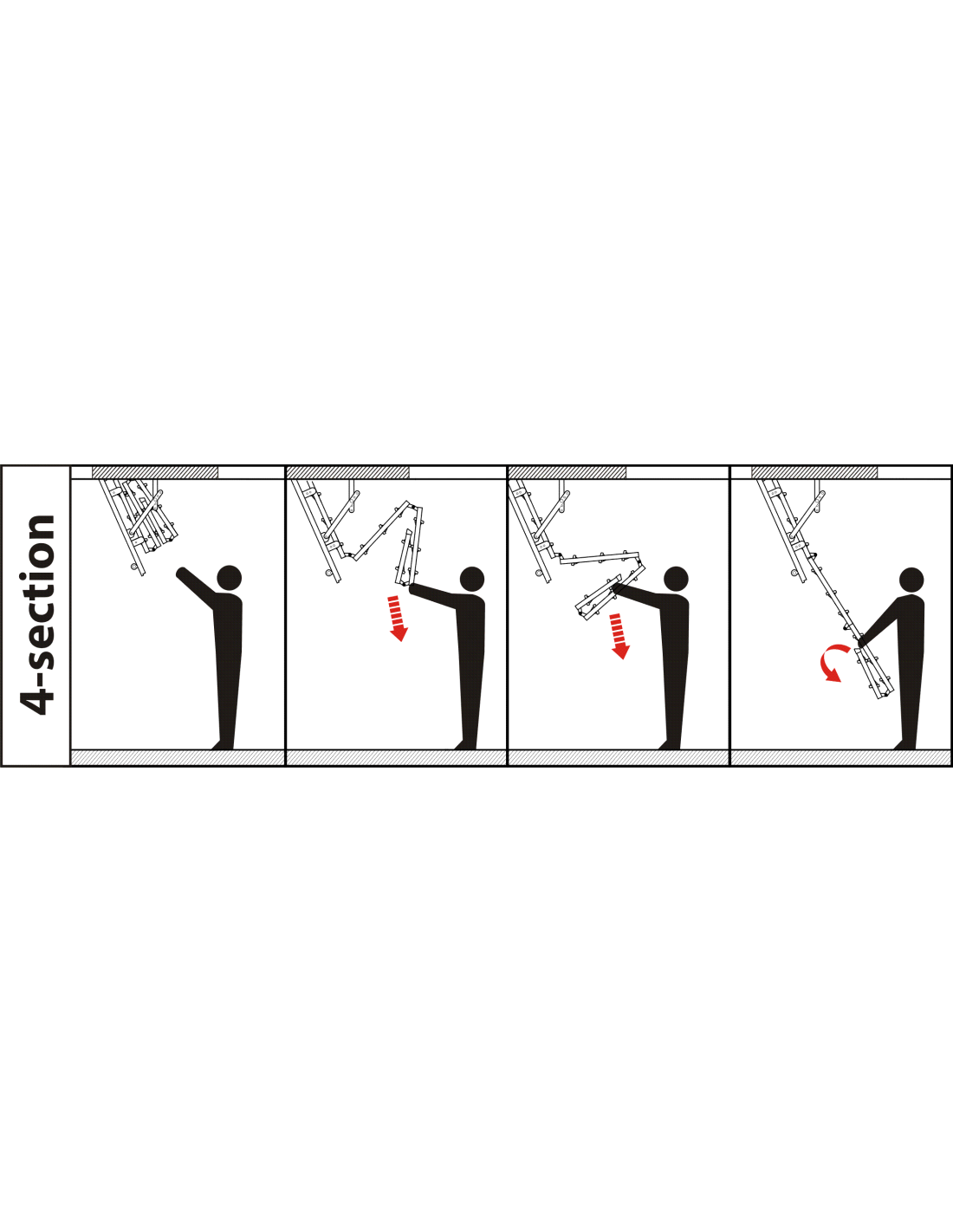

Number of sections	4 folding sections
Maximum load	160 kg
Handrail	Yes (not supplied for 50 cm wide housings)
Supplied with	Protective feet pads for ladder
Available options	Cover trims, Balustrade
Housing dimensions	90x50, 90x55, 90x60, 90x70, 100x50, 100x55, 100x60, 100x70, 110x50, 110x55, 110x60

Key points

Compact footprint: Ideal for small loft hatches with an optimised floor footprint.
Enhanced thermal insulation: 86 mm insulated hatch for significant energy savings.
Safety and robustness: Maximum load of 160 kg, metal side rails and wide wooden treads.
Available options: Cover trims and balustrade.

Installation tips

Prepare the hatch opening: Allow a 5 mm clearance to facilitate installation of the housing.
Secure fixing: Firmly fix the housing with suitable screws (not supplied).
Adjust the ladder: Cut to size if necessary to match your ceiling height.
