NEGGIA Compact Insulated Wooden Loft Ladder, 26 mm Hatch, 100 cm Frame

NEGGIA 26 folding loft ladder, all wood, 12 treads, 3 frame sizes from 100 x 55 to 100 x 70 cm.

20 mm insulation, 26 mm hatch. For ceiling heights up to 280 cm; 135 cm of floor space and 146 cm of clearance required. Maximum load 160 kg; EN 14975 standard.

Supplied without a handrail. Its short, 100 cm frame suits a smaller loft opening while accommodating ceiling heights up to 280 cm, higher than space-saving models. For a loft used for storage.

Box dimension

Reference ECBI26COMPACT10060

€329.85 incl. tax

Including €0.85 for ecotax

Made to order. 5–6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

NEGGIA Compact Insulated Wooden Loft Ladder, 26 mm Hatch, 100 cm Frame

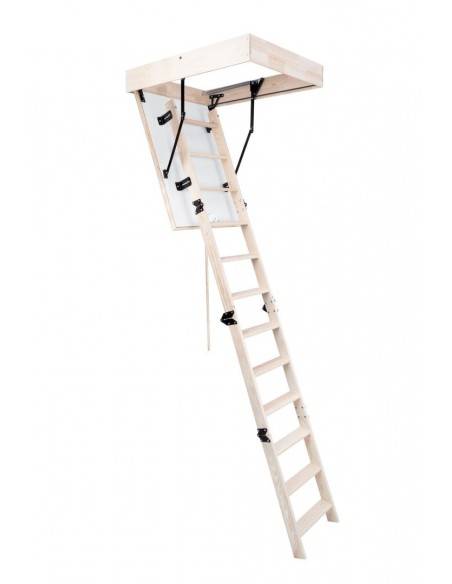

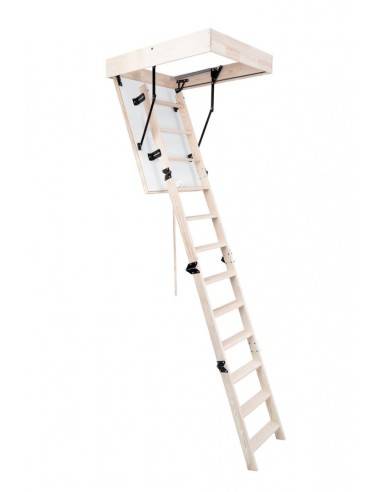

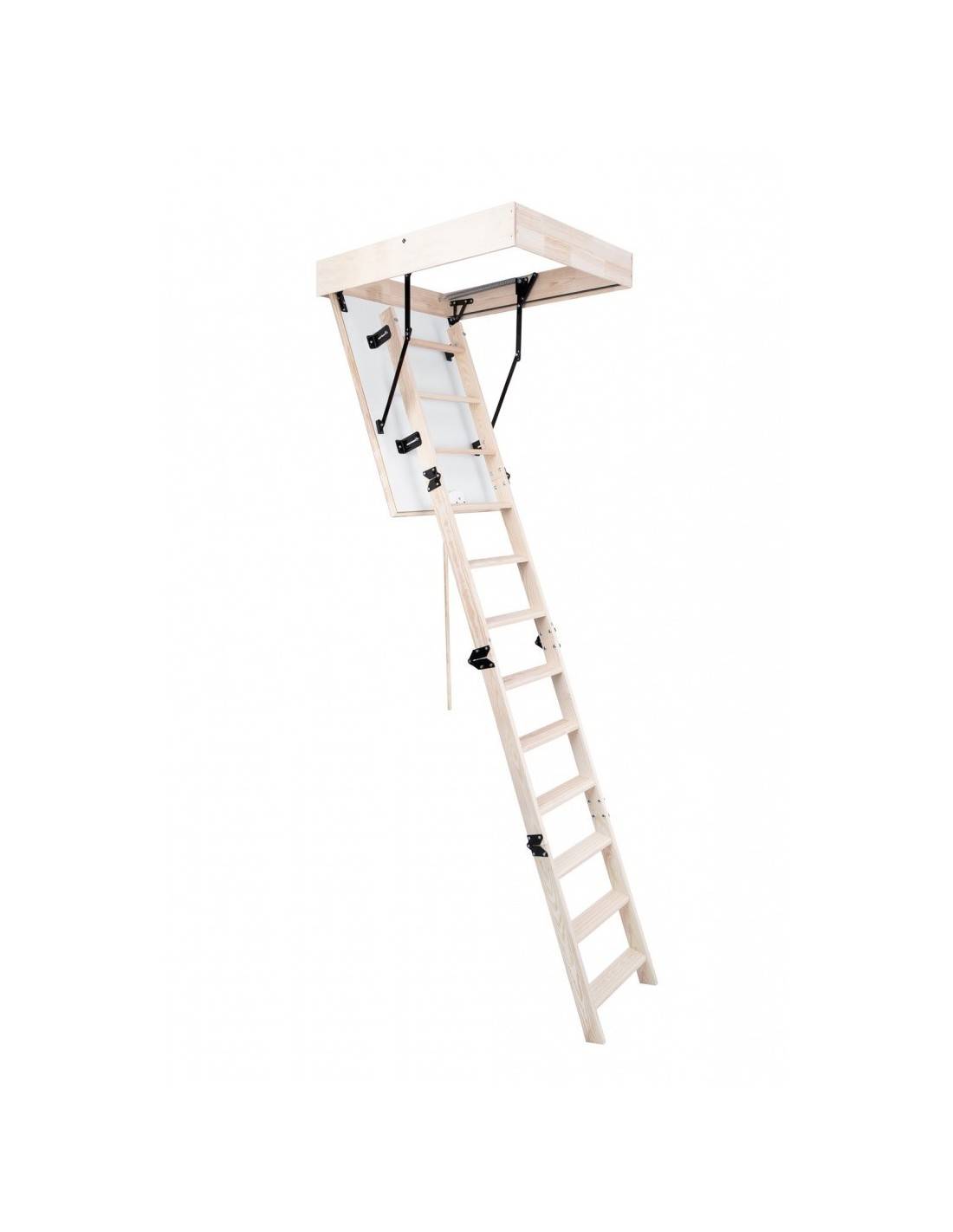

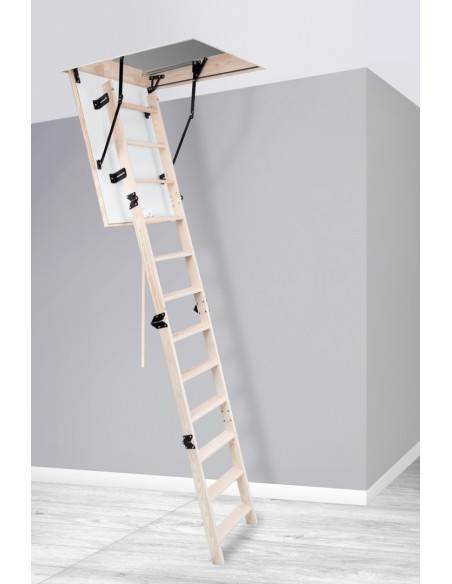

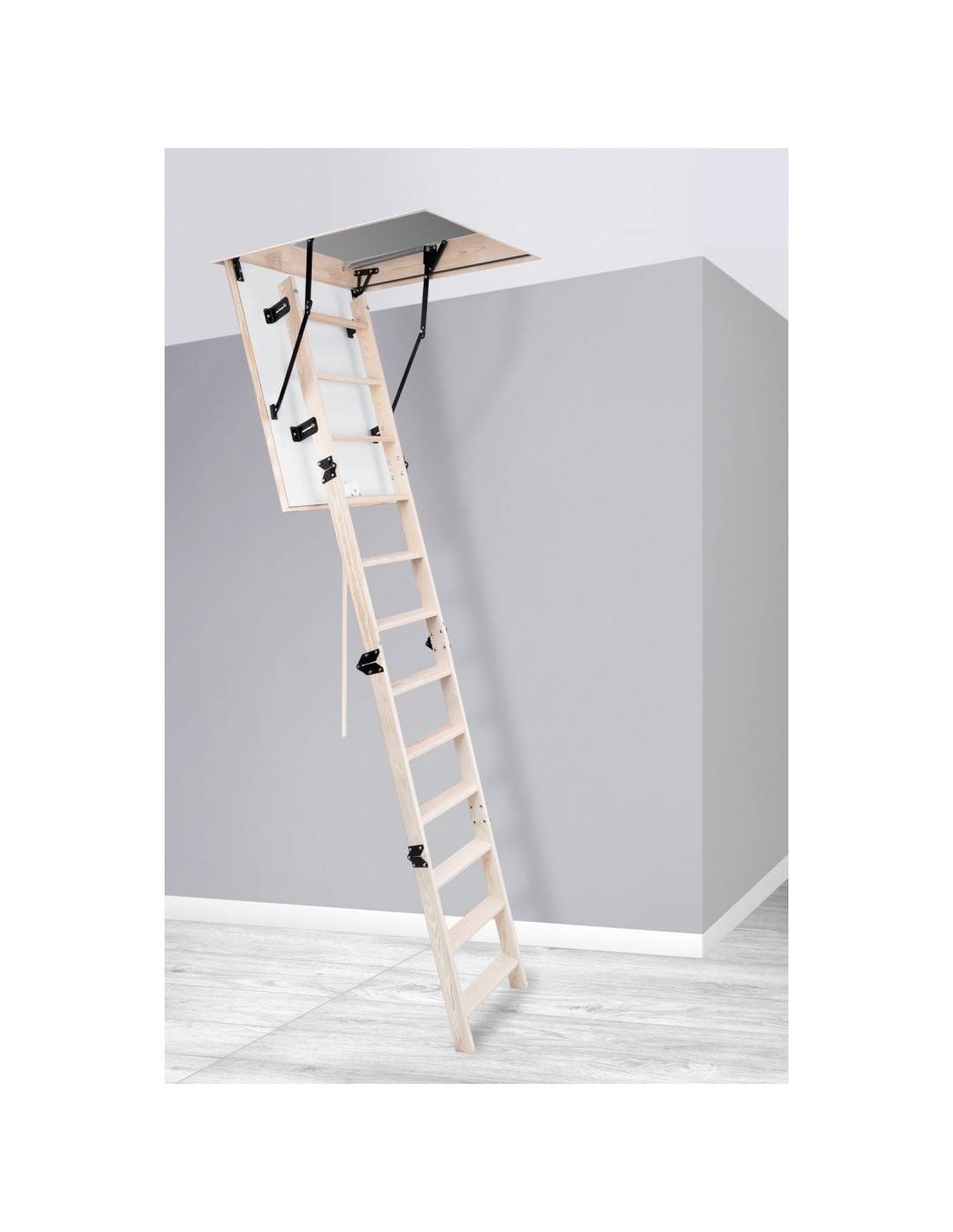

The NEGGIA 26 is a compact wooden folding loft ladder for short openings: its frame is 100 cm long and 55, 60 or 70 cm wide. The 40 cm-wide ladder has 12 treads.

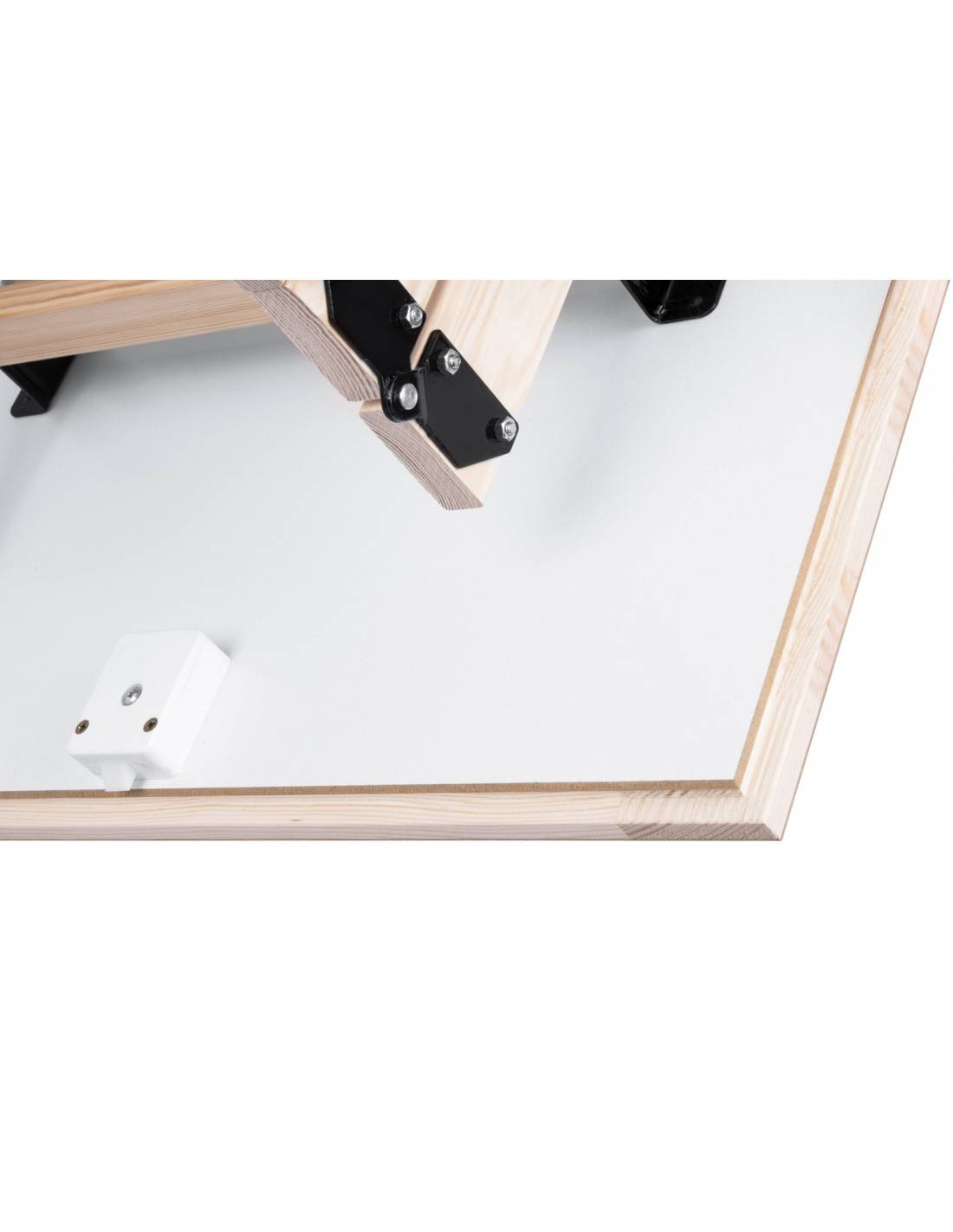

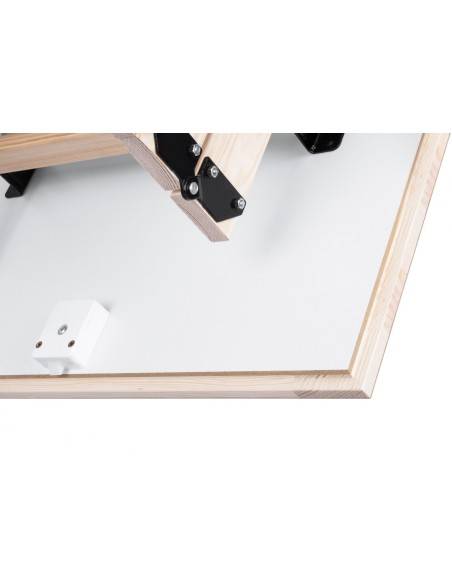

Despite its short frame, it suits ceiling heights up to 280 cm. The 26 mm hatch, including 20 mm of insulation, limits draughts. It is supplied without a handrail.

Key features

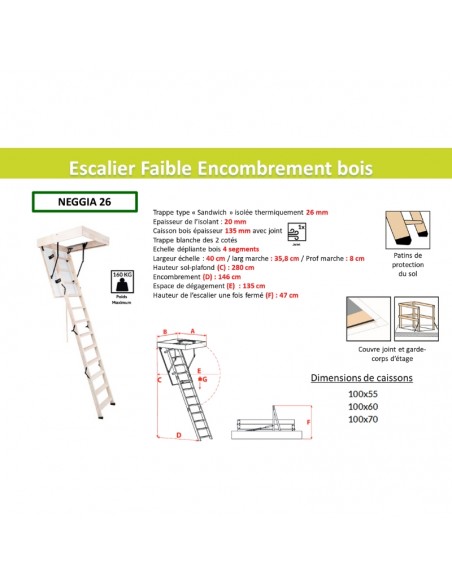

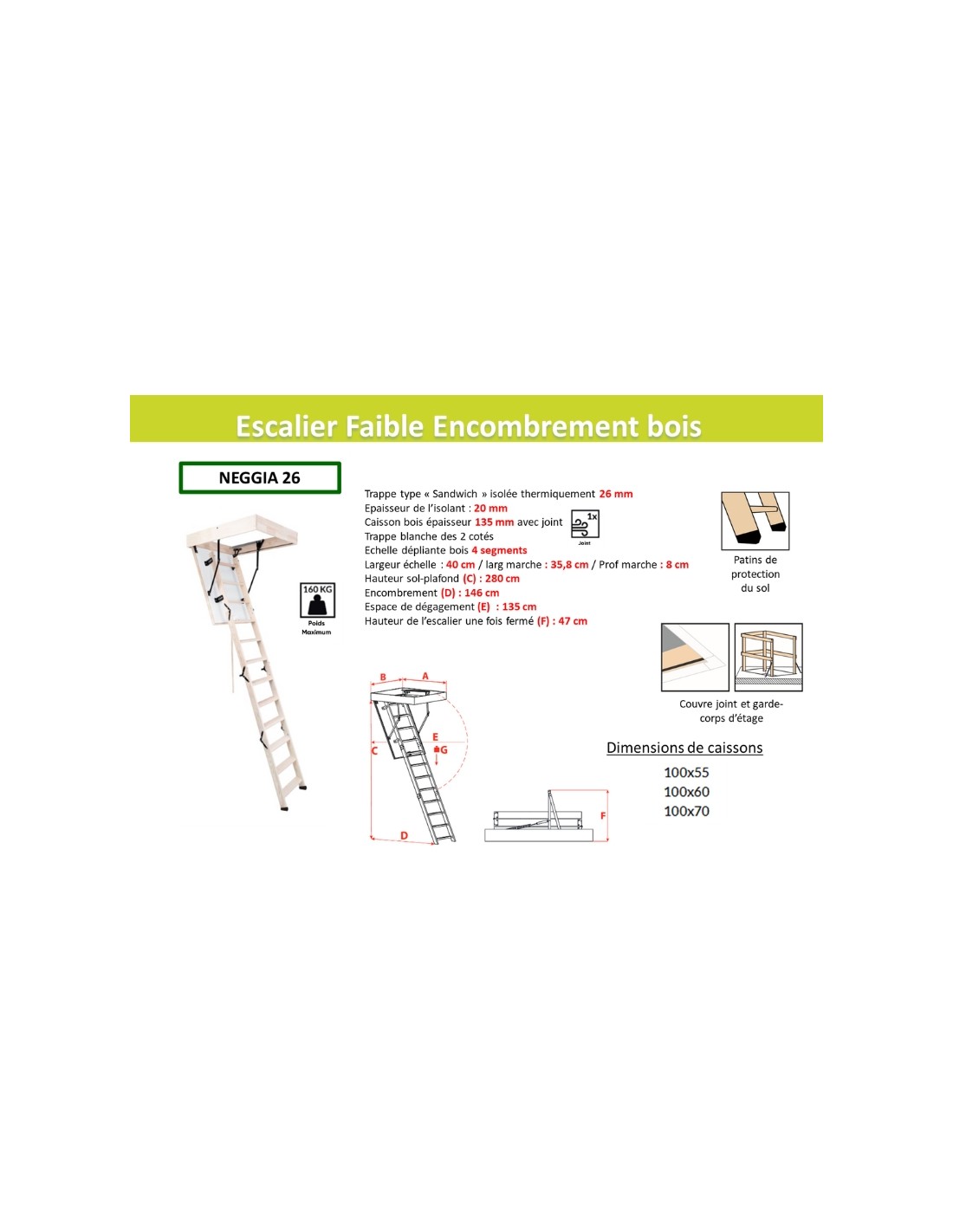

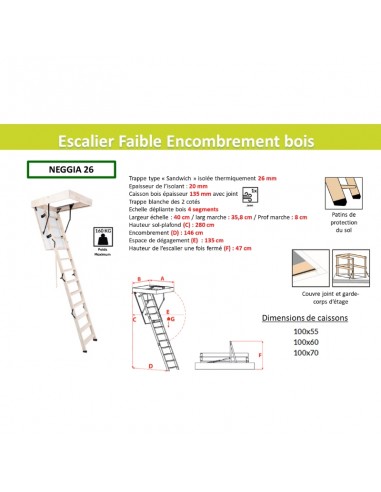

Feature	Description
Model	NEGGIA 26
Construction	Wood
Hatch thickness	26 mm
Insulation thickness	20 mm
Available frame sizes	3 sizes: 100 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of treads	12
Ladder width	40 cm
Floor space required	135 cm
Clearance required	146 cm

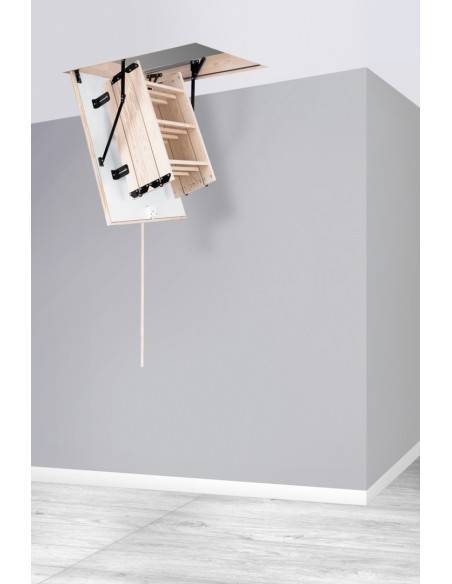

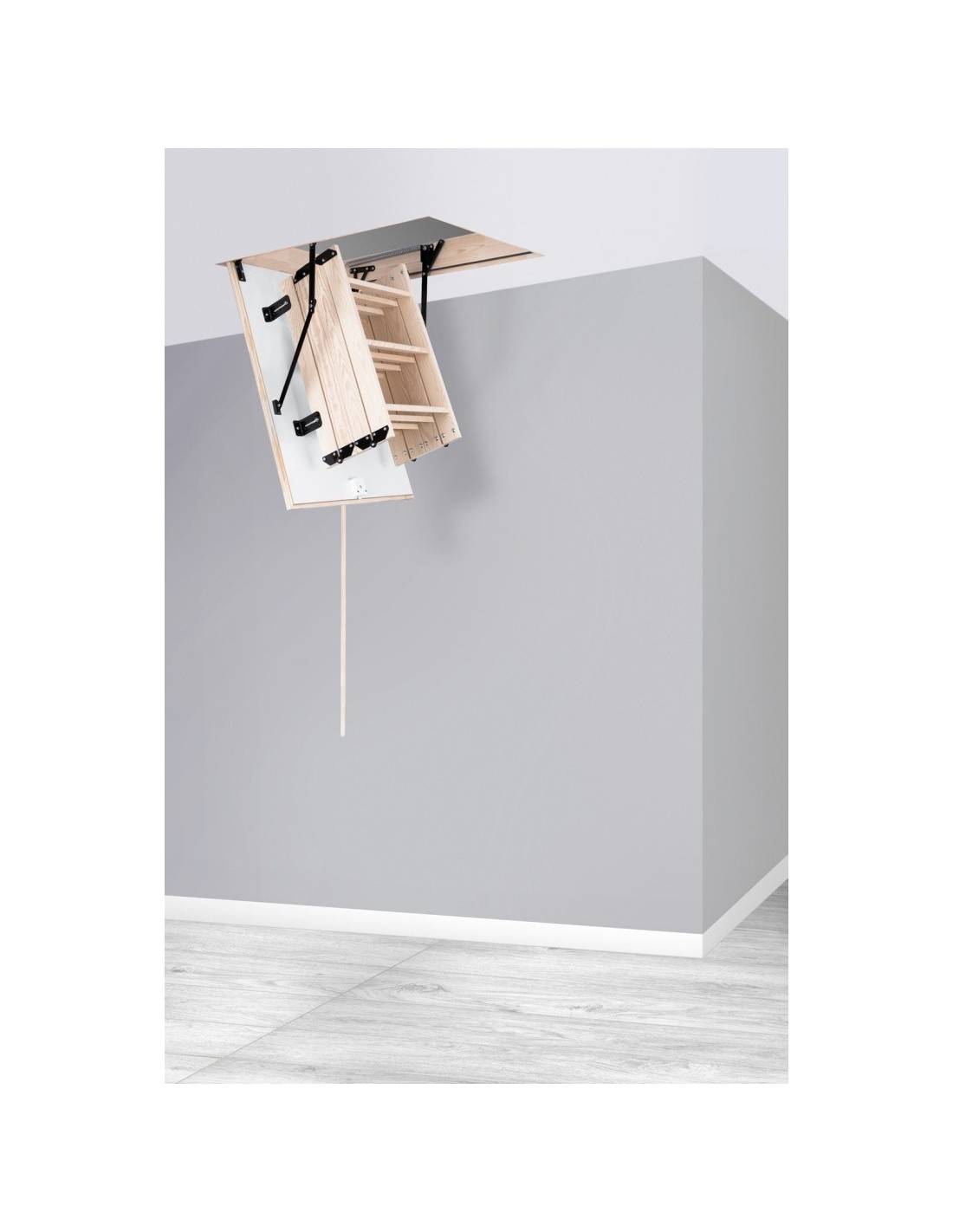

Height when folded	47 cm
Frame height	135 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Not included

Packaging

Ladder with frame and hatch

Key points

✓ Compact frame: 100 cm long by 55, 60 or 70 cm wide
✓ 20 mm insulation: 26 mm hatch
✓ All wood: ladder and frame, 12 treads
✓ Ceiling height: up to 280 cm
✓ No handrail
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Wooden folding loft ladders for ceiling heights up to 280 cm: the features to consider, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
COSTE 26	20 mm (26 mm hatch)	Wood	280 cm	130 cm	150 kg	No
NEGGIA 26	20 mm (26 mm hatch)	Wood	280 cm	135 cm	160 kg	No
CHALANCON 26	20 mm (26 mm hatch)	Wood	280 cm	148 cm	160 kg	Included
CHALANCON 36	30 mm (36 mm hatch)	Wood	280 cm	134 or 148 cm	160 kg	Included
CHALANCON 46	40 mm (46 mm hatch)	Wood	280 cm	128 or 142 cm	160 kg	Included
CHALANCON 56	50 mm (56 mm hatch)	Wood	280 cm	151 cm	160 kg	Included
CHALANCON 86	80 mm (86 mm hatch)	Wood	280 cm	139 or 147 cm	160 kg	Included

How to choose the right folding loft ladder

The NEGGIA sits between space-saving models, which are limited to 265 cm ceiling heights, and standard loft ladders, which require a frame at least 110 cm long. It takes up 135 cm of floor space and requires 146 cm of clearance.

Its 26 mm hatch provides little insulation: reserve it for a loft used for storage. For a 120 x 80 cm opening, you will need to reduce the opening or choose a longer model, such as the CHALANCON.

Installation advice

Loft opening: prepare an opening to suit the chosen frame, allowing around 5 mm of clearance all round. Check that there is at least 135 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmers) with screws suitable for the substrate, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the last section so that it rests flat on the floor. Finally, join the loft insulation around the frame to prevent thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and make sure the hatch-opening mechanism works properly. Lubricate the mechanisms if the hatch becomes difficult to open, and dust the treads.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides an airtight fit.

Frequently asked questions

What is a compact folding loft ladder?

This ladder has a shorter-than-average frame for a smaller loft opening. The NEGGIA 26 fits into a frame just 100 cm long, yet suits ceiling heights up to 280 cm.

Which folding loft ladder suits a 120 x 80 cm opening?

No frame in our range is 80 cm wide; the maximum is 70 cm. Reduce the opening with a trimmer, then choose a 120 x 70 cm frame, such as the CHALANCON or BLUFFY.

How much floor space is needed to unfold the NEGGIA?

Allow 135 cm of floor space and 146 cm of clearance to open the hatch and unfold the ladder.

How do you choose the frame size for a folding loft ladder?

Choose the frame size to suit the loft opening: its dimensions correspond to the opening needed in the ceiling, with a clearance of around 5 mm all round for installation. Measure the existing opening, or the one you can create between the joists, then choose the largest frame that will fit without exceeding its dimensions.

Do you need to trim a folding loft ladder to length?

Yes, usually. The ladder is supplied for the maximum ceiling height and is trimmed at the bottom so that its last section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
