BLUFFY Insulated 26 mm Metal and Wood Folding Mezzanine Ladder

BLUFFY 26 folding loft ladder, metal side rails, wooden steps, 12 steps, 12 frame sizes from 110 x 55 to 140 x 70 cm.

20 mm insulation, 26 mm hatch. For ceiling heights up to 280 cm; requires 134 or 148 cm of floor space and 160 or 166 cm of opening clearance. Maximum load 190 kg; EN 14975 standard.

Supplied without a handrail. Its 190 kg load capacity exceeds that of the all-wood models. For occasional access to an enclosed mezzanine or storage loft, without taking up floor space when folded away.

Box dimension

Reference ECBM40METAL2612060

€379.99 incl. tax

Including €0.99 for ecotax

Made to order 5 6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

BLUFFY Insulated 26 mm Metal and Wood Folding Mezzanine Ladder

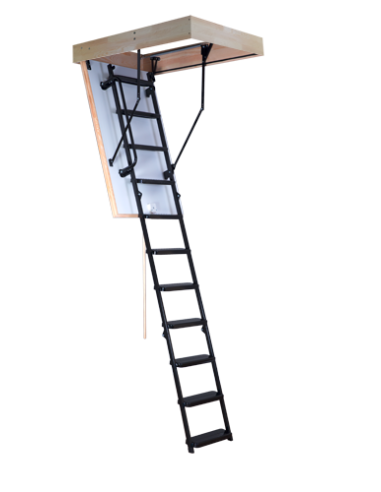

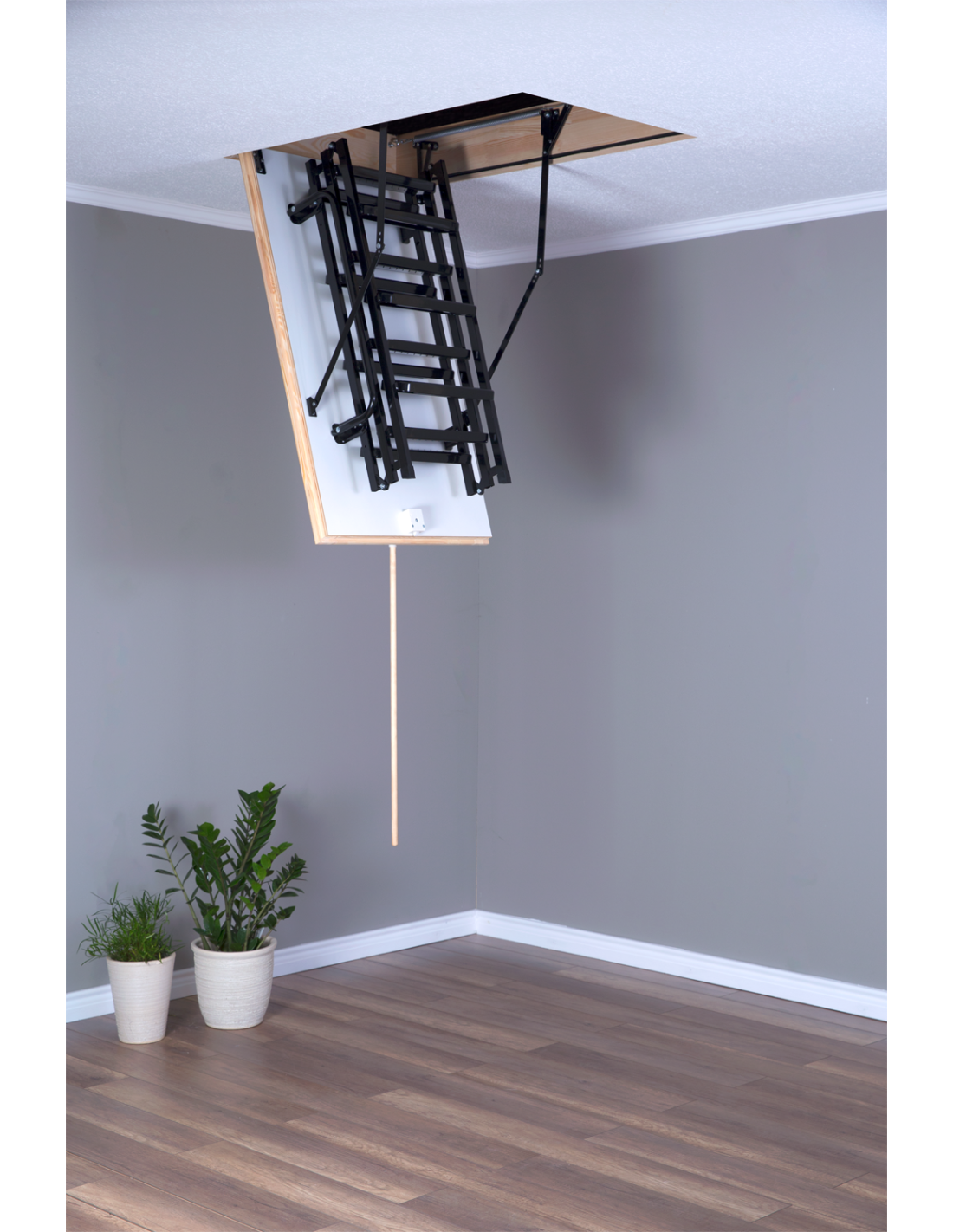

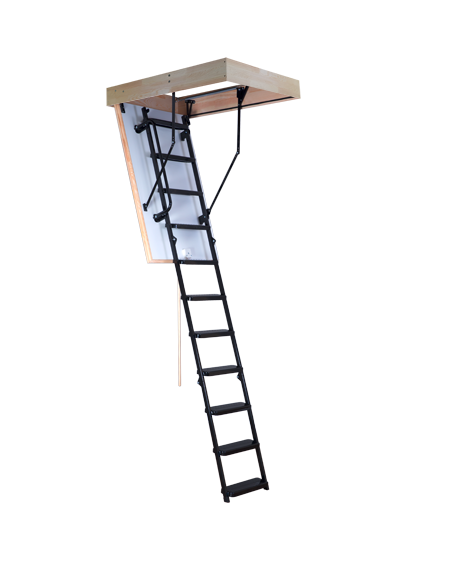

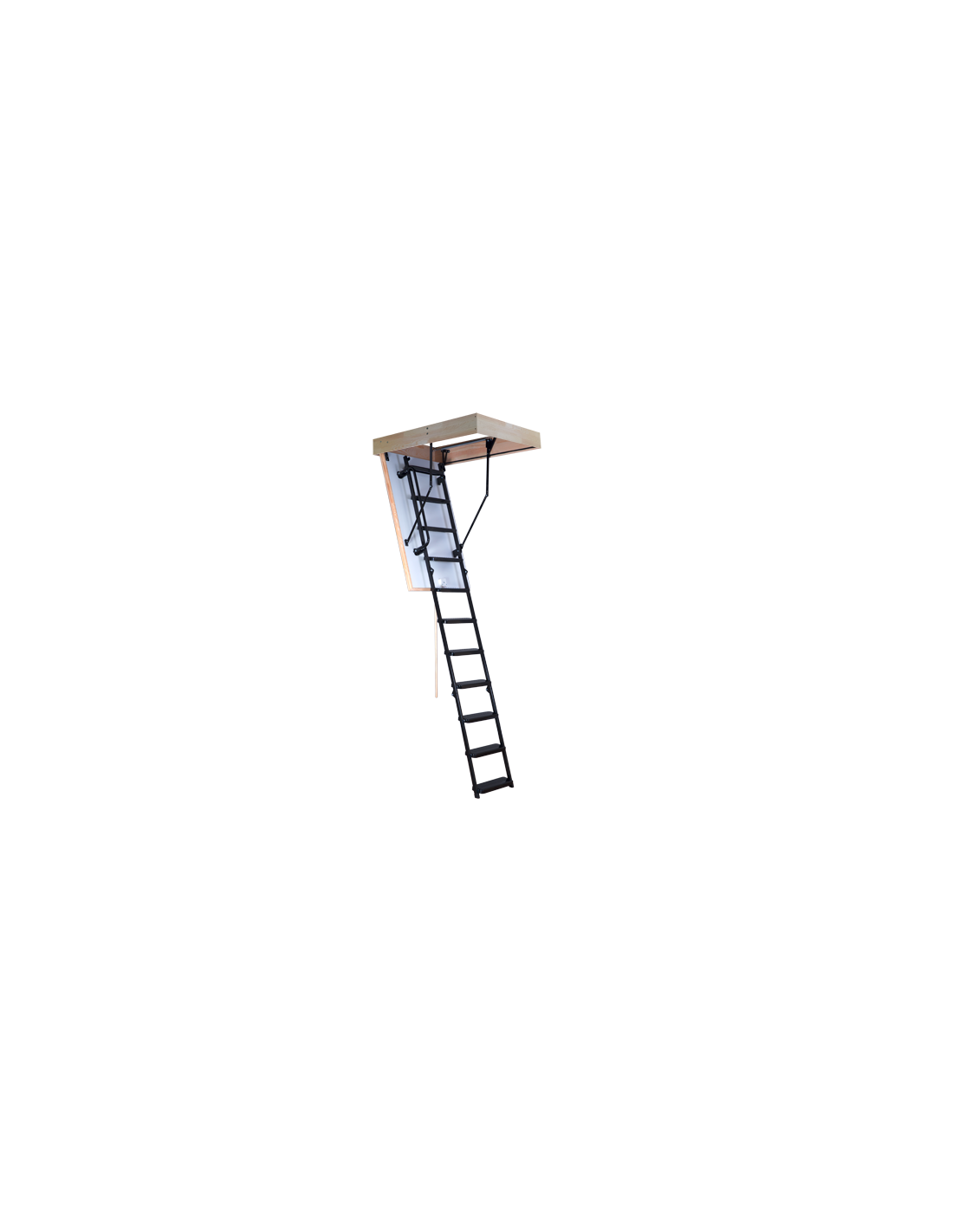

The BLUFFY 26 is a folding loft ladder with metal side rails and wooden steps, providing access to an enclosed mezzanine or loft. It supports 190 kg, more than the all-wood models in the range.

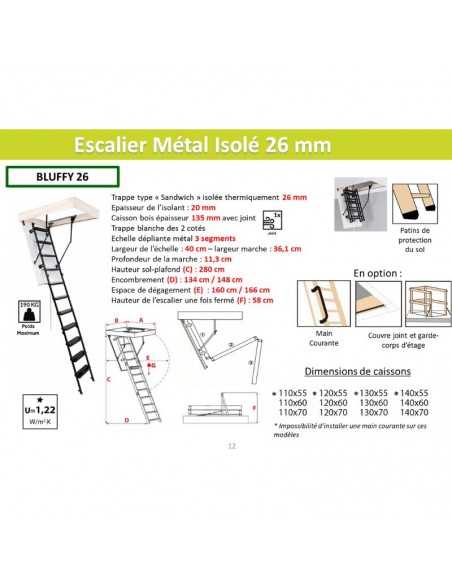

It comes in 12 frame sizes, from 110 x 55 to 140 x 70 cm, with a 26 mm hatch containing 20 mm of insulation. The 40 cm-wide ladder has 12 steps and reaches ceiling heights of up to 280 cm. It is supplied without a handrail.

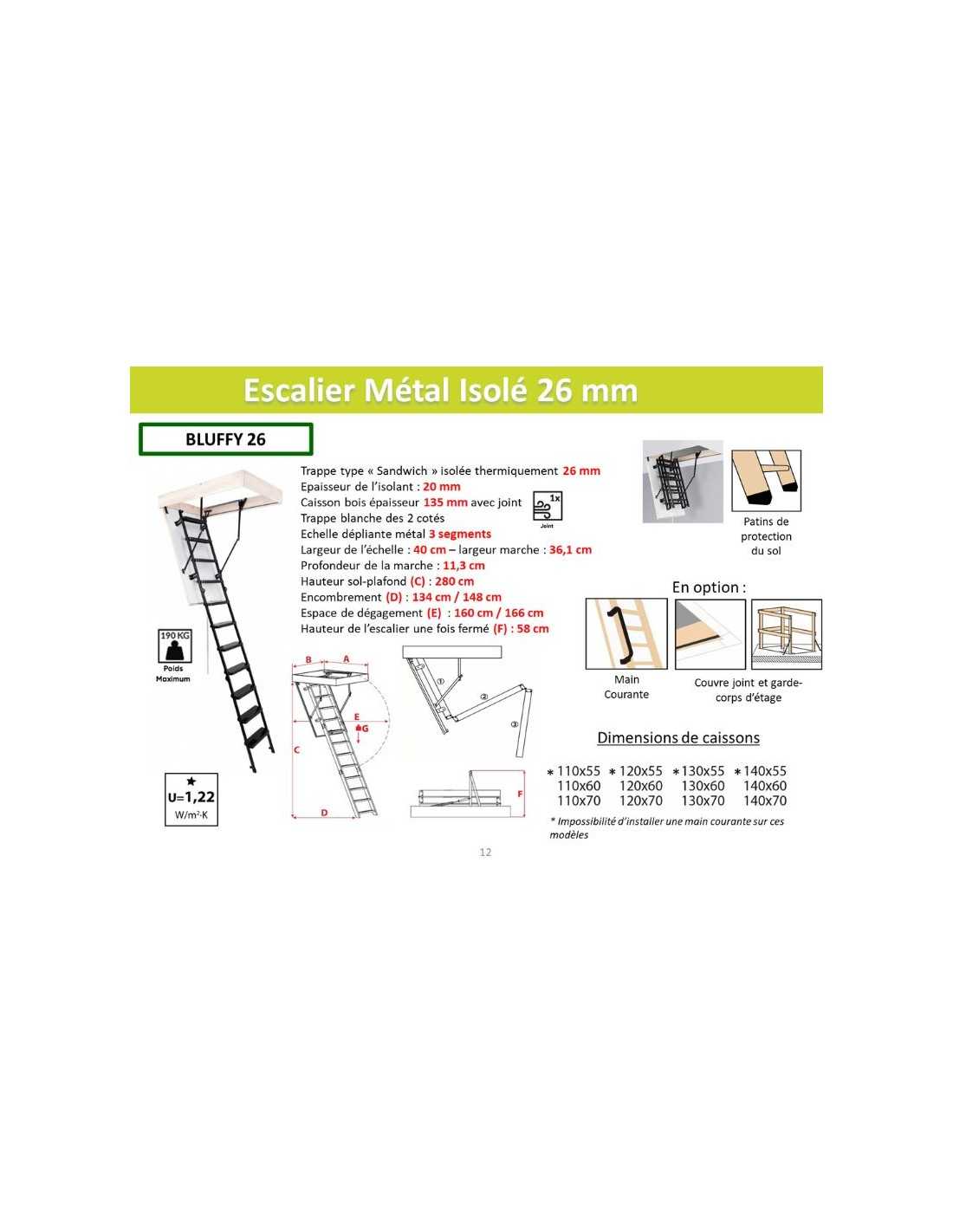

Key specifications

Feature	Description
Model	BLUFFY 26
Structure	Metal side rails, wooden steps
Hatch thickness	26 mm
Insulation thickness	20 mm
Available frame sizes	12 sizes: 110, 120, 130 or 140 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of steps	12
Ladder width	40 cm
Floor space required	134 or 148 cm, depending on the frame
Opening clearance	160 or 166 cm, depending on the frame
Height when folded	58 cm
Frame height	135 mm
Maximum load	190 kg
Standard	EN 14975
Handrail	Not included

Packaging

Ladder with frame and hatch

Key points

✓ Maximum load: 190 kg, EN 14975 standard
✓ 20 mm insulation: 26 mm hatch
✓ Metal side rails, wooden steps: 12 steps, 40 cm wide
✓ 12 frame sizes: from 110 x 55 to 140 x 70 cm
✓ Ceiling height: up to 280 cm
✓ Without a handrail

Range comparison

Metal and wood or aluminium folding loft ladders for heights up to 280 cm: the features to consider, model by model.

Model	Insulation thickness	Structure	Maximum height	Floor space required	Load	Handrail
BIVIO 26	20 mm (26 mm hatch)	Metal side rails, wooden steps	280 cm	134 or 148 cm	160 kg	Included
BLUFFY 26	20 mm (26 mm hatch)	Metal side rails, wooden steps	280 cm	134 or 148 cm	190 kg	No
BLUFFY 46	40 mm (46 mm hatch)	Metal side rails, wooden steps	280 cm	128 or 142 cm	210 kg	Included except with 55 cm-wide frames
BLUFFY 86	80 mm (86 mm hatch)	Metal side rails, wooden steps	280 cm	139 or 147 cm	210 kg	Included
COLOMBINO 56	50 mm (56 mm hatch)	Metal side rails, wooden steps	280 cm	151 cm	160 kg	Included
COLOMBINO 86	80 mm (86 mm hatch)	Metal side rails, wooden steps	280 cm	147 cm	160 kg	Included
CABAL 46	40 mm (46 mm hatch)	Aluminium	280 cm	128 or 142 cm	160 kg	Included

Choosing the right folding loft ladder

For a mezzanine or maintenance platform, the folding ladder frees up all the floor space when stowed. The BLUFFY 26 is suitable for occasional access; for daily use, a fixed staircase remains safer.

Its 26 mm hatch provides little insulation. Above a heated room, the BLUFFY 46 and 86 mm versions provide more insulation and support 210 kg. They include a handrail, except with the 55 cm-wide frames of the BLUFFY 46.

Installation advice

Ceiling opening: prepare an opening to fit the chosen frame, allowing around 5 mm of clearance all round. Check that there is at least 135 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimming joists) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

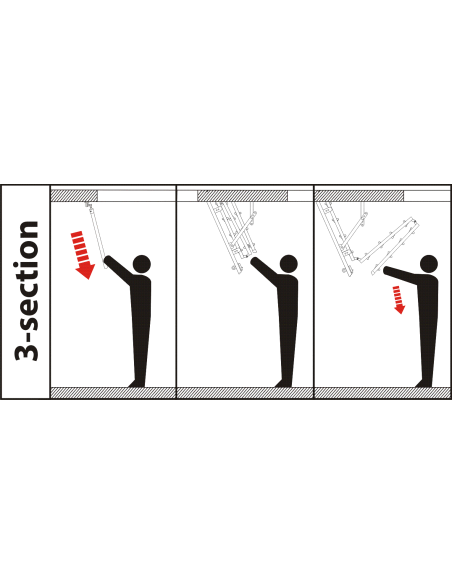

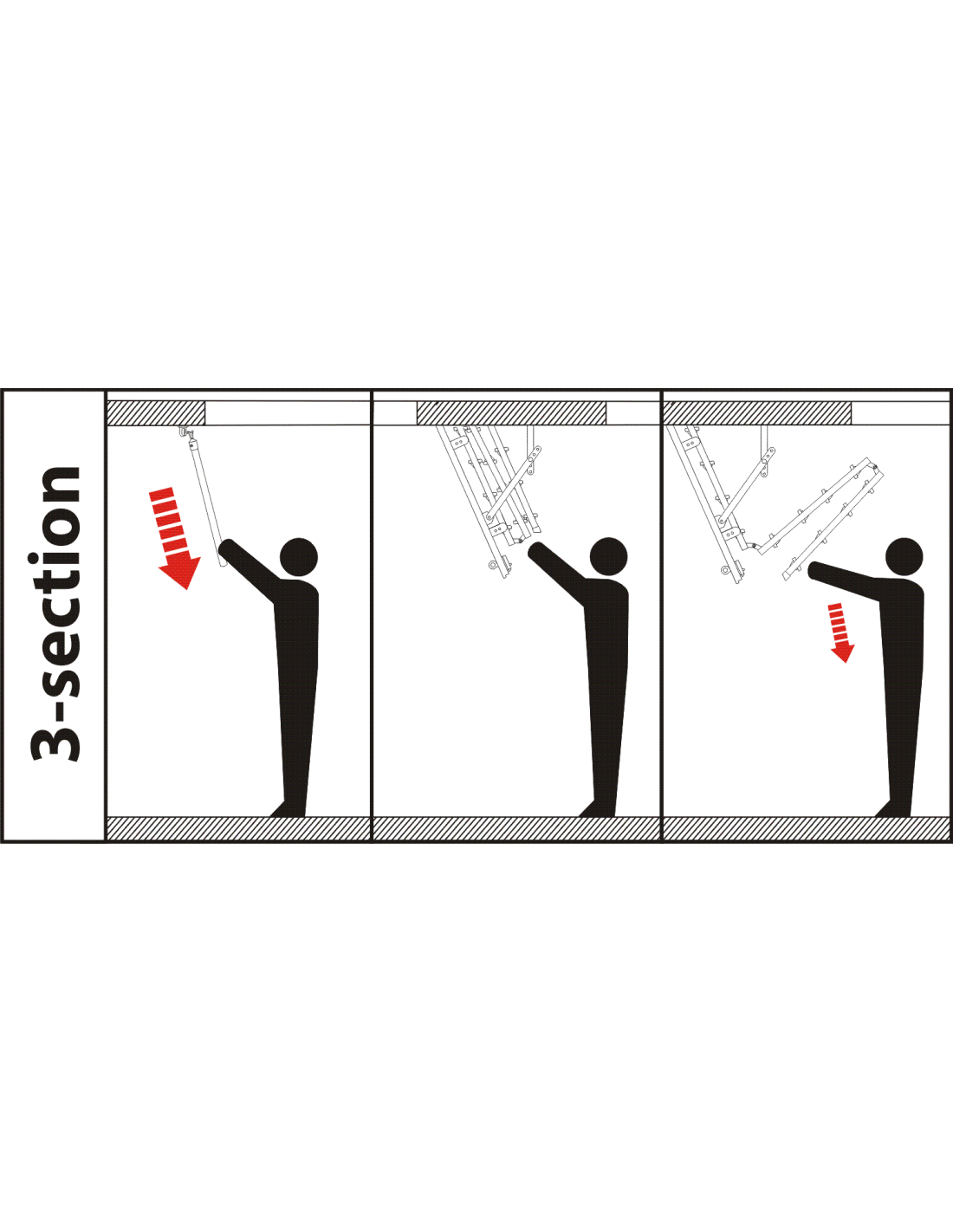

Adjustment: unfold the ladder, measure the ceiling height and trim the bottom section so that it rests flat on the floor. Finally, join the loft insulation around the frame to prevent thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and check that the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the steps.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which keeps it airtight.

Frequently asked questions

Can you install a folding ladder for a mezzanine?

Yes, when the mezzanine is enclosed by a floor with a ceiling opening. The BLUFFY 26 fits a frame measuring from 110 x 55 to 140 x 70 cm, reaches heights of up to 280 cm and supports a load of 190 kg. For everyday use, a fixed staircase remains more comfortable.

Folding ladder or folding staircase: what is the difference?

The principle is the same: a folding ladder housed in a frame with a hatch. It is called a staircase when it has wide, flat steps, like the BLUFFY’s 12 wooden steps, which are more comfortable than rungs.

How much floor space is needed to unfold the BLUFFY 26?

Allow 134 or 148 cm of floor space, depending on the frame, and 160 to 166 cm of clearance to open the hatch and unfold the ladder.

How do you choose the frame size for a folding loft ladder?

Choose the frame to suit the ceiling opening: its dimensions correspond to the opening needed, allowing around 5 mm of clearance all round for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Does a folding loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied for the maximum height and is trimmed at the bottom so that the last section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
