BERNINA 60-Minute Fire-Resistant Folding Loft Ladder, 66 mm Insulated Hatch

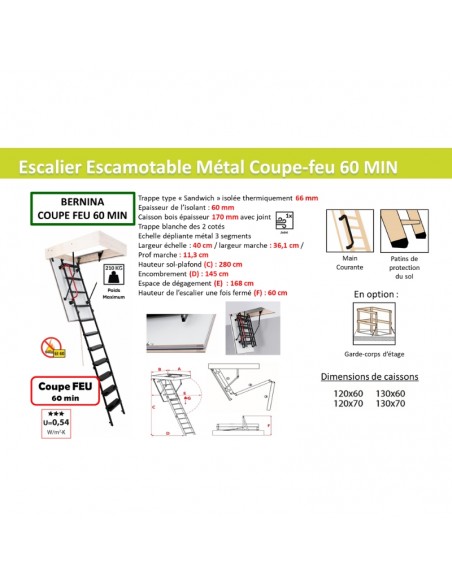

BERNINA 66 folding loft ladder, with metal stiles, wooden treads, 12 treads and 4 frame sizes from 120 x 60 to 130 x 70 cm.
60 mm insulation and a 66 mm hatch with 60-minute fire resistance. For ceiling heights up to 280 cm; requires 145 cm of floor space and 168 cm of opening clearance. Maximum load 210 kg; EN 14975 standard.
Handrail included. Suitable above a garage, boiler room or other higher-risk room where the floor must resist fire. Installation in accordance with the instructions is essential.
BERNINA 60-Minute Fire-Resistant Folding Loft Ladder, 66 mm Insulated Hatch

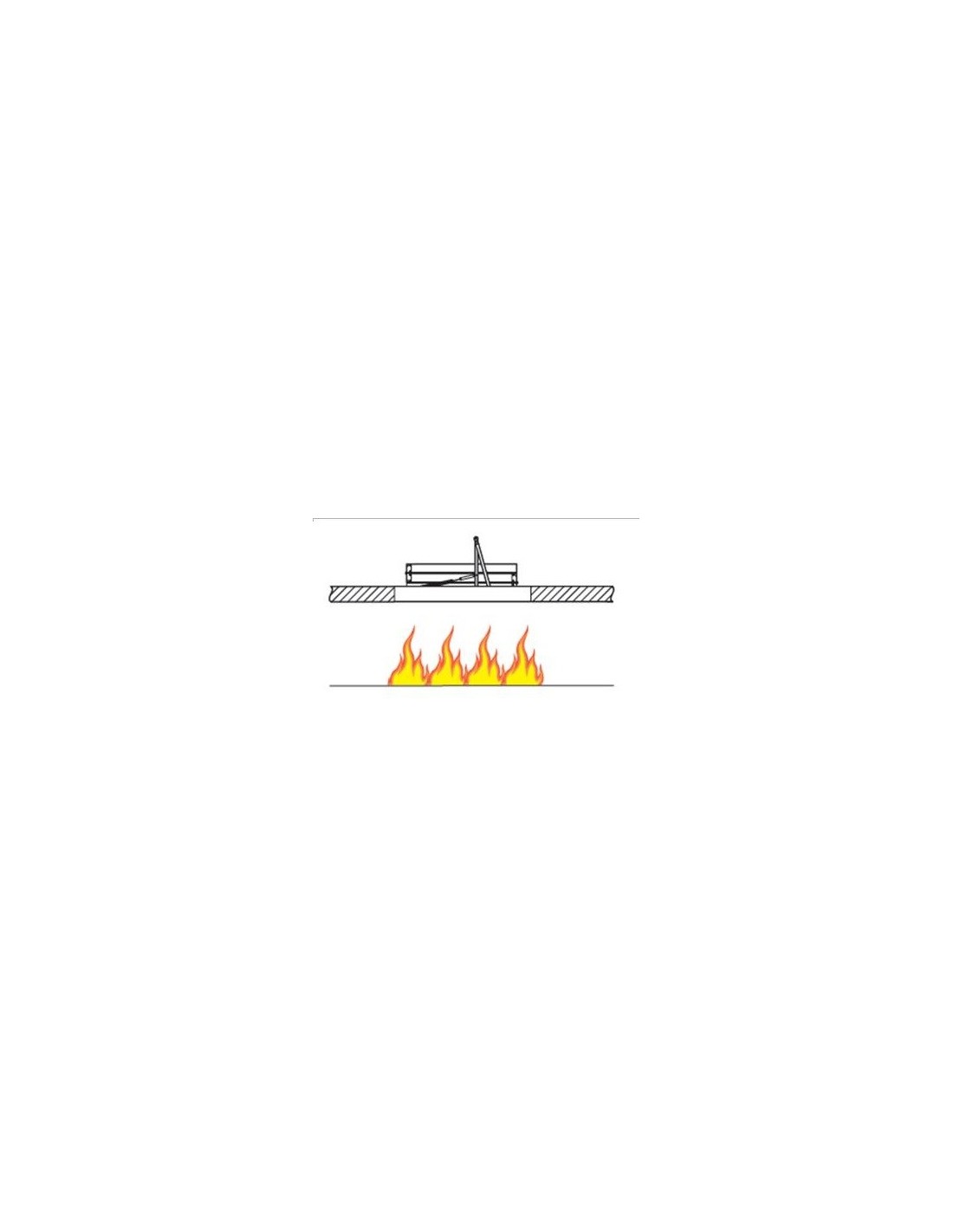

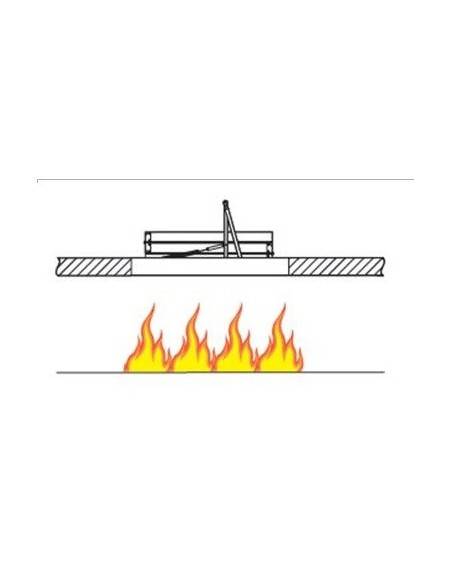

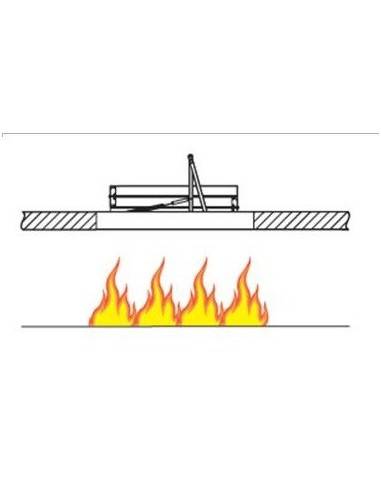

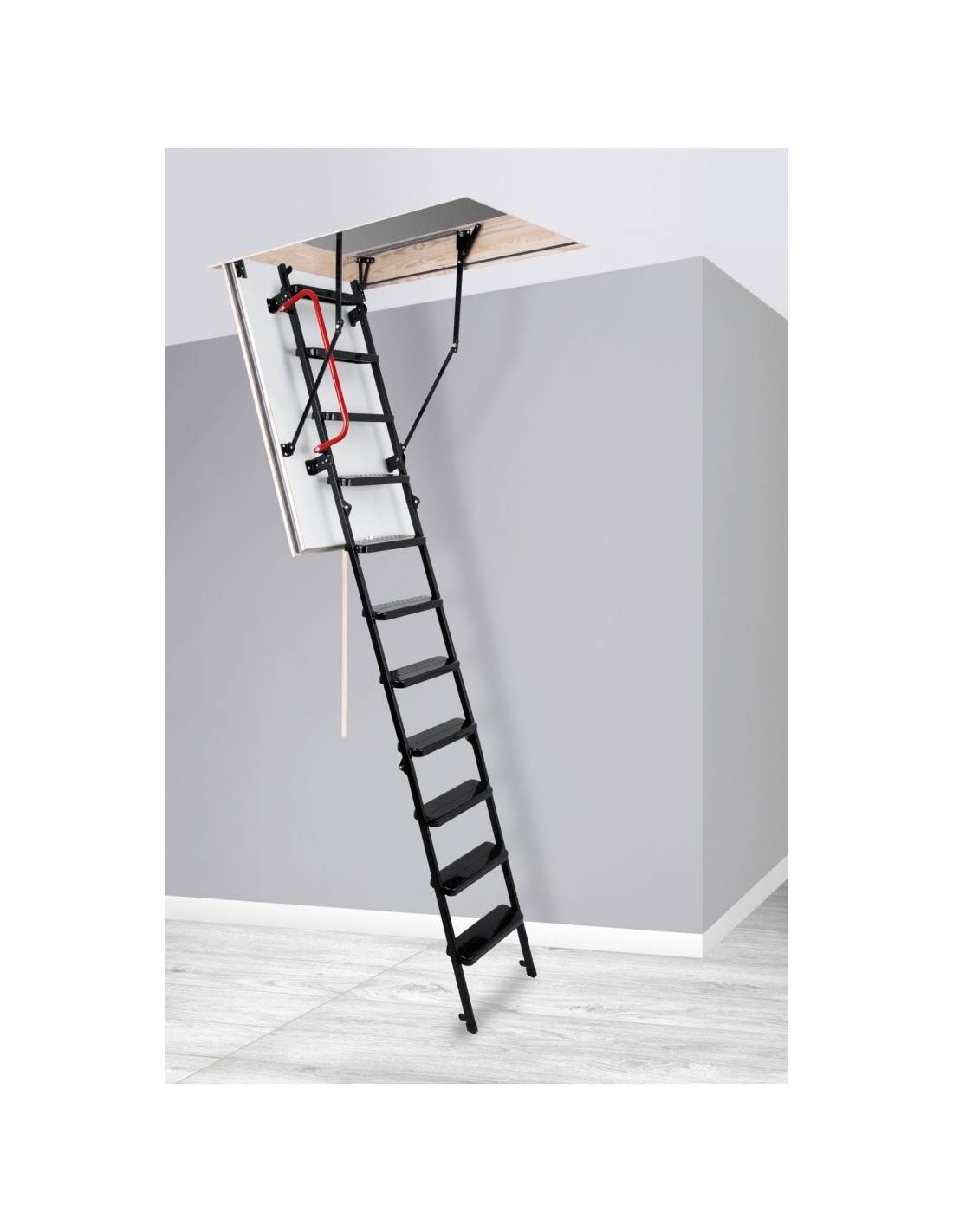

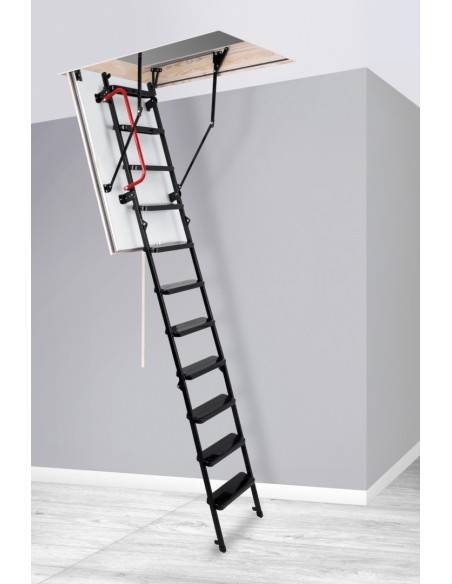

The BERNINA is a folding loft ladder with a hatch that resists fire for 60 minutes. It provides access to the loft where the floor must limit the spread of fire, for example above a garage or boiler room.

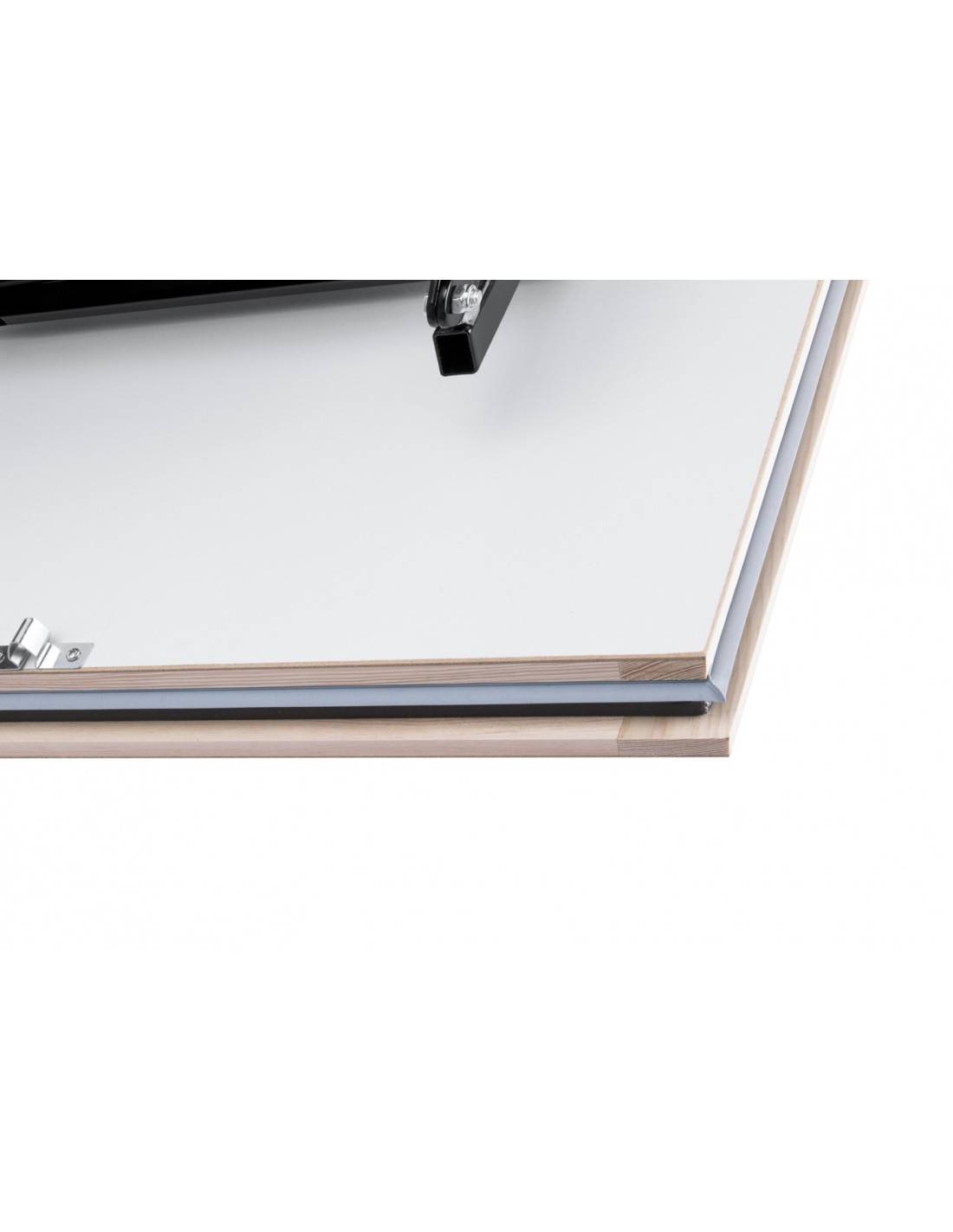

Its 66 mm hatch, including 60 mm of insulation, also provides thermal insulation. The ladder has metal stiles and 12 wooden treads and supports 210 kg. Four frame sizes are available, from 120 x 60 to 130 x 70 cm, for ceiling heights up to 280 cm.
Key features

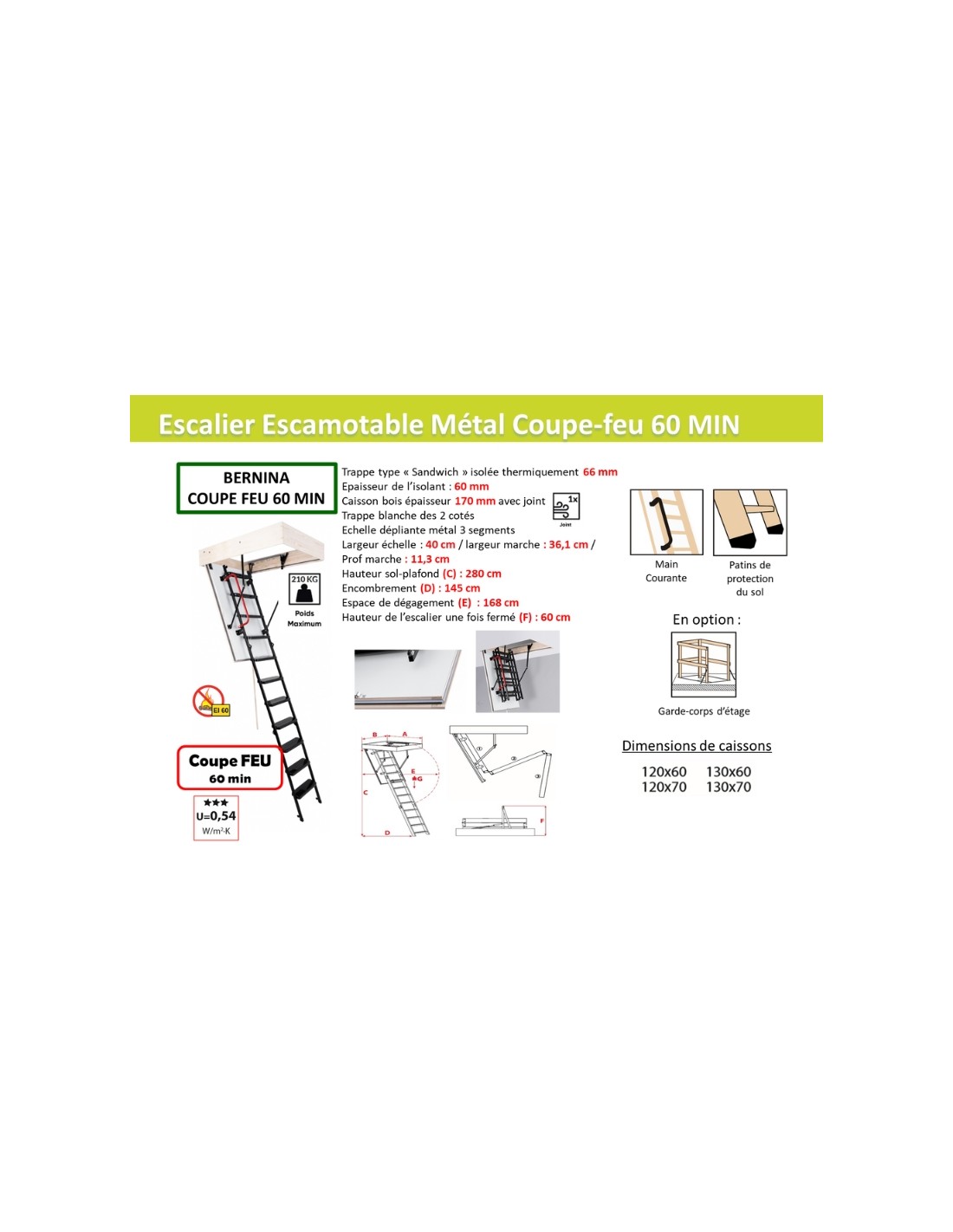

| Feature | Description |
|---|---|
| Model | BERNINA 66 |

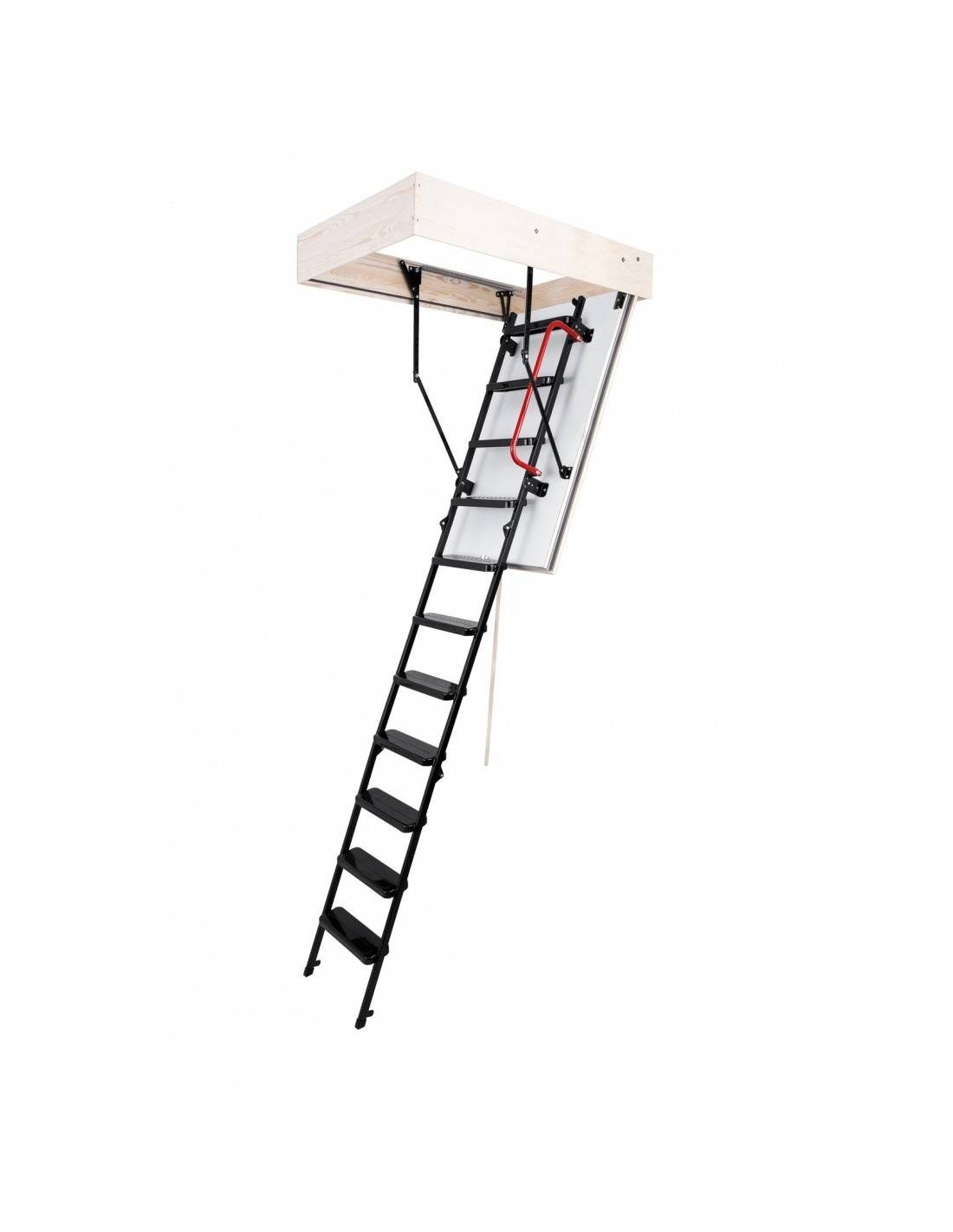

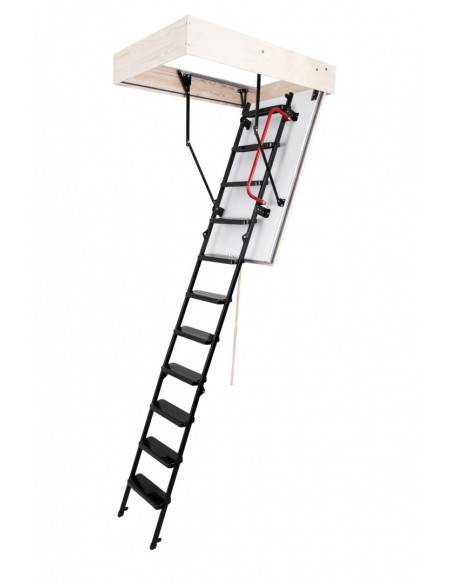

| Construction | Metal stiles, wooden treads |
| Hatch thickness | 66 mm, 60-minute fire resistance |
| Insulation thickness | 60 mm |
| Available frame sizes | 4 sizes: 120 or 130 cm long by 60 or 70 cm wide |
| Maximum ceiling height | 280 cm |
| Number of treads | 12 |
| Ladder width | 40 cm |
| Floor space required | 145 cm |
| Opening clearance | 168 cm |

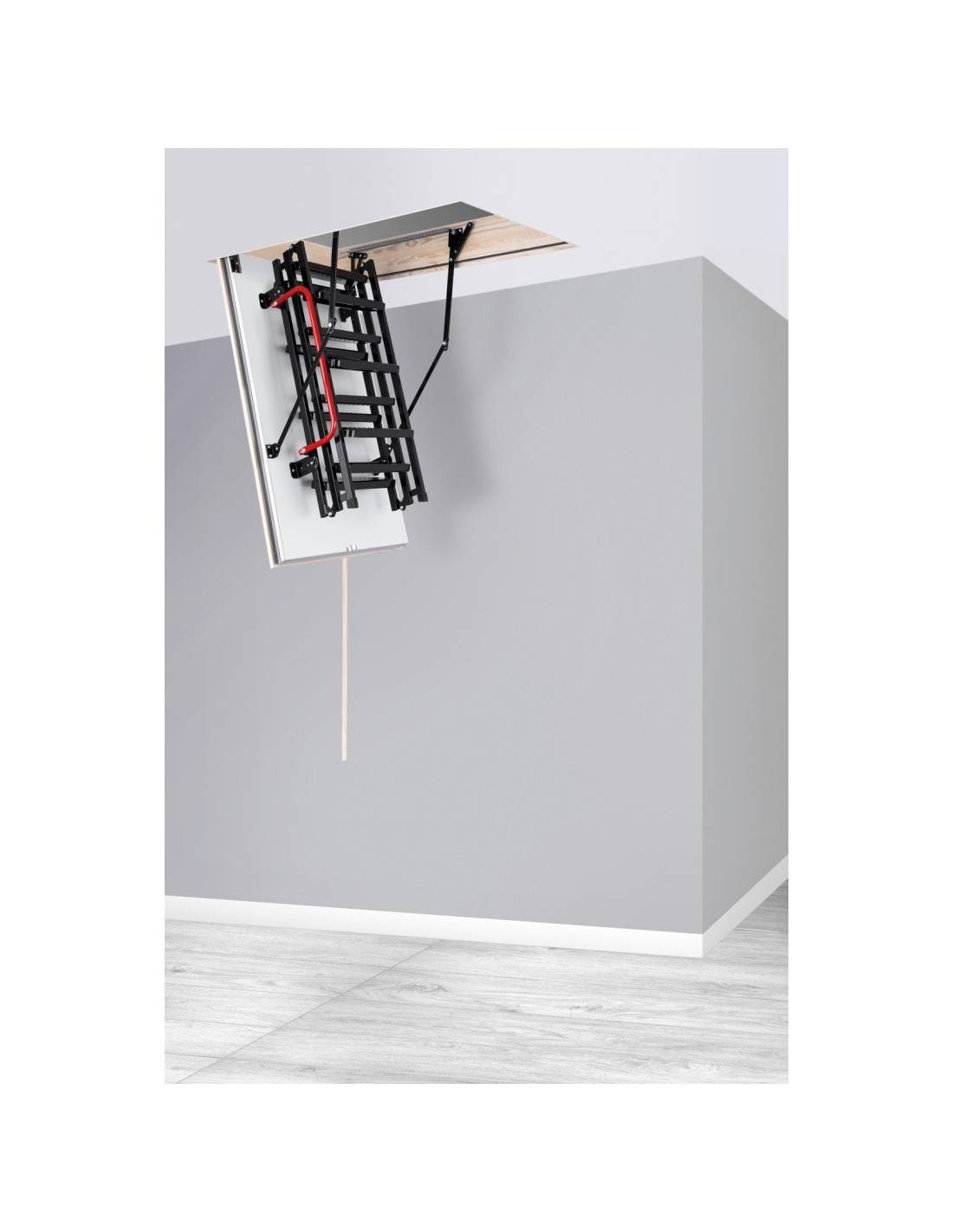

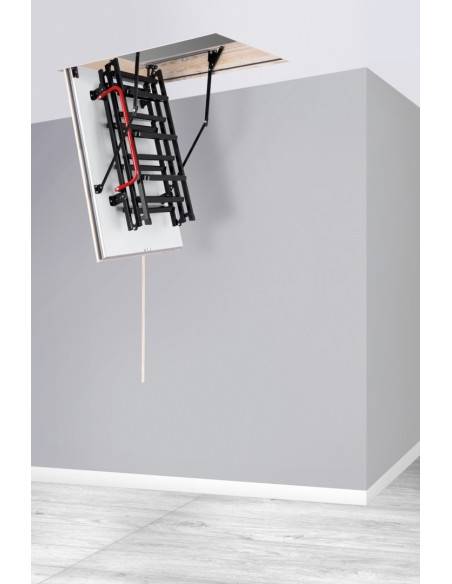

| Folded height | 60 cm |
| Frame height | 170 mm |
| Maximum load | 210 kg |
| Standard | EN 14975 |
| Handrail | Included |
Package contents
- Ladder with frame and hatch
- Handrail
Key points
- ✓ Fire-resistant hatch: 60 minutes
- ✓ 60 mm insulation: 66 mm hatch
- ✓ Maximum load: 210 kg, EN 14975 standard
- ✓ Metal stiles, wooden treads: 12 treads
- ✓ 4 frame sizes: from 120 x 60 to 130 x 70 cm, for ceiling heights up to 280 cm
- ✓ Handrail included
Range comparison
Fire-resistant folding loft ladders: the features to consider, model by model.
| Model | Insulation thickness | Construction | Maximum height | Floor space required | Load capacity | Handrail |
|---|---|---|---|---|---|---|
| NOZIERES 66, 45-minute fire resistance | 60 mm (66 mm hatch) | Metal stiles, wooden treads | 265 cm | 130 cm | 160 kg | Included |
| ARPETTAZ 66, 45-minute fire resistance | 60 mm (66 mm hatch) | Wood | 280 cm | 145 cm | 160 kg | Included |
| BERNINA 66, 60-minute fire resistance | 60 mm (66 mm hatch) | Metal stiles, wooden treads | 280 cm | 145 cm | 210 kg | Included |
Choosing the right folding loft ladder
A fire-resistant hatch is appropriate when required by regulations or your insurer, or when a higher-risk room lies beneath the loft. Check the fire-resistance period required for your project: the BERNINA provides 60 minutes, while the ARPETTAZ and NOZIERES 66 provide 45 minutes.
Allow 145 cm of floor space and 168 cm of clearance. A handrail is supplied.
Installation advice
Loft opening: prepare an opening to suit the chosen frame, allowing approximately 5 mm around the perimeter. Check that there is at least 170 mm of clear height above the ceiling to accommodate the frame.
Fixing: secure the frame to the floor structure (joists and trimming joists) using screws suitable for the structure, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame prevents the hatch from closing properly.
Adjustment: unfold the ladder, measure the ceiling height and trim the last section so that it rests flat on the floor. Fit the handrail. Finally, connect the loft insulation around the frame to prevent thermal bridging.
Fire resistance: the 60-minute rating is achieved only when the ladder is installed in accordance with the instructions. Do not drill into the hatch or modify the frame or its seals.
Care and protection
Once a year, check that the screws are tight, inspect the joints between sections and check that the hatch opening mechanism works properly. Lubricate the mechanisms if opening becomes difficult, and dust the treads.
On a fire-resistant model, do not apply thick paint or add a covering to the hatch without the manufacturer’s approval, and check that the seals remain in place.
Frequently asked questions
When do you need a fire-resistant folding loft ladder?
When the hatch passes through a floor that must resist fire: above a garage or boiler room, or where required by regulations or your insurer. The BERNINA has a 60-minute fire-resistant hatch.
What is the difference between a 45-minute and a 60-minute fire-resistant folding loft ladder?
The length of time the hatch limits the spread of fire. The BERNINA provides 60 minutes of fire resistance; the ARPETTAZ and NOZIERES 66 provide 45 minutes. Choose according to your project’s requirements.
What load can the BERNINA support?
The ladder’s metal stiles and wooden treads support 210 kg, one of the highest load capacities in our folding loft ladder range.
How do you choose the frame size for a folding loft ladder?
Choose the frame to suit the loft opening: its dimensions correspond to the opening needed in the ceiling, allowing approximately 5 mm all around for installation. Measure the existing opening, or the one you can create between the joists, then select the largest frame that will fit.
Do you need to trim a folding loft ladder?
Yes, in most cases. The ladder is supplied for the maximum ceiling height and trimmed at the bottom so that the last section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
- Width (cm)
- 40
- Species/material
- WOOD METAL
- Number of treads
- 12
- Standard
- EN 14975
- Footprint (cm)
- 145
- Closed staircase height (cm)
- 60
- maximum load (kg)
- 210
- clearance space (cm)
- 168
- wooden housing height (mm)
- 170
- Insulation thickness (mm)
- 60
- Handrail included
- YES
- Hatch thickness (mm)
- 66
- Floor-to-ceiling height (cm)
- 280
