COLOMBINO Insulated 86 mm Folding Loft Ladder with Handrail, Metal and Wood

Name: COLOMBINO Insulated 86 mm Folding Loft Ladder with Handrail, Metal and Wood
Brand: Levigne
SKU: ECBM86
Price: 649.99 EUR
Availability: PreOrder

COLOMBINO 86 loft ladder with metal side rails, wooden treads, 13 treads and a 120 x 60 or 120 x 70 cm frame.

80 mm of insulation and an 86 mm hatch. For ceiling heights up to 280 cm; requires 147 cm of floor space and 169 cm of clearance. Maximum load 160 kg; EN 14975 standard.

Handrail included as standard. For unheated lofts above a living space, where hatch insulation matters as much as comfort when climbing. A 56 mm version is available for already insulated lofts.

Box dimension

Reference ECBM8612060

€649.99 incl. tax

Including €0.99 for ecotax

Made to order. Lead time 5-6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

COLOMBINO Insulated 86 mm Loft Ladder with Handrail, Metal and Wood

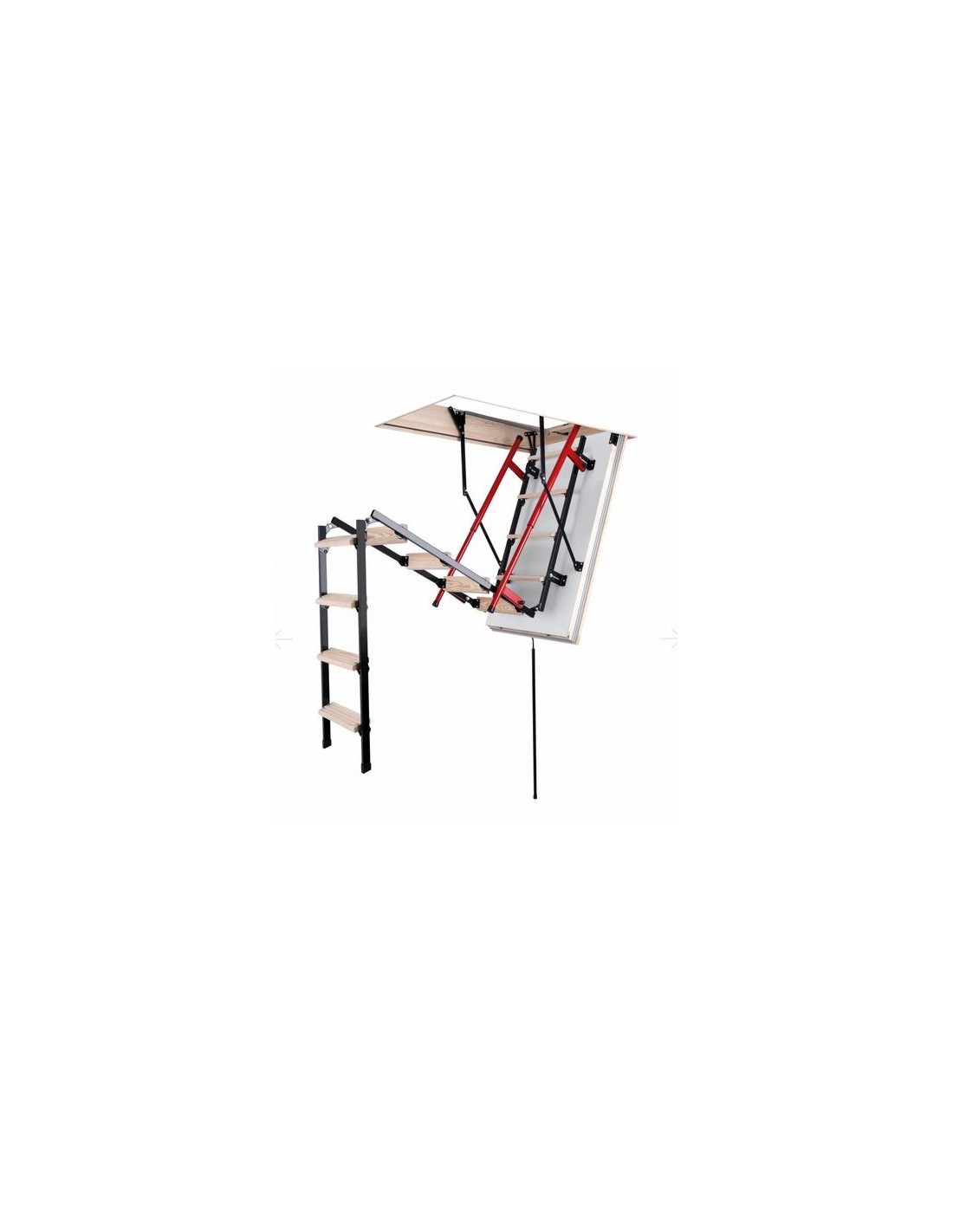

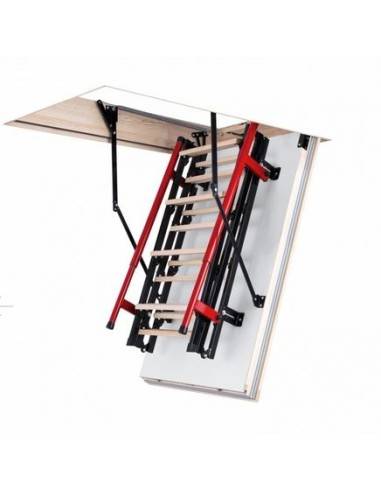

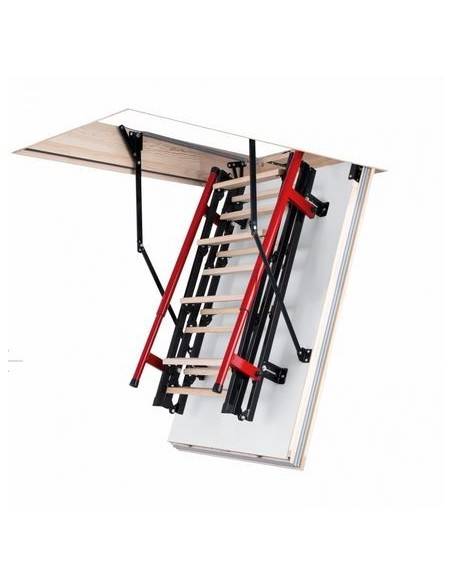

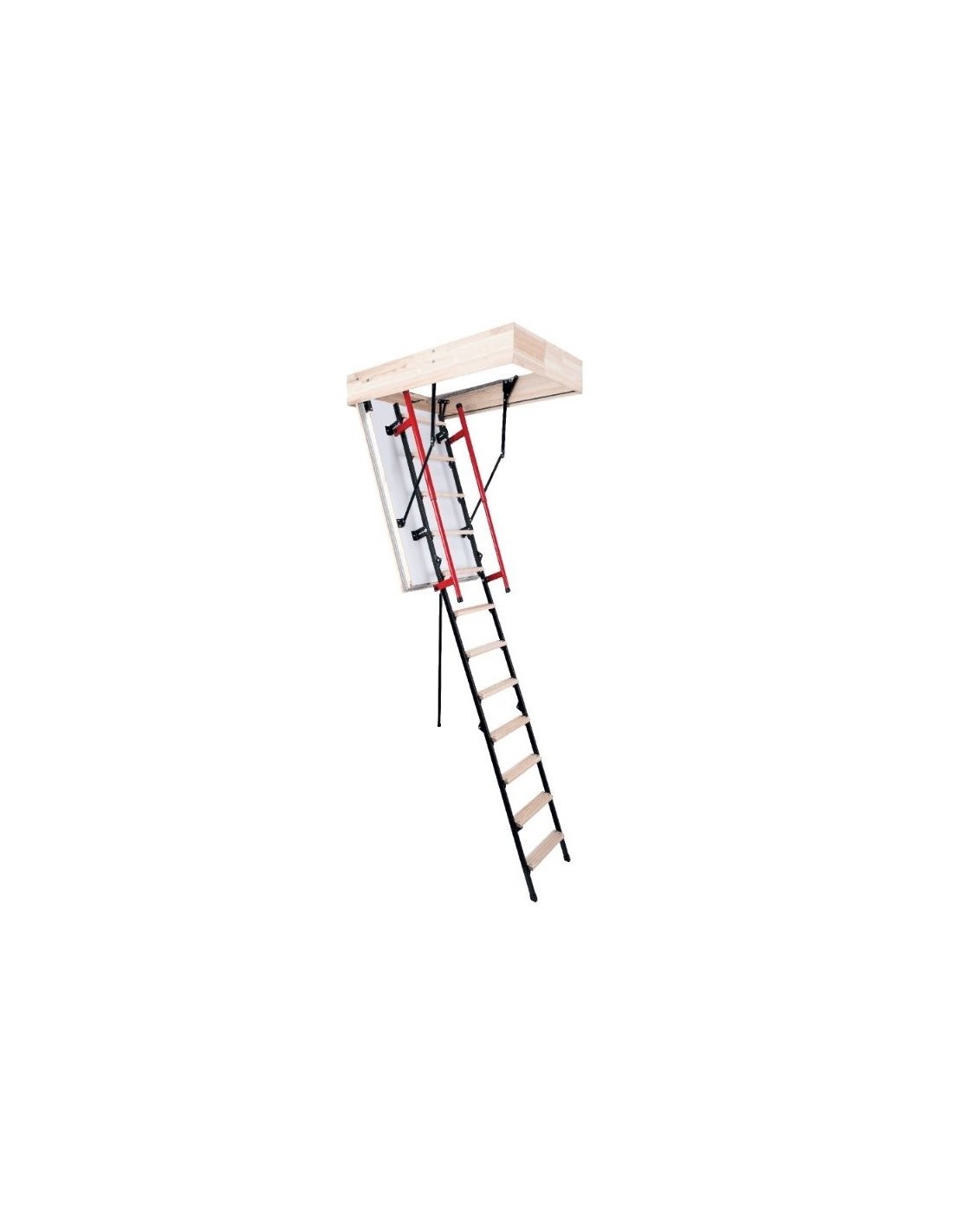

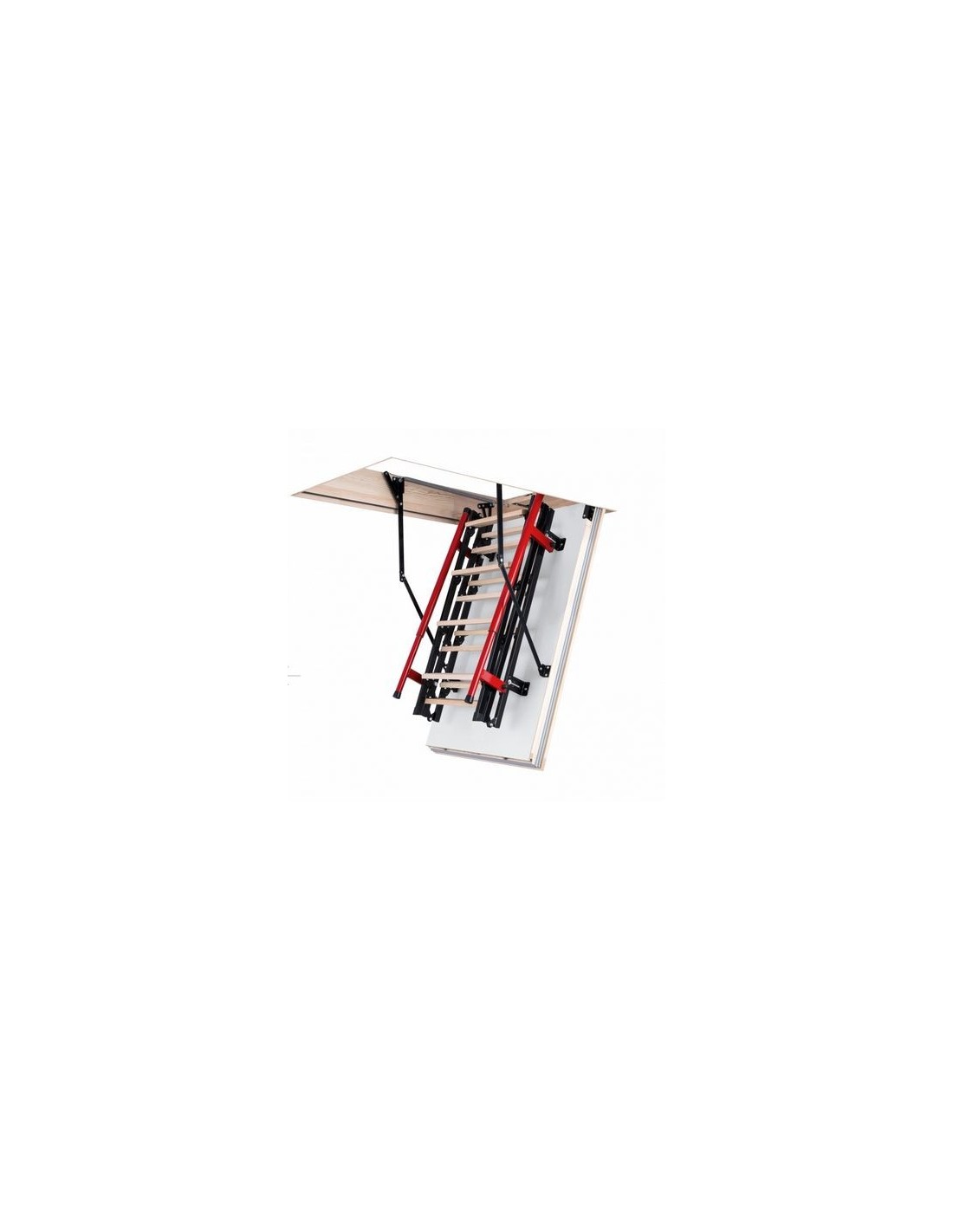

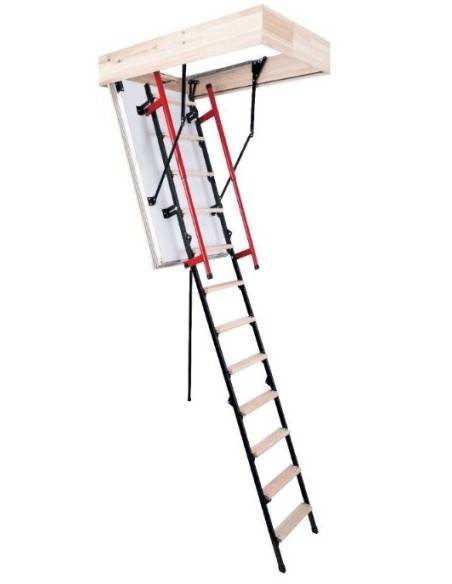

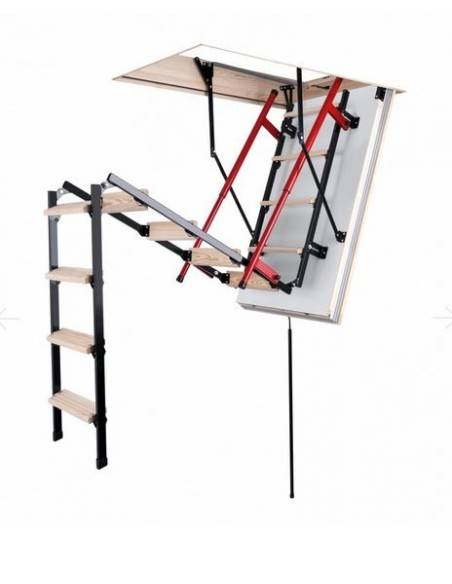

The COLOMBINO 86 loft ladder combines an included handrail with one of the best-insulated hatches in the range: 86 mm thick, including 80 mm of insulation. It provides access to an unheated loft while limiting heat loss through the ceiling.

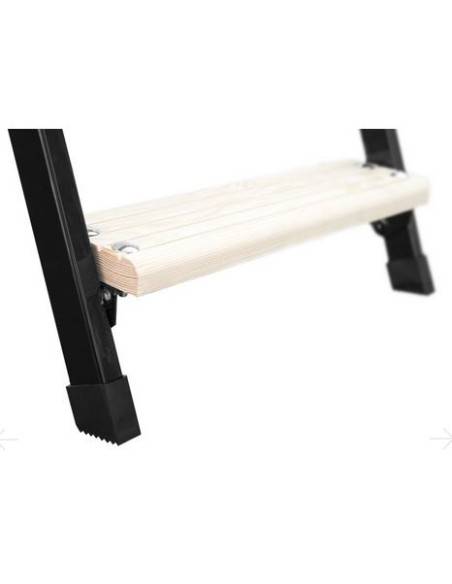

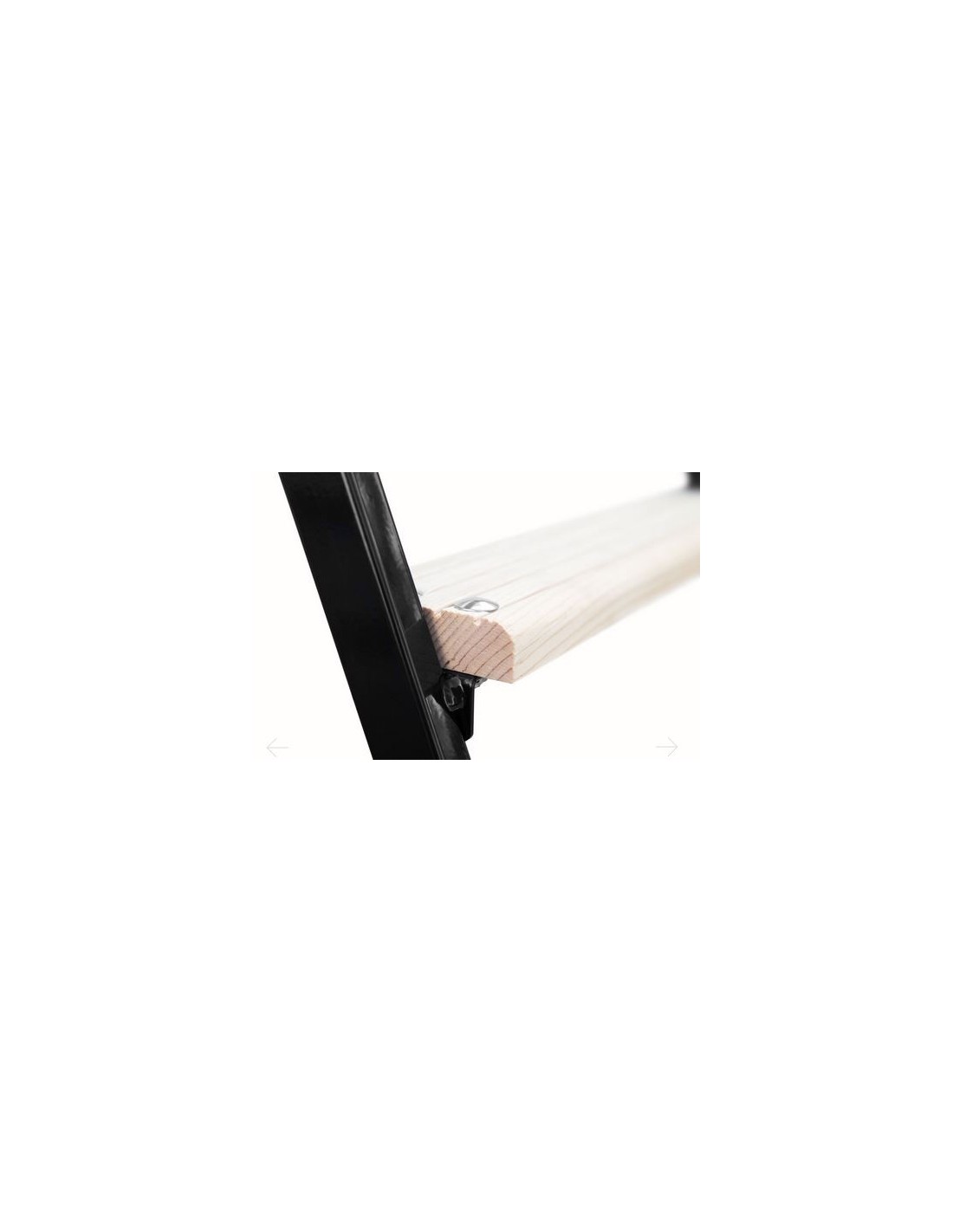

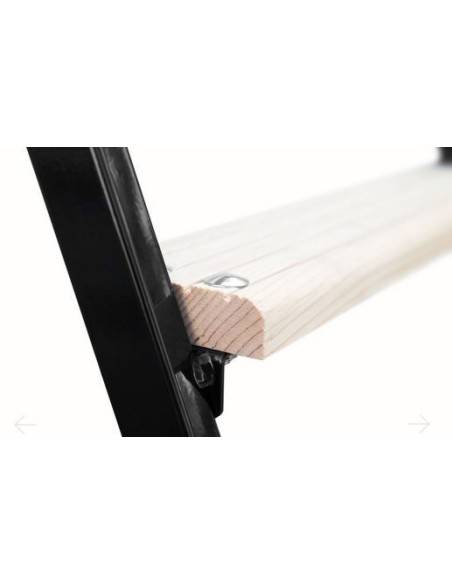

The ladder combines metal side rails with 13 wooden treads, each 40 cm wide. The first tread is 20 cm high, and the remaining treads are 22 cm apart. The frame comes in 120 x 60 or 120 x 70 cm sizes, for ceiling heights up to 280 cm.

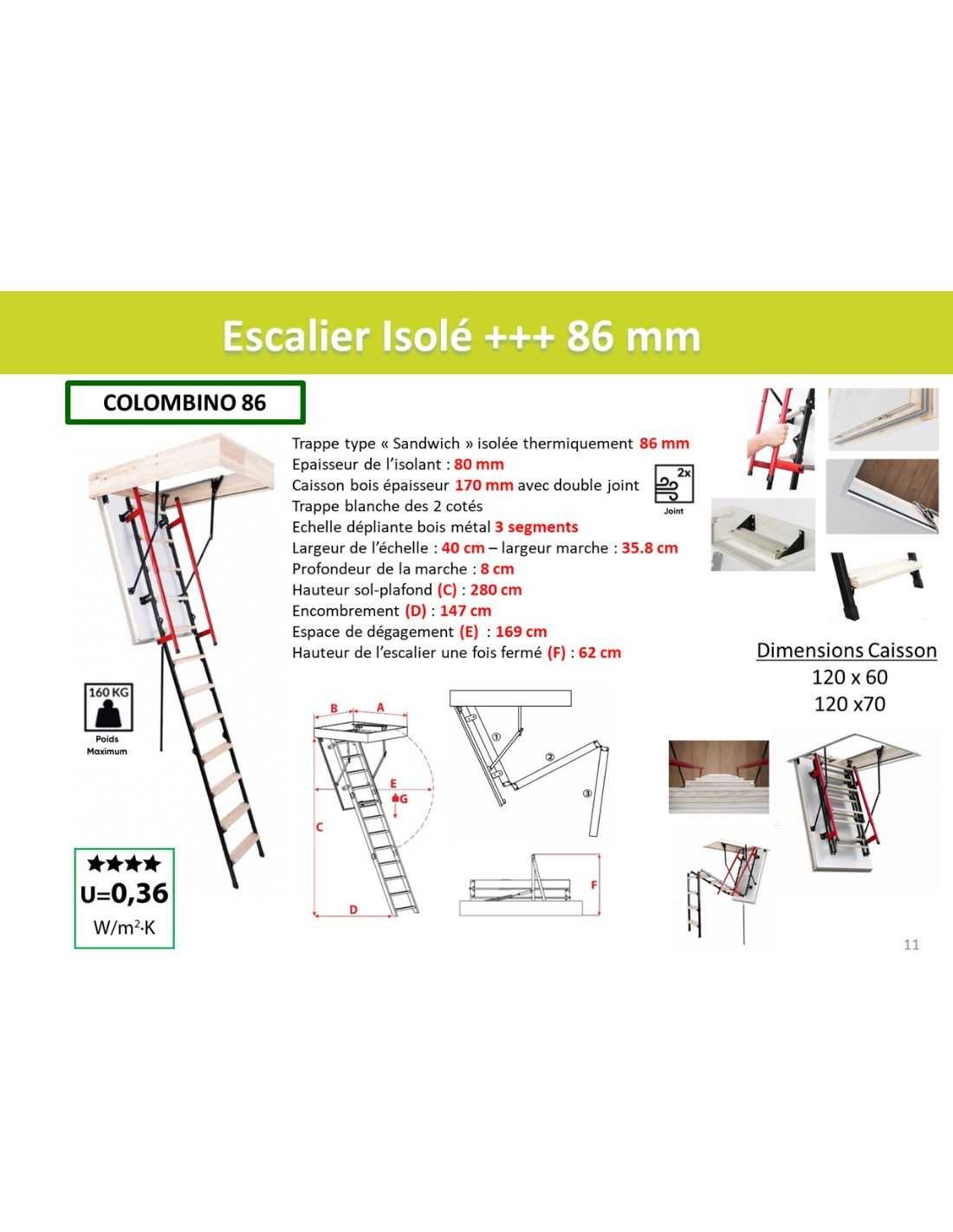

Key features

Feature	Description
Model	COLOMBINO 86
Construction	Metal side rails, wooden treads
Hatch thickness	86 mm
Insulation thickness	80 mm
Available frame sizes	2 sizes: 120 cm long by 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of treads	13
Ladder width	40 cm
Tread spacing	20 cm for the first tread, 22 cm for the others
Floor space required	147 cm
Clearance required	169 cm
Height when folded	62 cm
Frame height	170 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included

Package contents

Ladder with frame and hatch
Handrail

Key points

✓ 80 mm insulation: 86 mm hatch
✓ Handrail included as standard
✓ Metal side rails, wooden treads: 13 treads, 40 cm wide
✓ Ceiling height: up to 280 cm
✓ Frame: 120 x 60 or 120 x 70 cm
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Metal-and-wood or aluminium loft ladders for ceiling heights up to 280 cm: the features to consider, model by model.

Model	Insulation thickness	Construction	Max. height	Floor space required	Load	Handrail
BIVIO 26	20 mm (26 mm hatch)	Metal side rails, wooden treads	280 cm	134 or 148 cm	160 kg	Included
BLUFFY 26	20 mm (26 mm hatch)	Metal side rails, wooden treads	280 cm	134 or 148 cm	190 kg	No
BLUFFY 46	40 mm (46 mm hatch)	Metal side rails, wooden treads	280 cm	128 or 142 cm	210 kg	Included except with 55 cm-wide frames
BLUFFY 86	80 mm (86 mm hatch)	Metal side rails, wooden treads	280 cm	139 or 147 cm	210 kg	Included
COLOMBINO 56	50 mm (56 mm hatch)	Metal side rails, wooden treads	280 cm	151 cm	160 kg	Included
COLOMBINO 86	80 mm (86 mm hatch)	Metal side rails, wooden treads	280 cm	147 cm	160 kg	Included
CABAL 46	40 mm (46 mm hatch)	Aluminium	280 cm	128 or 142 cm	160 kg	Included

Choosing the right loft ladder

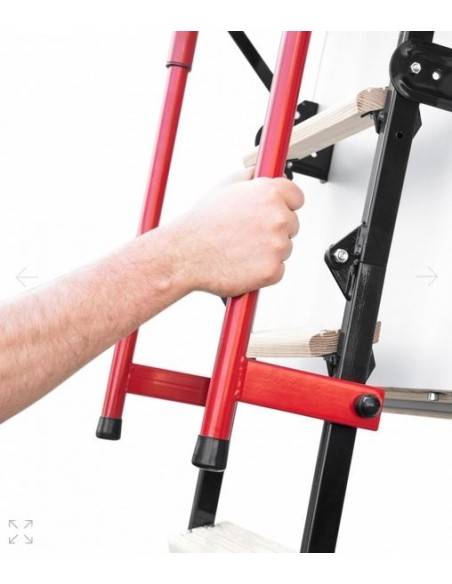

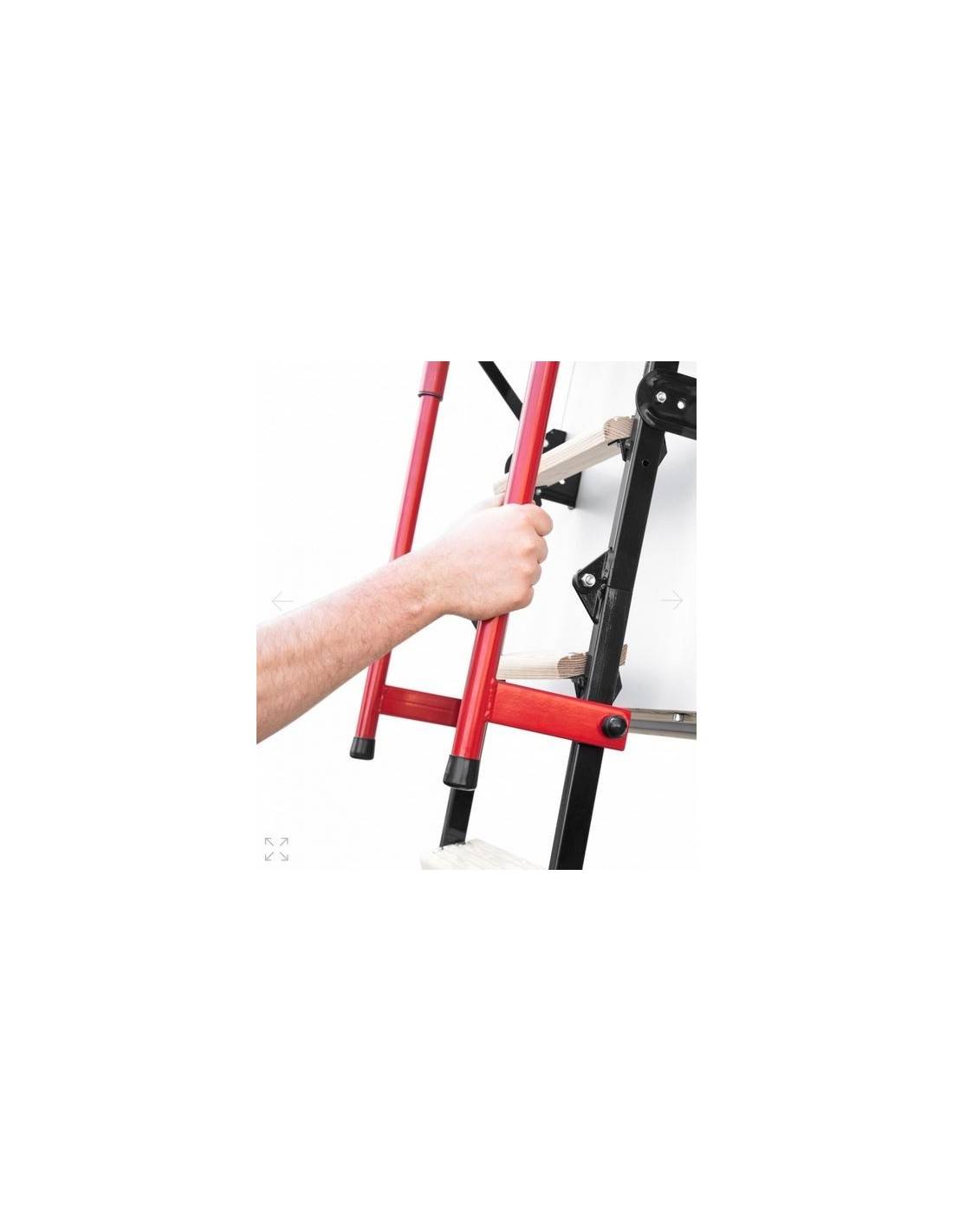

The handrail provides support when climbing and, especially, when descending while carrying a box or stepping backwards down the ladder. It comes as standard with the COLOMBINO.

Choose the 86 mm version when the loft is unconverted or poorly insulated above a heated room. If the hatch opens into an already insulated loft, the COLOMBINO 56 mm version is sufficient and costs less. The 170 mm-high frame requires enough clearance above the ceiling.

Installation advice

Loft opening: prepare an opening to fit the chosen frame, allowing about 5 mm clearance all around. Check that there is at least 170 mm of clearance above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmer joists) using screws suitable for the material, following the instructions. Check that the frame is square before tightening fully: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the final section so it rests flat on the floor. Fit the handrail. Finally, join the loft insulation around the frame to prevent thermal bridges.

Maintenance and protection

Once a year, check that the screws are tight, inspect the joints between the ladder sections and make sure the hatch opening mechanism works properly. Lubricate the mechanisms if the hatch becomes difficult to open, and dust the treads.

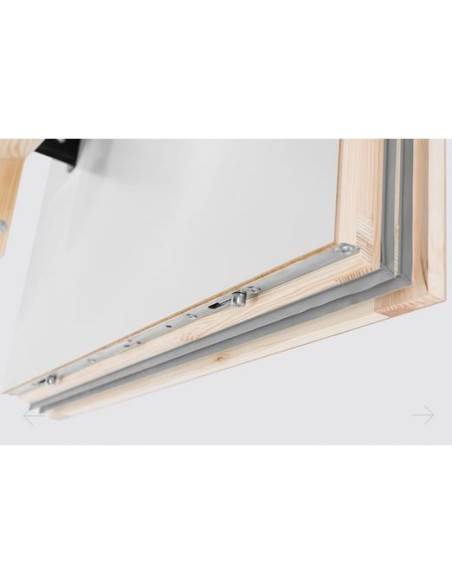

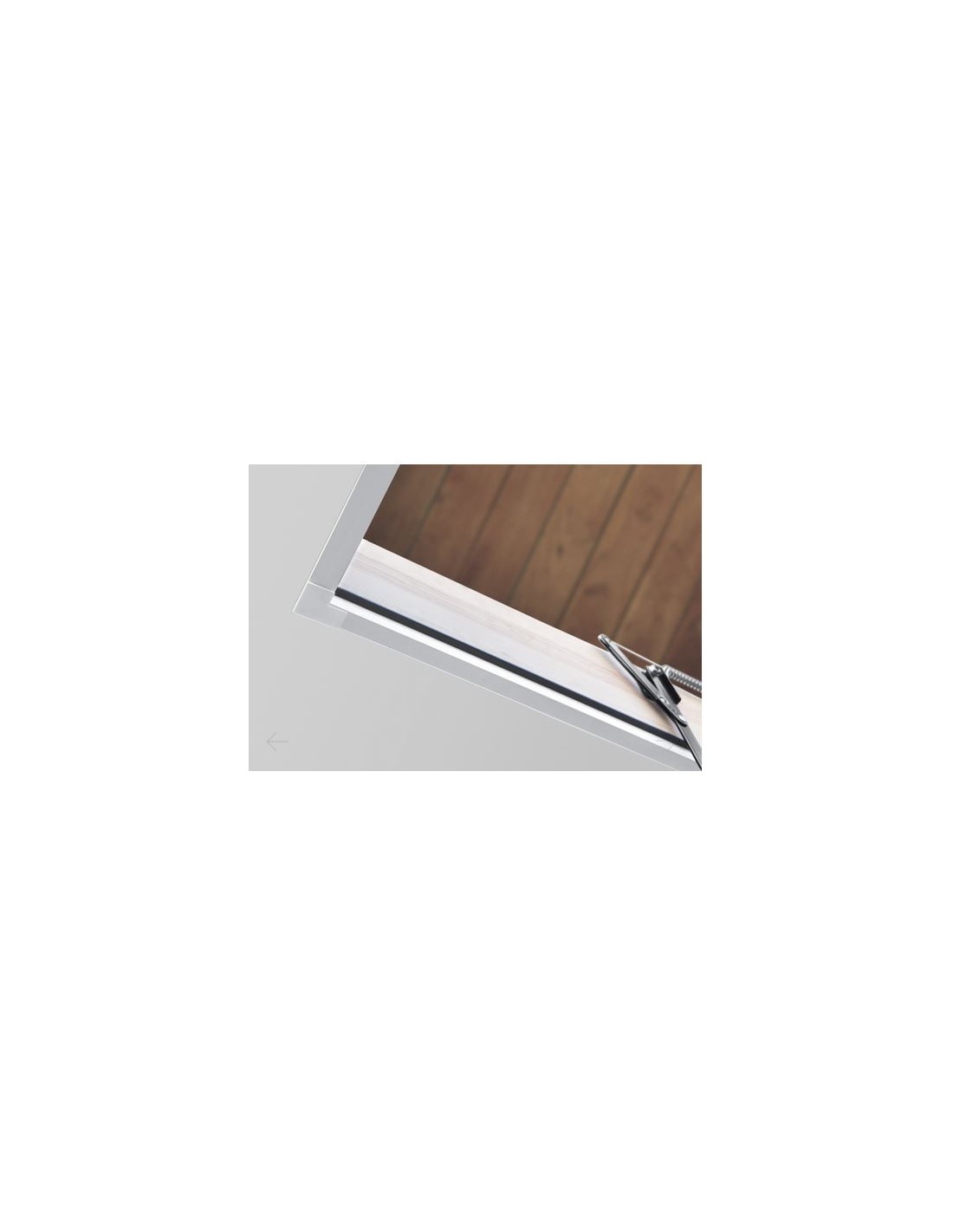

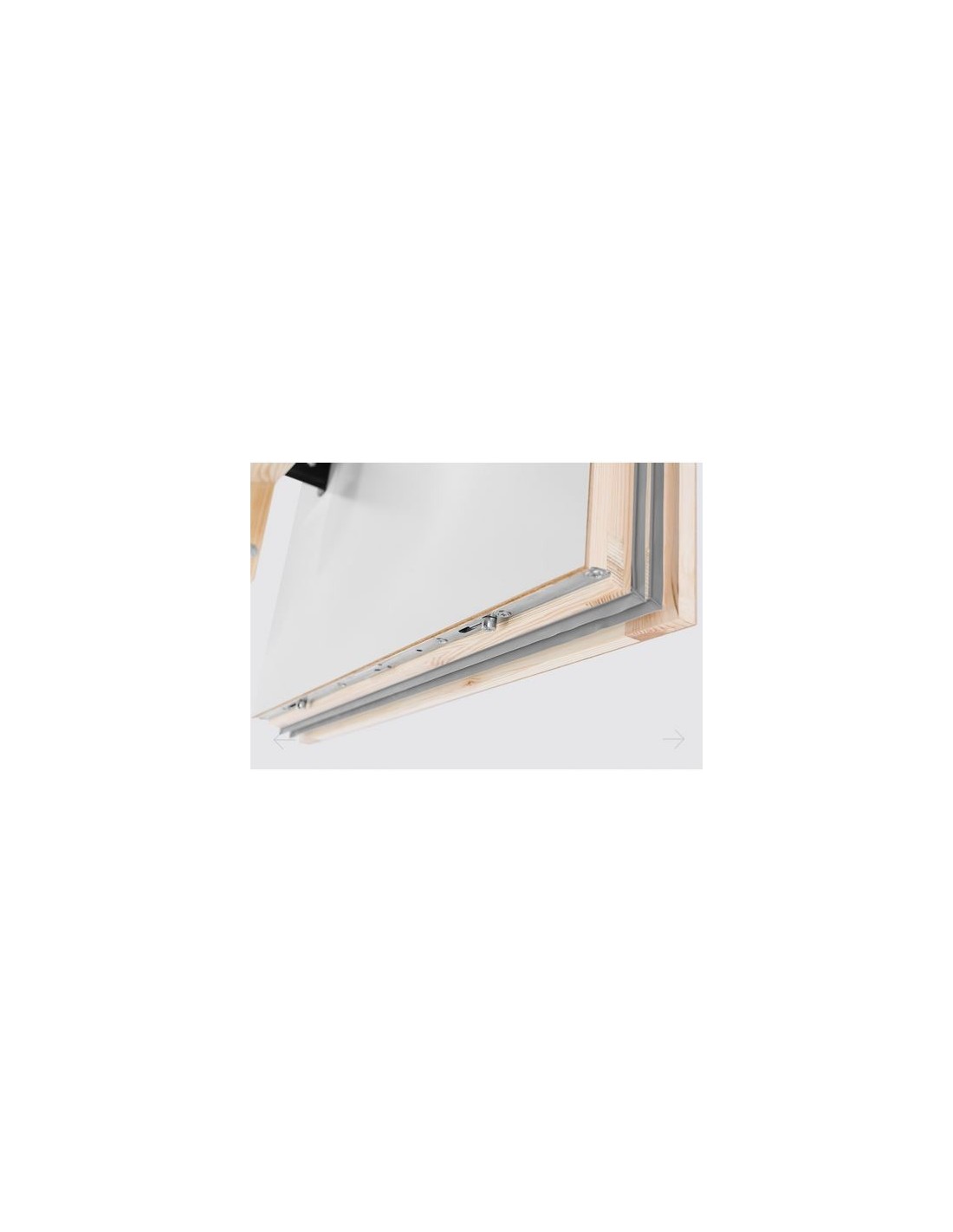

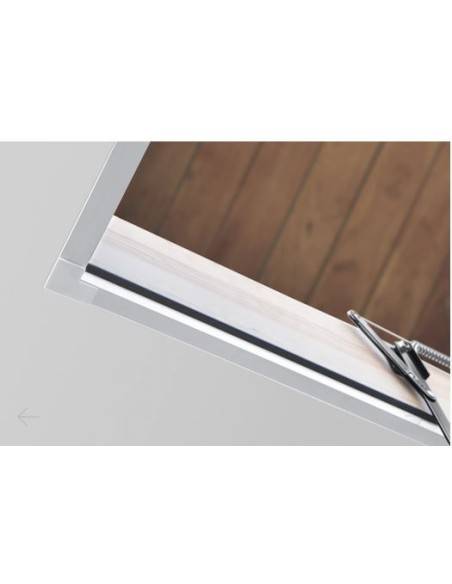

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and the frame, which keeps it airtight.

Frequently asked questions

Is a loft ladder with a handrail safer?

Yes. A handrail provides continuous support when climbing up or down. The COLOMBINO 86 comes with a handrail and has a ladder with metal side rails and 13 wooden treads, with a maximum load of 160 kg.

What hatch thickness should you choose for a loft ladder?

The thicker the hatch, the better it insulates. An 86 mm hatch, including 80 mm of insulation, is suitable for a cold loft above a heated room. For an already insulated loft, a 46 to 56 mm hatch is generally sufficient.

How much floor space is needed to unfold the COLOMBINO 86?

Allow 147 cm of floor space for the unfolded ladder and 169 cm of clearance to open the hatch and unfold the ladder. Furniture and doors must not obstruct this area.

How do you choose the frame size for a loft ladder?

Choose the frame to fit the loft opening: its dimensions correspond to the opening needed in the ceiling, allowing about 5 mm clearance all around for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Do you need to trim a loft ladder to length?

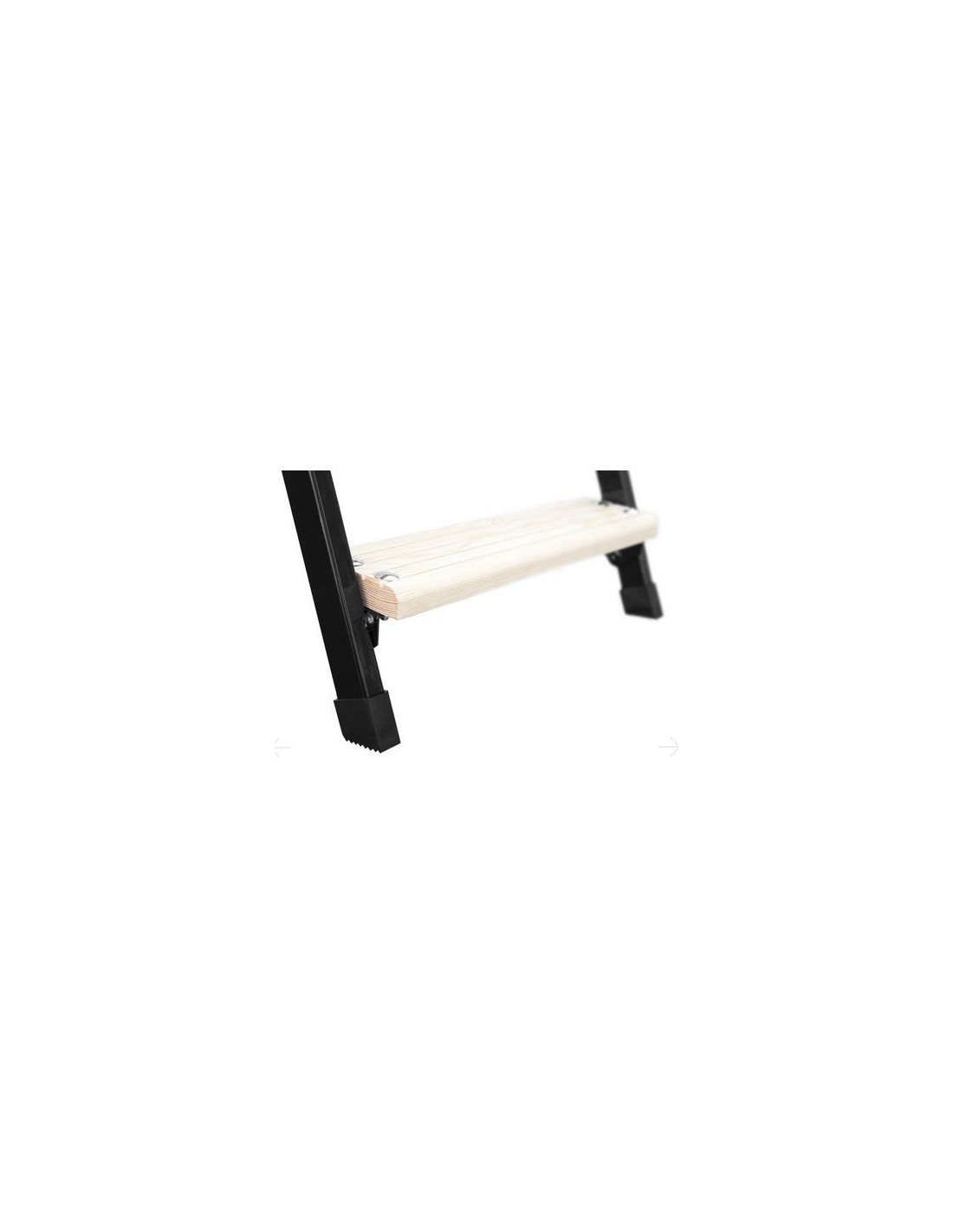

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is trimmed at the bottom so the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
