CHALANCON Insulated 46 mm Wooden Folding Loft Ladder

CHALANCON 46 folding loft ladder, all wood, 12 steps, 12 frame sizes from 110 x 55 to 140 x 70 cm.

40 mm insulation, 46 mm hatch. For ceiling heights up to 280 cm; requires 128 or 142 cm of floor space and 161 or 165 cm of opening clearance. Maximum load 160 kg; EN 14975 standard.

Handrail included. For access to a loft above a heated room while limiting heat loss, with 12 frame sizes to suit the existing ceiling opening.

Box dimension

Reference ECBI4612060

€349.85 incl. tax

Including €0.85 for ecotax

7 Products In stock Last items in stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

CHALANCON Insulated 46 mm Wooden Folding Loft Ladder

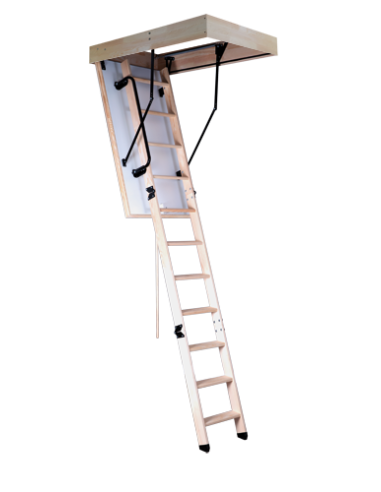

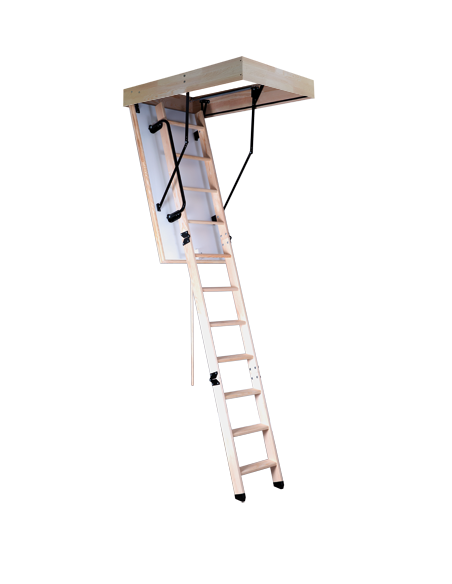

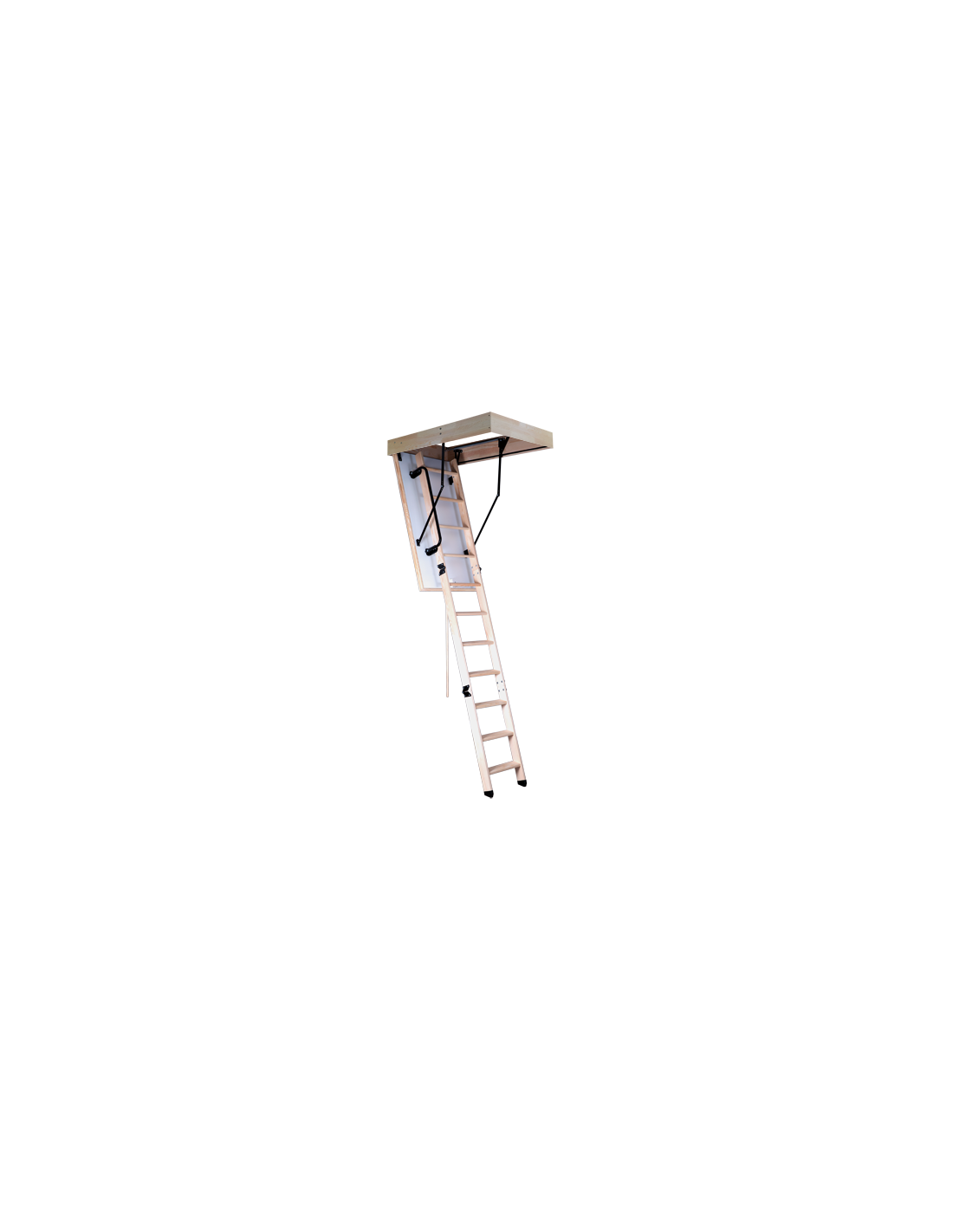

The CHALANCON 46 is a wooden folding loft ladder with a 46 mm hatch containing 40 mm of insulation. It provides access to a loft above a heated room while limiting heat loss.

Its 40 cm-wide ladder has 12 wooden steps. It folds into a 170 mm-high frame, available in 12 sizes from 110 x 55 to 140 x 70 cm, for ceiling heights up to 280 cm. A handrail is supplied.

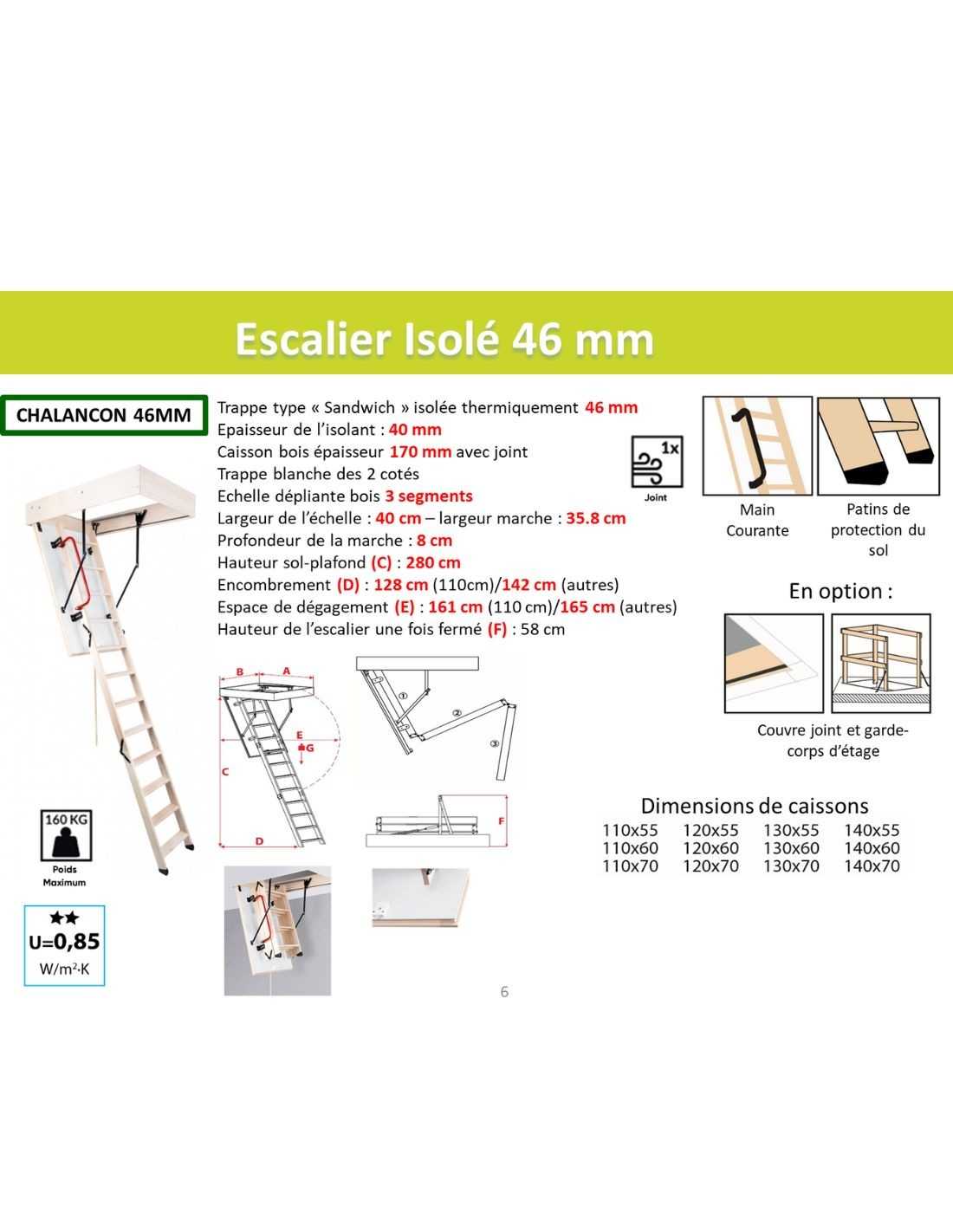

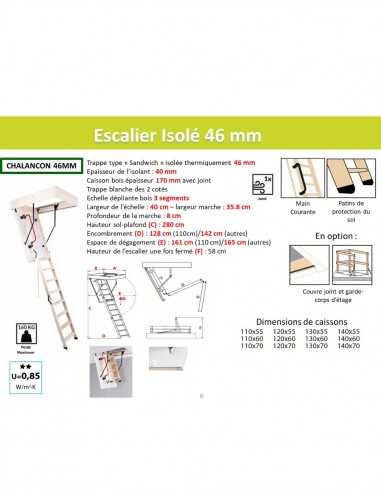

Key specifications

Feature	Description
Model	CHALANCON 46
Structure	Wood
Hatch thickness	46 mm
Insulation thickness	40 mm
Available frame sizes	12 sizes: 110, 120, 130 or 140 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of steps	12
Ladder width	40 cm
Floor space required	128 or 142 cm, depending on the frame
Opening clearance	161 or 165 cm, depending on the frame
Height when folded	58 cm
Frame height	170 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included

Packaging

Ladder with frame and hatch
Handrail

Key points

✓ 40 mm insulation: 46 mm hatch
✓ All wood: ladder and frame, 12 steps
✓ 12 frame sizes: from 110 x 55 to 140 x 70 cm
✓ Ceiling height: up to 280 cm
✓ Handrail included
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Wooden folding loft ladders for heights up to 280 cm: the features to consider, model by model.

Model	Insulation thickness	Structure	Maximum height	Floor space required	Load	Handrail
COSTE 26	20 mm (26 mm hatch)	Wood	280 cm	130 cm	150 kg	No
NEGGIA 26	20 mm (26 mm hatch)	Wood	280 cm	135 cm	160 kg	No
CHALANCON 26	20 mm (26 mm hatch)	Wood	280 cm	148 cm	160 kg	Included
CHALANCON 36	30 mm (36 mm hatch)	Wood	280 cm	134 or 148 cm	160 kg	Included
CHALANCON 46	40 mm (46 mm hatch)	Wood	280 cm	128 or 142 cm	160 kg	Included
CHALANCON 56	50 mm (56 mm hatch)	Wood	280 cm	151 cm	160 kg	Included
CHALANCON 86	80 mm (86 mm hatch)	Wood	280 cm	139 or 147 cm	160 kg	Included

Choosing the right folding loft ladder

The 46 mm hatch offers a good balance for an accessible loft above a living space. For a very cold, unused loft, the CHALANCON 86 mm version has twice as much insulation: 80 mm rather than 40 mm.

The frame is 170 mm high: check the clear height above the ceiling, between the joists. Allow 128 or 142 cm of floor space, depending on the frame.

Installation advice

Ceiling opening: prepare an opening to fit the chosen frame, allowing around 5 mm of clearance all round. Check that there is at least 170 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimming joists) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the bottom section so that it rests flat on the floor. Fit the handrail. Finally, join the loft insulation around the frame to prevent thermal bridges.

Care and protection

Once a year, check that the screws are tight, inspect the joints between ladder sections and check that the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the steps.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which keeps it airtight.

Frequently asked questions

Why choose a wooden folding loft ladder?

Wood suits most interiors and feels pleasant underfoot, while the frame fits easily into the ceiling. The CHALANCON 46 is made entirely of wood, with 12 steps and a maximum load of 160 kg.

Is a 46 mm hatch sufficient above a bedroom?

With 40 mm of insulation, it significantly limits heat loss. If the loft is uninsulated, an 86 mm hatch is more suitable; the CHALANCON range offers one with the same frame sizes.

How much floor space is needed to unfold the CHALANCON 46?

Allow 128 or 142 cm of floor space, depending on the frame, and 161 to 165 cm of clearance to open the hatch and unfold the ladder.

How do you choose the frame size for a folding loft ladder?

Choose the frame to suit the ceiling opening: its dimensions correspond to the opening needed, allowing around 5 mm of clearance all round for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Does a folding loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied for the maximum height and is trimmed at the bottom so that the last section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
