AUBRAC High-Ceiling Loft Ladder, 26 mm Insulated Hatch

Name: AUBRAC High-Ceiling Loft Ladder, 26 mm Insulated Hatch
Brand: Levigne
SKU: ECBGH26
Price: 366.75 EUR
Availability: InStock

AUBRAC high-ceiling loft ladder for ceiling heights up to 310 cm, with a 40 cm-wide wooden ladder, 12 treads and 4 sections.

Nine frame sizes from 120 x 55 to 140 x 70 cm, with a 26 mm insulated hatch. Requires 172 cm of floor space and 168 cm of opening clearance; folded height 58 cm, load capacity 160 kg, EN 14975 standard.

Supplied with handrail and protective feet. Optional cover trim and loft safety rail. For rooms with high ceilings where a standard loft ladder is not long enough.

Box dimension

Reference ECBGH2612060

€366.75 incl. tax

Including €0.85 for ecotax

2 Products In stock Last items in stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

AUBRAC High-Ceiling Loft Ladder, 26 mm Insulated Hatch

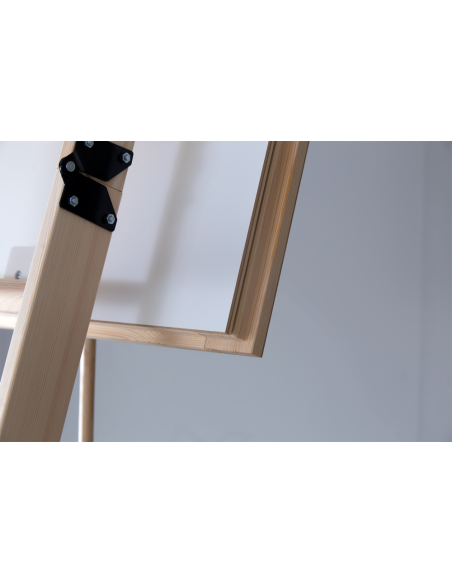

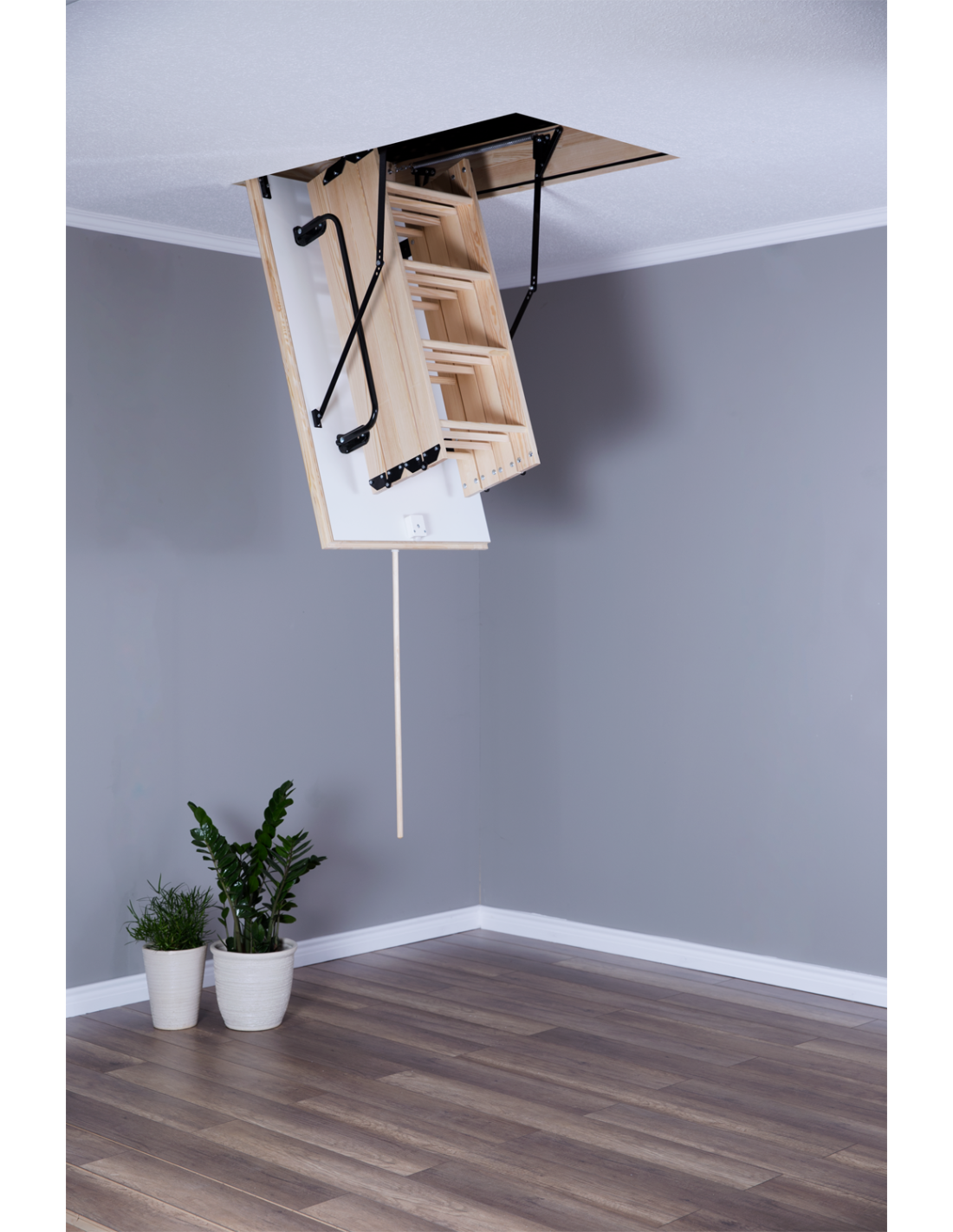

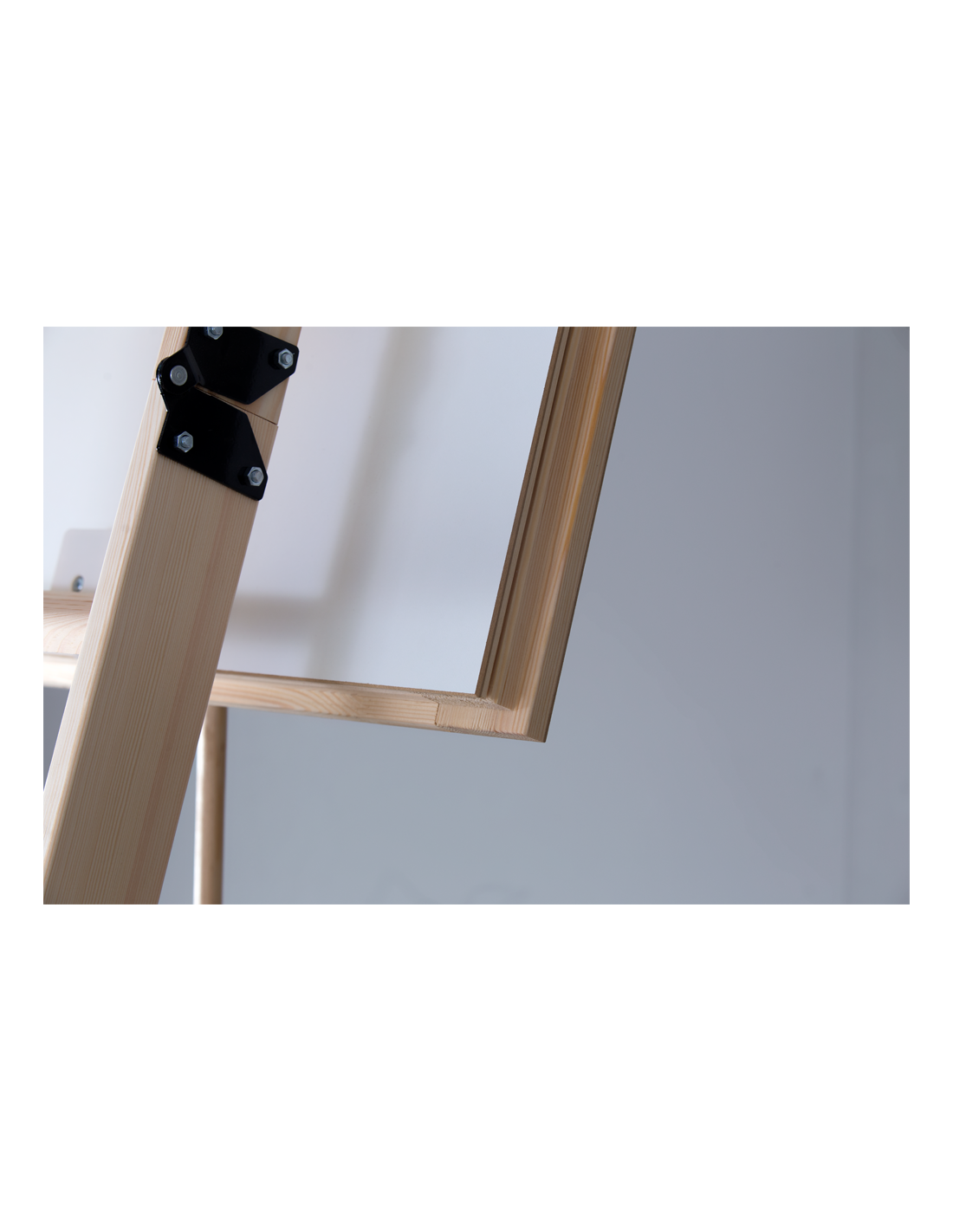

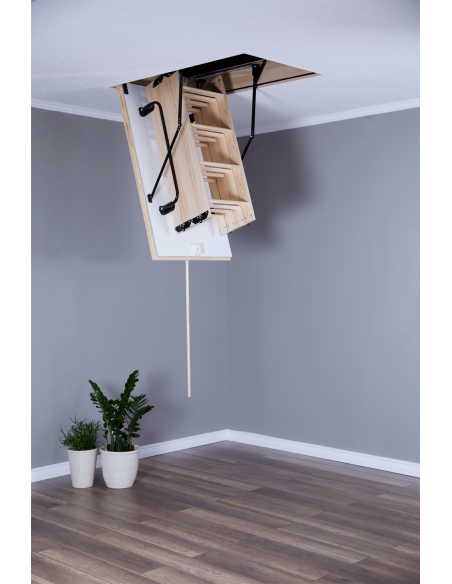

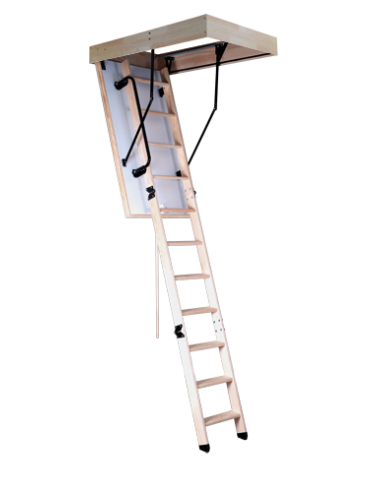

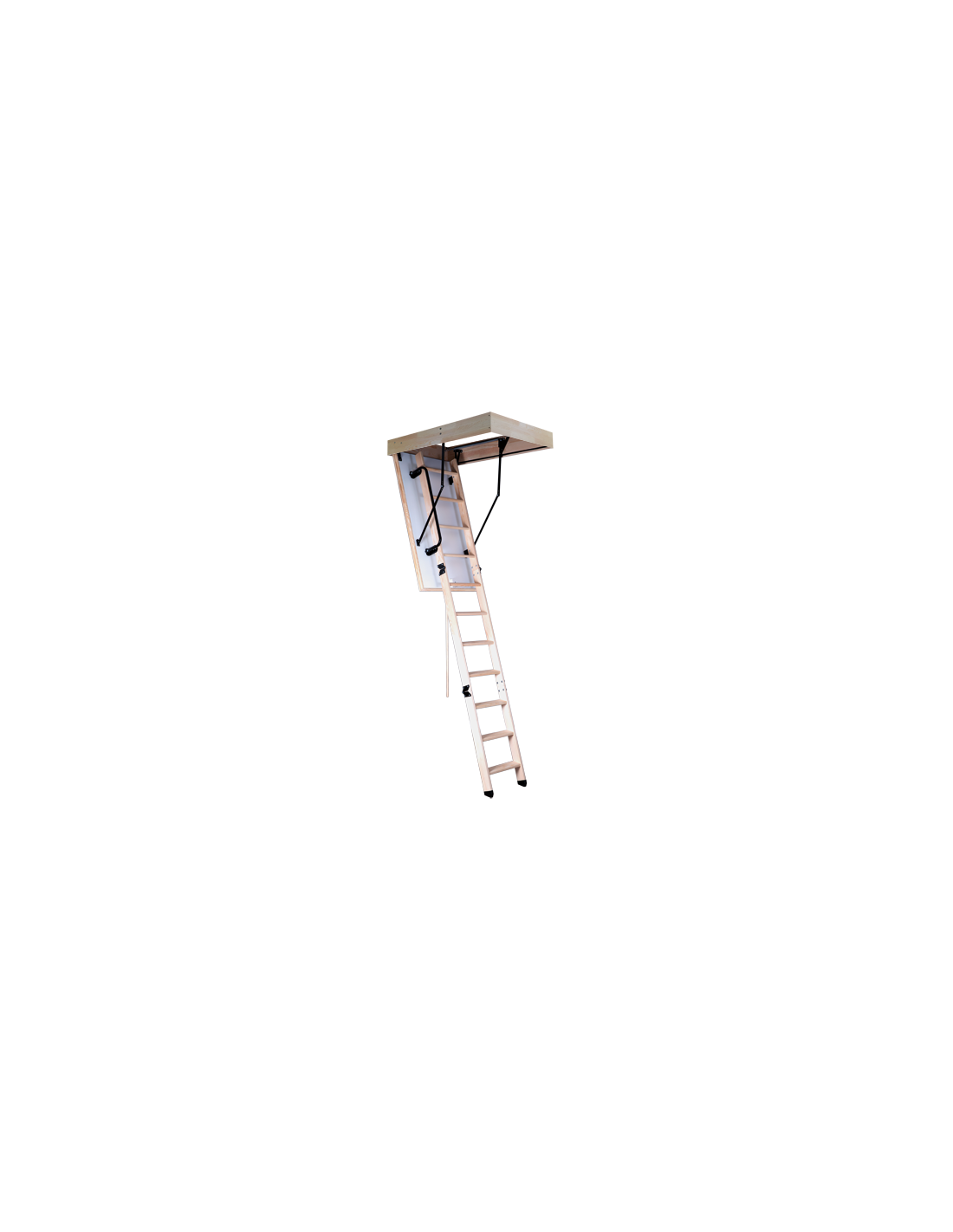

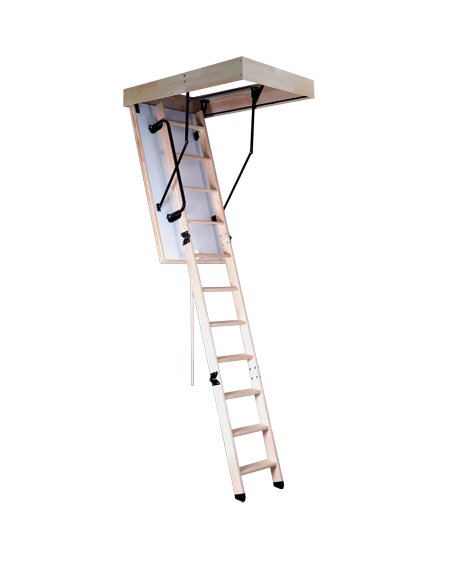

The AUBRAC loft ladder provides access to a loft beneath a high ceiling of up to 310 cm. Its 40 cm-wide wooden ladder folds in 4 sections into a wooden frame.

It comes in nine frame sizes, from 120 x 55 to 140 x 70 cm. The 26 mm hatch, including 20 mm of insulation, reduces draughts from the loft.

It comes with a handrail and protective feet, supports 160 kg and meets the EN 14975 standard.

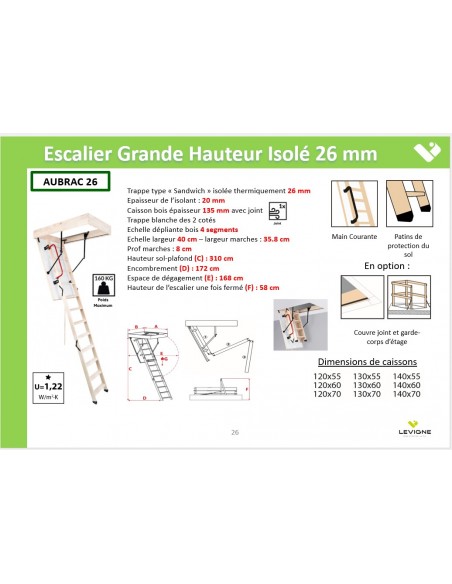

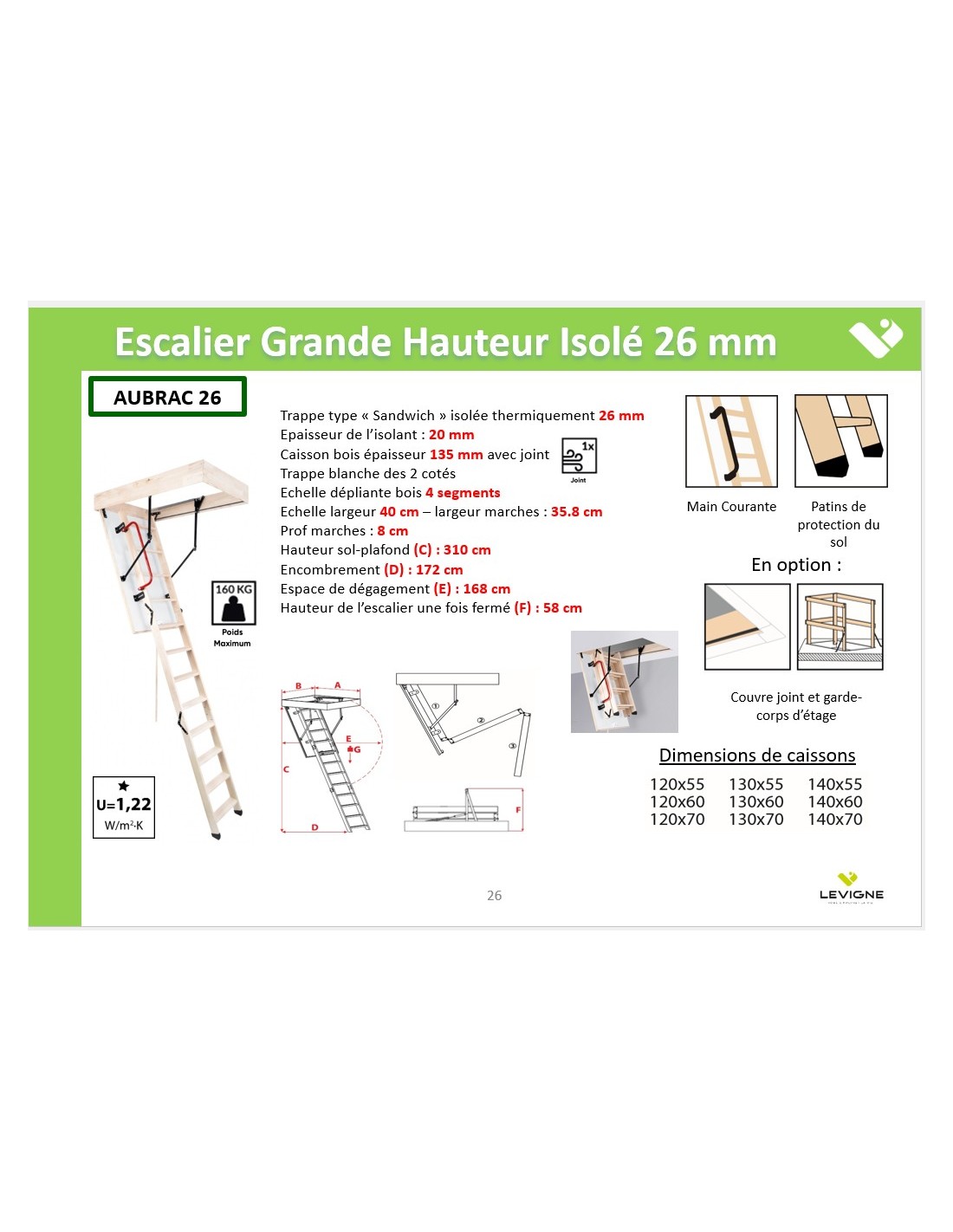

Key features

Feature	Description
Type	High-ceiling loft ladder, 4 sections, wooden frame
Ladder	Wood, 40 cm wide, 12 treads
Hatch thickness	26 mm
Insulation thickness	20 mm
Ceiling height	Up to 310 cm
Available frame sizes	120 x 55, 120 x 60, 120 x 70, 130 x 55, 130 x 60, 130 x 70, 140 x 55, 140 x 60 or 140 x 70 cm
Floor space required	172 cm
Opening clearance	168 cm
Folded height	58 cm
Frame depth	135 mm
Maximum load	160 kg
Standard	EN 14975
Options	Cover trim, loft safety rail

Package contents

Ladder with frame and hatch
Handrail

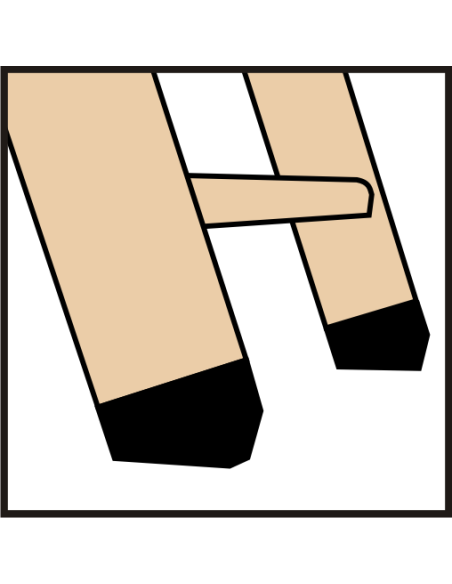

Protective feet

Key points

✓ For high ceilings: up to 310 cm
✓ Wooden ladder: 40 cm wide, 12 treads
✓ 9 frame sizes: from 120 x 55 to 140 x 70 cm
✓ 26 mm insulated hatch
✓ Complete package: handrail and protective feet included

Range comparison

High-ceiling loft ladders: the features to consider when choosing, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
EVIRES 26	20 mm (26 mm hatch)	Wood and metal ladder, wooden frame	290 cm	195 to 210 cm	160 kg	-
ABANTOS 26	20 mm (26 mm hatch)	Metal (ladder and frame)	290 cm	195 to 210 cm	160 kg	-
EVIRES 86	80 mm (86 mm hatch)	Wood and metal ladder, wooden frame	290 cm	210 cm	160 kg	-
AUBRAC 26	20 mm (26 mm hatch)	Wood	310 cm	172 cm	160 kg	Included
AUBRAC 46	40 mm (46 mm hatch)	Wood	310 cm	165 cm	160 kg	Included
EVIRES GH 26	20 mm (26 mm hatch)	Metal ladder, wooden frame	310 cm	205 or 220 cm	160 kg	Included
AUBRAC 330	20 mm (26 mm hatch)	Wood	330 cm	145 cm	160 kg	Included

Choosing the right loft ladder

The AUBRAC is suited to rooms with high ceilings, up to 310 cm, where a standard loft ladder only reaches around 280 cm. It needs more room, however: 172 cm of floor space and 168 cm of opening clearance.

Its 26 mm hatch reduces draughts but provides little insulation. If the loft is uninsulated and above a heated room, the AUBRAC 46 mm version is preferable. An AUBRAC 330 cm version is also available for heights up to 330 cm.

Installation tips

Ceiling opening: prepare an opening to fit the chosen frame, allowing around 5 mm of clearance all round. Check that there is at least 135 mm above the ceiling for the frame.

Fixing: check that the frame is square, then secure it firmly to the structure as instructed.

Adjustment: unfold the ladder and trim the final section so that it rests flat on the floor. Fit the handrail, then connect the loft insulation around the frame.

Care and protection

Once a year, check that the screws are tight, inspect the joints between sections and check the condition of the protective feet. Lubricate the hatch and folding mechanisms if they become difficult to operate. The white hatch can be repainted to match the ceiling, provided you do not block the seal between the hatch and frame.

Frequently asked questions

Which loft ladder is suitable for a loft with a 3 m ceiling height?

A high-ceiling model such as the AUBRAC, suitable for ceiling heights up to 310 cm. Standard loft ladders generally do not reach as high. Allow enough floor space: 172 cm when unfolded.

Loft staircase or loft ladder: what is the difference?

They are the same product: a folding ladder housed in a frame with a hatch, which unfolds from the ceiling. It is called a staircase when it has wide, flat treads, like the AUBRAC’s 12 wooden treads, which are more comfortable than rungs.

How do you choose the frame size for a loft ladder?

Choose the frame to fit the ceiling opening: its dimensions correspond to the opening needed, with around 5 mm of clearance all round for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

How much floor space is needed to unfold a loft ladder?

Two measurements matter: the floor space required, meaning the distance the unfolded ladder occupies across the floor, and the opening clearance needed to open the hatch and unfold the ladder. Check that no furniture, door or wall obstructs this area.

Do you need to trim a loft ladder to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and trimmed at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
