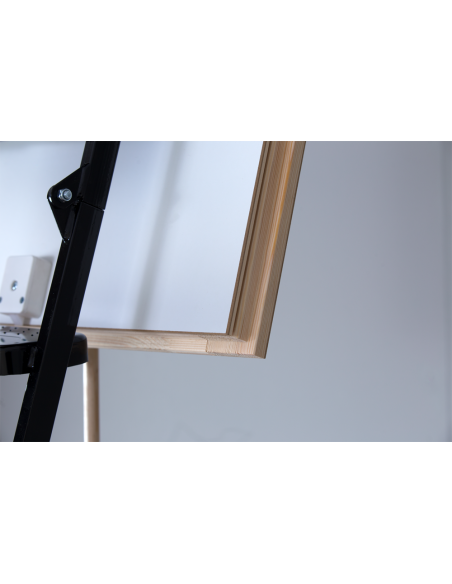

BLUFFY Metal and Wood Loft Ladder with 46 mm Insulated Hatch, 210 kg Capacity

BLUFFY 46 loft ladder with metal side rails, wooden steps, 12 steps and 12 frame sizes from 110 x 55 to 140 x 70 cm.

40 mm insulation and a 46 mm hatch. For ceiling heights up to 280 cm; requires 128 or 142 cm of floor space and 161 or 165 cm of opening clearance. Maximum load 210 kg; EN 14975 standard.

Handrail included except with 55 cm-wide frames. The 210 kg load capacity, compared with 160 kg for all-wood models, is useful when carrying boxes or equipment upstairs.

Box dimension

Reference ECBM46METAL4612060

€499.99 incl. tax

Including €0.99 for ecotax

Made to order. Lead time 5-6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

BLUFFY Metal and Wood Loft Ladder with 46 mm Insulated Hatch, 210 kg Capacity

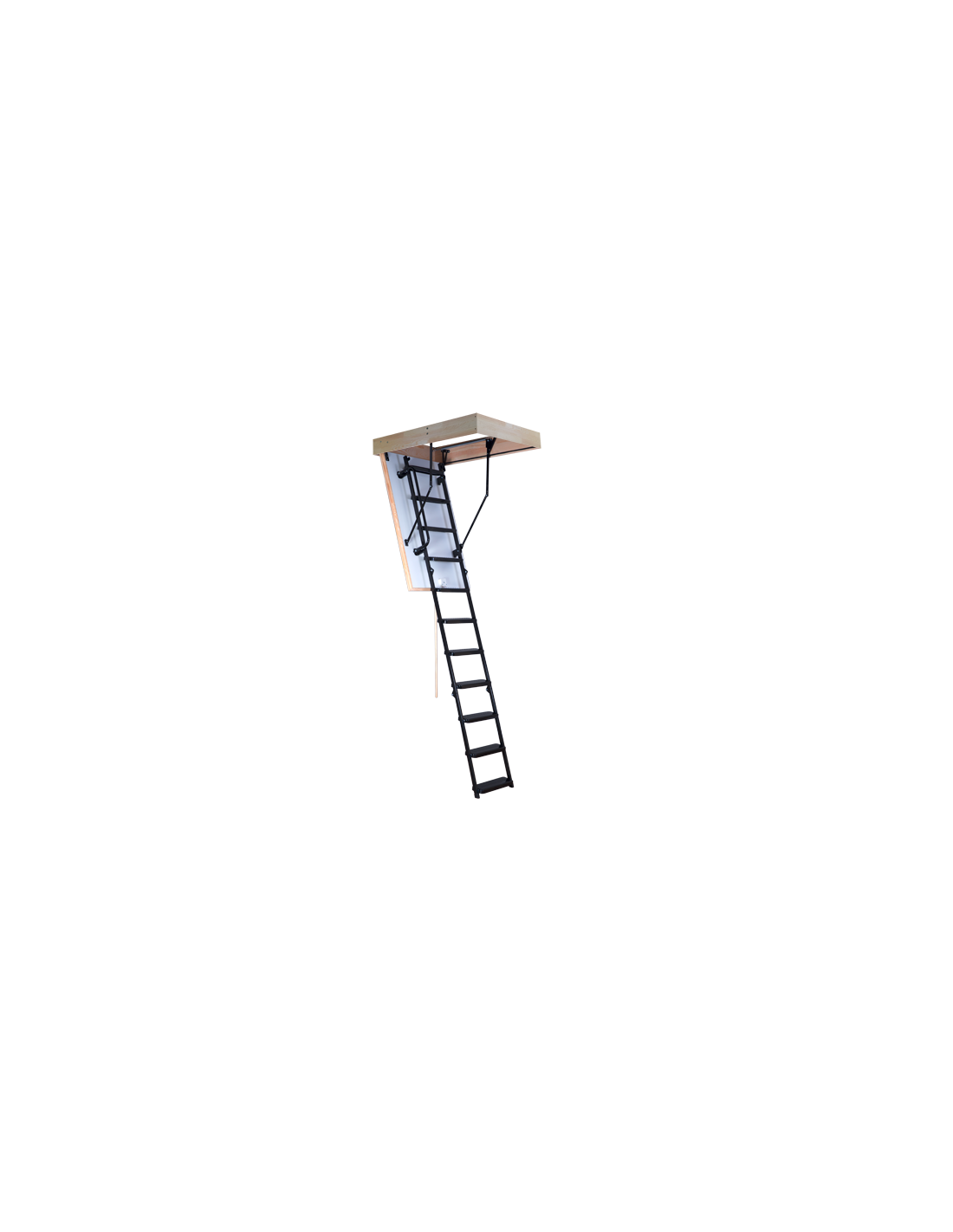

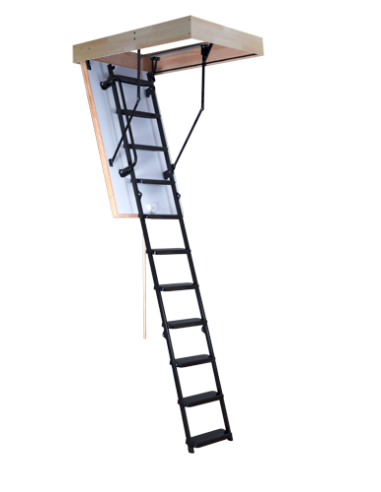

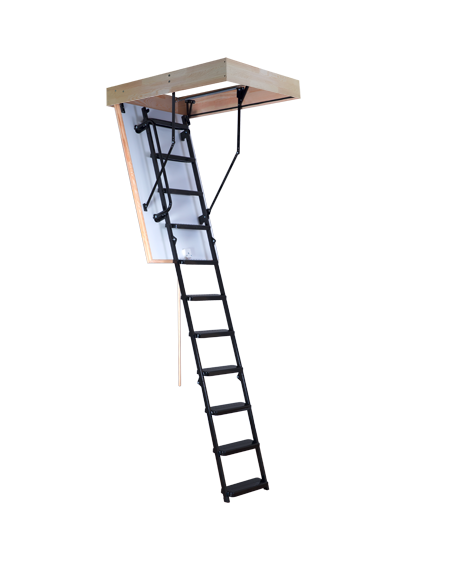

The BLUFFY 46 is a loft ladder with metal side rails and wooden steps that supports 210 kg. Its 46 mm hatch, including 40 mm of insulation, limits heat loss into the loft.

It comes in 12 frame sizes, from 110 x 55 to 140 x 70 cm, for ceiling heights up to 280 cm. The 40 cm-wide ladder has 12 steps. A handrail is included, except with 55 cm-wide frames.

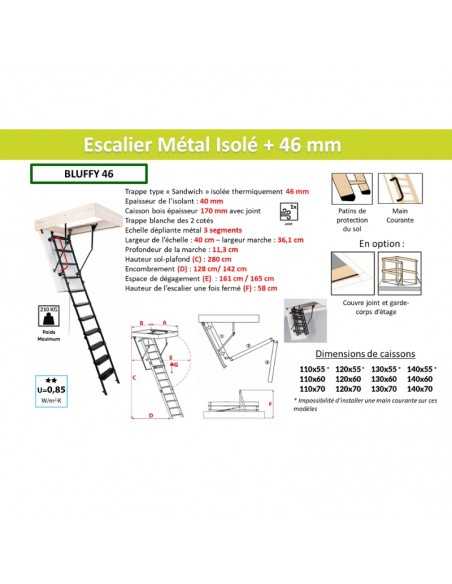

Key specifications

Feature	Description
Model	BLUFFY 46
Construction	Metal side rails, wooden steps
Hatch thickness	46 mm
Insulation thickness	40 mm
Available frame sizes	12 sizes: 110, 120, 130 or 140 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of steps	12
Ladder width	40 cm
Floor space required	128 or 142 cm, depending on the frame size
Opening clearance	161 or 165 cm, depending on the frame size
Height when folded	58 cm
Frame height	170 mm
Maximum load	210 kg
Standard	EN 14975

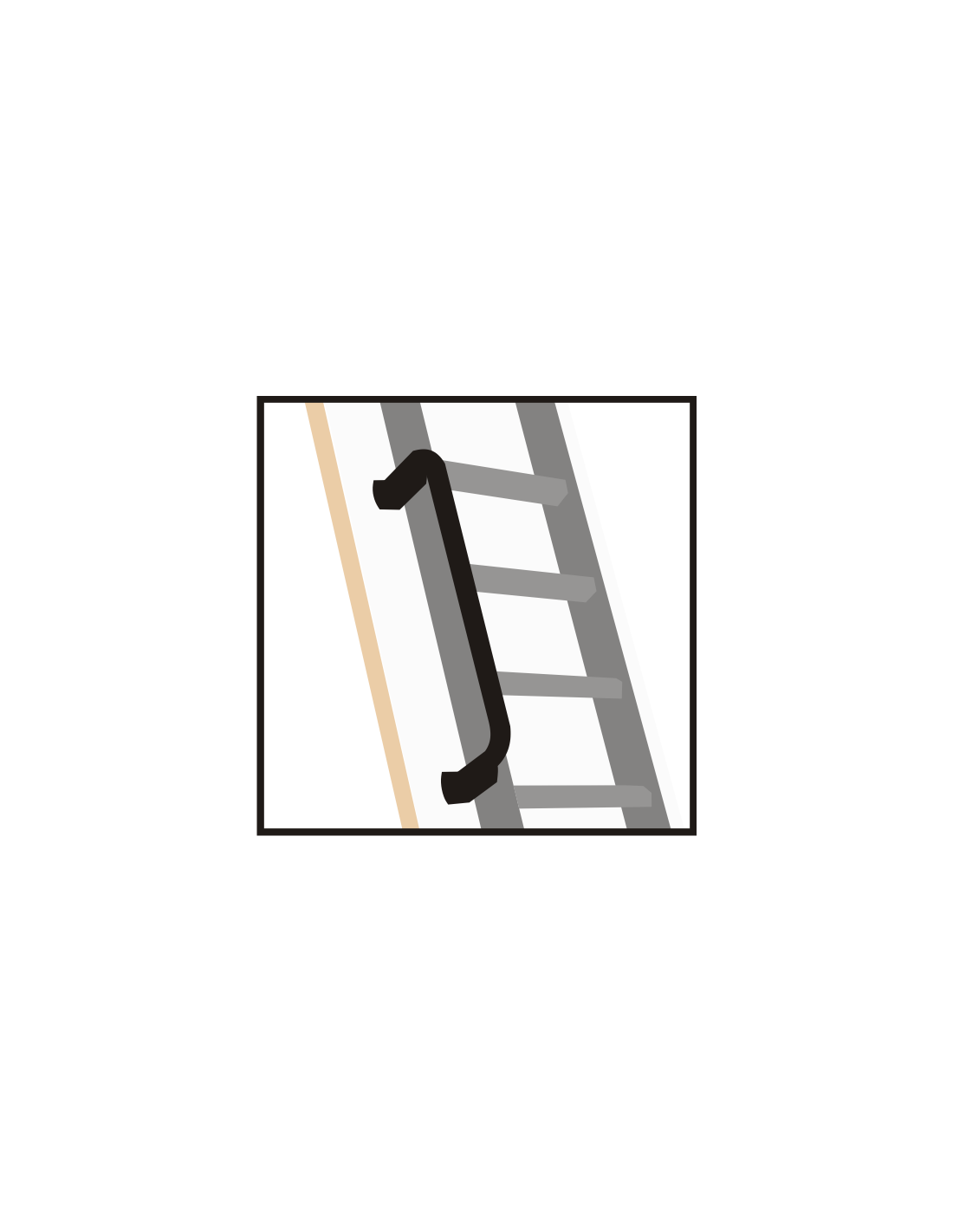

Handrail	Included except with 55 cm-wide frames

Packaging

Ladder with frame and hatch
Handrail

Key points

✓ Maximum load: 210 kg, EN 14975 standard
✓ 40 mm insulation: 46 mm hatch
✓ Metal side rails, wooden steps: 12 steps measuring 40 cm wide
✓ 12 frame sizes: from 110 x 55 to 140 x 70 cm
✓ Ceiling height: up to 280 cm
✓ Handrail included, except with 55 cm-wide frames

Range comparison

Metal-and-wood or aluminium loft ladders for ceiling heights up to 280 cm: compare the features that matter, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
BIVIO 26	20 mm (26 mm hatch)	Metal side rails, wooden steps	280 cm	134 or 148 cm	160 kg	Included
BLUFFY 26	20 mm (26 mm hatch)	Metal side rails, wooden steps	280 cm	134 or 148 cm	190 kg	No
BLUFFY 46	40 mm (46 mm hatch)	Metal side rails, wooden steps	280 cm	128 or 142 cm	210 kg	Included except with 55 cm-wide frames
BLUFFY 86	80 mm (86 mm hatch)	Metal side rails, wooden steps	280 cm	139 or 147 cm	210 kg	Included
COLOMBINO 56	50 mm (56 mm hatch)	Metal side rails, wooden steps	280 cm	151 cm	160 kg	Included
COLOMBINO 86	80 mm (86 mm hatch)	Metal side rails, wooden steps	280 cm	147 cm	160 kg	Included
CABAL 46	40 mm (46 mm hatch)	Aluminium	280 cm	128 or 142 cm	160 kg	Included

Choosing the right loft ladder

The 210 kg load capacity makes a difference when carrying boxes, suitcases or equipment upstairs. All-wood models of the same format have a 160 kg limit.

If a handrail matters to you, choose a 60 or 70 cm-wide frame. For uninsulated lofts, the BLUFFY 86 mm version provides more insulation with the same load capacity.

Installation advice

Ceiling opening: prepare an opening to fit your chosen frame, allowing approximately 5 mm around the perimeter. Check that there is at least 170 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmers) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the final section so it rests flat on the floor. Fit the handrail. Finally, join the loft insulation around the frame to prevent thermal bridging.

Care and protection

Once a year, check that the screws are tight, the joints between the ladder sections are sound and the hatch opening mechanism works properly. Lubricate the mechanisms if the hatch becomes difficult to open, and dust the steps.

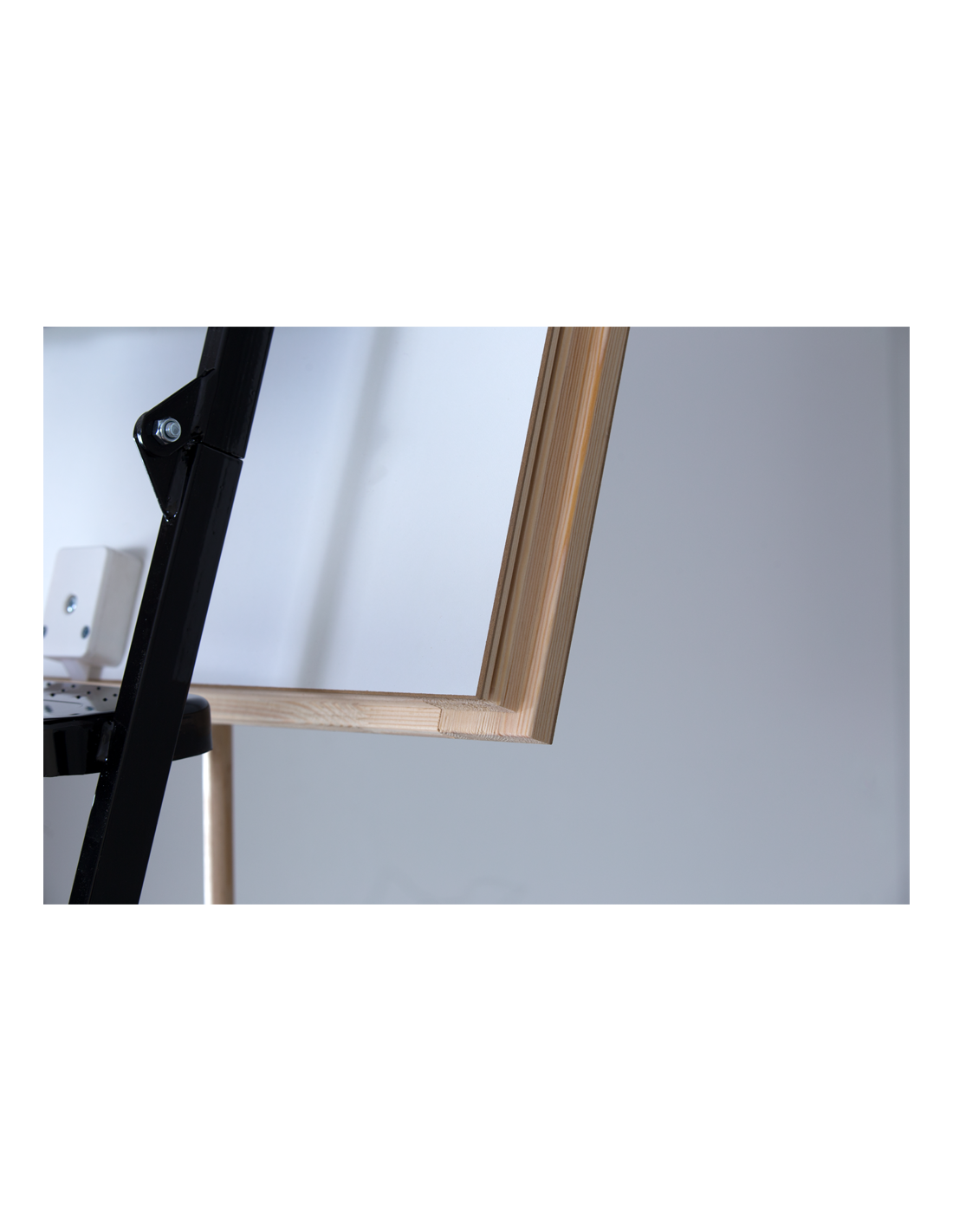

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight seal.

Frequently asked questions

How much weight can a metal loft ladder support?

It depends on the model. The BLUFFY 46, with metal side rails and wooden steps, supports 210 kg, compared with 160 kg for most all-wood models.

Is a handrail included with the BLUFFY 46?

Yes, except with 55 cm-wide frames (110 x 55, 120 x 55, 130 x 55 and 140 x 55 cm). It is included with a 60 or 70 cm-wide frame.

How much floor space is needed to unfold the BLUFFY 46?

Allow 128 or 142 cm of floor space, depending on the frame size, and 161 to 165 cm of clearance to open the hatch and unfold the ladder.

How do I choose the right frame size for a loft ladder?

Choose the frame to suit the ceiling opening: its dimensions correspond to the opening required, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the largest frame that fits without exceeding those dimensions.

Does a loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is trimmed at the bottom so the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
