CABAL Aluminium Loft Ladder with 46 mm Insulated Hatch

Name: CABAL Aluminium Loft Ladder with 46 mm Insulated Hatch
Brand: Levigne
SKU: ECALU46
Price: 534.75 EUR
Availability: PreOrder

CABAL 46 loft ladder, aluminium ladder, wooden frame, 12 treads, 12 frame sizes from 110 x 55 to 140 x 70 cm.

40 mm insulation, 46 mm hatch. For ceilings up to 280 cm high; requires 128 or 142 cm of floor space and 161 or 165 cm of clearance. Maximum load 160 kg; EN 14975 standard.

Handrail included. The lightweight, rust-resistant aluminium ladder is easy to unfold and fold away for everyday use, including in a garage, and is suitable for a loft above a heated room.

Box dimension

Reference ECALU4612060

€534.75 incl. tax

Including €0.85 for ecotax

Made to order. Dispatched within 5–6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

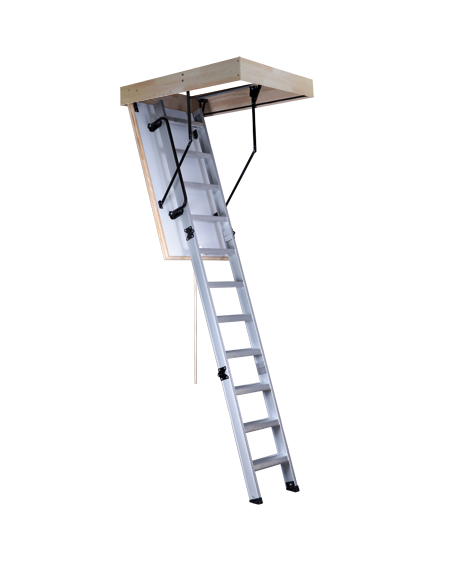

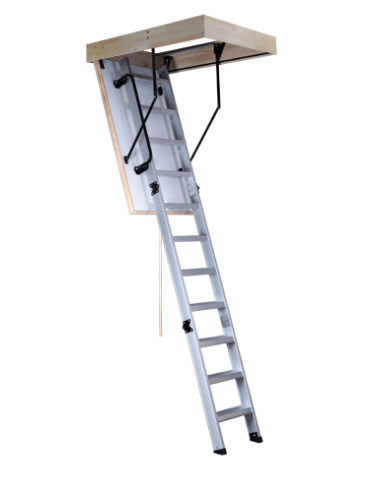

CABAL Aluminium Loft Ladder with 46 mm Insulated Hatch

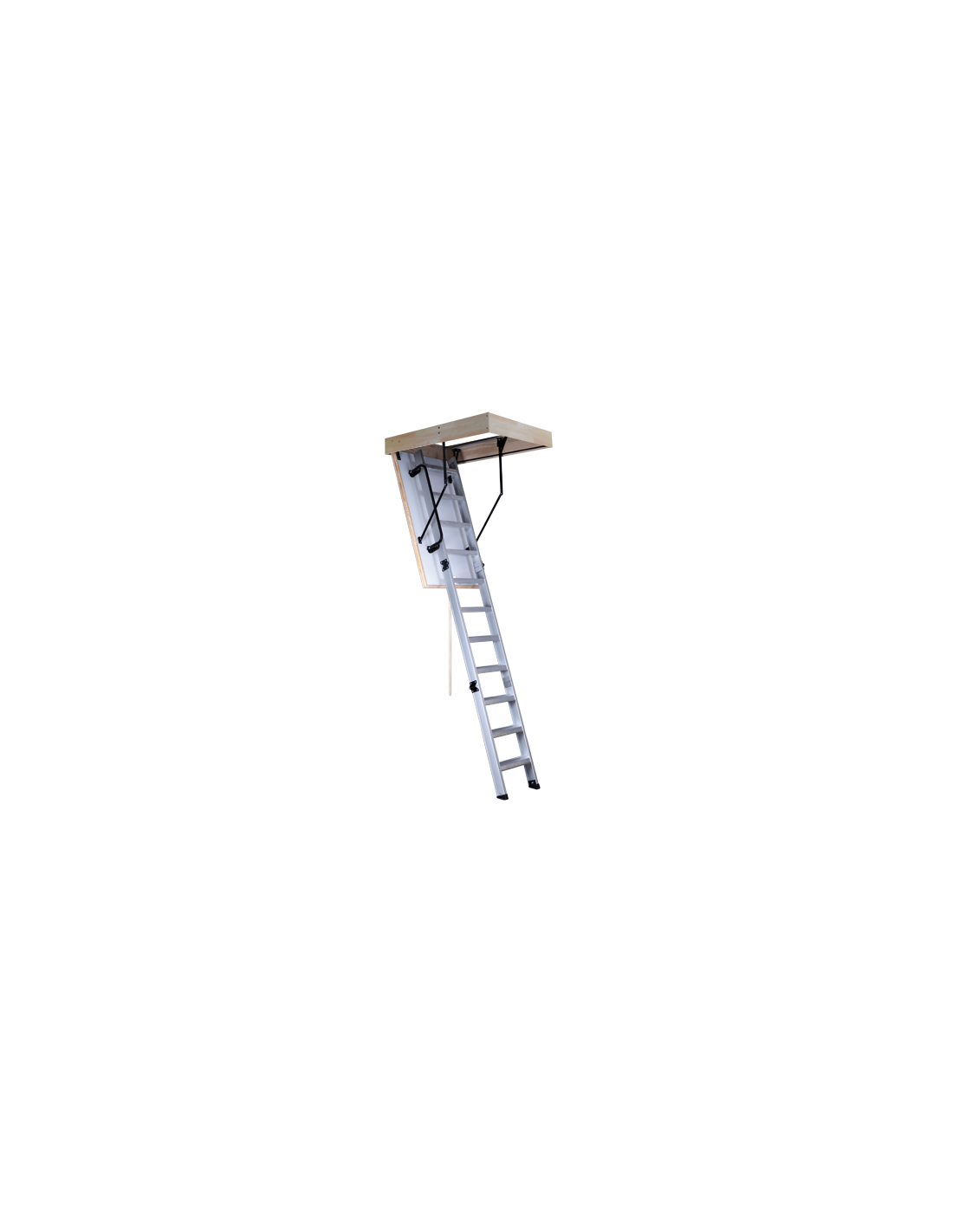

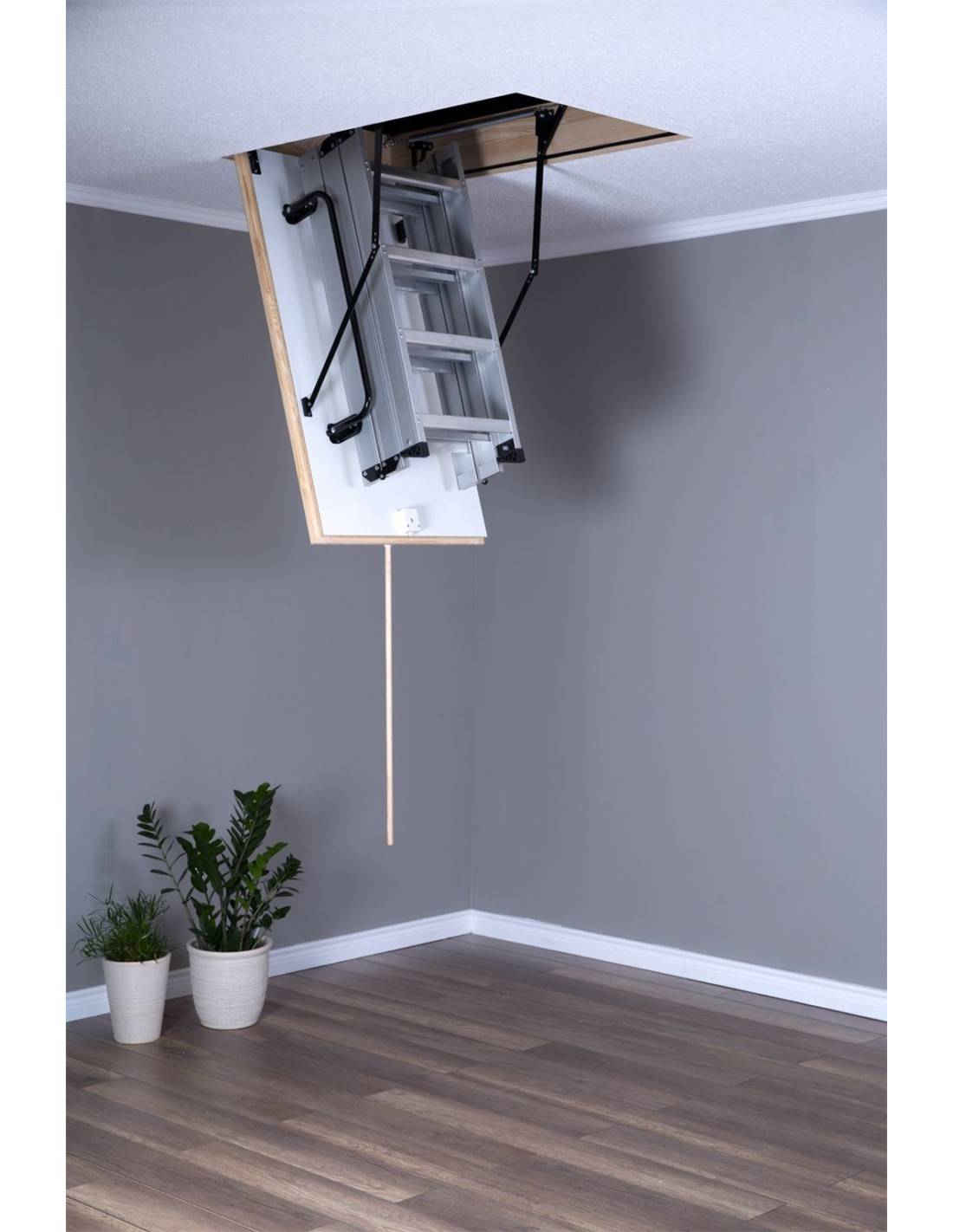

The CABAL 46 is an aluminium loft ladder with a 46 mm insulated hatch, including 40 mm of insulation, and a U-value of 0.85 W/m²·K. The aluminium makes the ladder lighter and easier to unfold and fold away.

It comes in 12 frame sizes, from 110 x 55 to 140 x 70 cm. The 40 cm-wide ladder has 12 treads, reaches ceilings up to 280 cm high and supports 160 kg. A handrail is supplied.

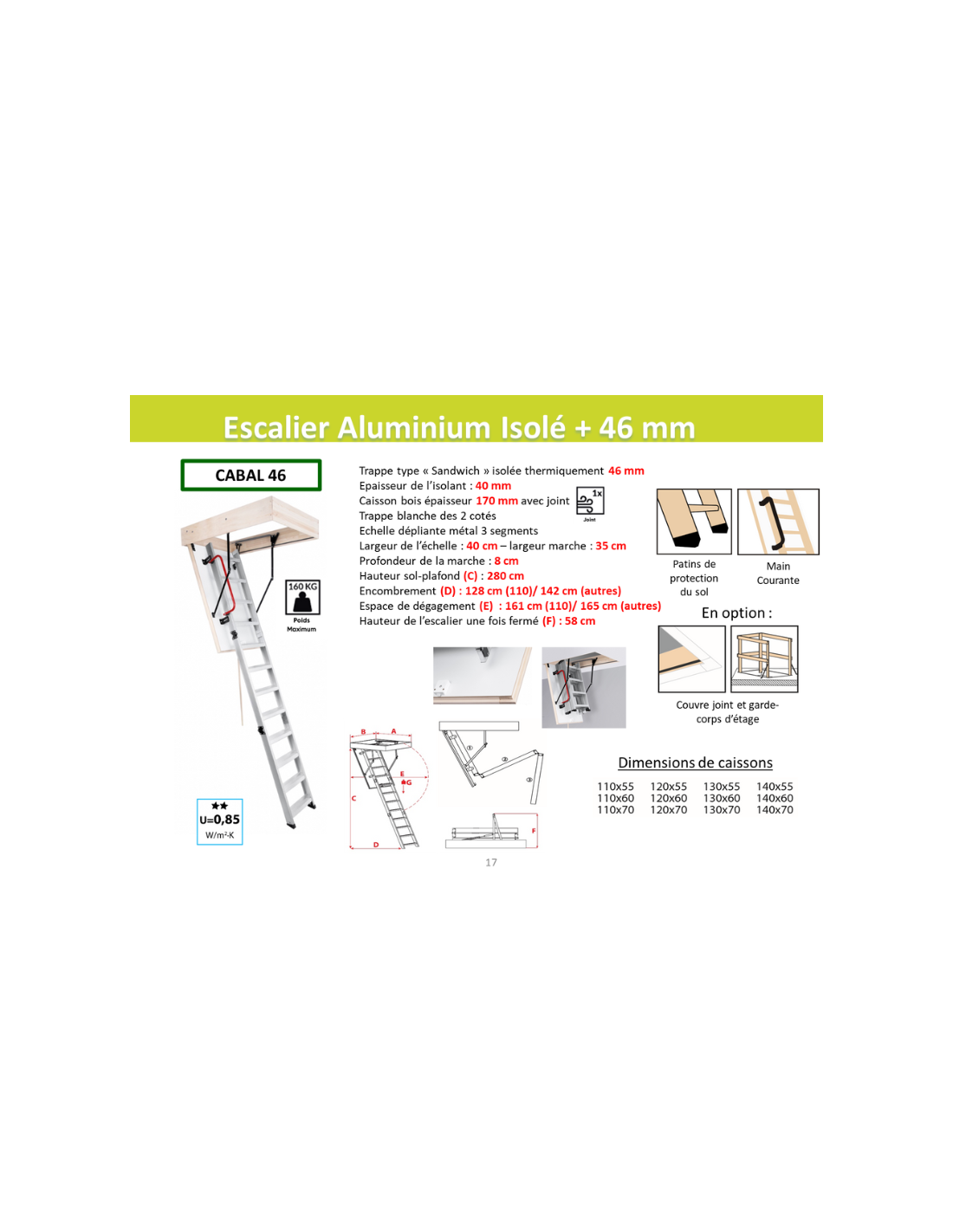

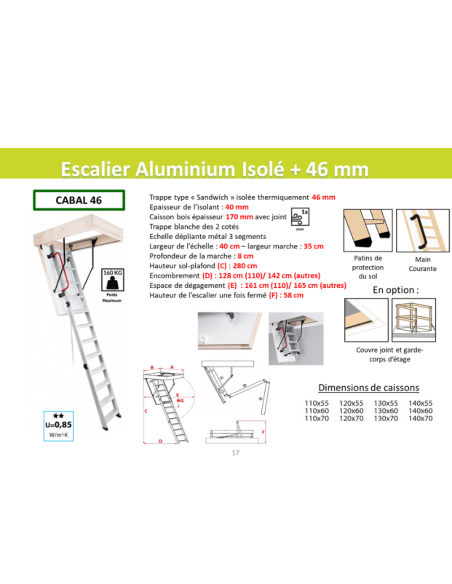

Key specifications

Feature	Description
Model	CABAL 46

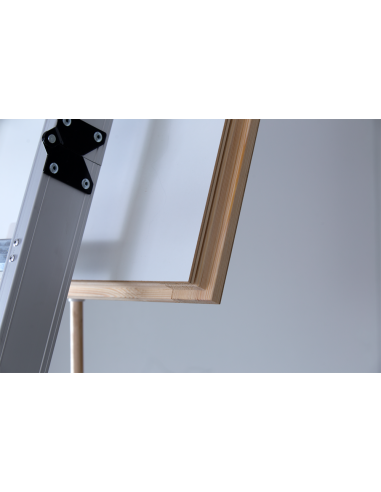

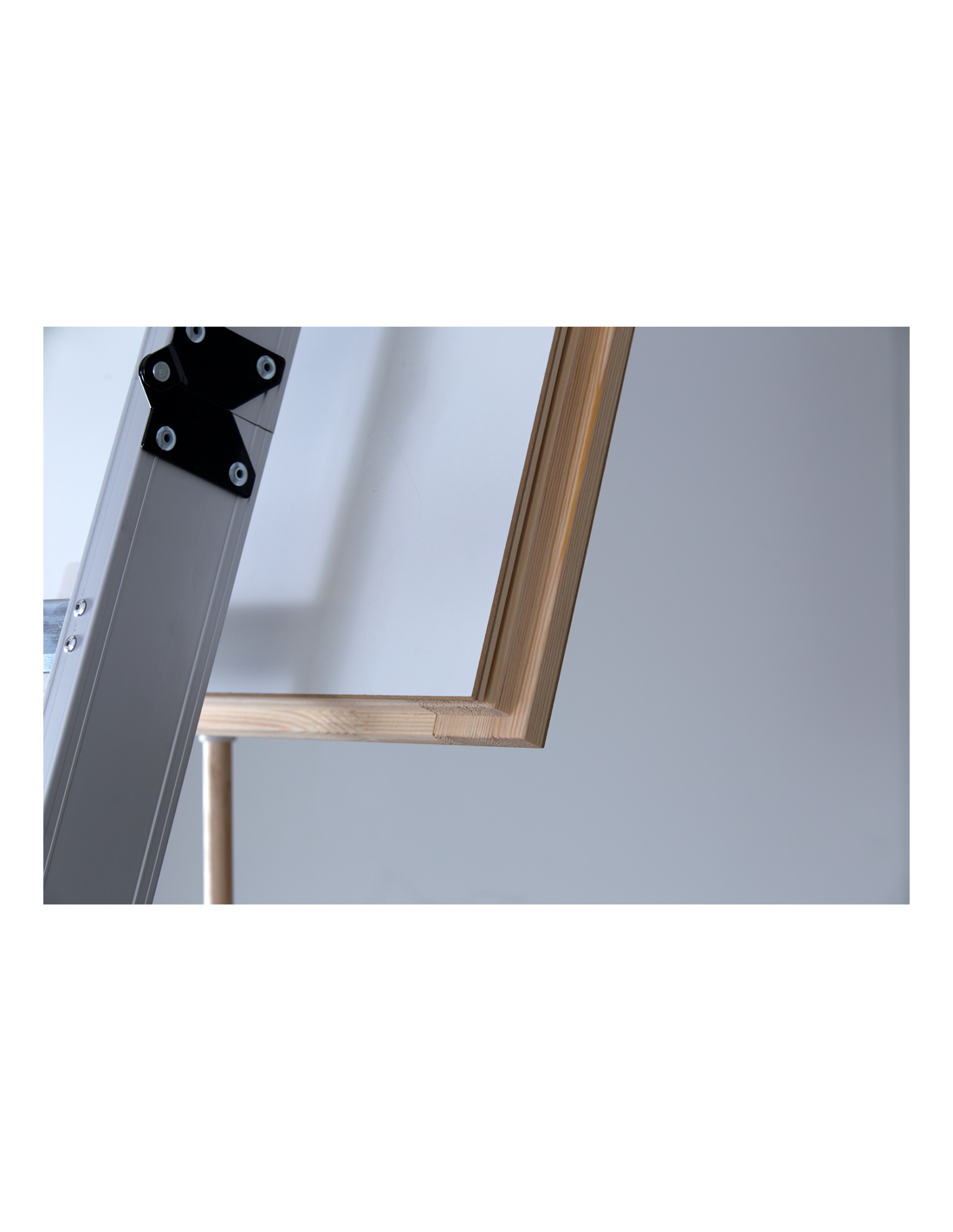

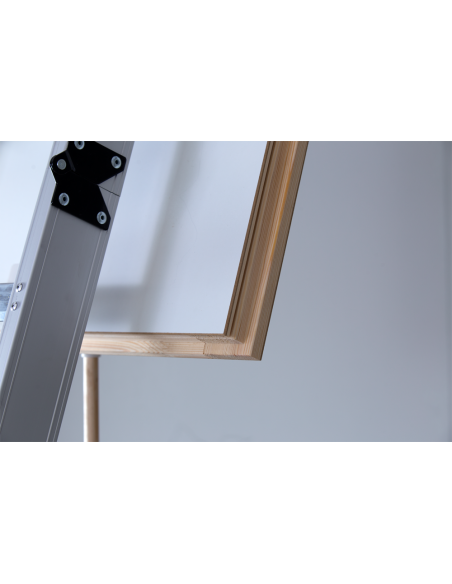

Construction	Aluminium ladder, wooden frame
Hatch thickness	46 mm
Insulation thickness	40 mm
Available frame sizes	12 sizes: 110, 120, 130 or 140 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of treads	12
Ladder width	40 cm
Sections	3
Tread width	35 cm
Tread depth	8 cm
Hatch	Sandwich construction, white on both sides, with a seal
Thermal transmittance	U = 0.85 W/m²·K
Floor space required	128 cm (110 cm frames) or 142 cm
Clearance required	161 cm (110 cm frames) or 165 cm
Height when folded	58 cm
Frame height	170 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included
Options	Cover trim, upstairs safety railing

Packaging

Ladder with frame and hatch
Handrail
Floor-protection feet

Key points

✓ Aluminium ladder: lightweight and rust-resistant, with 12 treads
✓ 40 mm insulation: 46 mm hatch, U = 0.85 W/m²·K
✓ 12 frame sizes: from 110 x 55 to 140 x 70 cm
✓ Ceiling height: up to 280 cm
✓ Handrail and floor-protection feet included
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Metal-and-wood or aluminium loft ladders for ceilings up to 280 cm high: compare the features that matter, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
BIVIO 26	20 mm (26 mm hatch)	Metal side rails, wooden treads	280 cm	134 or 148 cm	160 kg	Included
BLUFFY 26	20 mm (26 mm hatch)	Metal side rails, wooden treads	280 cm	134 or 148 cm	190 kg	No
BLUFFY 46	40 mm (46 mm hatch)	Metal side rails, wooden treads	280 cm	128 or 142 cm	210 kg	Included except with 55 cm frames
BLUFFY 86	80 mm (86 mm hatch)	Metal side rails, wooden treads	280 cm	139 or 147 cm	210 kg	Included
COLOMBINO 56	50 mm (56 mm hatch)	Metal side rails, wooden treads	280 cm	151 cm	160 kg	Included
COLOMBINO 86	80 mm (86 mm hatch)	Metal side rails, wooden treads	280 cm	147 cm	160 kg	Included
CABAL 46	40 mm (46 mm hatch)	Aluminium	280 cm	128 or 142 cm	160 kg	Included

How to choose the right loft ladder

Aluminium does not rust and stays lightweight: an advantage when the hatch is used often, or in a garage or a space with little heating. The 46 mm hatch is suitable for a loft above a heated room.

Allow 128 cm of floor space for a 110 cm-long frame and 142 cm for the others, plus 161 or 165 cm of clearance.

Installation advice

Ceiling opening: prepare an opening to fit the chosen frame, allowing approximately 5 mm around the edge. Check that there is at least 170 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimming joists) with screws suitable for the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and cut the final section so that it rests flat on the floor. Fit the handrail. Finally, connect the loft insulation around the frame to prevent thermal bridging.

Care and protection

Once a year, check that the screws are tight, inspect the joints between the sections and make sure the hatch-opening mechanism works properly. Lubricate the mechanisms if opening becomes stiff, and dust the treads.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight barrier.

Frequently asked questions

Why choose an aluminium loft ladder?

Aluminium is lightweight and does not rust. This makes the ladder easier to handle, especially if you use it often. The CABAL 46 combines an aluminium ladder with a 46 mm insulated hatch.

Does the aluminium loft ladder come with a hatch?

Yes, the CABAL 46 is supplied in its frame, with its 46 mm insulated hatch and handrail. Choose a frame from 110 x 55 to 140 x 70 cm to suit the ceiling opening.

How much floor space is needed to unfold the CABAL?

Allow 128 or 142 cm of floor space, depending on the frame, and 161 to 165 cm of clearance to open the hatch and unfold the ladder.

How do I choose the frame size for a loft ladder?

Choose the frame to suit the ceiling opening: its dimensions correspond to the opening required, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the closest frame size that does not exceed it.

Does a loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is cut at the bottom so that the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
