CHALANCON Wooden Loft Ladder with 86 mm Insulated Hatch

CHALANCON 86 loft ladder, all wood, 13 steps, 12 frame sizes from 113 x 55 to 140 x 70 cm.

80 mm insulation and an 86 mm hatch. For ceiling heights up to 280 cm; requires 139 or 147 cm of floor space and 165 or 169 cm of opening clearance. Maximum load 160 kg; EN 14975 standard.

Handrail included. The best-insulated version in the CHALANCON range, suitable for a loft hatch above a bedroom or living room, beneath a cold, unconverted loft.

Box dimension

Reference ECBI8612060

€399.99 incl. tax

Including €0.99 for ecotax

Made to order. Lead time 5–6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

CHALANCON Wooden Loft Ladder with 86 mm Insulated Hatch

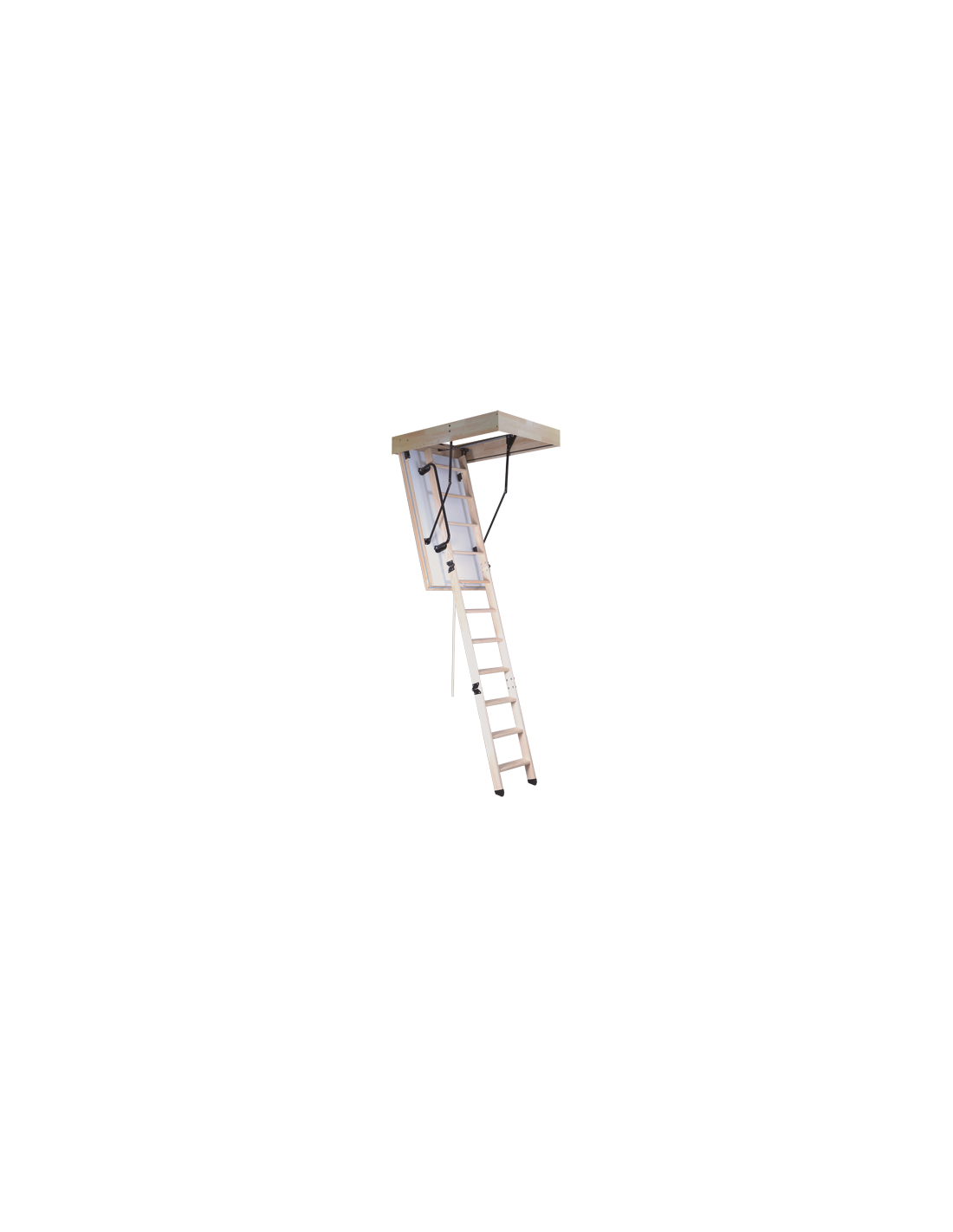

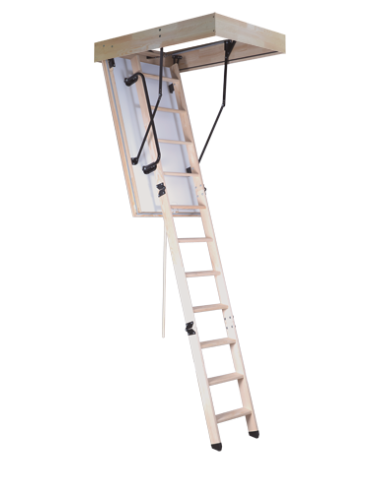

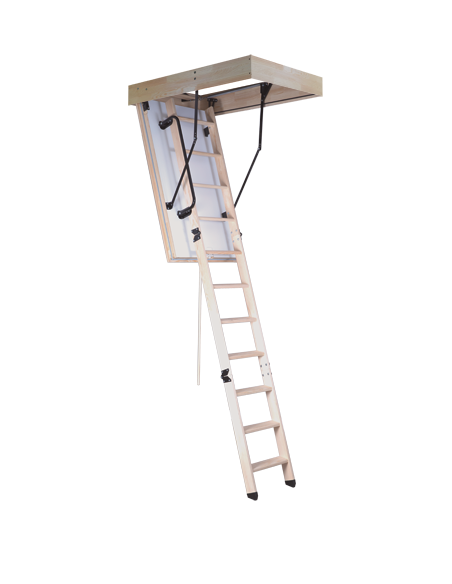

The CHALANCON 86 combines an 86 mm insulated hatch and a wooden folding loft ladder in one unit. When closed, the hatch sits flush with the ceiling; when open, it reveals a ladder with 13 steps measuring 40 cm wide.

With 80 mm of insulation, this is the best-insulated version in the CHALANCON range. It comes in 12 frame sizes, from 113 x 55 to 140 x 70 cm, for ceiling heights up to 280 cm. A handrail is included.

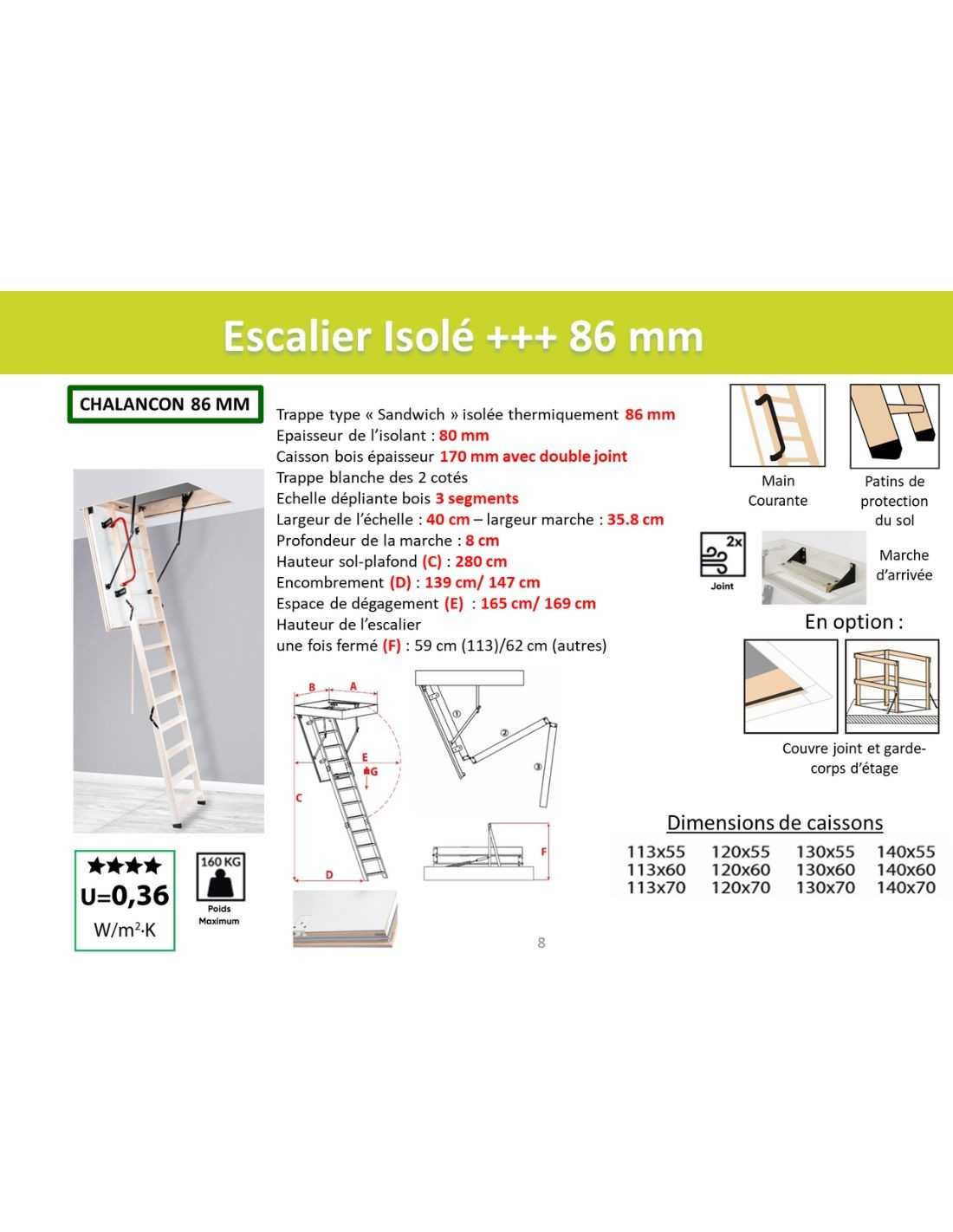

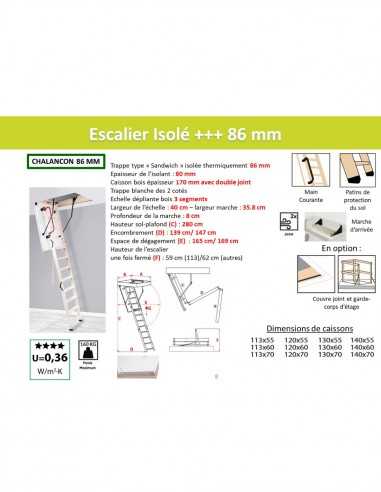

Key specifications

Feature	Description
Model	CHALANCON 86
Construction	Wood
Hatch thickness	86 mm
Insulation thickness	80 mm
Available frame sizes	12 sizes: 113, 120, 130 or 140 cm long by 55, 60 or 70 cm wide
Maximum ceiling height	280 cm
Number of steps	13
Ladder width	40 cm
Floor space required	139 or 147 cm, depending on the frame size
Opening clearance	165 or 169 cm, depending on the frame size
Height when folded	59 or 62 cm, depending on the frame size
Frame height	170 mm
Maximum load	160 kg
Standard	EN 14975
Handrail	Included

Packaging

Ladder with frame and hatch
Handrail

Key points

✓ 80 mm insulation: 86 mm hatch, the best-insulated in the CHALANCON range
✓ All wood: ladder and frame, 13 steps
✓ 12 frame sizes: from 113 x 55 to 140 x 70 cm
✓ Ceiling height: up to 280 cm
✓ Handrail included
✓ Maximum load: 160 kg, EN 14975 standard

Range comparison

Wooden loft ladders for ceiling heights up to 280 cm: compare the features that matter, model by model.

Model	Insulation thickness	Construction	Maximum height	Floor space required	Load	Handrail
COSTE 26	20 mm (26 mm hatch)	Wood	280 cm	130 cm	150 kg	No
NEGGIA 26	20 mm (26 mm hatch)	Wood	280 cm	135 cm	160 kg	No
CHALANCON 26	20 mm (26 mm hatch)	Wood	280 cm	148 cm	160 kg	Included
CHALANCON 36	30 mm (36 mm hatch)	Wood	280 cm	134 or 148 cm	160 kg	Included
CHALANCON 46	40 mm (46 mm hatch)	Wood	280 cm	128 or 142 cm	160 kg	Included
CHALANCON 56	50 mm (56 mm hatch)	Wood	280 cm	151 cm	160 kg	Included
CHALANCON 86	80 mm (86 mm hatch)	Wood	280 cm	139 or 147 cm	160 kg	Included

Choosing the right loft ladder

A ceiling hatch is often the main weak point in loft insulation. With its 86 mm hatch, the CHALANCON 86 is suitable above a bedroom or living room, beneath a cold, unconverted loft.

The frame is 170 mm high: check the available space above the ceiling. If you only need an access hatch without a ladder, this model is not suitable; it is designed for regular access to the loft.

Installation advice

Ceiling opening: prepare an opening to fit your chosen frame, allowing approximately 5 mm around the perimeter. Check that there is at least 170 mm of clear height above the ceiling to accommodate the frame.

Fixing: secure the frame to the floor structure (joists and trimmers) with screws suited to the material, following the instructions. Check that the frame is square before fully tightening the screws: a twisted frame will prevent the hatch from closing properly.

Adjustment: unfold the ladder, measure the ceiling height and trim the final section so it rests flat on the floor. Fit the handrail. Finally, join the loft insulation around the frame to prevent thermal bridging.

Care and protection

Once a year, check that the screws are tight, the joints between the ladder sections are sound and the hatch opening mechanism works properly. Lubricate the mechanisms if the hatch becomes difficult to open, and dust the steps.

The hatch can be painted to match the ceiling. Take care not to block the seal between the hatch and frame, which provides the airtight seal.

Frequently asked questions

What is a loft hatch with a folding ladder?

It consists of a frame fixed into the ceiling, closed by a hatch and containing a folding ladder. Open the hatch to unfold the ladder. The CHALANCON 86 combines an 86 mm insulated hatch with 13 wooden steps.

Does a loft ladder hatch provide good insulation?

That depends on the hatch thickness and its seal. With 80 mm of insulation, the CHALANCON 86 hatch is the best-insulated in the range. Carefully join the loft insulation around the frame to prevent thermal bridging.

How much floor space is needed to unfold the CHALANCON 86?

Allow 139 or 147 cm of floor space, depending on the frame size, and 165 to 169 cm of clearance to open the hatch and unfold the ladder.

How do I choose the right frame size for a loft ladder?

Choose the frame to suit the ceiling opening: its dimensions correspond to the opening required, allowing approximately 5 mm around it for installation. Measure the existing opening, or the one you can create between the joists, then choose the largest frame that fits without exceeding those dimensions.

Does a loft ladder need to be cut to length?

Yes, in most cases. The ladder is supplied for the maximum ceiling height and is trimmed at the bottom so the final section rests flat on the floor. Measure the ceiling height, unfold the ladder and cut it according to the instructions.
