Fanlo Staircase + Douglas Railing

Outdoor Straight Staircase in Douglas and Larch | WoodUp

FANLO Mill Staircase

€418.87

In stock Delivery within 10 days

Wood species

Douglas
Larch

Width (cm)

TRELIS Douglas or Larch Horizontal Rail Handrail - FANLO Staircase

€99.00

In stock Dispatched within 10 days

Wood species

Douglas
Larch

€517.87 incl. tax

Including €1.12 for ecotax

In stock Dispatched within 10 days

Quantité

Pack description

Stringers and treads large section 195*34 mm

Available in widths 60/70/80/90 cm

Number of treads: 14

Floor-to-floor height: 2m20 to 3m00

Douglas fir is classified class 3 without treatment

Pack contents

FANLO Mill Staircase
TRELIS Douglas or Larch Horizontal Rail Handrail - FANLO Staircase

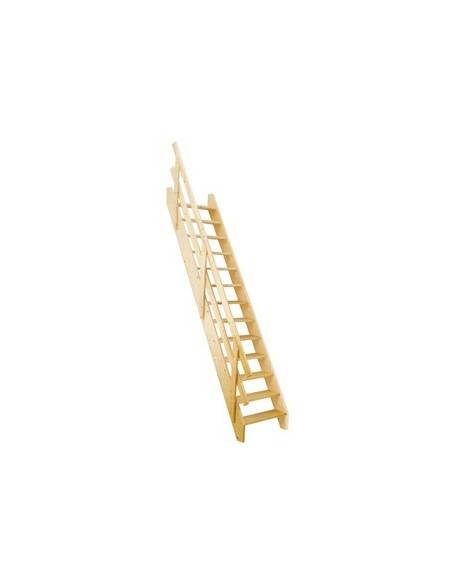

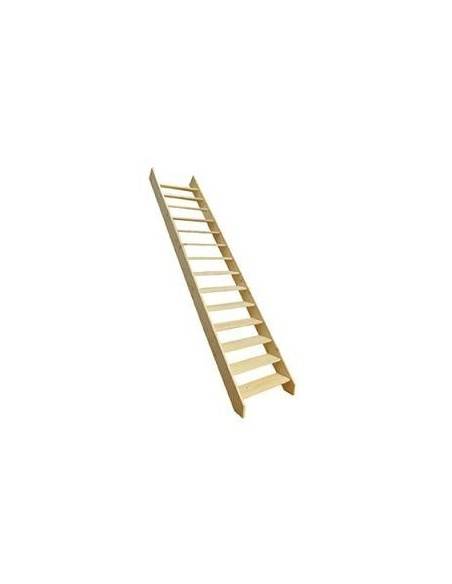

FANLO loft staircase in solid douglas fir or larch — slope adjustable via pivots. 14 steps, section 195x34 mm. Slope and height variable depending on configuration — adaptable to most stairwell openings. Douglas fir and larch are the only wood species in the range suitable for sheltered exterior use (class 3). Fixings and instructions included. Delivered in 2 parcels. Outdoors: class 3 oil or wood stain treatment required, stainless steel fixings necessary. Indoors: decorative finish of your choice.

FANLO Loft Staircase - Douglas Fir or Larch, Adjustable via Pivots, Interior and Exterior

The FANLO loft staircase is available in douglas fir or solid larch — two wood species naturally resistant to moisture and climatic variations, suited to both exterior and interior use. It is the only loft staircase in the WoodUp range designed to withstand the elements. Like the FAGEOLE, it incorporates a metal pivot system that allows the slope to be adjusted and the steps to remain horizontal regardless of the chosen angle.

The FANLO is delivered as a kit with 14 steps and a step section of 195x34 mm. The floor-to-floor height, footprint, and tread depth are variable depending on the slope set at installation. Delivered in 2 parcels (parcel 1: stringers / parcel 2: steps). The handrail is optional.

Main specifications

Specification	Description
Type	Loft staircase, adjustable kit via pivots
Available wood species	Solid douglas fir or solid larch
Use	Interior and exterior
Number of steps	14
Step section	195x34 mm
Step height	Variable depending on adjusted slope
Tread depth	Variable depending on adjusted slope
Width	Variable depending on version
Footprint	Variable depending on slope and floor-to-floor height
Recommended stairwell	Overall width + 2 cm × adjusted footprint

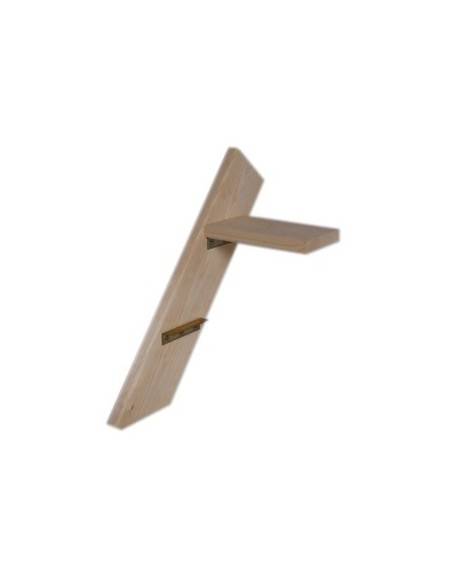

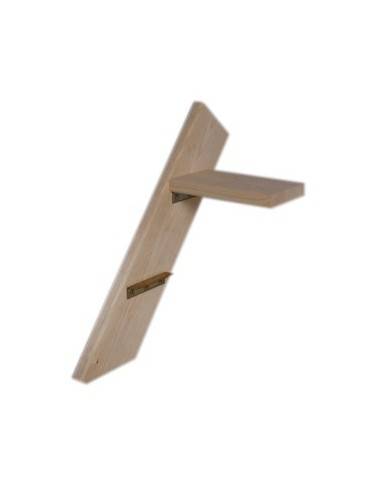

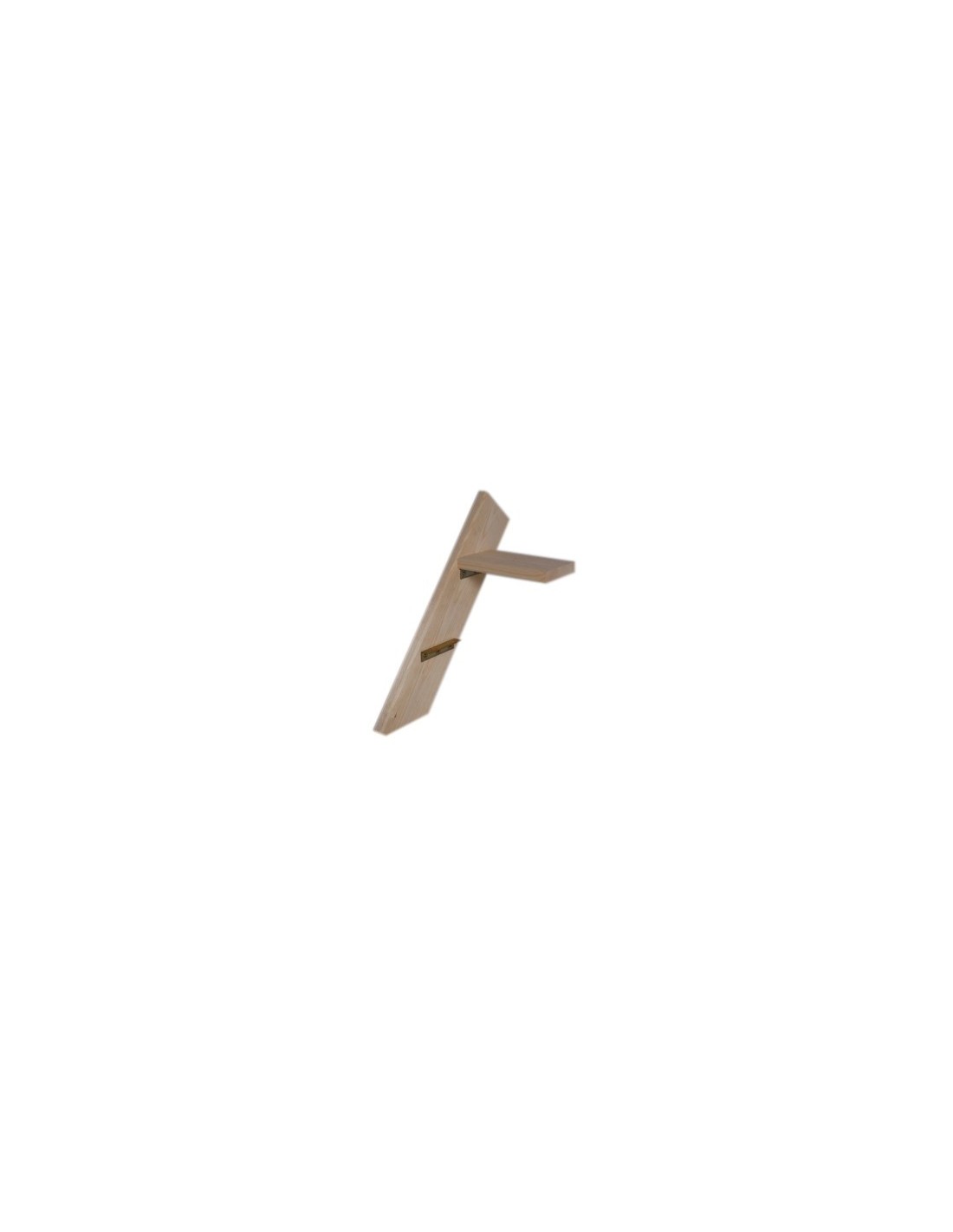

Slope adjustment	Via metal pivots — steps always horizontal
Handrail	Optional
Finish	Raw wood — exterior treatment recommended for outdoor use

Packaging

✓ Parcel 1: Stringers
✓ Parcel 2: Steps

Key points

✓ The only exterior loft staircase: douglas fir or larch — naturally moisture-resistant wood species
✓ Adjustable pivots: adaptable to the available height and setback — steps always horizontal
✓ Thick 195x34 mm section: superior rigidity and durability compared to 145x28 mm sections
✓ 2 parcels: stringers and steps shipped separately for easier handling
✓ Exterior treatment required: for outdoor use, apply a UV-rated oil or wood stain before installation

Installation advice

Slope adjustment is carried out via the metal pivots according to the procedure in the instruction manual. For exterior use, ensure adequate drainage at the base of the staircase to prevent water pooling in contact with the wood. Secure the stringers firmly to the floor (concrete slab or footings) and to the upper support using stainless steel or galvanised fixings suited to exterior use.

Exterior treatment: before installation, apply an exterior wood oil or microporous wood stain to all faces (including hidden faces). Renew every 2–3 years depending on exposure.

Maintenance and protection

For exterior use, apply an exterior wood oil or UV wood stain before first use and renew every 2–3 years depending on exposure (south-facing, coastal areas = more frequent renewal). Douglas fir and larch naturally grey without treatment but retain their mechanical resistance. To maintain the natural colour, regular treatment is necessary. Cleaning: stiff brush and soapy water in spring.

For interior use, a varnish or interior oil-wax is sufficient — same maintenance frequency as the other models.

WoodUp advice

The FANLO is the right choice for exterior access — raised terrace, garage mezzanine, access to a loft from outside. Douglas fir and larch are two wood species recognised for their natural durability outdoors (class 3–4) without chemical treatment. Larch is slightly more durable but also heavier; douglas fir is lighter and easier to work.

Before purchasing: as with the interior FAGEOLE, the dimensions (step height, tread depth, footprint) are not fixed — they depend on the adjustment carried out on site. These values cannot be provided in advance without knowing the floor-to-floor height and the available setback.

Frequently asked questions

What is the difference between douglas fir and larch for an exterior staircase?

Douglas fir (class 3) is naturally resistant to moisture, lighter, and easier to work than larch. Larch (class 3–4) is denser and slightly more durable in extreme wet conditions. Both are suitable for an exterior loft staircase. If the staircase is directly exposed to rain with no shelter, larch is preferable. If the staircase is semi-sheltered (canopy, covered terrace), douglas fir is sufficient.

Should the FANLO be treated before or after installation?

For exterior use, treat before installation if possible — this allows all faces to be treated, including those that will be inaccessible after assembly (underside of steps, inner faces of stringers). Apply 2 coats of exterior oil or microporous wood stain. For cut areas (trimmed stringers), touch up after cutting before assembly.

Can the FANLO be used indoors?

Yes. Douglas fir and larch work very well indoors — their warm tone and marked grain bring a natural character. Indoors, a varnish or interior oil-wax is sufficient, with no need for specific UV treatment. This is an interesting option if you want a loft staircase with the visual character of exotic wood at a lower cost.

How do I calculate the footprint of the FANLO for my configuration?

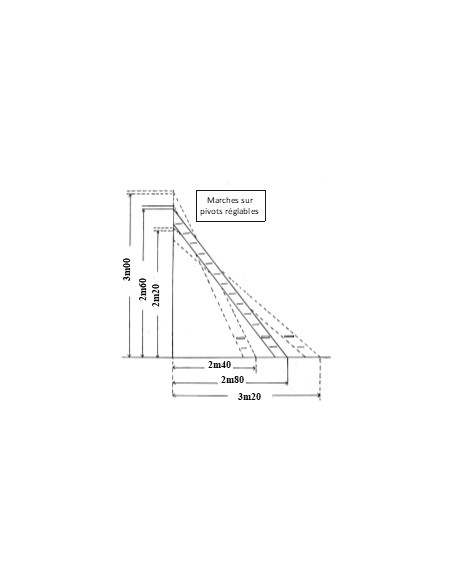

The footprint depends on the adjusted slope. For a floor-to-floor height H and a slope angle A, footprint = H / tan(A). For a slope of 60° (steep) and H = 280 cm: footprint = 280 / tan(60°) = 162 cm. For 45° (average slope): 280 cm. Contact the WoodUp customer service team with your height and available setback for a precise calculation.

What fixings should be used to secure the FANLO outdoors?

Use exclusively A2 or A4 stainless steel screws and bolts for outdoor fixing. Galvanised or phosphated screws corrode quickly in damp outdoor conditions and stain the wood. For floor fixings (concrete slab), use stainless steel wall plugs with suitable fixing plates. The kit does not include anchor fixings — these must be sourced according to your substrate.

Why choose the FANLO over a treated fir loft staircase?

Douglas fir and larch have natural outdoor durability without chemical preservative treatment — unlike fir, which requires pressure treatment to resist the elements durably. A natural douglas fir or larch staircase is more ecological, easier to finish, and retains its mechanical properties even if the surface treatment is not renewed regularly.

Our complementary staircases

FAGEOLE - Adjustable interior loft staircase, 195x34 mm section

AULAC - Interior pivot loft staircase, fir

BASSEYRE - Straight interior loft staircase, fir 287 cm

Data sheet

Width (cm): Varies depending on model
Species/material: Douglas
Species/material: Larch
Number of treads: 14
Length (cm): 390
Section (mm): 195*34
Floor-to-floor height (cm): 300
Range: Standard
Use class: Class 3 - Above ground contact outdoors
Staircase type: Straight

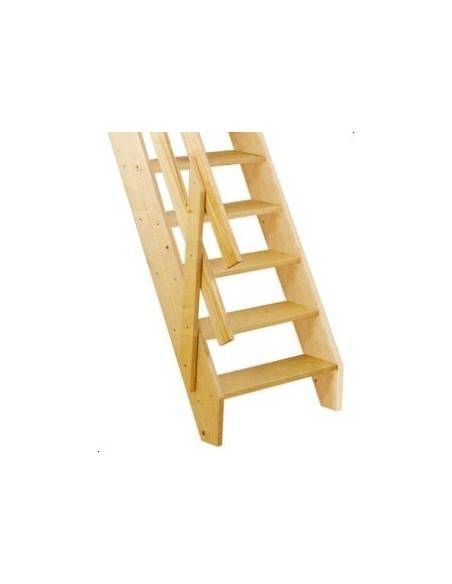

TRELIS horizontal rail handrail in Douglas or Larch for FANLO staircase (ID 272). Kit: 2 horizontal rails 92 x 22 mm (length 3.90 m), 4 vertical boards 92 x 21 mm (length 1.20 m), screws included. Douglas fir and larch: naturally weather-resistant species, suitable for indoor and outdoor use. A stain or saturator treatment is recommended for directly exposed outdoor use. Reversible: right or left when going up.

TRELIS horizontal rail handrail in Douglas fir or Larch

The TRELIS handrail is a horizontal rail handrail in Douglas fir or Larch, compatible with the miller's staircase FANLO (ID 272). Kit: 2 horizontal rails 92 x 22 mm (length 3.90 m), 4 vertical planks 92 x 21 mm (length 1.20 m), screws included. Douglas fir and larch: naturally resistant timber species, suitable for indoor and outdoor use. Reversible.

Key features

Feature	Description
Compatibility	FANLO staircase (ID 272)
Horizontal rails	2 x 92 x 22 mm – length 3.90 m
Vertical planks	4 x 92 x 21 mm – length 1.20 m
Screws	Included
Timber species	Douglas fir or Larch
Use	Indoor and outdoor
Reversibility	Reversible

Key points

? Douglas fir or Larch: naturally resistant timber species, indoor and outdoor
? Compatible with FANLO: designed for the miller's staircase ID 272
? Horizontal rails: understated contemporary design
? Screws included: complete kit
? Reversible: right or left going up

Installation advice

Fix the 4 vertical planks to the stringer or the steps. Then fix the horizontal rails, checking the level. Spacing less than 11 cm, height 90 cm minimum. For outdoor use, apply a wood stain treatment before installation. Renew every 2–3 years.

Maintenance and protection

Douglas fir and larch are naturally resistant outdoors. A wood stain or saturating oil treatment before installation is recommended to preserve the colour. Without treatment, natural greying occurs within 6–12 months with no loss of mechanical strength.

Renew the treatment every 2 to 3 years depending on exposure. Inspect the fixings annually.

Frequently asked questions

Can this handrail be fitted on the right or left side of the staircase?

Yes, this handrail is reversible – it can be installed on either the right or left side going up, depending on your configuration. No modification is required.

What finish should be applied to this wooden handrail?

The handrail requires an abrasion-resistant finish: a 2-coat satin varnish is recommended. Oil-wax or paint for the balusters and newel posts depending on the décor. Apply the finish before final fixing.

Does the spacing between the balusters comply with the safety standard?

The spacing must be less than 11 cm (standard NF P01-012). Check the actual spacing after installation. The minimum height of the handrail is 90 cm from the nosing of the step.

Should the wood be treated before or after installation?

Before, preferably: apply the finish to all components before final fixing so that hidden areas are also treated. Allow to dry completely before fixing.

Are the screws provided sufficient to fix the handrail to the steps?

The included screws cover the assembly of the handrail components together. For fixing to the steps and floor, allow for screws or coach screws suited to the staircase material (wood: min. 5x60 mm screws; concrete: plug + stainless steel screws).
