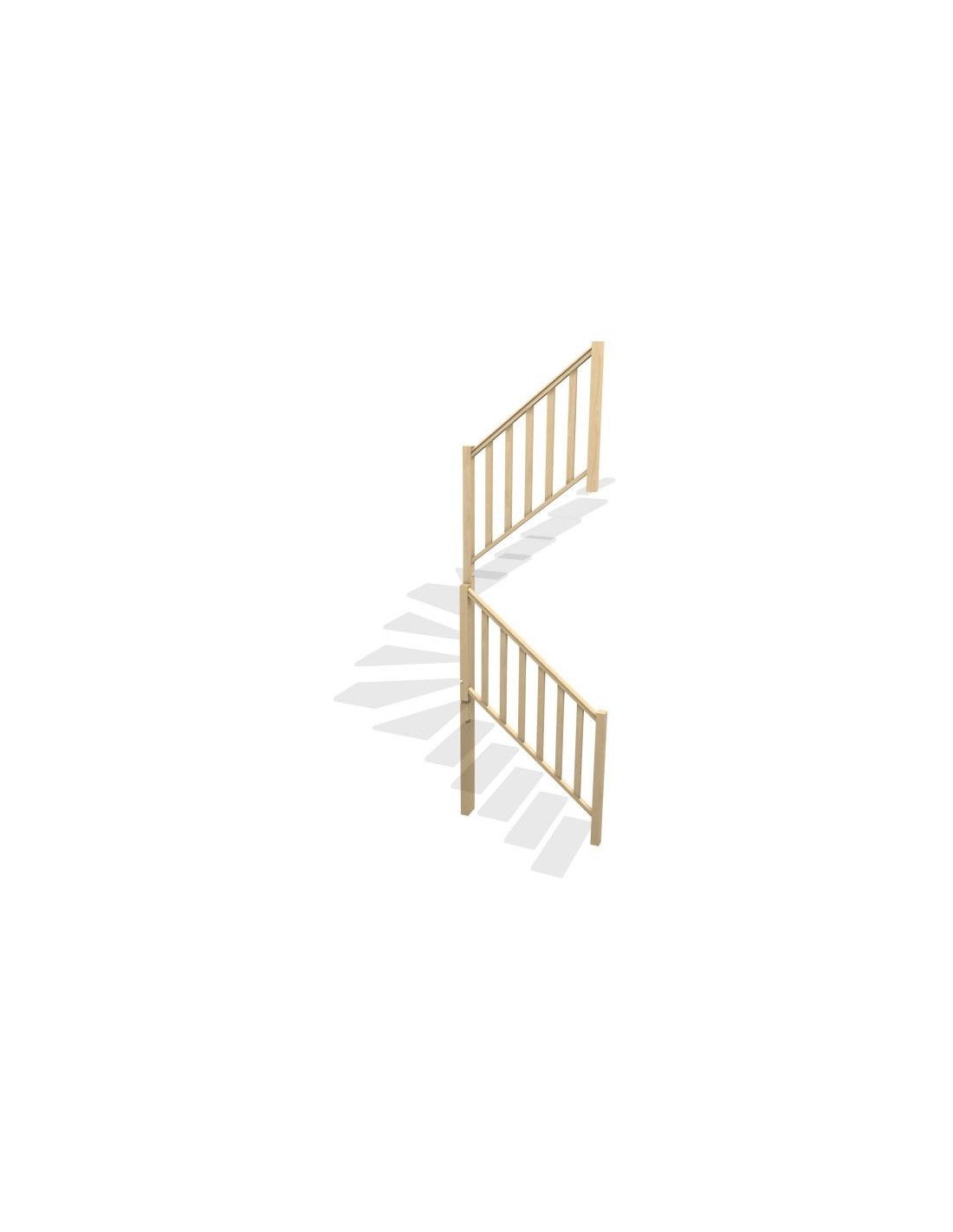

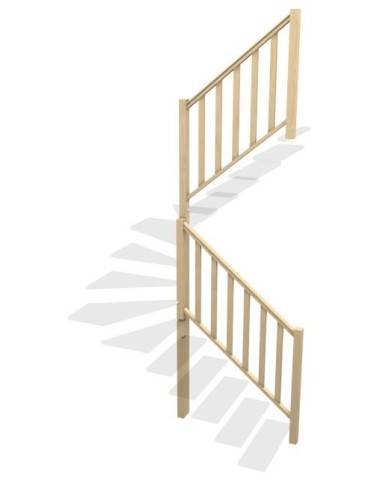

ALBULA INTERIOR RAILING WITH WOODEN SPINDLES

ALBULA inner side wood spindle railing DQT

ALBULA inner side wood spindle railing DQT for ALBULA DQT WoodUp staircase. wood spindles 65 x 20 mm, posts 70 x 70 mm, handrail 50 x 50 mm, bottom rail 50 x 35 mm, fixings included. Available in Oak LC / Beech LC / Fir LC depending on choice, raw untreated wood to be varnished or painted — 2-coat satin varnish recommended for the handrail. Non-reversible: always check the quarter-turn configuration before ordering. Indoor use only.

Wood species

Glued laminated oak
Glued laminated beech
Fir

Quarter turn

Double quarter-turn left
Double quarter-turn right

Reference OLRAFBINTDQTSAG

€379.59 incl. tax

Including €0.59 for ecotax

Restocking in progress

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

ALBULA inner side wood spindle railing DQT

The ALBULA inner side wood spindle railing DQT is a wood spindle railing 65 x 20 mm for the ALBULA DQT staircase. It includes wood spindles 65 x 20 mm, 70 x 70 mm posts, a 50 x 50 mm handrail and a 50 x 35 mm bottom rail. Fixings included. Available in Oak LC / Beech LC / Fir LC. Non-reversible: always check the quarter-turn position and direction of ascent before ordering.

Indoor use only — LC wood species are not intended for outdoor use. To be installed simultaneously with the staircase.

Main characteristics

Characteristic	Description
Compatible staircase	ALBULA DQT (ID NC)
Position	Inner side
Wood spindles	65 x 20 mm
Posts	70 x 70 mm
Handrail	50 x 50 mm
Bottom rail	50 x 35 mm
Available wood species	Oak LC / Beech LC / Fir LC
Fixings	Included
Reversibility	Non-reversible
Use	Indoor use only

Key points

✓ Wood spindles 65x20 mm: warm traditional aesthetic
✓ Inner side: outer side of the curve
✓ Available wood species: Oak LC / Beech LC / Fir LC
✓ Fixings included: complete installation kit
✓ Non-reversible: choose according to the quarter-turn configuration

Installation advice

To be installed simultaneously with the staircase. Fix the posts, bottom rail, spindles, then the handrail in that order. Check a height of 90 cm minimum from the nosing and a spacing of less than 11 cm (standard NF P01-012). Apply varnish or paint before final fixing. Two people recommended.

Maintenance and protection

The wood is delivered raw and untreated. Apply a protective finish before use: 2-coat satin varnish (maximum durability), oil-wax (natural look, renewal every 1–2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.

Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

Frequently asked questions

What is the outer side of a staircase?

On a quarter-turn staircase, there is the inner side (the side towards which the staircase turns, inside the curve) and the outer side (the side opposite the curve, the free side of the flight). This railing is positioned on the outer side. To determine it, walk up your staircase and observe which side the quarter turn is on.

Why is this railing non-reversible?

The quarter-turn geometry requires a specific shape for the railing. An outer-side railing cannot be reversed to become an inner-side railing — the angles and lengths of each section differ. Always check your configuration before ordering: quarter-turn position and direction of ascent.

Can this railing be installed after fitting the ALBULA staircase?

This railing must be installed simultaneously with the staircase — some fixings are only accessible during assembly. Plan the installation at the same time.

What finish should be applied to this wooden railing?

The handrail, subject to daily contact, requires an abrasion-resistant finish: 2-coat satin varnish is recommended. For the spindles and posts, an oil-wax (natural look) or paint depending on the décor. Apply the finish before final fixing to treat hidden areas.

Does the spacing between the spindles comply with the safety standard?

The spacing must be less than 11 cm to prevent the passage of an 11 cm sphere (standard NF P01-012). Check the actual spacing after installation depending on your staircase configuration, particularly at the bottom of the flight where the railing is more open.
