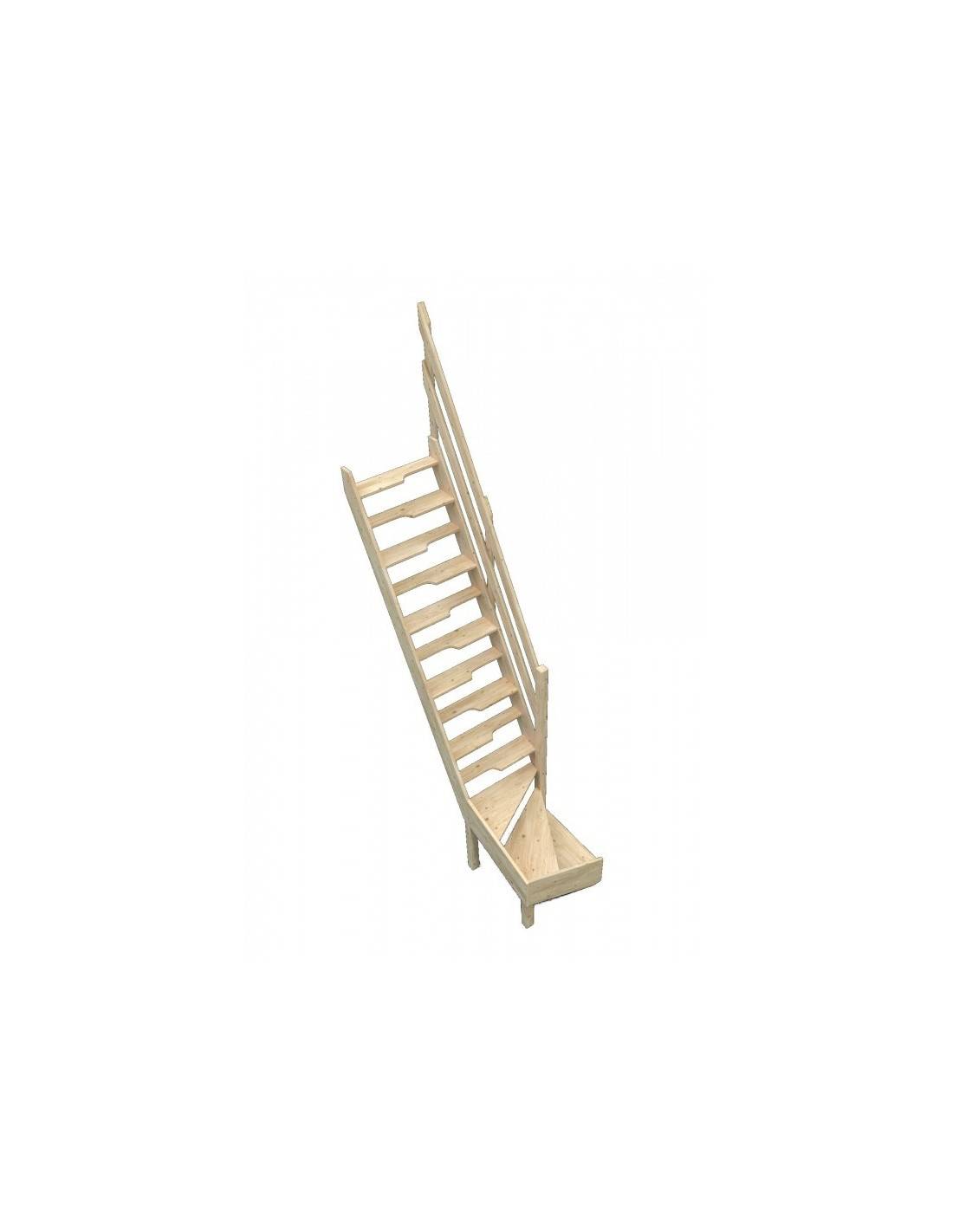

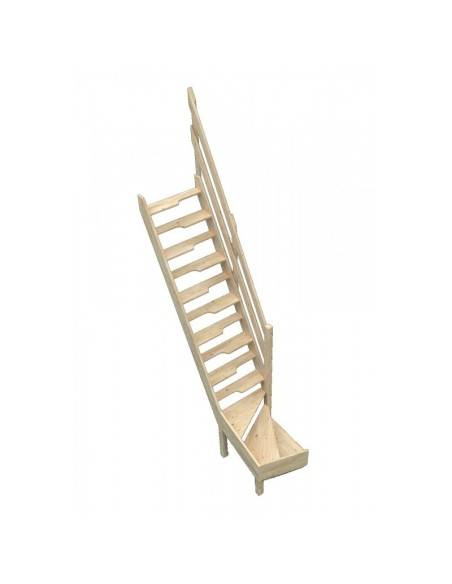

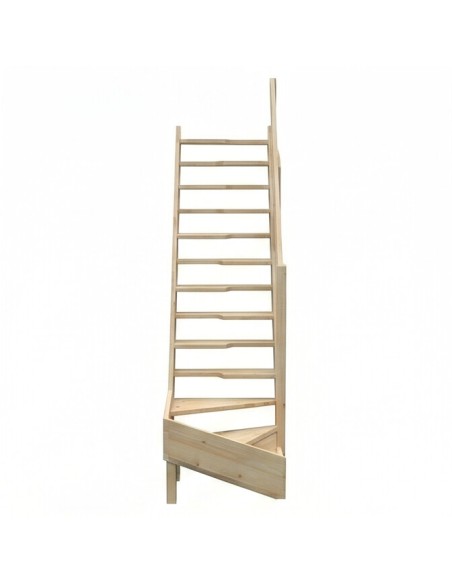

ADRET Fir Quarter-Turn Bottom Staircase

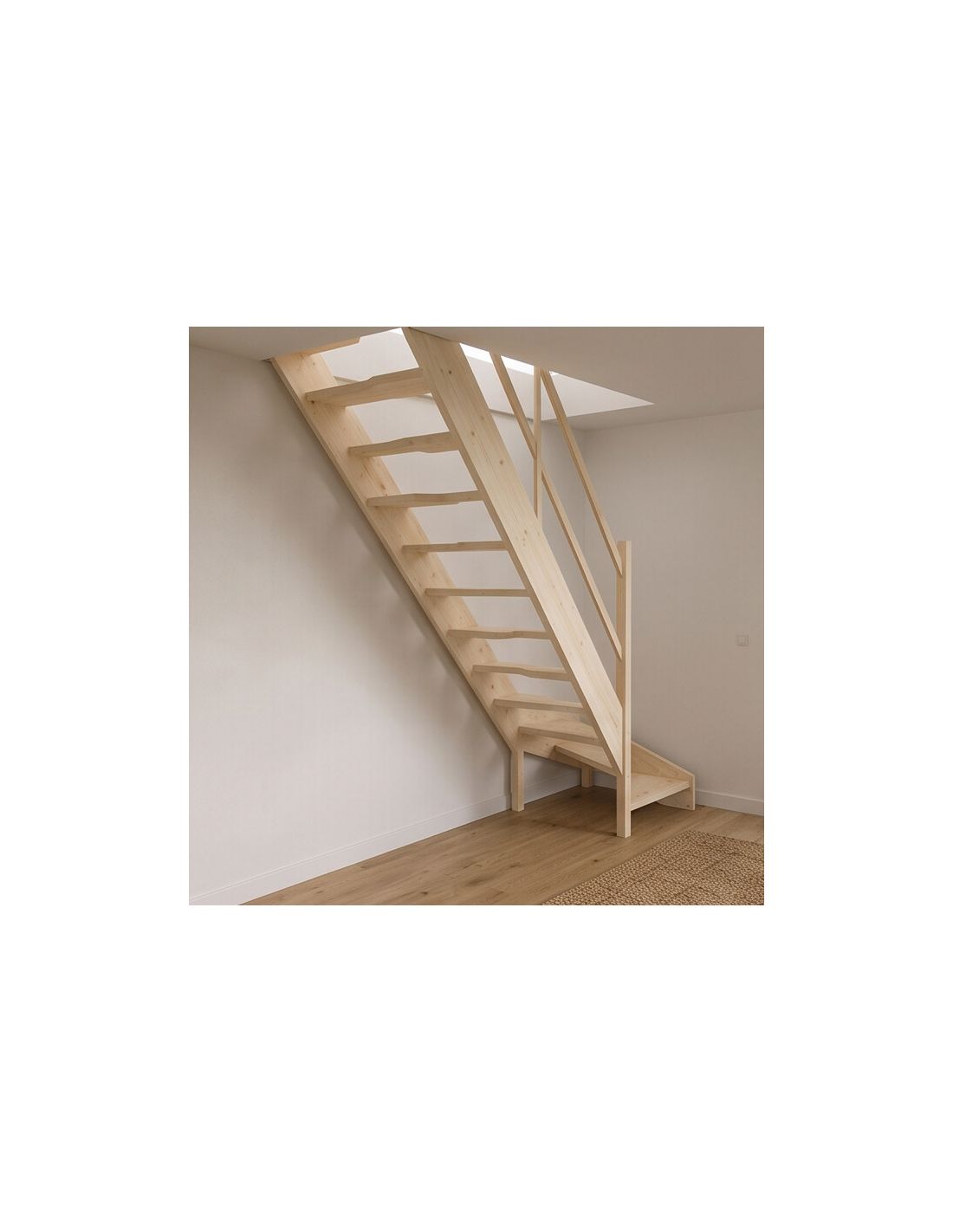

ADRET solid fir lower quarter-turn staircase – alternating treads, 280 cm high. 13 treads, 67 cm wide, 183 cm floor footprint, recommended stairwell opening 183x70 cm. Handrail included. Right- or left-hand turn. Can be cut down to a minimum height of 240 cm (162 cm footprint). The alternating treads take up less floor space than a conventional quarter-turn staircase of the same height. Maximum load: 150 kg. Fixings and instructions included; supplied in 2 packages. Indoor use only.

Quarter turn

Bottom left
Bottom right

Reference EAR065QTBD

€548.56 incl. tax

Including €1.00 for ecotax

3 Products In stock Last items in stock

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

ADRET fir staircase – lower quarter-turn with alternating treads

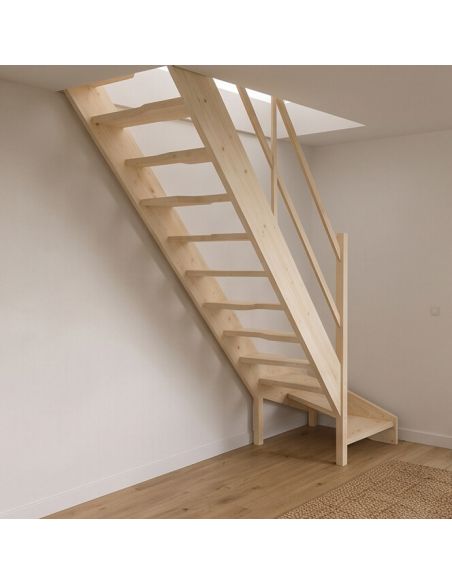

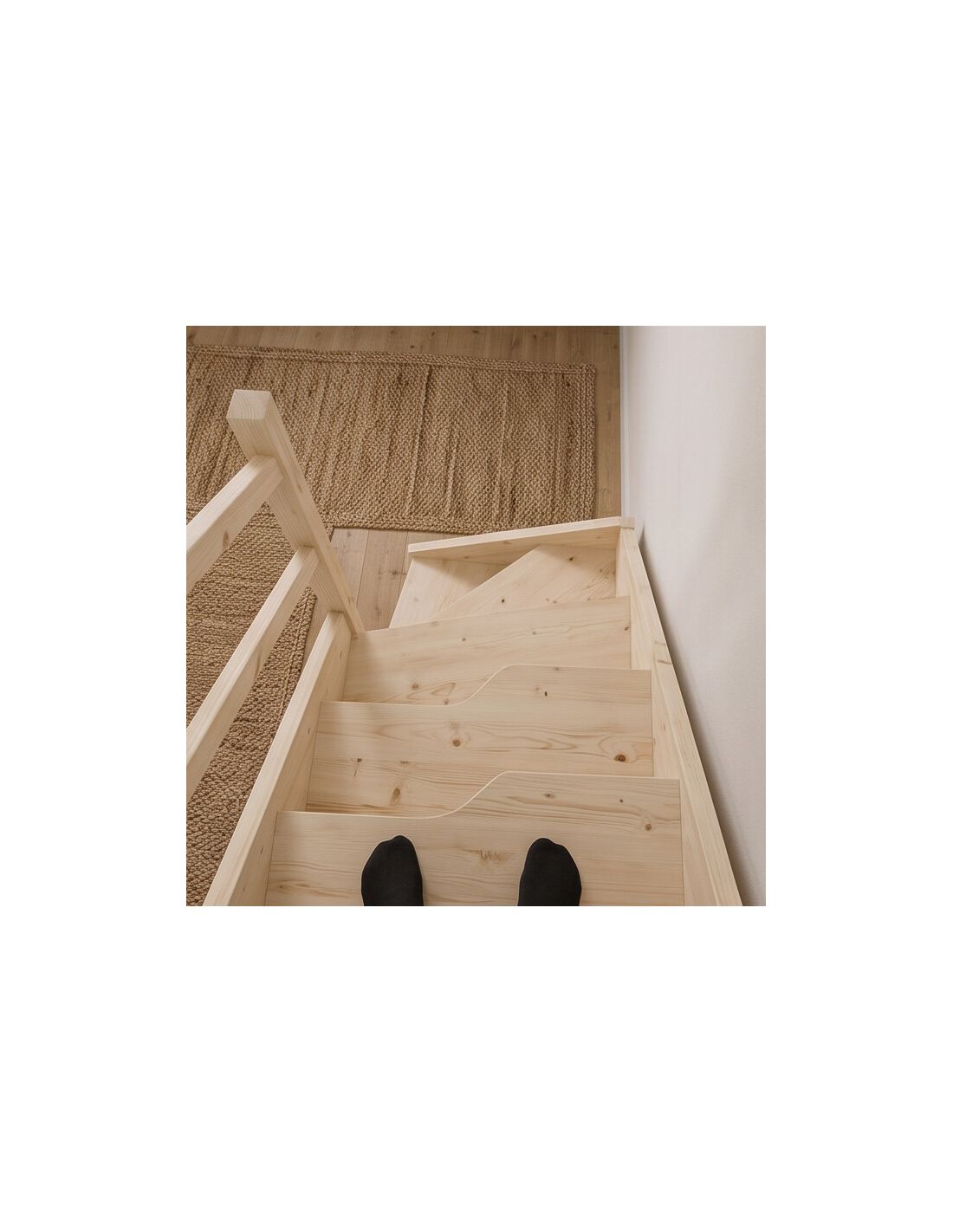

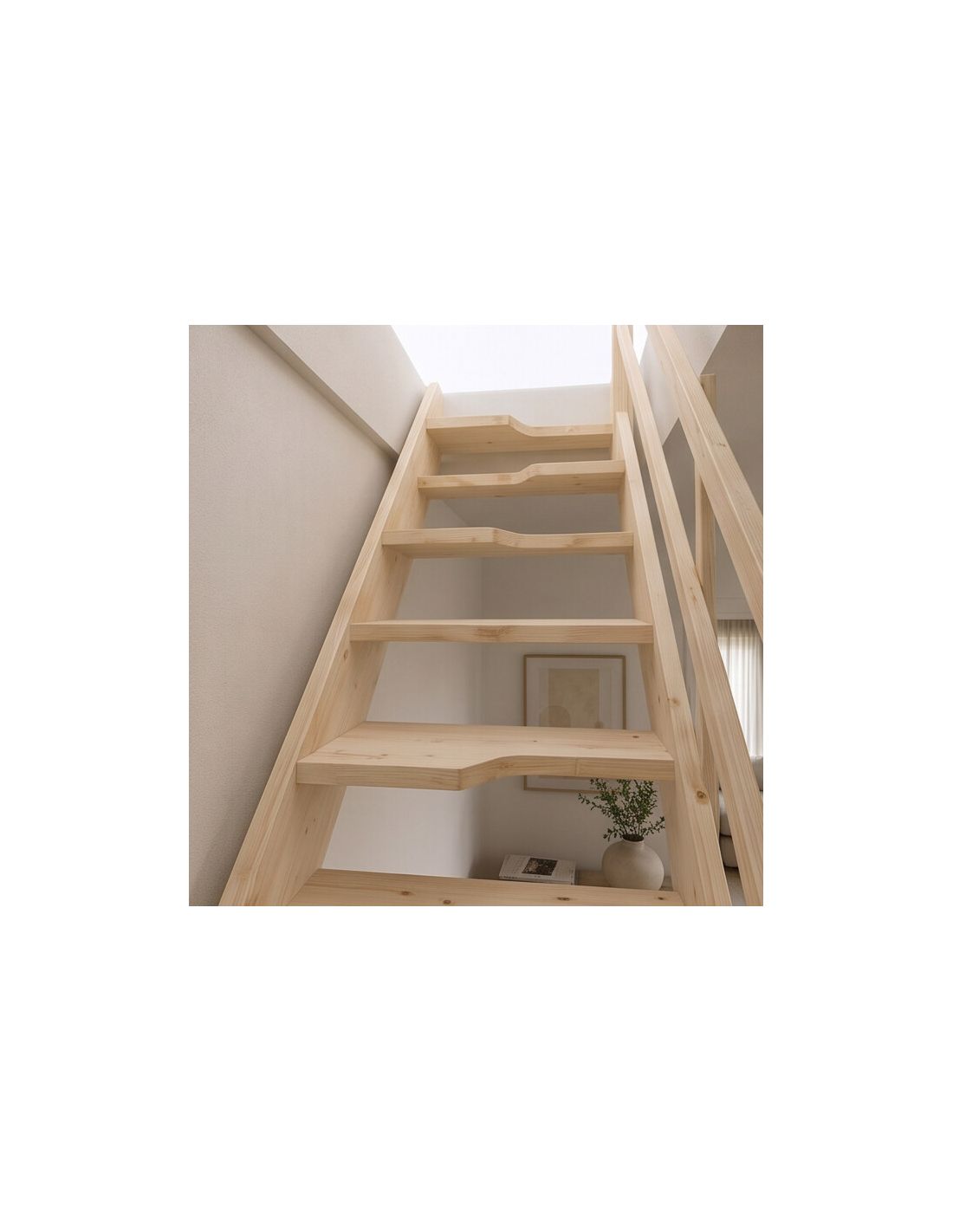

The ADRET is a solid fir lower quarter-turn staircase with alternating treads, designed for smaller stairwell openings. With a floor footprint of just 183 cm at a floor-to-floor height of 280 cm, it takes up considerably less floor space than a conventional quarter-turn staircase of the same height. The alternating treads provide left and right foot placements in turn, reducing the footprint while remaining reasonably comfortable for regular access. The handrail is included – no additional accessories are needed for a standard installation.

The staircase comes as a kit in 2 packages, with fixings and assembly instructions. It can be cut down to suit floor-to-floor heights below 280 cm, down to a minimum of 240 cm (reducing its floor footprint to 162 cm). It is available only as a lower quarter-turn staircase, with a choice of right- or left-hand turn. The maximum load is 150 kg. The solid fir is supplied unfinished and untreated: apply a finish (stair varnish, oil or wood stain) before installation to protect the wood for everyday use.

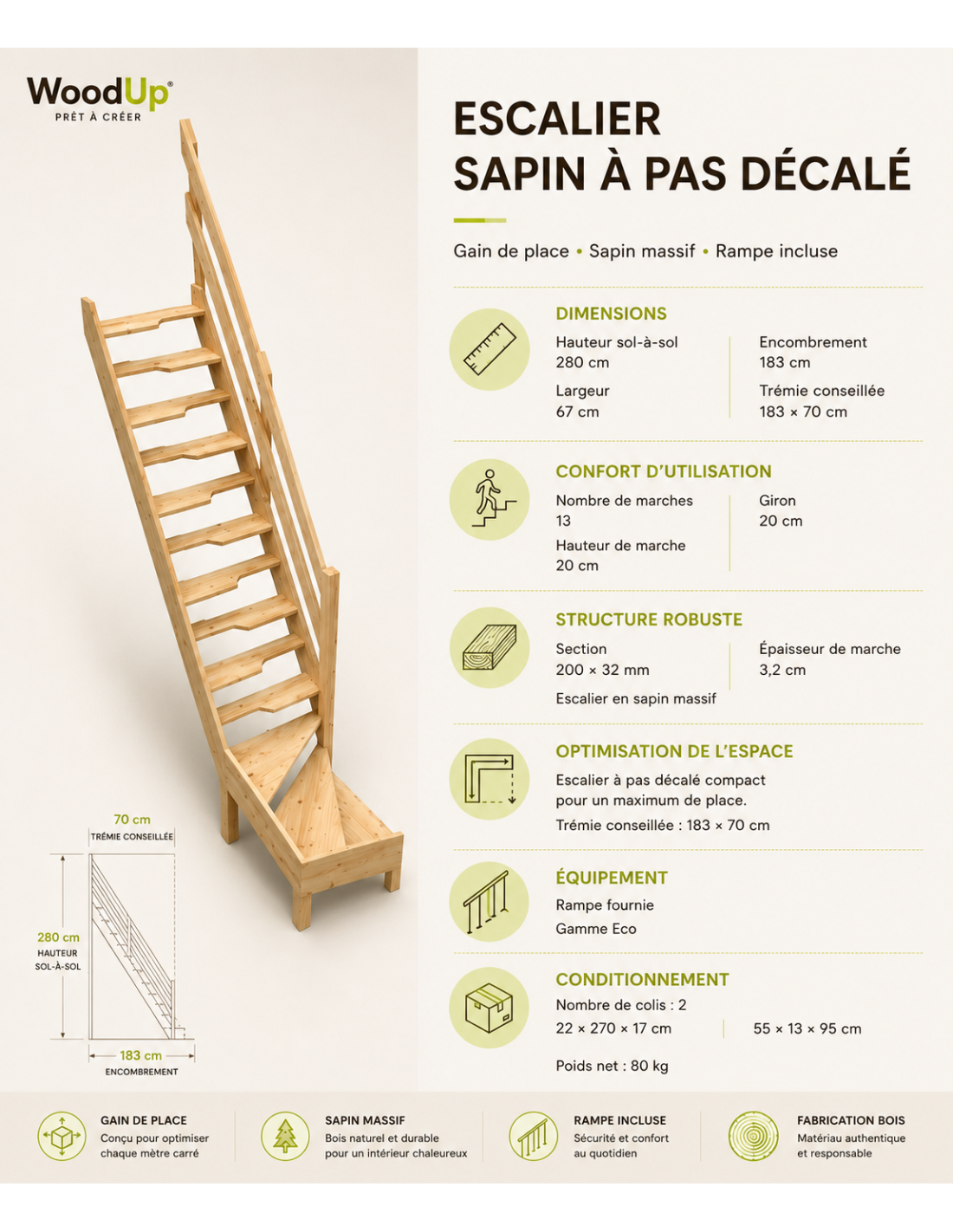

Key specifications

Feature	Value
Model	ADRET
Type	Lower quarter-turn with alternating treads
Wood species	Unfinished solid fir
Floor-to-floor height	280 cm (can be cut down to min. 240 cm)
Number of treads	13
Width	67 cm

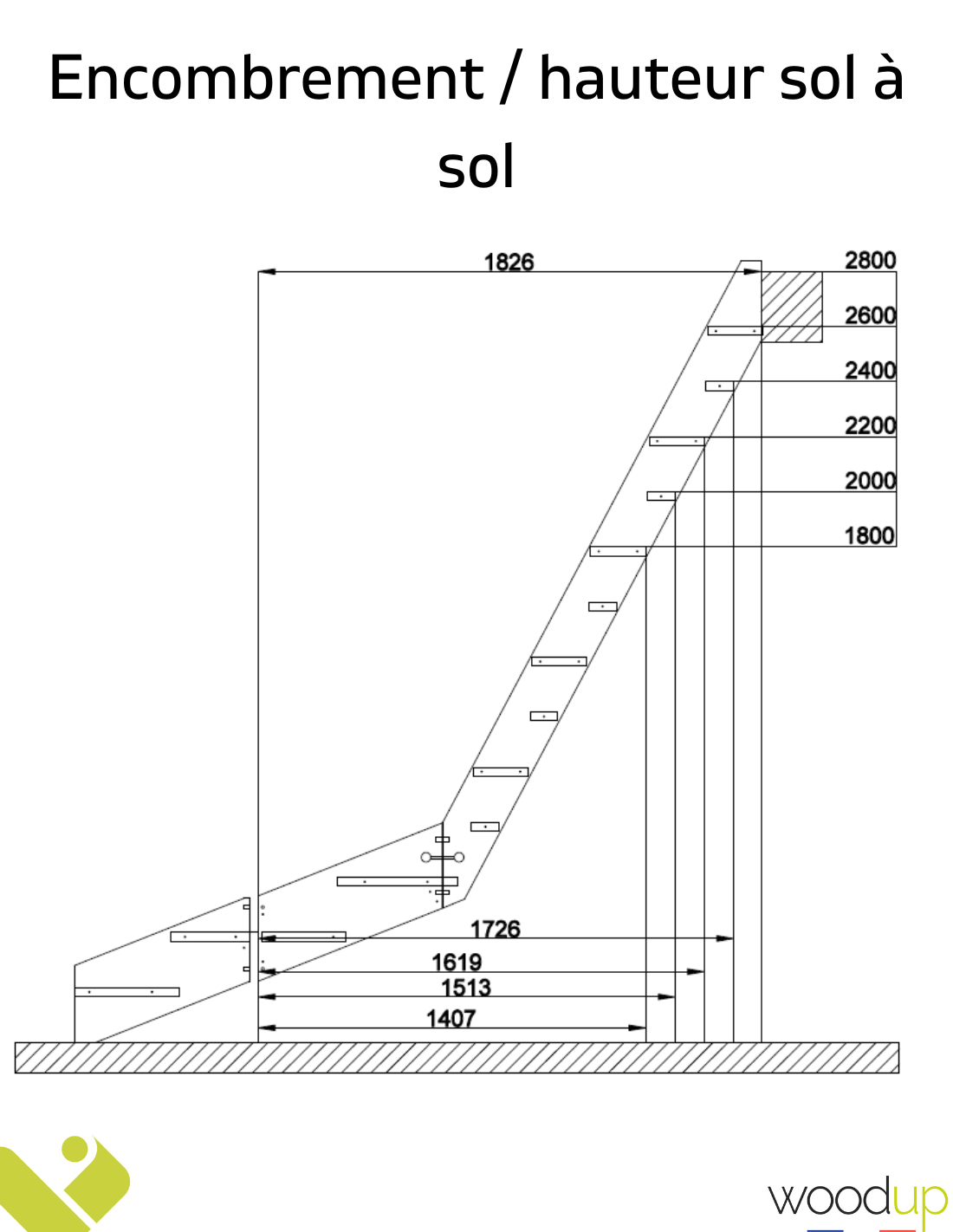

Floor footprint	183 cm (162 cm when cut down to 240 cm)
Recommended stairwell opening	183 x 70 cm
Turn direction	Choice of right- or left-hand turn
Handrail	Included
Maximum load	150 kg
Use	Indoor use only
Packaging	2 packages – fixings and instructions included

Number of packages

✓ Package 1: 2 stringers + 10 treads + 2 rails + 1 starting newel post + 2 handrail posts – 22x270x17 cm, 36 kg
✓ Package 2: quarter-turn section + 3 treads + 2 feet – 55x13x95 cm, 15 kg

Key points

✓ Compact footprint: 183 cm on the floor for a height of 280 cm – space-saving thanks to the alternating treads
✓ Handrail included: no additional accessories needed for a standard installation
✓ Can be cut down: adaptable to a minimum height of 240 cm (162 cm footprint)
✓ Choice of turn direction: right or left; specify when ordering
✓ Maximum load 150 kg: normal residential use
✓ Complete kit in 2 packages: fixings and assembly instructions included

Installation advice

Check the dimensions of your stairwell opening before ordering: at least 183 cm long and 70 cm wide. If your floor-to-floor height is less than 280 cm, the staircase can be cut down to a minimum of 240 cm, reducing its floor footprint to 162 cm. Any modification to the staircase or handrail is the installer’s responsibility and is excluded from after-sales support.

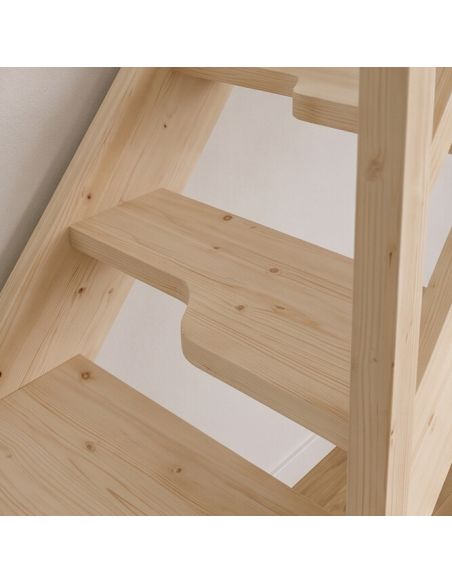

Specify the turn direction (right or left) when ordering; this is determined as you go up the stairs. A right-hand lower quarter-turn staircase turns right as you ascend. Apply a finish (stair varnish, oil or wood stain) to every surface before installation, including cut ends. On the alternating-tread steps, pay particular attention to the joints between the two half-treads, which are more exposed to wear.

Care and protection

The unfinished solid fir must be protected before use. A stair varnish (2 to 3 coats) offers the best abrasion resistance for the treads; a hardwax oil or wood stain is suitable for the stringers and handrail if you prefer a more natural look. Renew the protection on the treads every 3 to 5 years, depending on how heavily the stairs are used. For an isolated scratch, lightly sand the area and touch it up with a brush to restore the protection locally.

WoodUp advice

Before you buy: the ADRET’s alternating-tread steps require you to alternate between left and right foot placement. Climbing them is more intuitive than it may seem, but people unfamiliar with this type of staircase will need a few days to get used to it. This model is not recommended as a main staircase for people with reduced mobility or for frequently carrying bulky items. For a height of 240 cm, check the reduced footprint (162 cm) before finalising the stairwell opening. Floor fixings are not supplied; choose them to suit the surface (concrete, wood or tiles).

Frequently asked questions

What is the difference between the ADRET staircase and a conventional lower quarter-turn staircase?

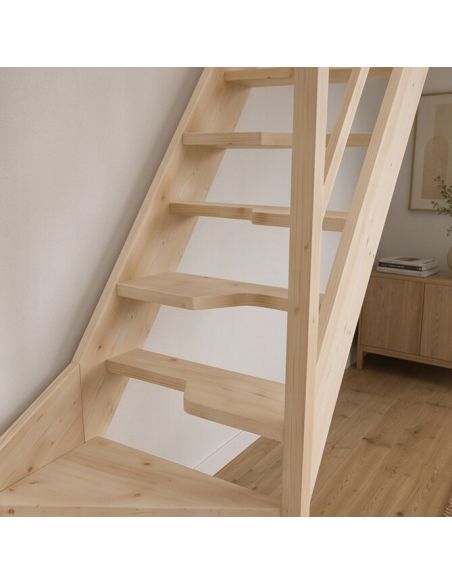

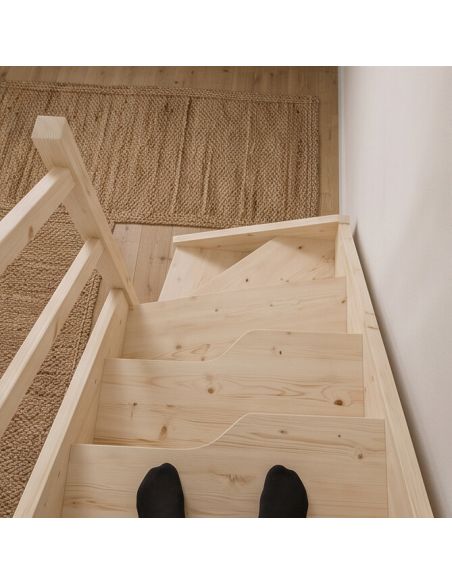

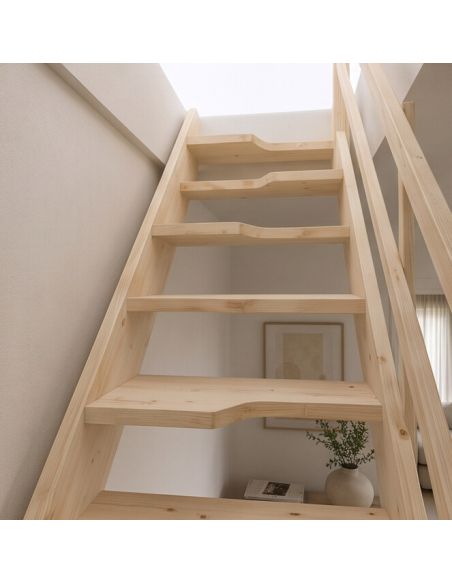

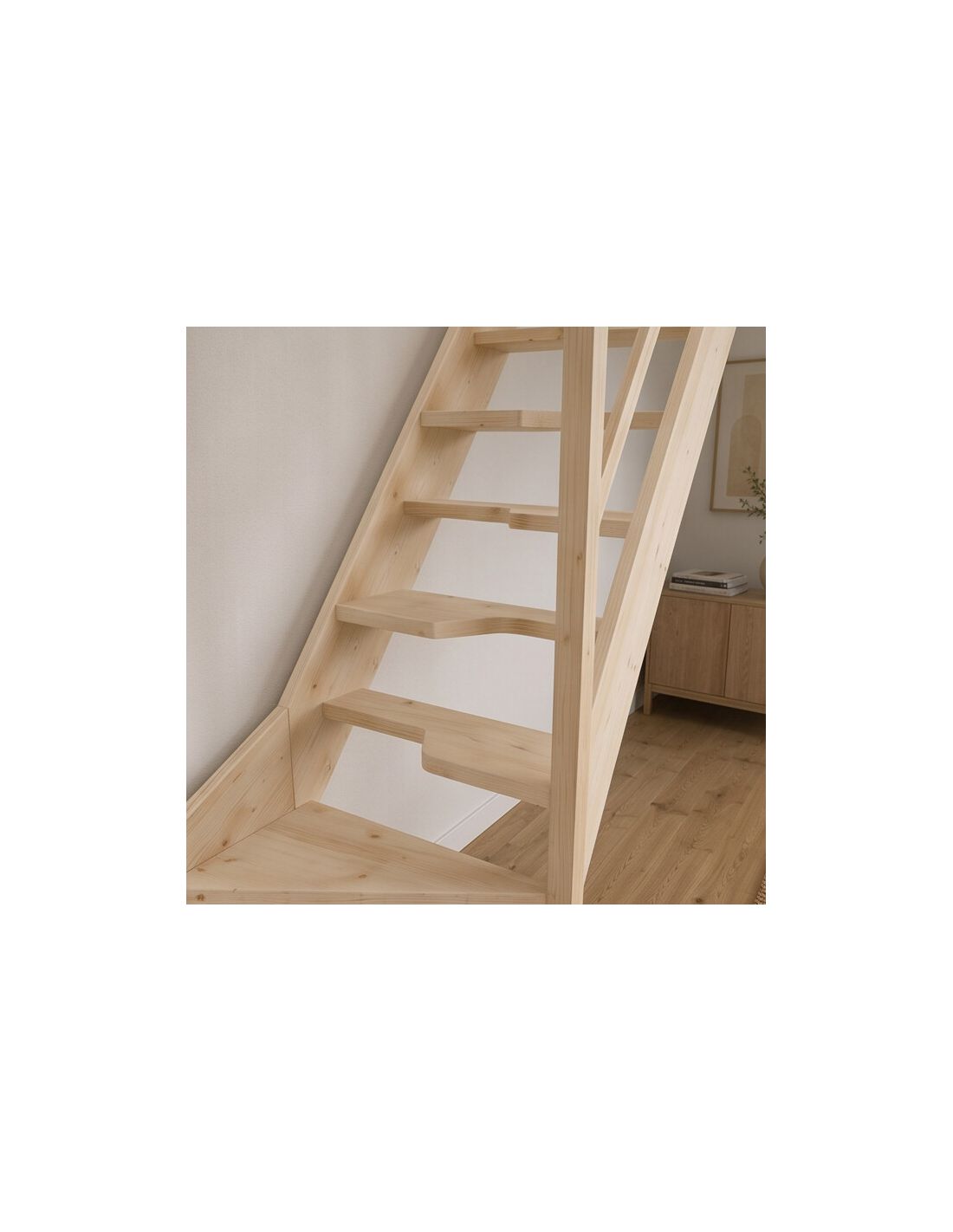

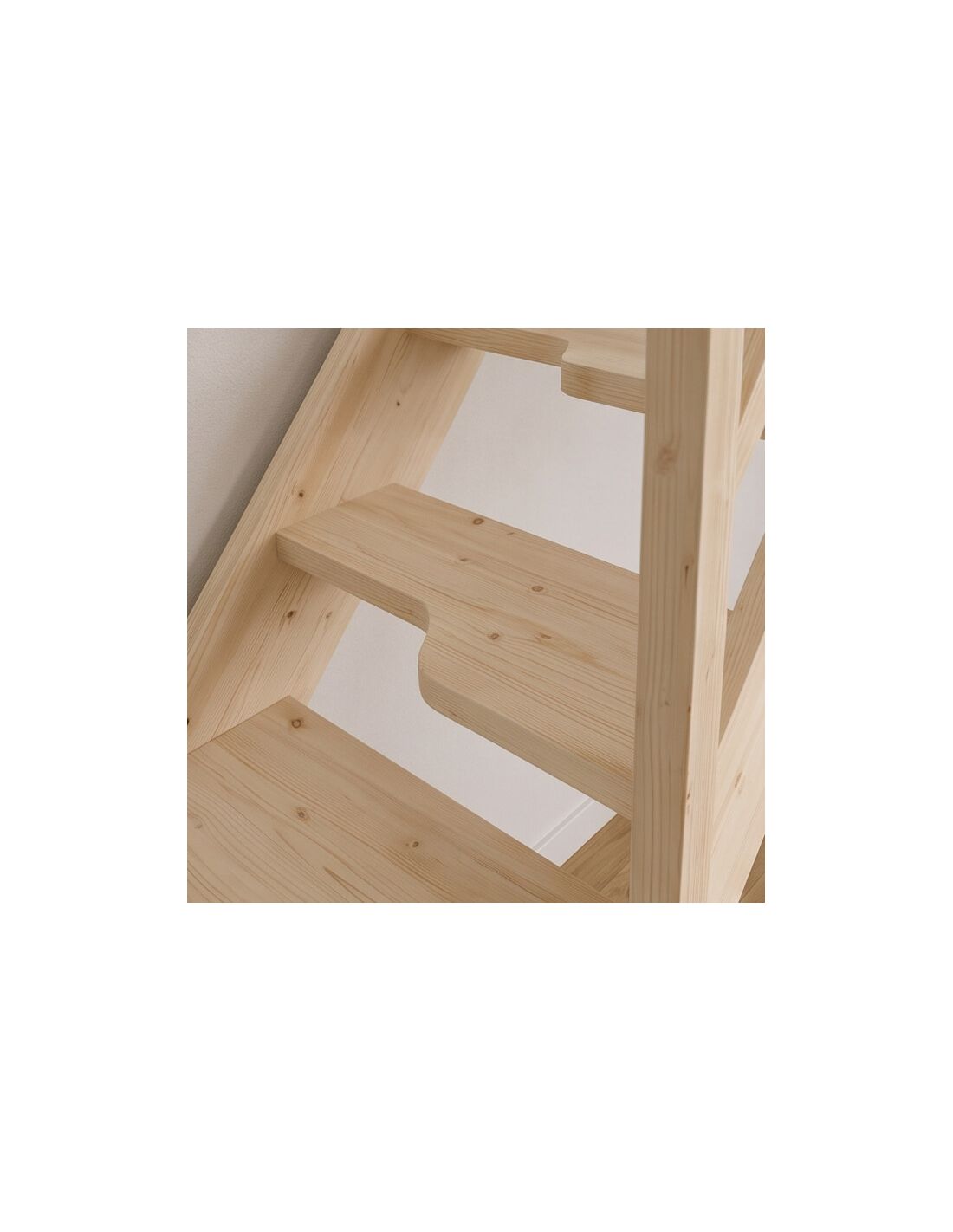

The ADRET has alternating-tread steps: each half-tread is offset from the other, reducing its floor footprint to 183 cm compared with a conventional lower quarter-turn staircase of the same height (generally 250–280 cm). In return, you alternate between left and right foot placement as you climb. For regular access to a mezzanine or loft, it offers a good balance between space-saving and comfort.

Can the ADRET staircase be cut down to a height of 2.40 m?

Yes. The ADRET can be cut down to a minimum floor-to-floor height of 240 cm. Its floor footprint will then be reduced to 162 cm. The handrail can also be shortened by the same proportion. Please note: any modification to the staircase or handrail is the installer’s responsibility and voids WoodUp’s after-sales warranty.

Is the ADRET staircase available with an upper quarter-turn?

No. The ADRET is not available as a standard upper quarter-turn staircase. For an upper quarter-turn staircase in fir, consider the NERONNE model (ID 27) or BAVAT Fir (ID 997). WoodUp customer service can explore a made-to-measure solution for your layout.

Is the handrail suitable for every type of wall?

The included handrail is designed to be supported by the stair stringers. Wall-mounting the handrail is not essential if the stringers are securely anchored to the floor and upper landing. If your layout requires additional wall fixings, use brackets suited to the wall material (concrete, brick or plaster); these are not supplied with the staircase.

What finish should I apply to a fir staircase with alternating treads?

For the treads, a stair varnish (2 to 3 coats) is recommended for its abrasion resistance. For the stringers and handrail, a hardwax oil or wood stain gives a more natural appearance. Apply the finish before installation to every surface, including cut ends. Renew the protection on the treads every 3 to 5 years, depending on use.

How do I choose a right- or left-hand ADRET staircase?

The turn direction is determined as you go up the stairs. A right-hand lower quarter-turn staircase turns right as you ascend. To check, stand at the bottom facing up the stairs: if the quarter-turn is to your right, it is a right-hand model. If you are unsure about your layout, contact WoodUp for confirmation before ordering.
