BAVAT INTERIOR HANDRAIL WITH TURNED BALUSTERS

BAVAT railing inner side turned balusters beech

BAVAT railing inner side turned balusters beech for BAVAT QT High WoodUp staircase. turned balusters 45 x 45 mm, posts 70 x 70 mm, handrail 50 x 50 mm, bottom rail 50 x 35 mm, screws included. Beech LC delivered raw and untreated, to be varnished (2 coats recommended for the handrail subject to contact) or painted before use. Non-reversible: always check the quarter turn configuration before ordering. Indoor use only.

Wood species

Glued laminated beech

Quarter turn

Top left
Top right

Reference RABTINTQTHHED

€359.85 incl. tax

Including €0.85 for ecotax

Out of stock

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

BAVAT railing inner side turned balusters beech

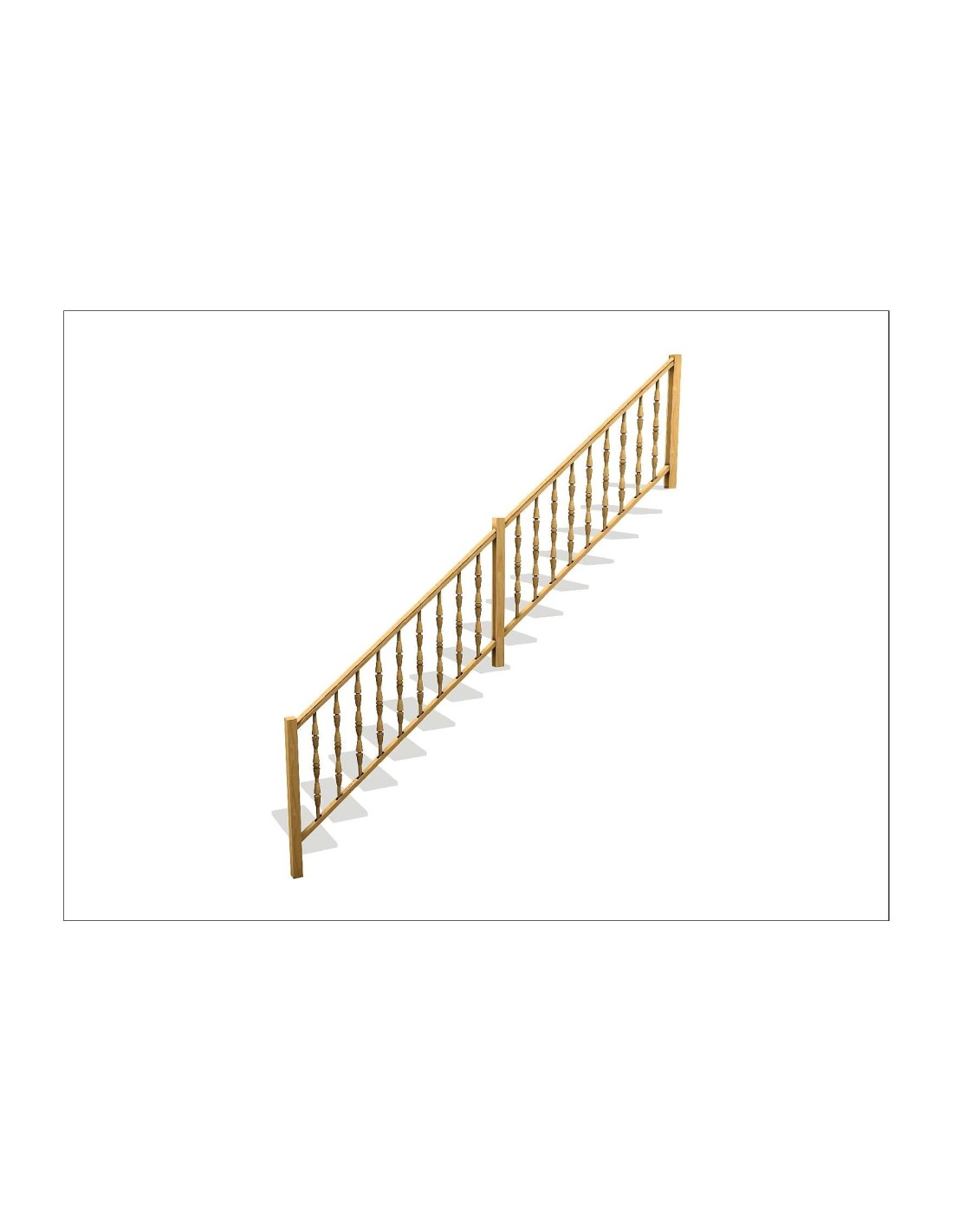

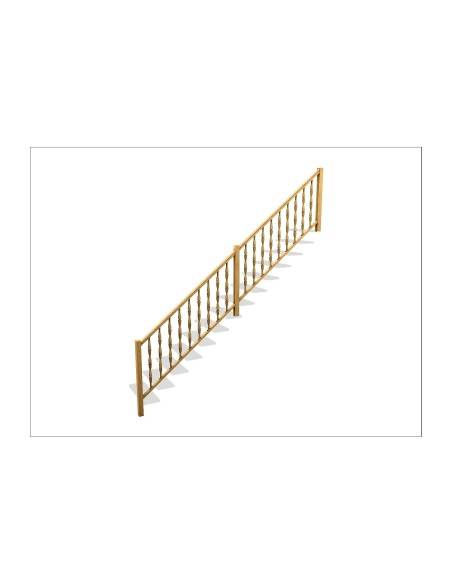

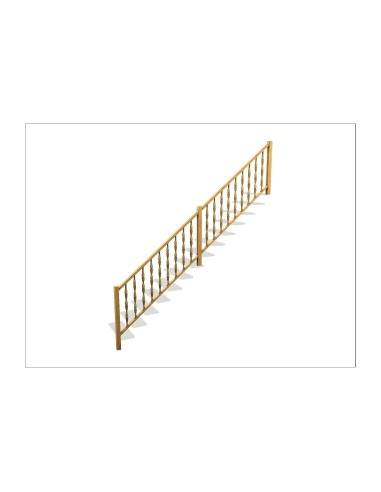

The BAVAT inner side turned balusters beech handrail is a turned baluster handrail 45 x 45 mm for the BAVAT QT High staircase. It comprises turned balusters 45 x 45 mm, posts 70 x 70 mm, a handrail 50 x 50 mm and a bottom rail 50 x 35 mm. Screws included. Available in Beech LC. Non-reversible: always check the position of the quarter turn and the direction of ascent before ordering.

Indoor use only – LC species are not suitable for outdoor use. To be installed at the same time as the staircase.

Main features

Feature	Description
Compatible staircase	BAVAT QT High (ID NC)
Position	Inner side
Turned balusters	45 x 45 mm
Posts	70 x 70 mm
Handrail	50 x 50 mm
Bottom rail	50 x 35 mm
Available species	Beech LC
Screws	Included
Reversibility	Non-reversible
Use	Indoor use only

Key points

✓ Turned balusters 45x45 mm: classic curved profile
✓ Inner side: outer side of the curve
✓ Available species: Beech LC
✓ Screws included: complete kit for fitting
✓ Non-reversible: choose according to the quarter turn configuration

Installation advice

To be installed at the same time as the staircase. Fix posts, bottom rail, balusters then handrail in that order. Check the height of minimum 90 cm from the nosing and spacing less than 11 cm (standard NF P01-012). Apply varnish or paint before final fixing. Two people recommended.

Maintenance and protection

The wood is delivered raw and untreated. Apply a protective finish before use: satin varnish 2 coats (maximum resistance), oil-wax (natural look, renewal every 1–2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.

Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

Frequently asked questions

What is the inner side of a staircase?

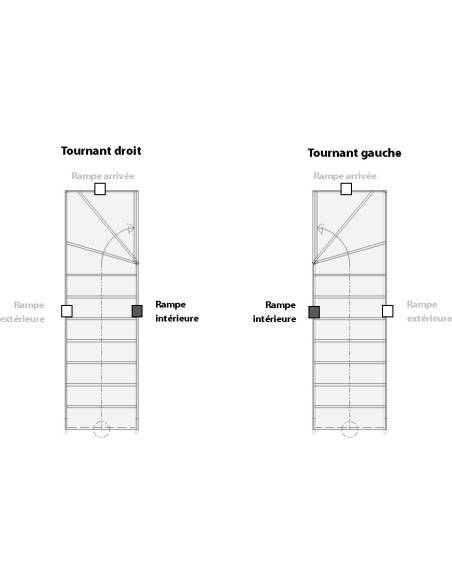

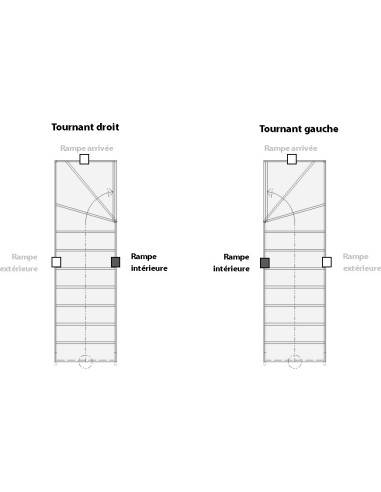

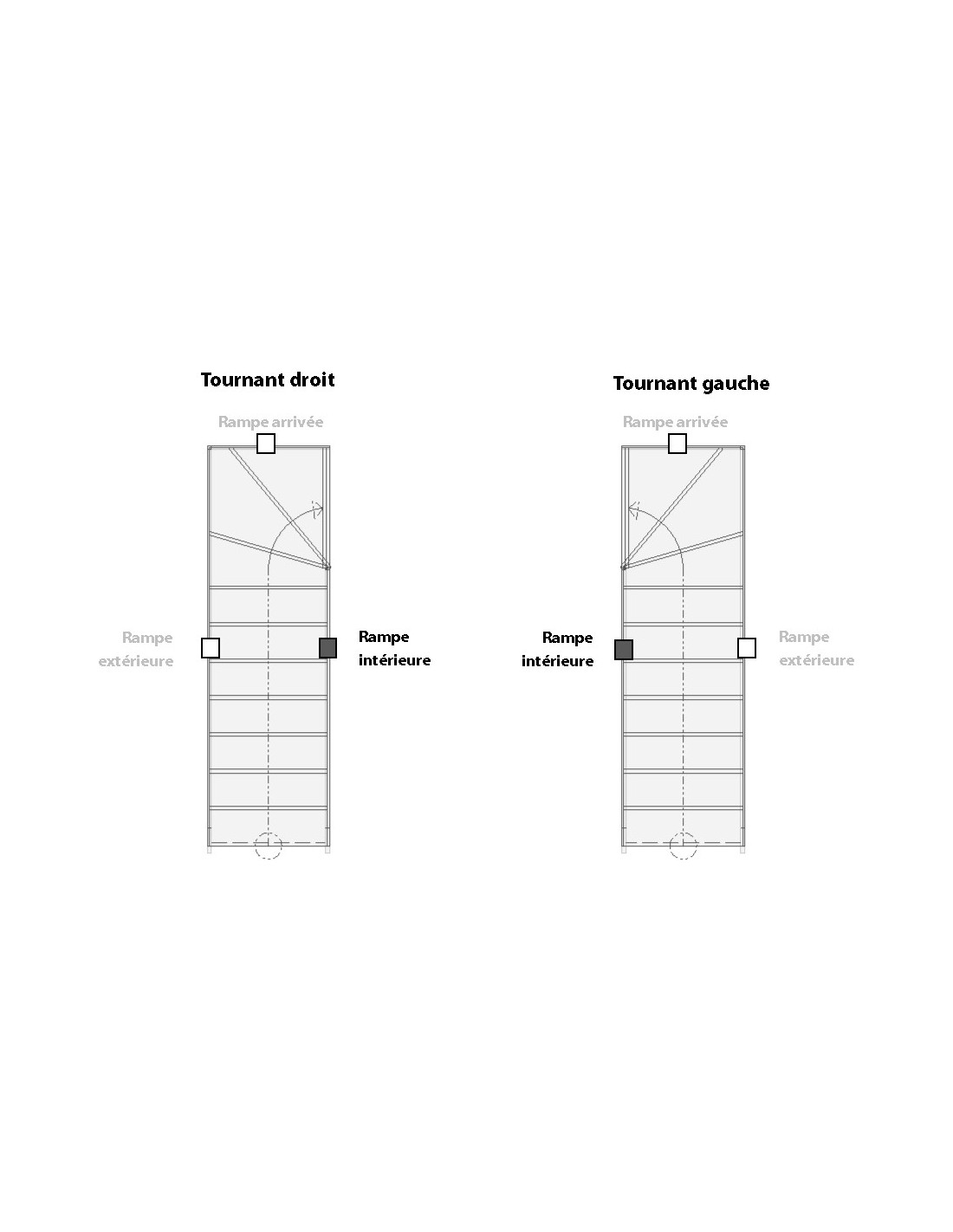

On a quarter-turn staircase, a distinction is made between the inner side (the side towards which the staircase turns, inside of the curve) and the outer side (the side opposite the curve, the free side of the flight). This handrail is positioned on the outer side. To determine this, go up your staircase and observe which side the quarter turn is on.

Why is this handrail non-reversible?

The geometry of the quarter turn imposes a specific shape on the handrail. An outer-side handrail cannot be reversed to become an inner-side one – the angles and lengths of each section differ. Always check your configuration before ordering: position of the quarter turn and direction of ascent.

Can this handrail be installed after the BAVAT staircase has been fitted?

This handrail must be installed at the same time as the staircase – some fixings are only accessible during assembly. Plan the installation at the same time.

What finish should be applied to this wooden handrail?

The handrail subject to daily contact requires an abrasion-resistant finish: satin varnish 2 coats is recommended. For the spindles and posts, an oil-wax (natural look) or paint depending on the décor. Apply the finish before final fixing to treat hidden areas.

Does the spacing between spindles comply with the safety standard?

The spacing must be less than 11 cm to prevent the passage of an 11 cm sphere (standard NF P01-012). Check the actual spacing after installation according to your staircase configuration, particularly at the bottom of the flight where the handrail is more open.
