ROCLES STANDARD WITH WOODEN SPINDLES EXTERIOR ARRIVAL BEECH

Railing ROCLES arrival exterior side beech spindles

Railing ROCLES arrival exterior side beech spindles for ROCLES DQT WoodUp staircase. wooden spindles 65 x 20 mm, posts 70 x 70 mm, handrail 50 x 50 mm, bottom rail 50 x 35 mm, screws included. Beech LC delivered raw and untreated, to be varnished (2 coats recommended for the handrail subject to contact) or painted before use. Non-reversible: you must check the quarter turn configuration before ordering. Interior use only.

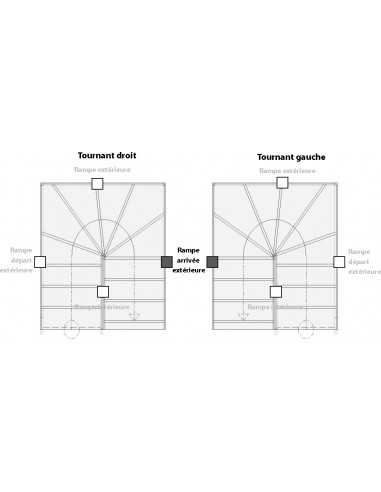

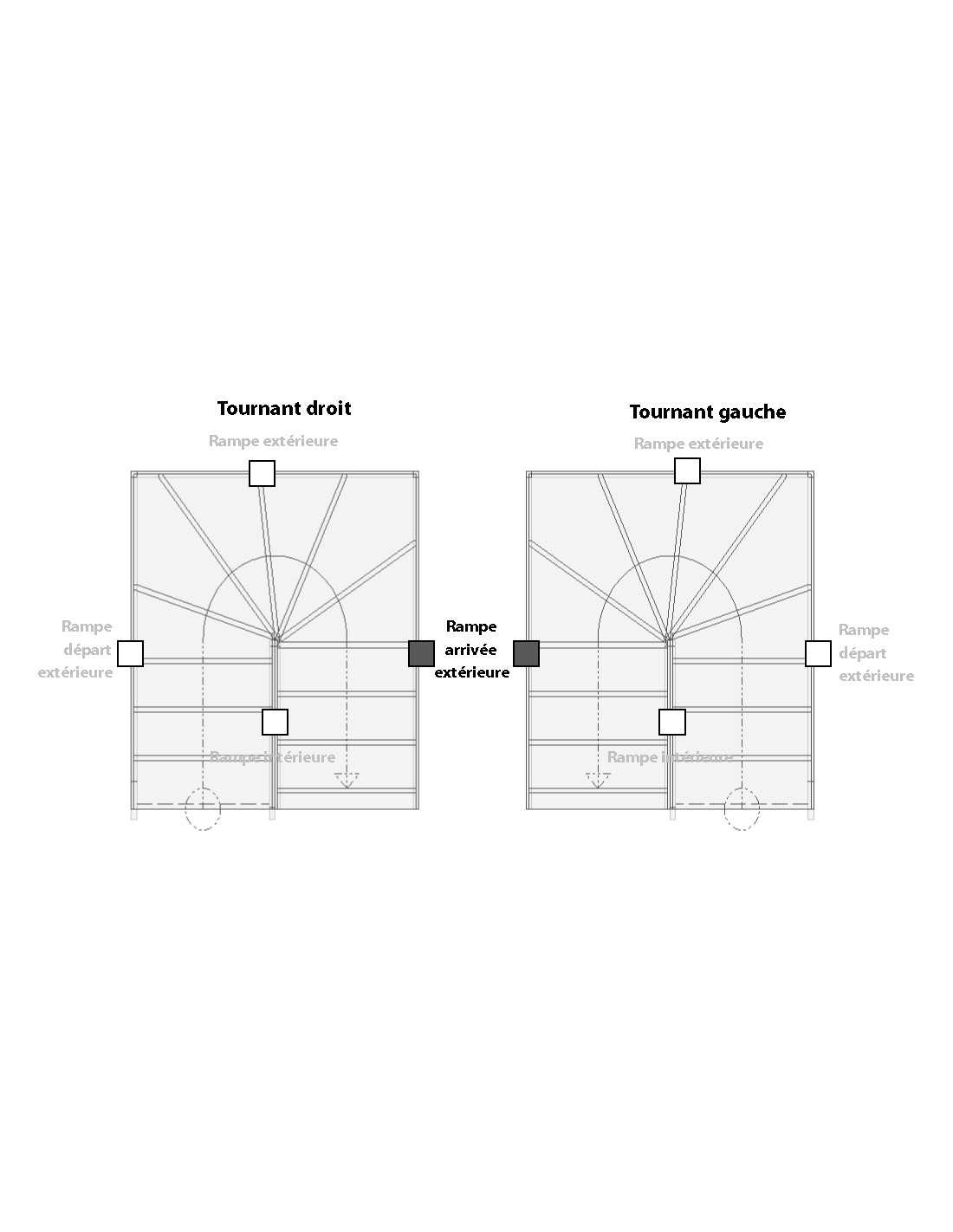

Quarter turn

Double quarter-turn left
Double quarter-turn right

Reference RAFBEXTARRDQTHED

€274.12 incl. tax

Including €0.42 for ecotax

Made to order 5–6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

Railing ROCLES arrival exterior side beech spindles

The ROCLES arrival exterior side beech spindles railing is a wooden spindle balustrade 65 x 20 mm for the ROCLES DQT staircase. It includes wooden spindles 65 x 20 mm, posts 70 x 70 mm, a handrail 50 x 50 mm and a bottom rail 50 x 35 mm. Screws included. Available in Beech LC. Non-reversible: you must check the position of the quarter turn and the direction of ascent before ordering.

Interior use only - LC species are not suitable for exterior use. Can be installed after fitting the staircase.

Main characteristics

Characteristic	Description
Compatible staircase	ROCLES DQT (ID 529)
Position	Exterior side
Wooden spindles	65 x 20 mm
Posts	70 x 70 mm
Handrail	50 x 50 mm
Bottom rail	50 x 35 mm
Available species	Beech LC
Screws	Included
Reversibility	Non-reversible
Use	Interior only

Key points

✓ Wooden spindles 65x20 mm: warm traditional aesthetic
✓ Exterior side: outer side of the curve
✓ Available species: Beech LC
✓ Screws included: complete installation kit
✓ Non-reversible: choose according to the quarter turn configuration

Installation advice

Can be installed after fitting the staircase. Fix the posts, bottom rail, spindles then handrail in that order. Check the height of 90 cm minimum from the nosing and spacing less than 11 cm (standard NF P01-012). Apply varnish or paint before final fixing. Two people recommended.

Maintenance and protection

The wood is delivered unfinished and untreated. Apply a protective finish before use: satin varnish 2 coats (maximum resistance), oil-wax (natural look, renewal every 1–2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.

Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

Frequently asked questions

What is the exterior side of a staircase?

On a quarter-turn staircase, a distinction is made between the interior side (the side towards which the staircase turns, inside the curve) and the exterior side (the side opposite the curve, the free side of the flight). This railing is positioned on the exterior side. To determine it, go up your staircase and observe which side the quarter turn is on.

Why is this railing non-reversible?

The geometry of the quarter turn imposes a specific shape on the railing. A railing on the exterior side cannot be turned around to become the interior side - the angles and lengths of each section differ. You must check your configuration before ordering: position of the quarter turn and direction of ascent.

Can this railing be installed after fitting the ROCLES staircase?

This railing must be installed simultaneously with the staircase - some fixings are only accessible during assembly. Plan the installation at the same time.

What finish should be applied to this wooden railing?

The handrail, subject to daily contact, requires an abrasion-resistant finish: satin varnish 2 coats is recommended. For the spindles and posts, an oil-wax (natural look) or paint depending on the décor. Apply the finish before final fixing to treat concealed areas.

Does the spacing between spindles comply with the safety standard?

The spacing must be less than 11 cm to prevent the passage of an 11 cm sphere (standard NF P01-012). Check the actual spacing after installation depending on the configuration of your staircase, particularly at the bottom of the flight where the railing is more open.
