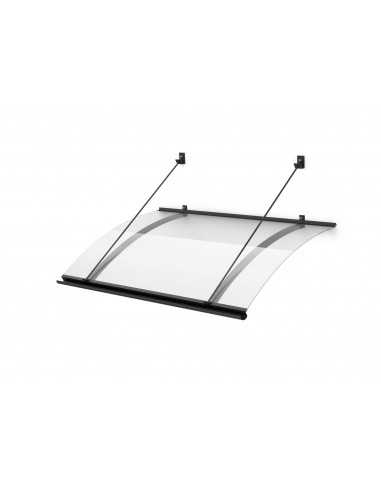

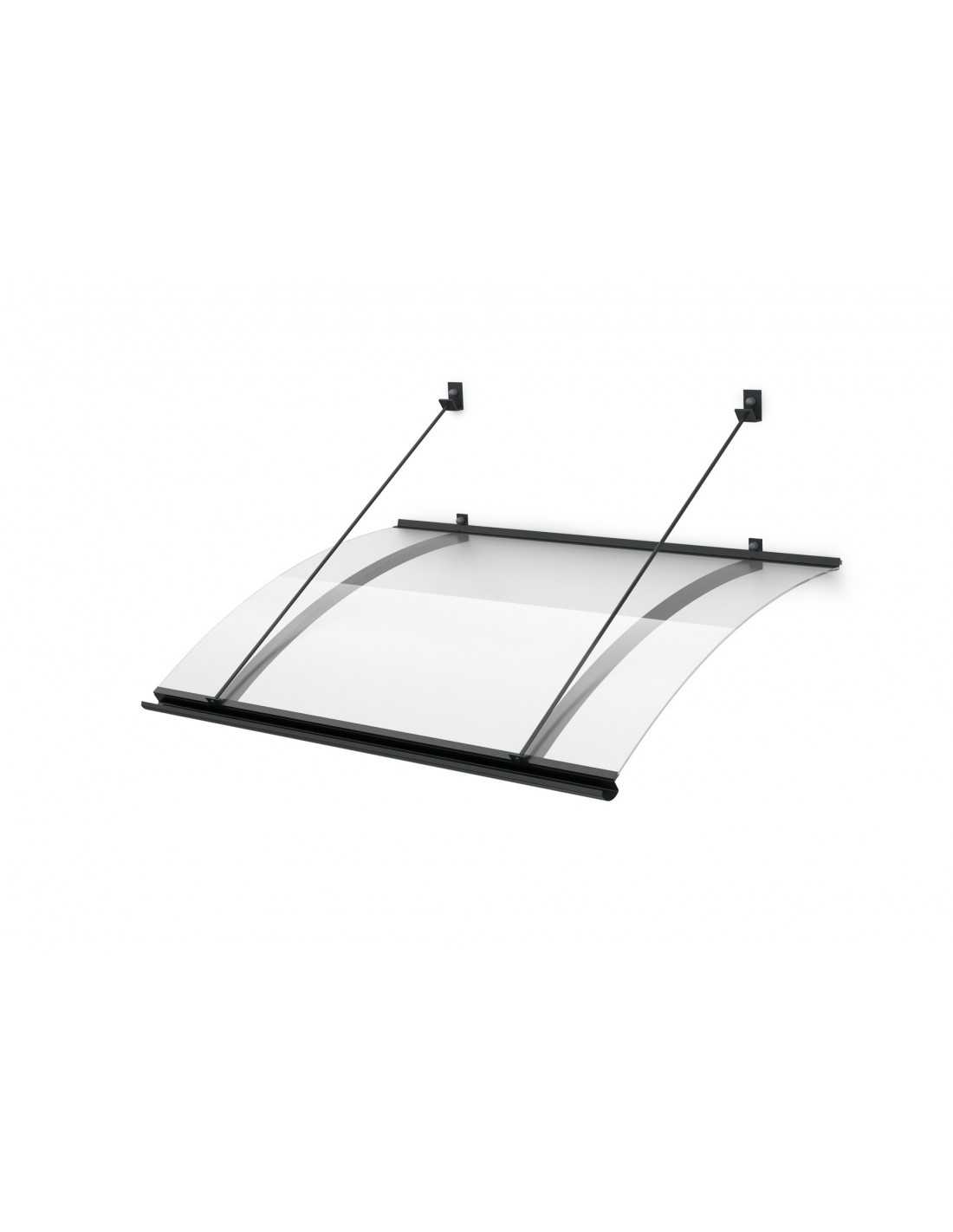

CASARDO Door Canopy in Anthracite Grey Aluminium and Acrylic, 160 cm
The CASARDO door canopy protects an entrance from rain with an aluminium frame and a transparent acrylic panel. It measures 160 x 82 x 68 cm and comes in anthracite grey RAL 7016. At 160 cm wide, it covers entrances up to 130 cm wide: a wide glazed door, a door with a side window or a patio door. The acrylic panel resists UV and stays transparent, so it does not darken the entrance. It comes as a kit with fixings for installation on a load-bearing wall.
CASARDO Door Canopy in Anthracite Grey Aluminium and Acrylic, 160 cm
The CASARDO door canopy protects an entrance from rain with an aluminium frame and a transparent acrylic panel. It measures 160 x 82 x 68 cm and comes in anthracite grey RAL 7016.
At 160 cm wide, it covers entrances up to 130 cm wide: a wide glazed door, a door with a side window or a patio door. The acrylic panel resists UV and stays transparent, so it does not darken the entrance.
It comes as a kit with fixings for installation on a load-bearing wall.
Main features
| Feature | Description |
|---|---|

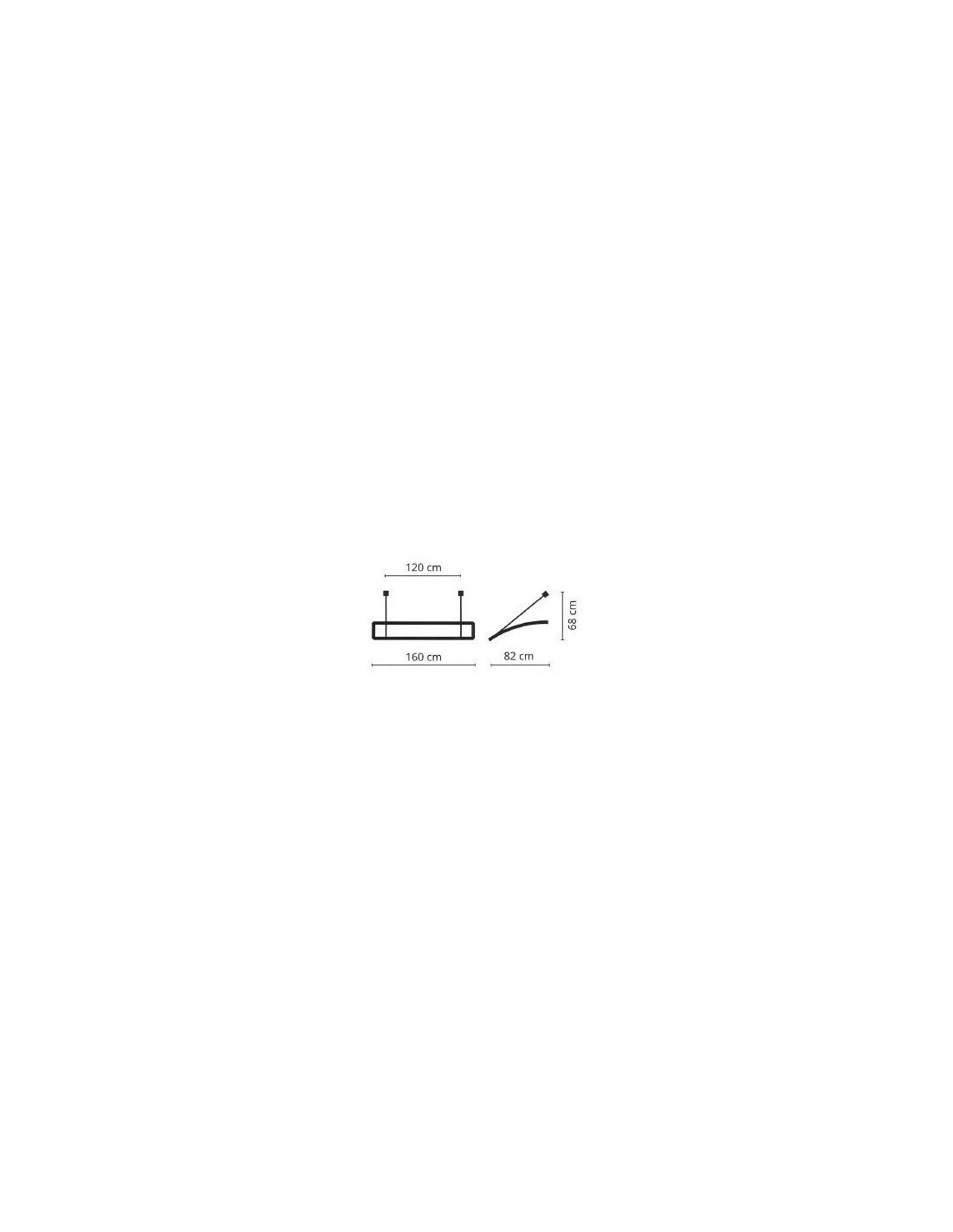

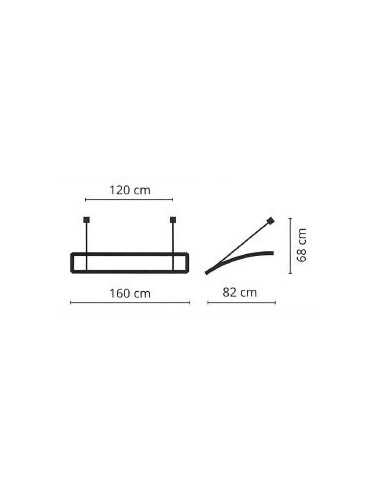

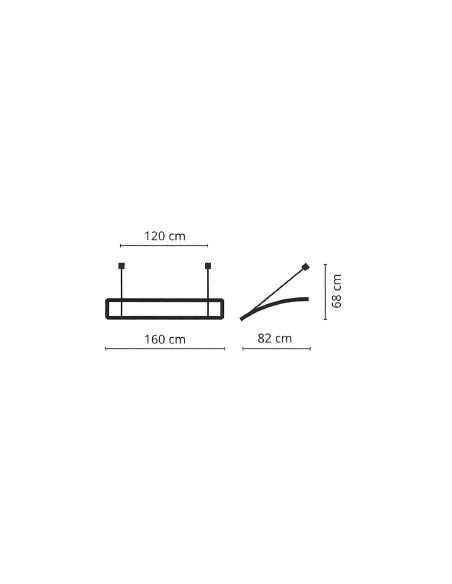

| Dimensions | 160 x 82 x 68 cm (width x depth x height) |
| Frame | Aluminium |
| Panel | Transparent, UV-resistant acrylic |
| Colour | Anthracite grey RAL 7016 |
| Recommended door width | Entrances up to 130 cm wide |
| Fixings | Included in the kit |
| Mounting surface | Load-bearing wall required |
Packaging
- Package weight: 8 kg
- Supplied as a kit, fixings included
Key points
- ✓ Wide canopy: 160 cm for entrances up to 130 cm wide
- ✓ Aluminium: lightweight and rust-free
- ✓ Transparent acrylic: UV-resistant, keeping the entrance bright
- ✓ Anthracite grey RAL 7016: matches dark doors and window frames
- ✓ Complete kit: fixings included
Choosing the right door canopy
To choose the width, start with the width of the door: allow around 30 cm extra so the canopy covers the frame. A 120 cm canopy suits a 90 cm door, while a 160 cm canopy suits an entrance up to 130 cm wide. Then check the clearance above the door: the CASARDO canopy is 68 cm high, including the brackets.
The WoodUp range in anthracite grey RAL 7016 includes eight models:
| Model | W x D x H | Frame | Panel | Distinctive feature |
|---|---|---|---|---|
| CHAMBLAS | 120 x 82 x 68 cm | Aluminium | Transparent acrylic | Straight, compact |
| COLOMBIER | 140 x 80 x 47.5 cm | Metal | Transparent polycarbonate | Arched |
| BAVELLA | 140 x 82 x 23 cm | Metal | Transparent polycarbonate | Retro, low-profile |
| ODEREN | 140 x 82 x 68 cm | Aluminium | Transparent polycarbonate | Straight |
| CAMARI | 140 x 79 x 33 cm | Metal | Transparent polycarbonate | Retro |
| AIZAC | 150.5 x 97 x 88 cm | Metal | Satin acrylic | Straight, satin panel |
| CASARDO | 160 x 82 x 68 cm | Aluminium | Transparent acrylic | Straight, wide |
| LANCISE | 197 x 84 x 35 cm | Aluminium | Transparent acrylic | Extra-wide |
Installation advice
Mounting surface: the canopy must be fixed to a sound load-bearing wall of concrete, brick or concrete blocks. For an externally insulated façade, use fixings suitable for the insulation; these are not supplied.
Marking out: mark the height above the door, centre the canopy over the door frame and mark level fixing points. At 68 cm high, check that there is enough space beneath a balcony or roof overhang.
Installation: secure the brackets, check they are level, then fit the panel. Allow for two people to install it.
Care and protection
The anthracite grey powder-coated frame needs no treatment. Clean the canopy once or twice a year with clean water and mild soap. Use a soft sponge or microfibre cloth on the acrylic panel: abrasive or solvent-based products could scratch or dull it.
Frequently asked questions
Is a 160 cm canopy suitable for a 130 cm door?
Yes. The CASARDO is designed for entrances up to 130 cm wide: it extends around 15 cm beyond each side, enough to cover the frame. For a standard 90 cm door, the 120 cm CHAMBLAS model is better proportioned.
What width of canopy should I choose for a front door?
Choose a canopy around 30 cm wider than the door to cover the frame and protect the threshold from rain. The CASARDO canopy is 160 cm wide. For a double door or large entrance, the 197 cm LANCISE is the widest model in the range.
What type of wall can a door canopy be fixed to?
Fix it to a sound load-bearing wall of concrete, brick or concrete blocks. The kit includes fixings for these common surfaces. For an externally insulated façade, cladding or an old, crumbling wall, use suitable fixings and consider seeking professional advice.
Polycarbonate or acrylic: what is the difference?
Both panel materials let light through and resist UV. Polycarbonate is more flexible and withstands impacts, such as hail or a falling branch, better. Acrylic is more rigid and retains glass-like transparency. The satin acrylic on the AIZAC model diffuses light and provides some privacy.
How do I care for an anthracite grey metal canopy?
Once or twice a year, rinse the canopy with clean water and wash it with mild soap and a non-abrasive sponge. Avoid using a pressure washer too close to the panel or solvent-based products.
- Parcel weight (kg)
- 8,000000
- Canopy length
- 160
- Canopy depth
- 82
- Canopy height
- 68
