Fir window canopy + finishing oil

CAMPVIEL Lightweight Fir Timber Canopy Kit

CAMPVIEL Lightweight Fir Timber Canopy Kit

€49.00

In stock Dispatched within 10 days

Length (cm)

Finishing Oil for Exterior Wood

€51.49

0 In stock Restocking in progress

Shade

Packaging

€100.49 incl. tax

Including €0.15 for ecotax

Restocking in progress

Quantité

Pack contents

CAMPVIEL Lightweight Fir Timber Canopy Kit
Finishing Oil for Exterior Wood

Lightweight wooden fir porch canopy for entrance door or window ledge, available in 150 or 180 cm lengths, depth 37 cm. Brackets assembled and glued in the factory (3 brackets for 180 cm, 2 for 150 cm). Bracket dimensions: post 190x40x65 mm, arm 165x40x40 mm, support 190x40x40 mm. Rafter section 35x45 mm (length 370 mm), purlin section 35x45 mm. Raw wood to be treated before fitting. Roof covering and wall plugs not included. Made in France.

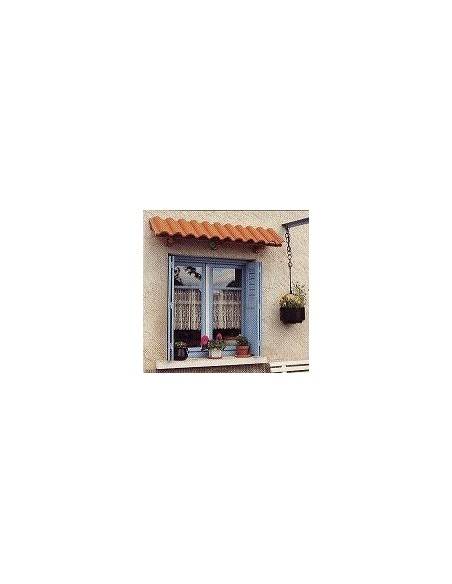

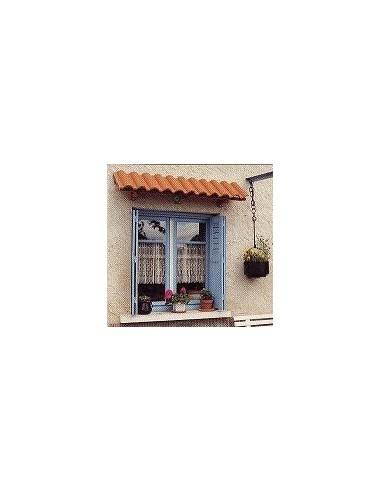

Lightweight wooden fir porch canopy for door and window – CAMPVIEL kit

The CAMPVIEL porch canopy is a raw fir canopy kit designed for lightweight applications: protection of a standard-sized entrance door or a window ledge. Its depth of 37 cm – shallower than large-depth models – makes it suited to façades where the overhang is limited or to entrances that are already partially sheltered. Two lengths are available: 150 and 180 cm.

The brackets are assembled and glued in the factory – they require no on-site assembly, unlike kits with separate brackets. The kit is delivered with the rafters, purlins, and assembly screws. Roof covering and wall fixing plugs are to be sourced separately.

Main features

Characteristic	Description
Material	Raw solid fir, untreated

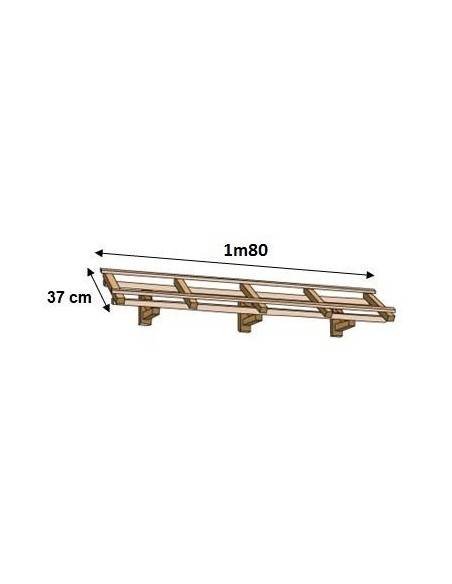

Available lengths	150 cm / 180 cm
Depth	37 cm
Brackets	Assembled and glued – 3 brackets (180 cm) / 2 brackets (150 cm)

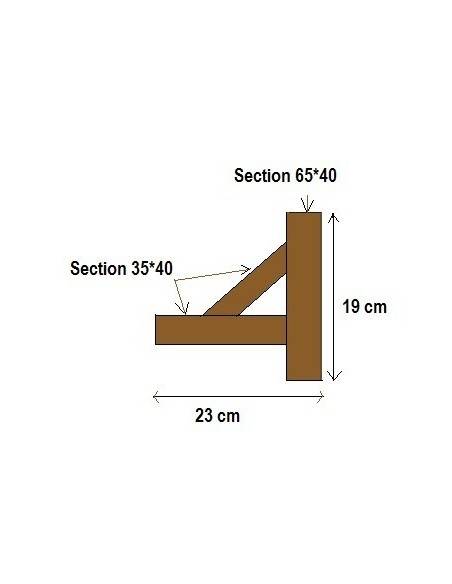

Bracket dimensions	Post 190x40x65 mm – Arm 165x40x40 mm – Support 190x40x40 mm
Rafter section	35x45 mm – 5 rafters (180 cm) / 4 rafters (150 cm), length 370 mm
Purlin section	35x45 mm – length 1800 mm or 1500 mm depending on version
Not included	Roof covering, wall fixing plugs
Delivery	Kit, assembled and glued brackets
Origin	Made in France

✓ Assembled and glued brackets: no assembly of supports – installation directly on the façade
✓ 37 cm depth: lightweight solution for façades with limited overhang or partially sheltered entrances
✓ 2 lengths: 150 or 180 cm to suit the width of the door or window
✓ Customisable raw wood: paint, stain, or saturator
✓ Made in France

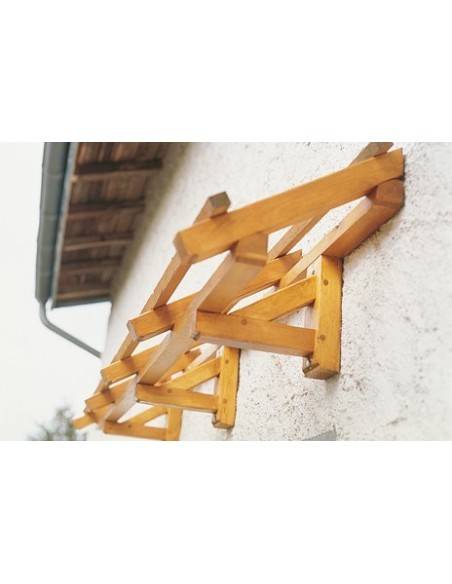

Installation advice

As the brackets are already assembled and glued, installation is reduced to wall fixing and fitting the rafters onto the purlins. Fix the brackets to the load-bearing wall with wall plugs suited to the substrate (not supplied). The 37 cm depth implies a short arm – bending stresses remain low, and standard 8 mm wall plugs are sufficient for most concrete or blockwork substrates.

Apply the protection (stain or saturator) to all faces before installation. Estimated assembly time: 1 to 2 hours with two people.

Maintenance and protection

Treatment is mandatory before installation: microporous wood stain or saturator in a minimum of two coats. Renew every 2 to 3 years. The shallow depth of 37 cm exposes the rafters more to lateral rain splashes – a good-quality stain is preferable to a simple saturator for this model.

Frequently asked questions

Is the 37 cm depth sufficient to protect an entrance door?

A depth of 37 cm provides partial protection against vertical rain and light splashes. This depth is suited to entrances that are already partially sheltered (porch, recess) or to south-facing façades where rain falls with little angle. For full protection in driving rain or on an exposed façade, models with a depth of 80 to 120 cm are more appropriate.

Can this model be used to protect a window?

Yes. The CAMPVIEL is suited to window sills and glazed doors. It protects the frame and glazing from direct rain and reduces streaking on the façade. The 150 cm length suits a standard double window, the 180 cm suits a wide window or a small glazed bay.

What roof covering can be used on the CAMPVIEL?

The lightweight structure (35x45 mm rafters) is suited to lightweight roof coverings: fibre cement slates, zinc, steel sheeting, or polycarbonate. For mechanical tiles or heavier natural slates, models with 45x30 mm or 70x40 mm rafters are more appropriate.

Are the brackets already assembled on delivery?

Yes. Unlike kits with separate brackets, the CAMPVIEL brackets are assembled and glued in the factory. You receive them ready to fix to the façade, with no intermediate assembly required. It only remains to fit the purlins and rafters onto the structure.

Can the CAMPVIEL be painted in the colour of the façade?

Yes. The wood is delivered raw. Paint, tinted stain, or saturator are all applicable. Apply before installation on all faces, including the assembly areas of the glued brackets.

Should I order the 150 or 180 cm version?

Choose a length greater than the width of the opening to be covered, with a 15 to 20 cm overhang on each side. For a 90 cm door, the 150 cm gives 30 cm of overhang on each side. For a 140 cm door or a double window, the 180 cm is more suitable.

View the full canopy and porch canopy range

TRUGES model – large depth 100 to 120 cm

Exterior wood stains and treatments

Data sheet

Species/material: Fir
Canopy depth: 37
Gutter: No
Delivery label: Framework

Our finishing oil for exterior wood offers lasting protection while preserving the natural appearance of the wood. Formulated from renewable raw materials, it is ecological and easy to maintain.

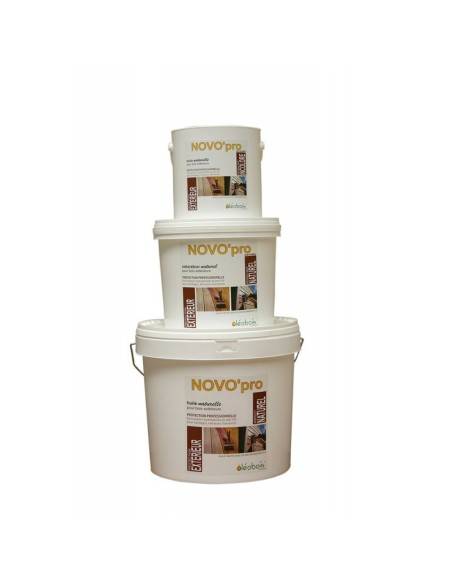

Finishing Oil for Exterior Wood

Discover our natural finishing oil specially formulated to protect your exterior wood while preserving its natural appearance.

Product overview

This finishing oil for exterior wood provides long-lasting protection and improves the dimensional stability of the wood. Formulated from renewable raw materials, it contains no solvents or VOCs, ensuring an ecological solution for the maintenance of your exterior wood.

Main characteristics

Lasting protection: protects exterior wood against weather and UV rays
Natural appearance: preserves the natural look of the wood
Hydrophobic: anti-greying
Deep nourishment: for healthier and more durable wood
Easy to maintain: does not flake and offers economical upkeep
Ecological: solvent-free and VOC-free, made from renewable raw materials

Key points

Long-lasting protection: against weather and UV rays
Natural appearance preserved: enhances the wood without concealing it
Easy maintenance: does not flake and remains economical to upkeep

Customer reviews

Our customers appreciate the quality and effectiveness of this finishing oil, as well as its ease of application and ecological maintenance.
