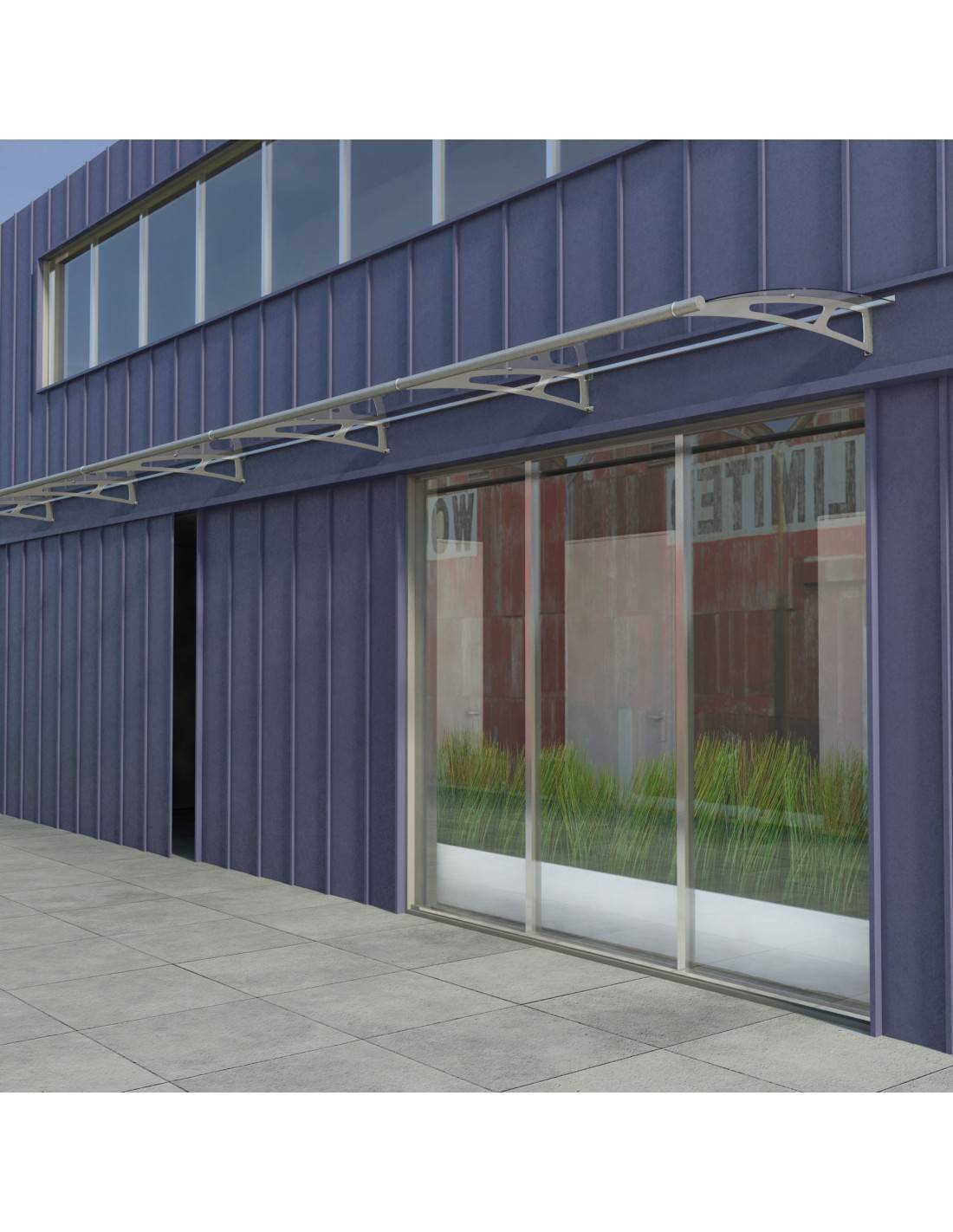

ANCE Stainless Steel Acrylic Panel Canopy
ANCE canopy in painted steel or stainless steel with transparent 4 mm acrylic panel. Dimensions 190 x 95 x 17 cm, weight 23 kg, panel colour of your choice: transparent, satin white, satin blue or satin green to order, integrated gutter, mounting screws and wall plugs included. Large width of 190 cm suited to wide entrances or garage gates - robust and durable steel structure. Reinforced load-bearing wall support essential to support the 23 kg structure.
ANCE canopy in painted steel or stainless steel with transparent acrylic panel

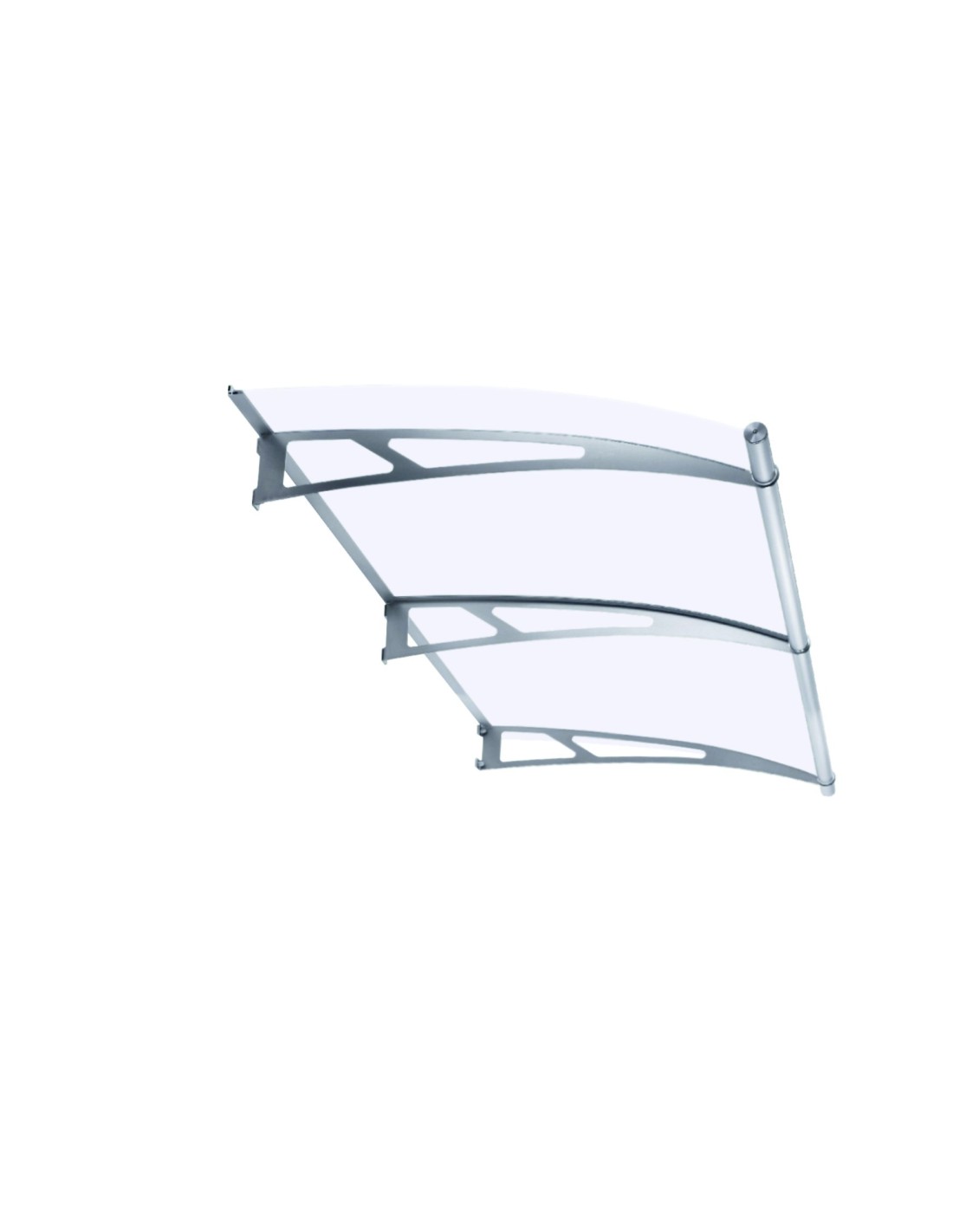

The ANCE canopy is manufactured with painted steel or stainless steel supports, an anodised aluminium profile and a transparent 4 mm acrylic panel. Its dimensions of 190 x 95 x 17 cm and its weight of 23 kg make it a robust model suited to wide entrances and gates. Integrated gutter, mounting screws and wall plugs included.
The acrylic panel is available in several colours: transparent, satin white, satin blue or satin green to order. Its large width of 190 cm covers entrances up to 160 cm wide.
Main characteristics
| Characteristic | Description |
|---|---|

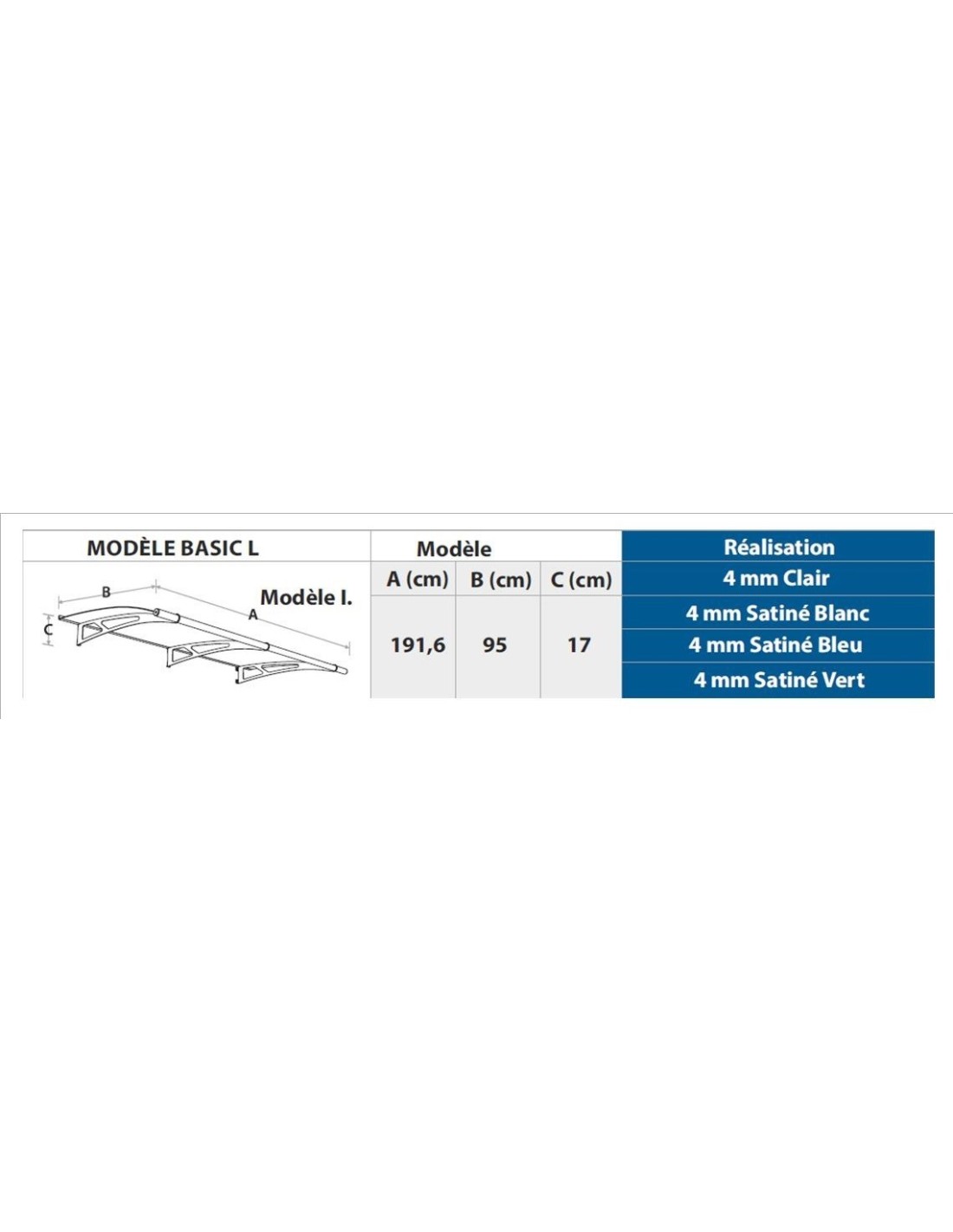

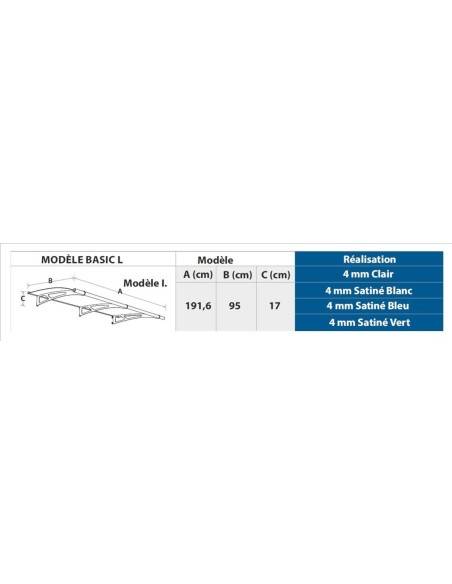

| Dimensions | 190 x 95 x 17 cm |
| Weight | 23 kg |
| Supports | Painted steel or stainless steel |
| Profile | Anodised aluminium |
| Panel | Transparent acrylic 4 mm |
| Panel colour | Transparent, satin white, satin blue, satin green (to order) |
| Gutter | Integrated |
| Fixings | Mounting screws and wall plugs included |
Key points
- ✓ Large width 190 cm: ideal for wide entrances and gates
- ✓ 4 panel colours: transparent, satin white, blue or green to order

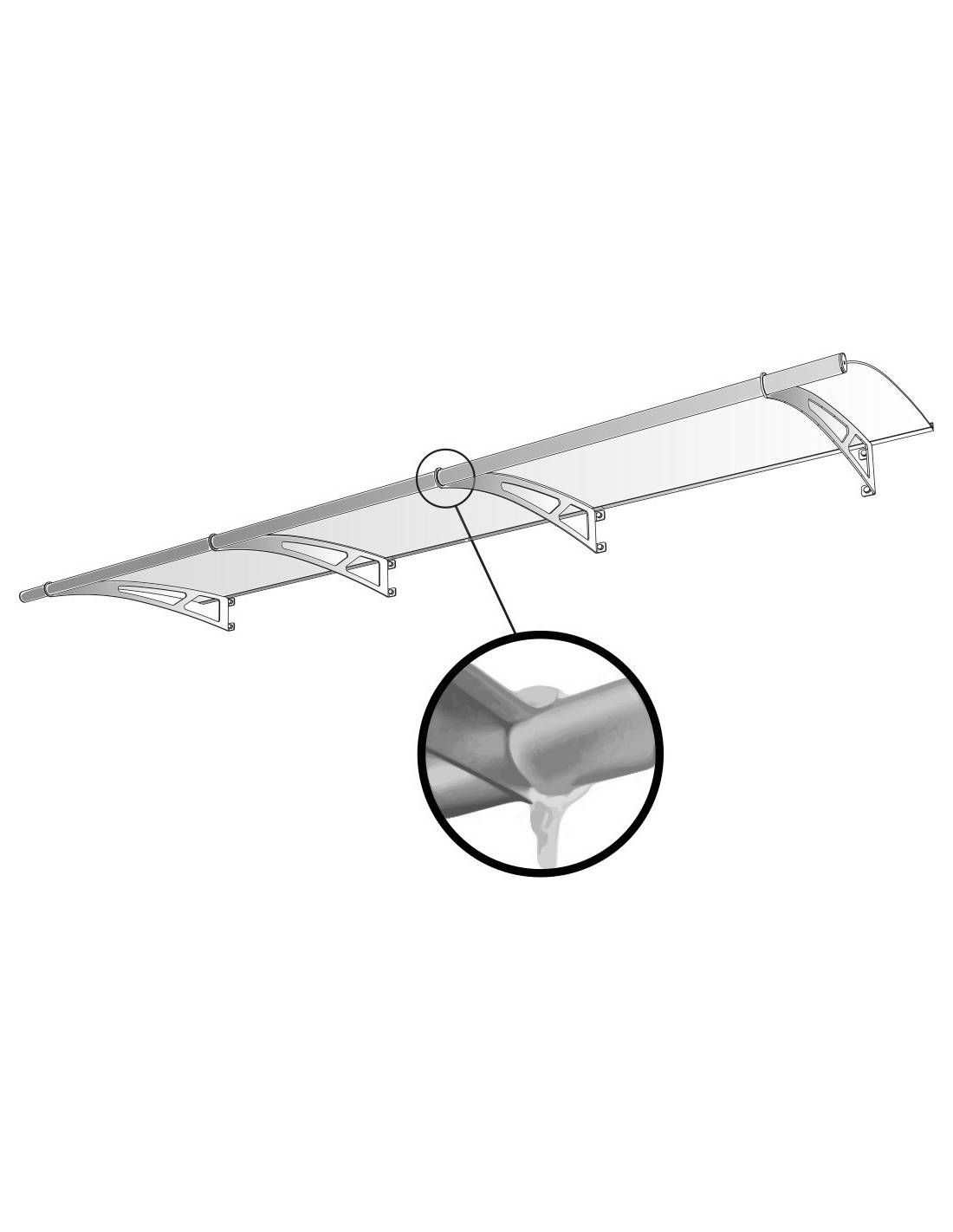

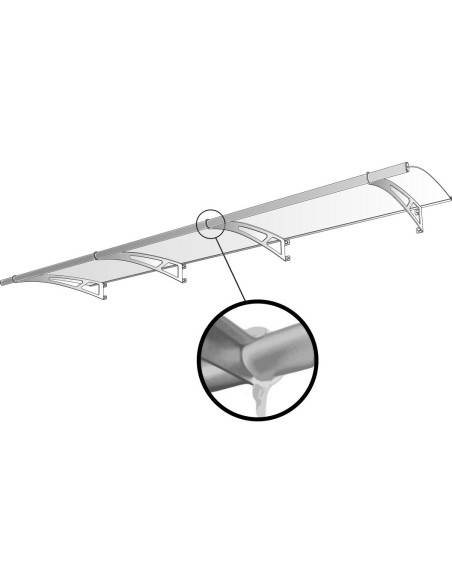

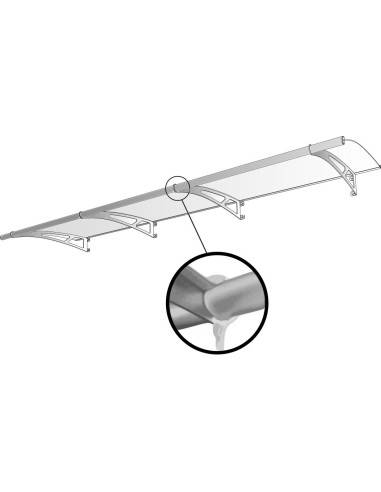

- ✓ Integrated gutter: controlled rainwater drainage
- ✓ Painted steel or stainless steel: robustness and corrosion resistance
- ✓ Anodised aluminium profile: lightweight and durable
Installation advice
The weight of 23 kg requires particularly robust fixings. Check that the fixing wall is load-bearing and in good condition before drilling. On concrete, use M10 minimum hammer-in wall plugs. On hollow breeze blocks, chemical anchor plugs are recommended to support this load.
Two people are essential for installing a canopy of this size and weight. Call on a professional if you have any doubt about the wall resistance. Ensure a perfect level when fixing the supports.
Maintenance and protection
The galvanised or stainless steel structure is corrosion-resistant without any special treatment. An annual clean with clear water is sufficient for routine maintenance. In coastal or industrial environments (salty or polluted air), increase the frequency to twice a year and check for any rust spots on the fixings.
The acrylic panel should be cleaned with a soft damp cloth only - avoid abrasive products that scratch the surface. Inspect the fixing joints and gutter annually for optimal drainage.
Frequently asked questions
What is the difference between the ANCE canopy and the ANDUZE canopy?
The ANCE (190 x 95 x 17 cm, 23 kg) is wide and shallow, ideal for covering a wide entrance with limited space under a lintel. The ANDUZE (205 x 142 x 25 cm) is larger and above all much deeper (142 cm vs 95 cm), offering maximum protection against driving rain. If you have an entrance that is highly exposed to bad weather, the ANDUZE is more suitable. For a wide entrance with limited height space, the ANCE is the right choice.
Are the satin panel colours (white, blue, green) available in stock?
No, the satin colours are available to order with a potentially longer delivery time than the transparent version. Contact WoodUp before placing your order to find out the exact lead time depending on availability.
The painted steel or stainless steel support - which to choose?
Stainless steel is preferable in coastal or very damp environments as it does not rust without treatment. Painted steel is sufficient for most uses in town or countryside, but may require maintenance if the paint chips after several years. If in doubt, opt for stainless steel for maximum durability without maintenance.
Is a professional required to install the 23 kg ANCE canopy?
For a canopy weighing 23 kg, calling on a professional is strongly recommended if you are not experienced in heavy wall fixing. Fixing errors can be dangerous - a poorly fixed canopy can come away in wind or under snow load. A joiner or exterior joinery installer can fit this type of product within a few hours.
Is the large width of 190 cm suitable for covering an entrance gate?
With 190 cm of width and 95 cm of depth, the ANCE can cover a pedestrian gate or a wide main entrance. For a double gate of 300 cm or more, two canopies side by side would be required. Check the exact dimensions of your gate and the available space between the gate and the façade before ordering.
- Canopy length
- 190
- Canopy depth
- 95
- Marquise material
- Stainless steel/Steel/Acrylic
- Canopy height
- 17
