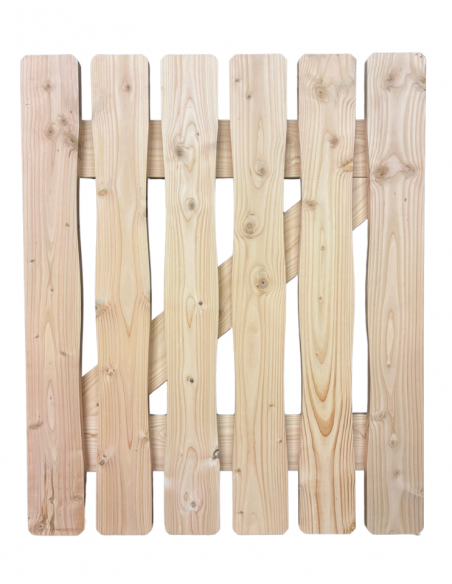

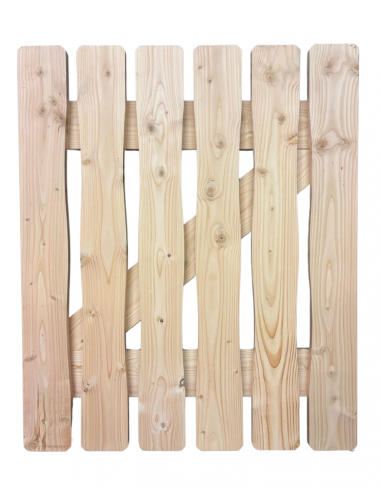

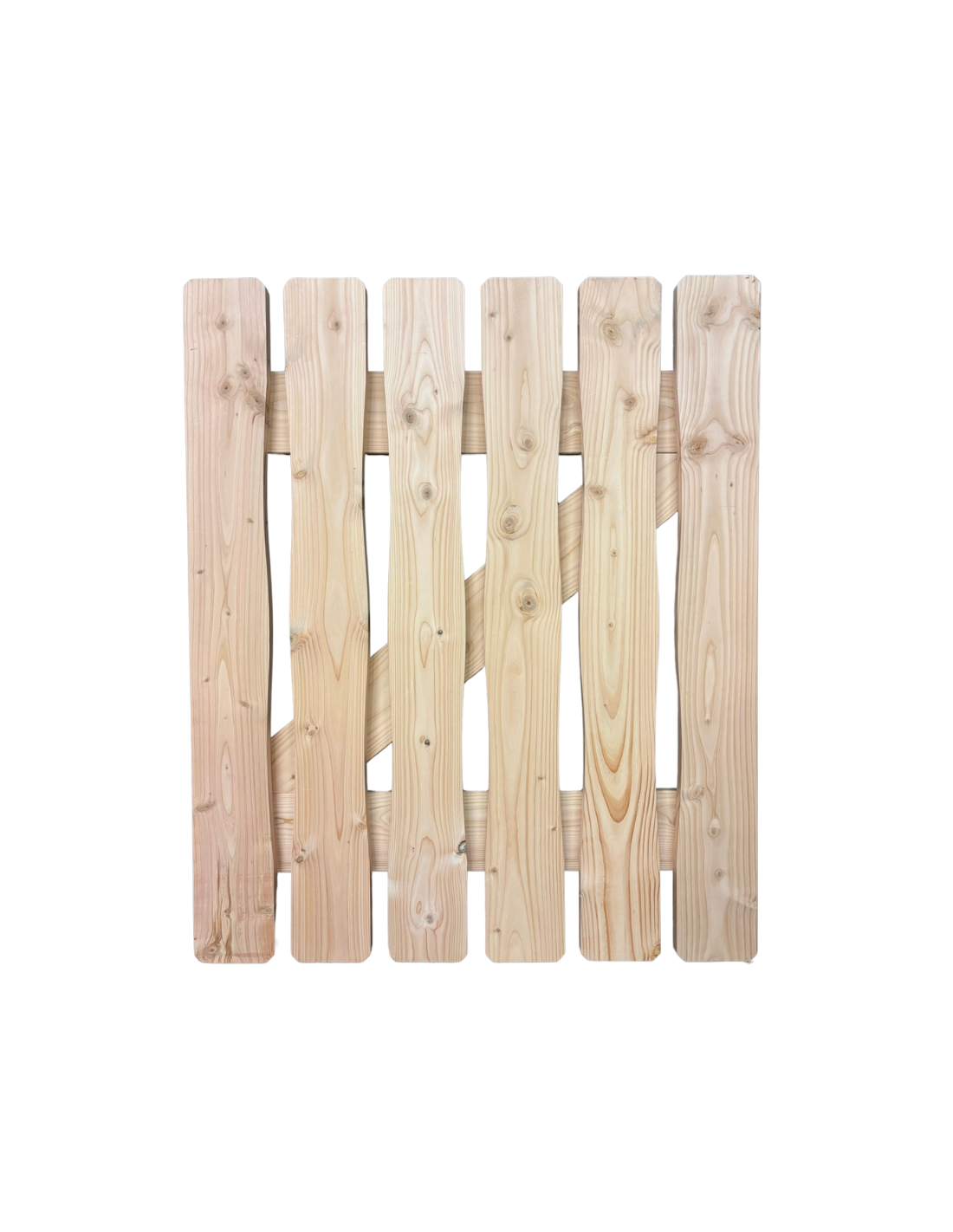

Douglas Fir Wicket Gate 120x100 cm Moulded Boards - Kit
Wicket gate kit in natural untreated Douglas fir, 120x100 cm, 150x24 mm section. 6 moulded boards, 3 rails, 108 stainless steel screws. 1 parcel of 25 kg. Moulded boards providing a structured relief. Fixing hardware (hinges, latch) not included - to be provided according to the support and use. Posts not supplied. Exterior oil treatment recommended before installation. Outdoor use. The moulded boards provide a crafted relief that distinguishes this wicket gate from the straight-board model.
Douglas Fir Pedestrian Gate with Moulded Boards, 120x100 cm – 150x24 mm Cross-Section, 25 kg Kit
This pedestrian gate kit is made from natural, untreated Douglas fir and measures 120x100 cm (H x W), with a 150x24 mm cross-section. It includes 6 moulded boards, 3 crosspieces and 108 stainless steel screws. Supplied in 1 package measuring 1200x150x220 mm. Weight of the assembled gate leaf: 25 kg. Installation fittings (hinges and latch) must be purchased separately. The moulded boards add a raised profile that distinguishes this model from the straight-board pedestrian gate. The substantial 150x24 mm cross-section provides greater strength than standard 91x21 mm sections.
Key features
| Feature | Description |
|---|---|
| Wood species | Natural, untreated Douglas fir |
| Dimensions | 120x100 cm (H x W) |
| Timber cross-section | 150x24 mm |
| Contents | 6 moulded boards, 3 crosspieces, 108 stainless steel screws |
| Packaging | 1 package: 1200x150x220 mm – 25 kg |
| Fixing hardware | Not included – hinges and latch required |
| Treatment | Outdoor oil recommended – treatment not mandatory |
| Use | Outdoor – garden, fence, entrance |
Key points
- ✓ 150x24 mm cross-section: greater thickness for improved rigidity

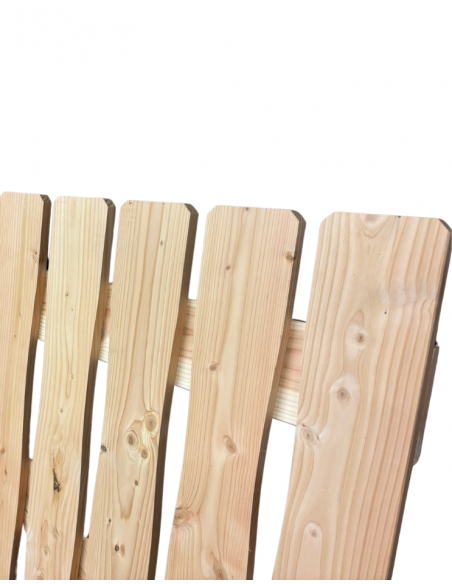

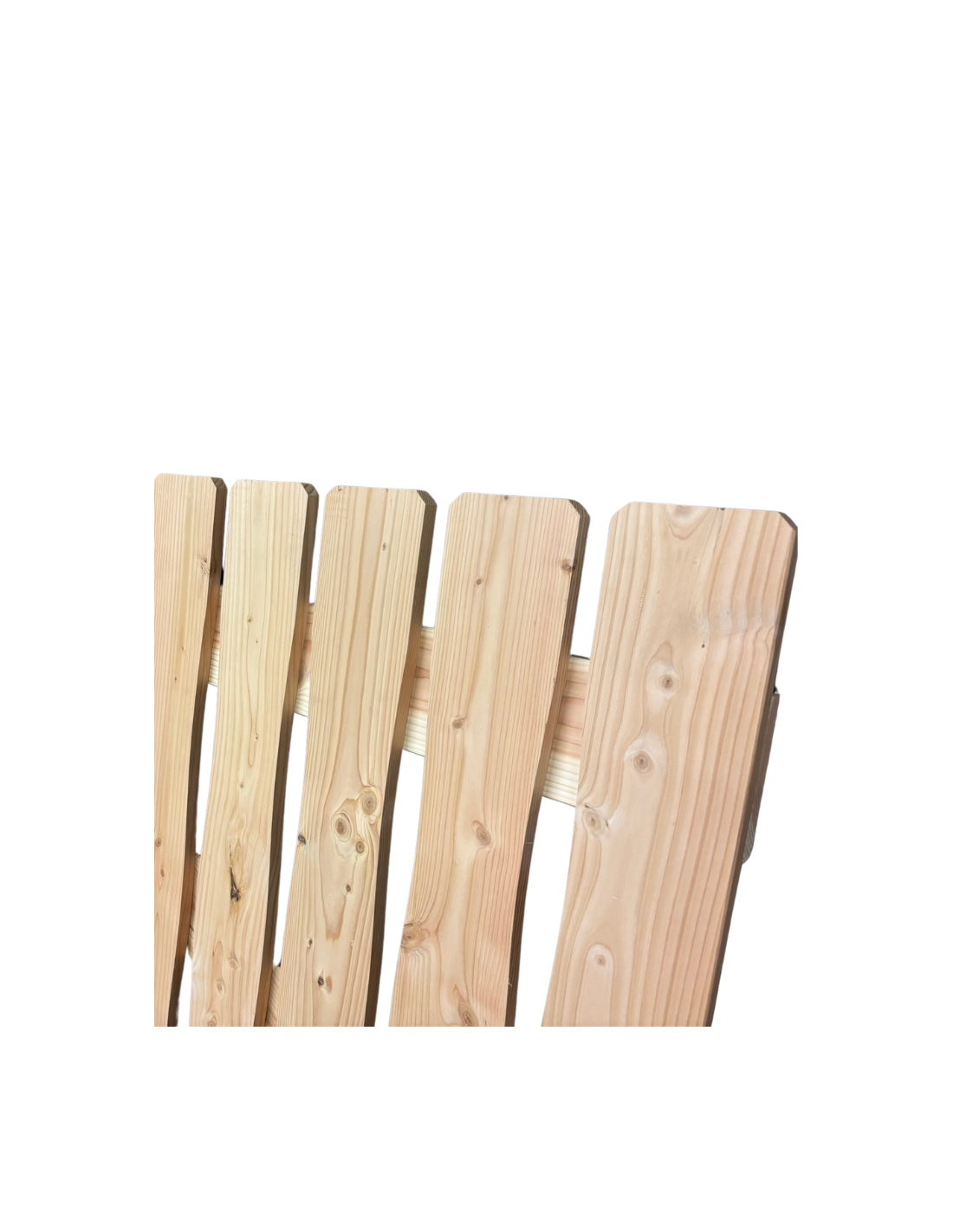

- ✓ Moulded boards: a profiled design that sets this model apart from the straight-board pedestrian gate
- ✓ 108 stainless steel screws: durable assembly without the risk of rust
- ✓ Natural Douglas fir: class 3 durability, with no mandatory chemical treatment
- ✓ Complete kit: boards, crosspieces and screws supplied – ready to assemble
Installation advice
Assemble the pedestrian gate on a flat surface. Fix the 3 crosspieces first, then attach the 6 moulded boards with the supplied stainless steel screws, pre-drilling the holes. The diagonal brace is not included in this kit – add a diagonal piece of timber if the gate leaf will be used intensively to help prevent warping. Install fittings (heavy-duty adjustable hinges) capable of supporting the weight of the finished gate leaf (approximately 25 to 30 kg). Apply Douglas fir oil before installation to preserve the colour.
Care and protection
Douglas fir turns grey in 6 to 12 months without losing strength. Apply Douglas fir outdoor oil once a year to preserve its colour. Check that the crosspiece screws are tight and the pedestrian gate is aligned each spring. The stainless steel screws require no special maintenance.
WoodUp advice
Before you buy: this pedestrian gate comes with its screws (108 stainless steel screws), but without hinges or a latch. Choose these separately to suit the opening direction and post type. The moulded boards give a more detailed finish than straight boards (ID 1233), with profiles that need aligning during assembly. Untreated Douglas fir can be treated with outdoor oil as soon as it is installed; without treatment, it naturally turns grey over a few months without losing its mechanical properties.
Frequently asked questions
What is the difference between the moulded-board and straight-board pedestrian gates?
The moulded-board model has a raised profile on the visible side, giving it a more textured appearance. The straight-board model has a plain, flat surface with a contemporary look. The dimensions, cross-section and contents are identical.
What fittings are needed for this 25 kg pedestrian gate?
Allow for adjustable hinges rated to support at least 30 kg (the assembled gate leaf weighs 25 kg), with 2 hinges per leaf, plus a latch or bolt depending on use and a pull handle. Choose stainless steel or galvanised steel fittings.
Can this pedestrian gate be automated?
Yes. A suitable electric actuator is an option for a 100 cm single-leaf pedestrian gate. At 25 kg, its weight is within the standard range for gate automation. Consult an installer to check compatibility.
Are the moulded boards visible on both sides?
The moulded profile is generally on one side only (the front). On the inside, the boards have a flat profile. Check this when ordering if the appearance of both sides matters for your installation.
Does this kit include a diagonal brace?
No. This kit contains only the 6 boards, 3 crosspieces and 108 stainless steel screws. For very frequent use or windy locations, add a diagonal piece of timber from corner to corner.
