H75 Double-Action Spring Hinge for Western-Style Door

Name: H75 Double-Action Spring Hinge for Western-Style Door
Brand: Levigne
SKU: CPW01
Price: 14.1 EUR
Availability: InStock

H75 mm double-action spring hinge in metal, for a western-style door or two-way swinging internal door: swings in both directions and returns automatically.

Adjustable spring tension; adjustment key supplied. Side-mounted, with no drilling into the floor or lintel.

Sold individually: allow 2 hinges per door leaf, or 4 for a double-leaf door. Compatible with WoodUp western-style doors, louvred or solid, 99 to 115 cm high. Indoor use.

Reference CPW01

€14.10 incl. tax

Including €0.01 for ecotax

In stock Ships within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

H75 Double-Action Spring Hinge for Western-Style Door

This double-action spring hinge lets a door swing in both directions and return to the closed position on its own. Made of metal and 75 mm high, it is suitable for saloon-style western doors and two-way swinging internal doors.

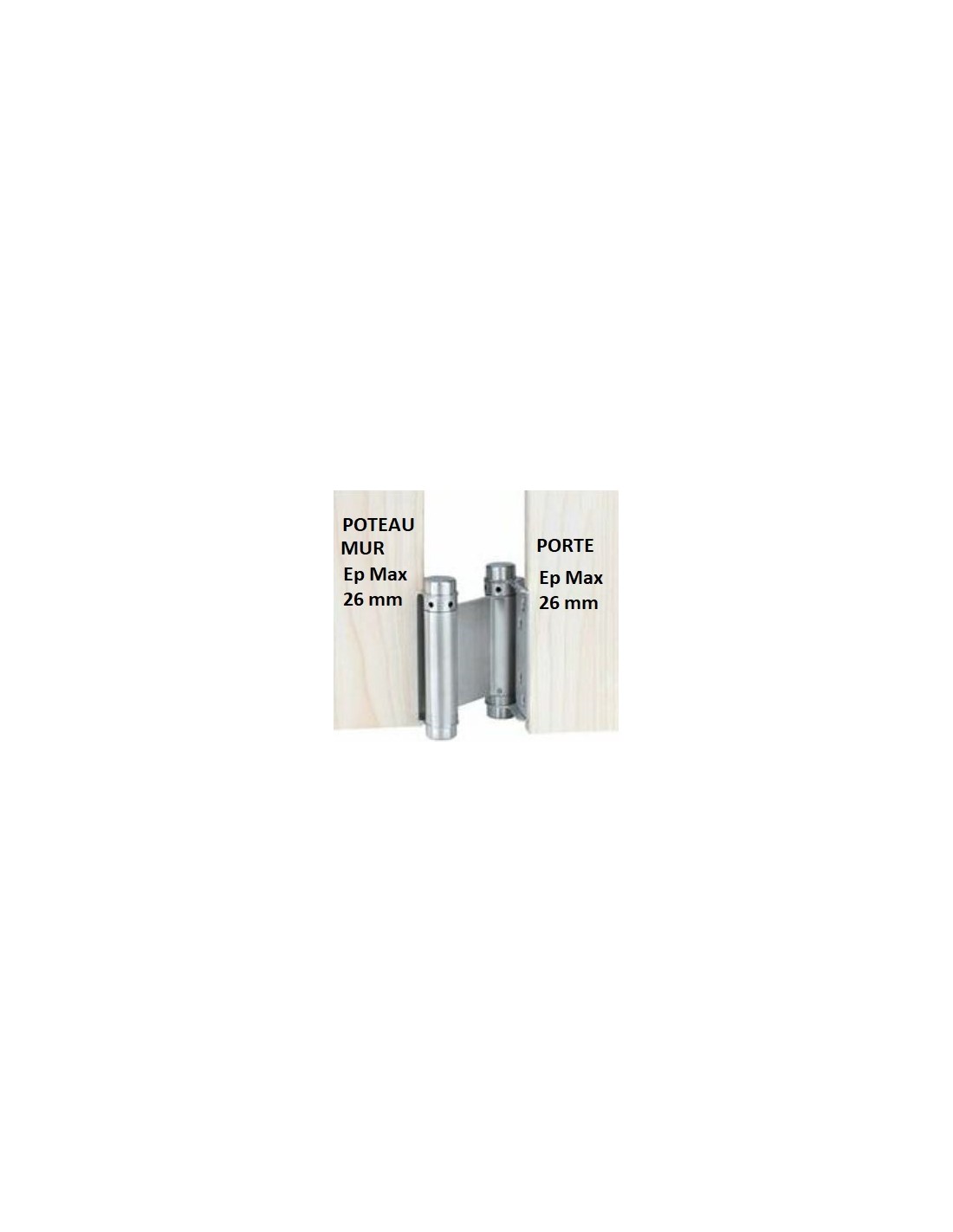

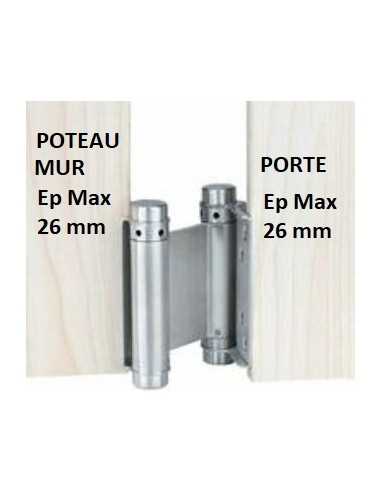

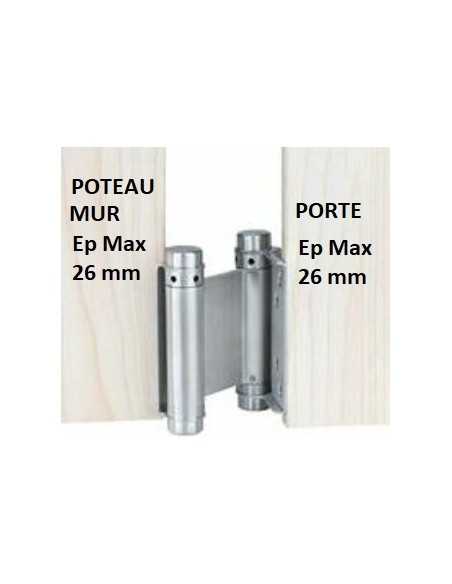

Use the supplied key to adjust the spring tension for a faster or slower return. The hinge screws to the side of the doorway, unlike two-way swinging pivots, which attach to the floor and lintel.

It is sold individually: allow 2 hinges per door leaf, or 4 for a double-leaf western-style door.

Key specifications

Specification	Description
Type	Double-action spring hinge
Material	Metal
Height	75 mm
Opening	Swings in both directions, automatically returns to the closed position
Adjustment	Adjustable spring tension, adjustment key supplied
Recommended quantity	2 per leaf, or 4 for a double-leaf door
Compatibility	WoodUp western-style doors and two-way swinging internal doors
Sold as	Sold individually
Use	Indoor

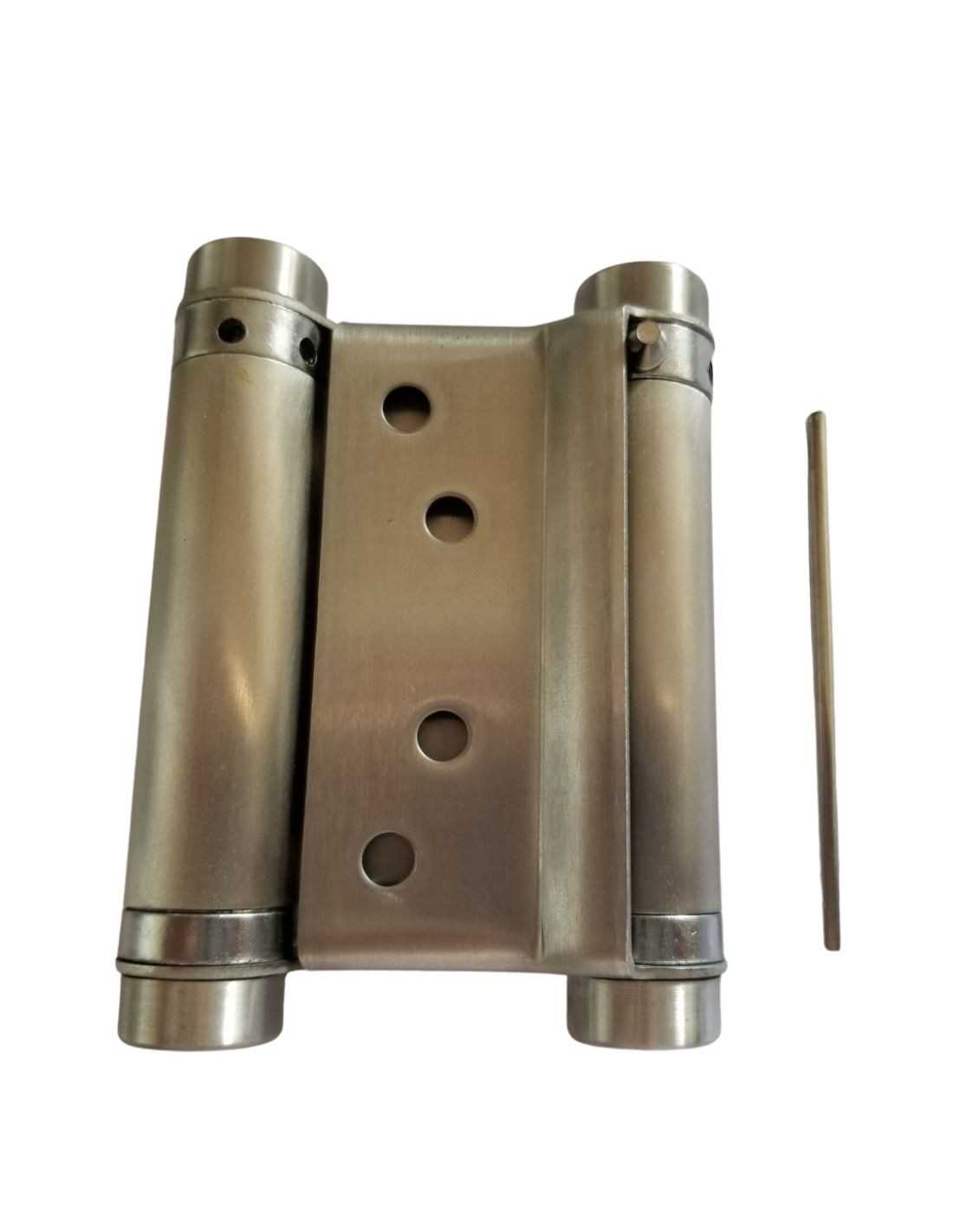

Pack contents

1 hinge
1 adjustment key

Key points

✓ Double-action: swings in both directions, returns automatically
✓ Adjustable tension: adjustment key supplied
✓ H75 mm: suitable for western-style doors 99 to 115 cm high
✓ Side-mounted: no drilling into the floor or lintel
✓ Sold individually: 2 per leaf, 4 per double-leaf door

Choosing the right hardware for your western-style door

Western-style doors can be fitted with two-way swinging pivots, attached to the floor and lintel, or double-action spring hinges, screwed to the side of the doorway. Both allow the door to swing in either direction and return to the closed position.

Choose hinges when you do not want to drill into the floor, for example if it is tiled or has underfloor heating, or when you want to adjust how quickly the door leaves return. Allow 2 hinges per leaf.

Set-up advice

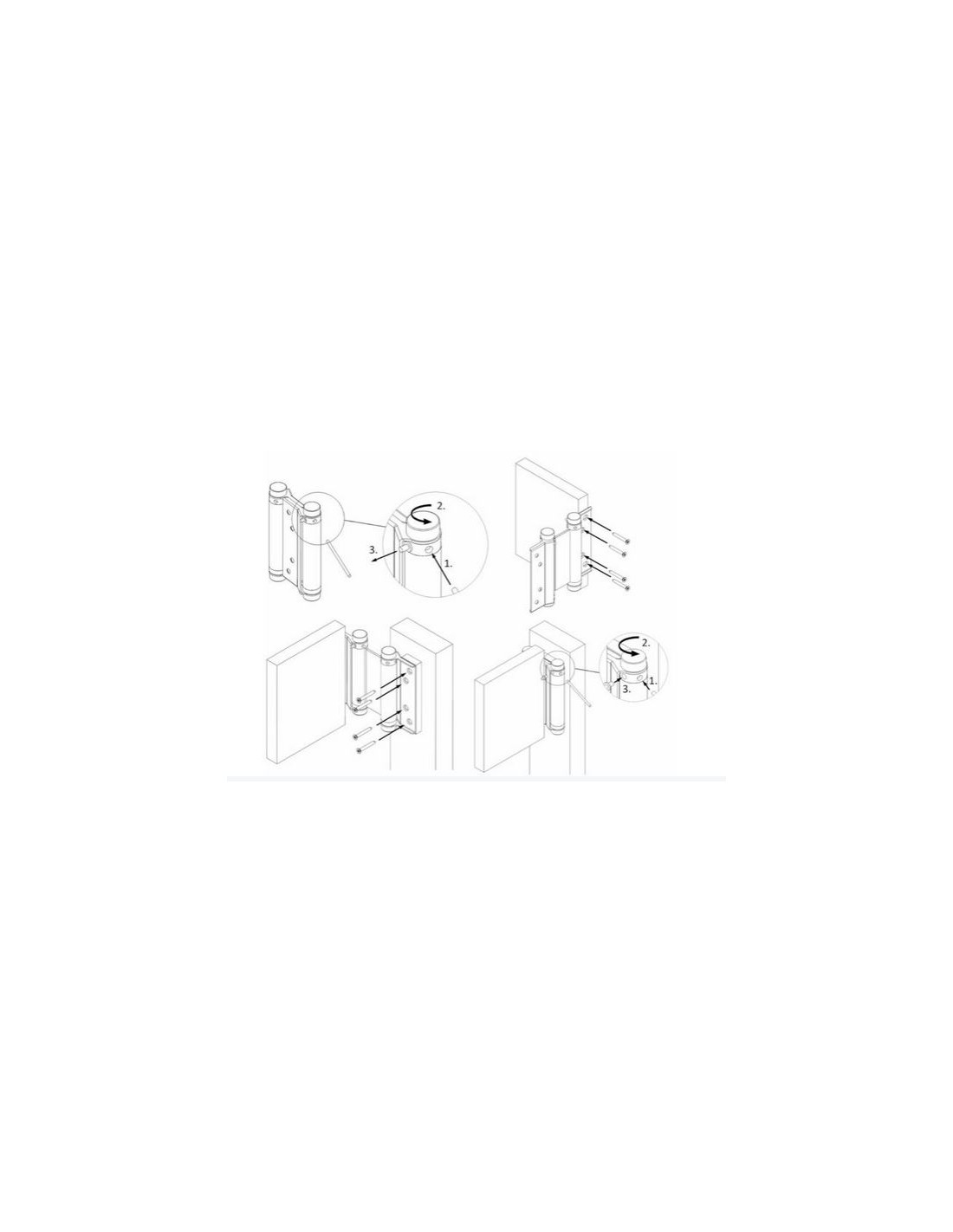

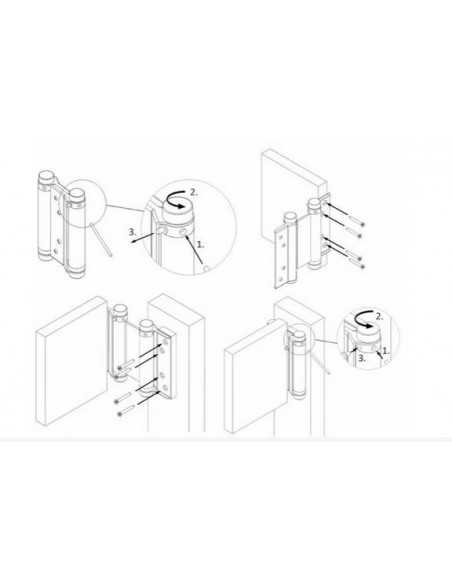

Position the hinges 15 cm from the top and bottom of the door leaf. Drill pilot holes before screwing, particularly in solid pine. Attach each hinge to the leaf first, then to the side of the doorway, checking that it is plumb.

Then use the supplied key to adjust the tension equally on both hinges of each leaf, so it returns smoothly to the closed position.

Care and protection

Lubricate the spring mechanism once a year with a few drops of light oil. If it squeaks, clean the mechanism and lubricate it again. Avoid corrosive products; the hinge is designed for indoor use.

Frequently asked questions

How many hinges do you need for a western-style door?

Allow 2 hinges per door leaf, one at the top and one at the bottom, or 4 for a double-leaf door. They are sold individually.

Double-action hinge or two-way swinging pivots: which should you choose?

Both allow the door to swing in either direction. The hinge screws to the side of the doorway without drilling into the floor, and its tension is adjustable. The pivots attach to the floor and lintel, with a vertical pivot axis. Hinges are often simpler where the floor is tiled or has underfloor heating.

How do you adjust the tension of a double-action hinge?

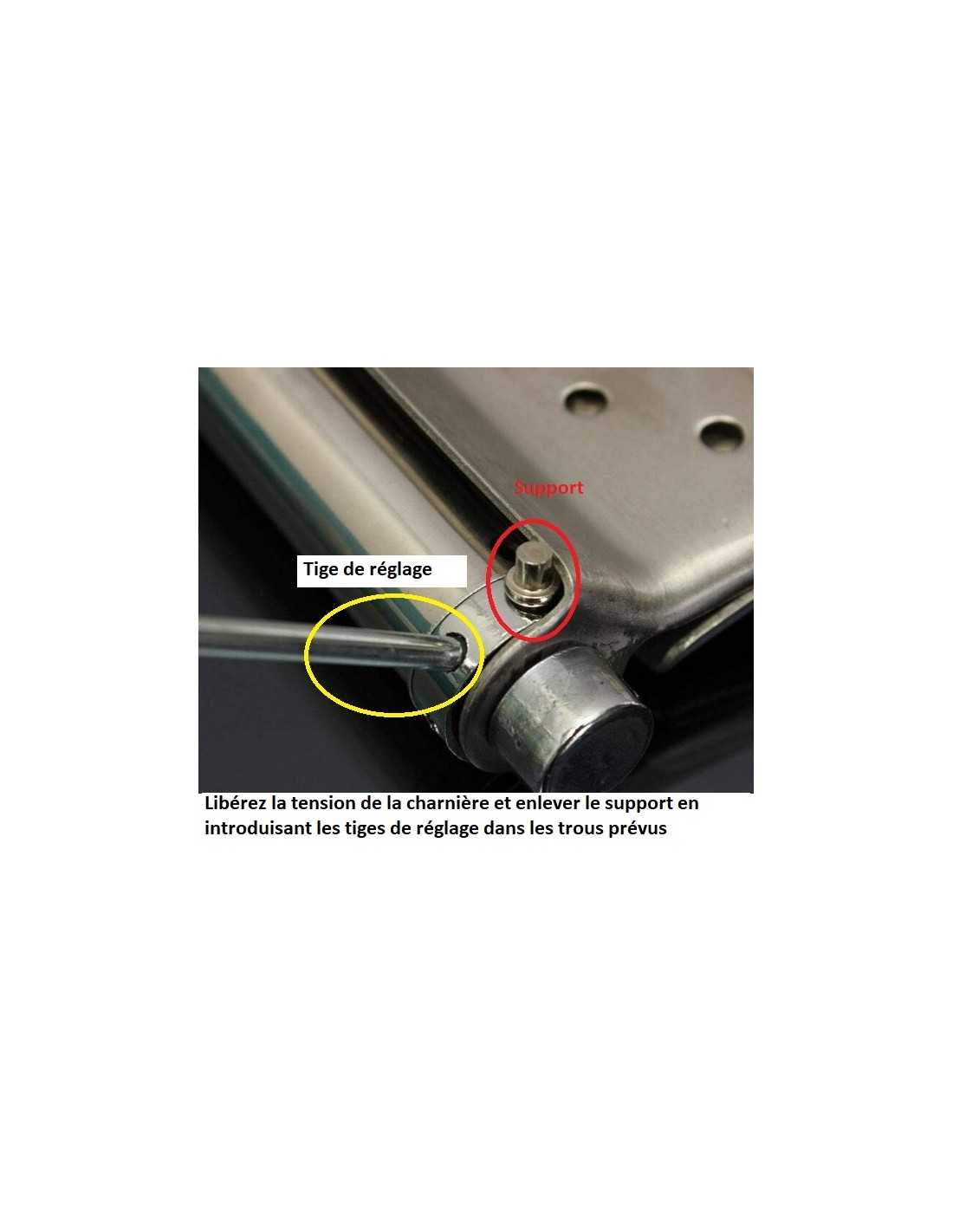

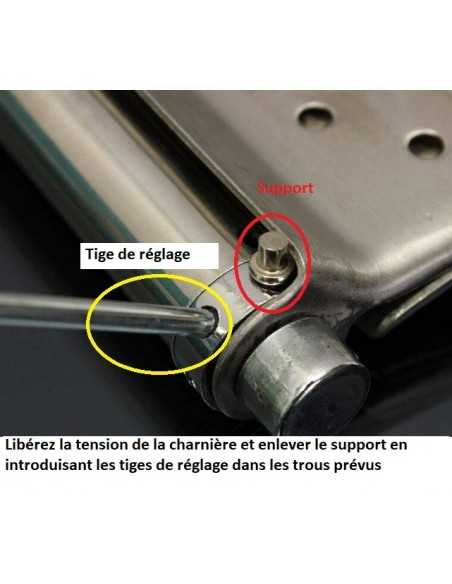

Insert the supplied adjustment key into the barrel and turn it to tension the spring, then secure it with the pin as directed in the instructions. Greater tension closes the leaf faster. Set both hinges on the same leaf to the same tension.

Where should you position the hinges on a door leaf?

Position them approximately 15 cm from the top and bottom of the door leaf. Drill pilot holes before screwing, especially in solid pine, to avoid splitting the wood.
