Made-to-Measure Wooden Western-Style Door, 1 or 2 Leaves

Made-to-measure western-style door, height and width specified to the millimetre, with 1 or 2 leaves, in Douglas fir, fir, beech, aged spruce, or black or grey Valchromat.

Compass or line design engraved on both sides, with rounded, curved or straight top and bottom edges. Optional pivots or hinges.

Made to order and dispatched within 10 days to 2 weeks; cannot be cancelled once production begins. For unusual openings too narrow or too wide for standard doors. Indoor use.

Configurer mon produit

Dispatched within 10 days - 2

Paiement :

Paiement en 2x, 3x, 4x avec

Configurez votre Made-to-Measure Wooden Western-Style Door, 1 or 2 Leaves

Loading configurator

Made-to-Measure Wooden Western-Style Door, 1 or 2 Leaves

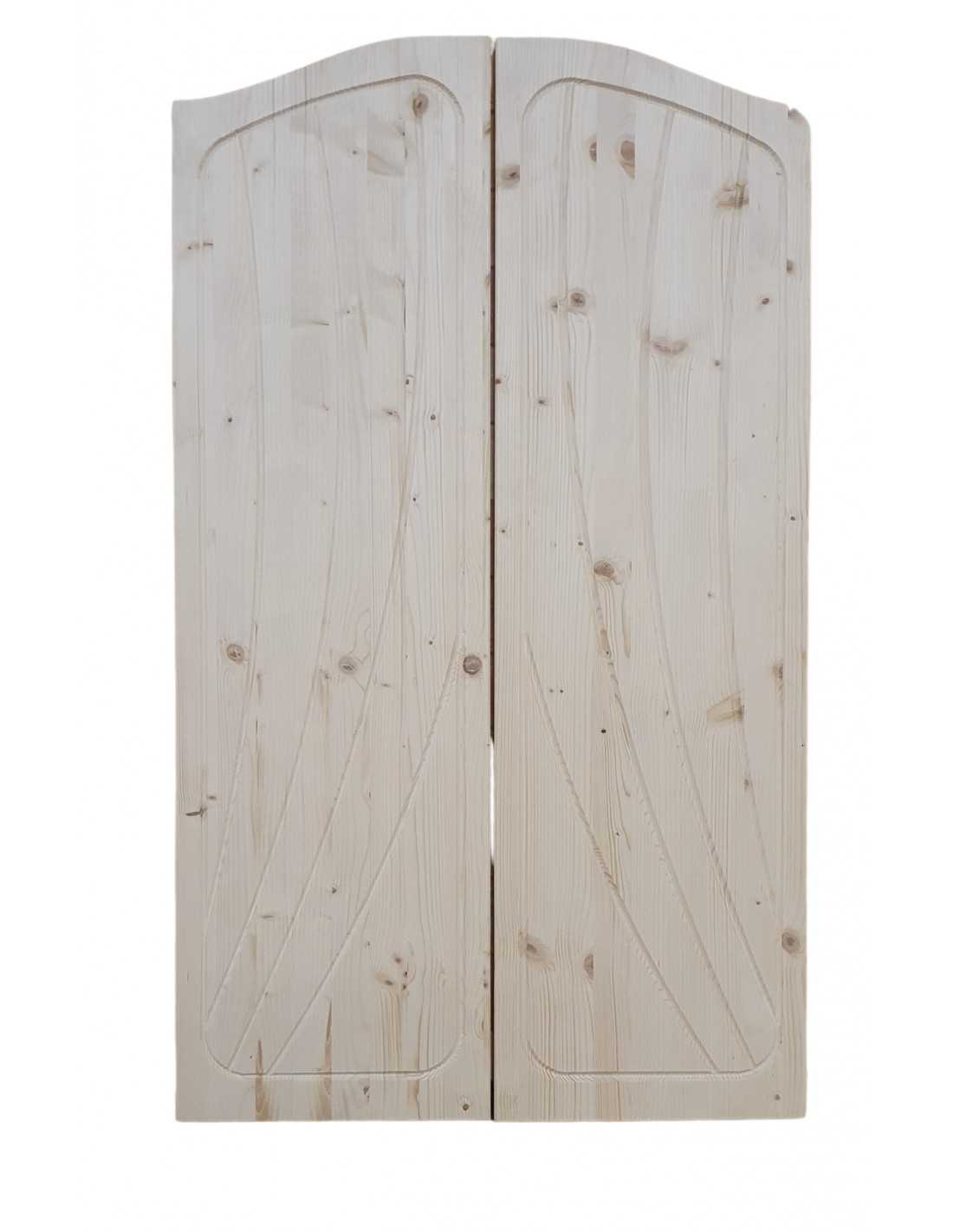

This western-style door is made to your dimensions: enter the height and width between the frame uprights to the millimetre, and choose 1 or 2 leaves. It therefore fits unusual openings that are too narrow or too wide for standard doors.

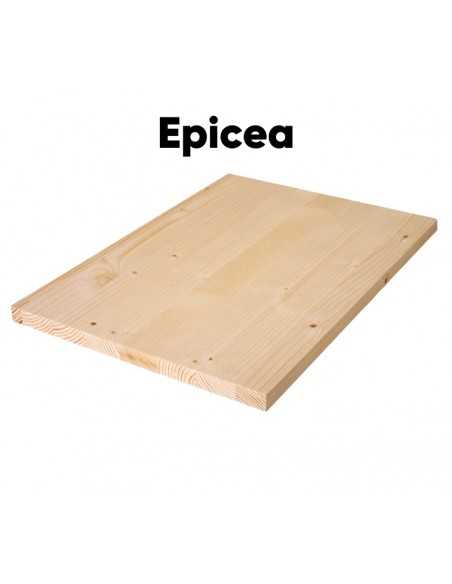

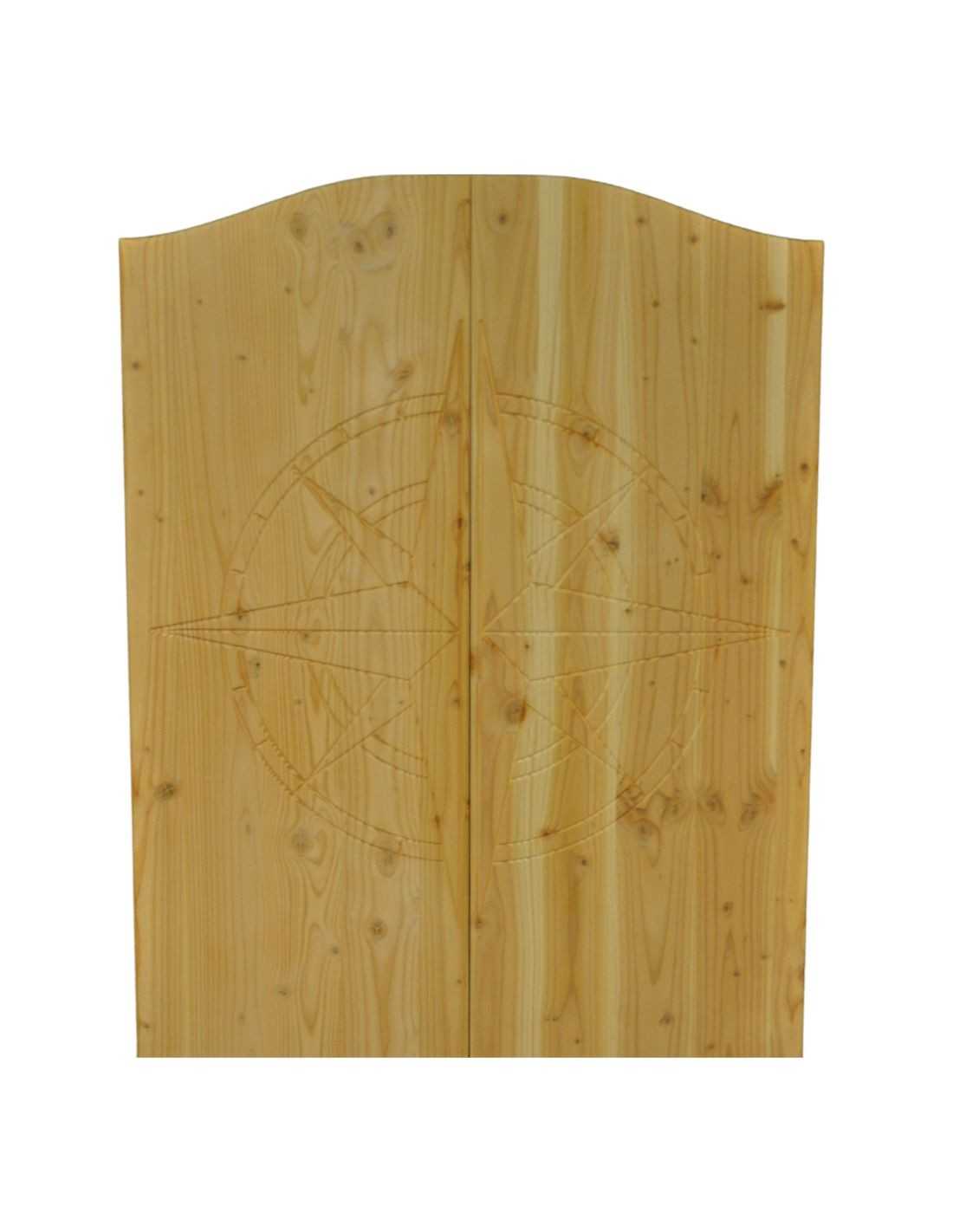

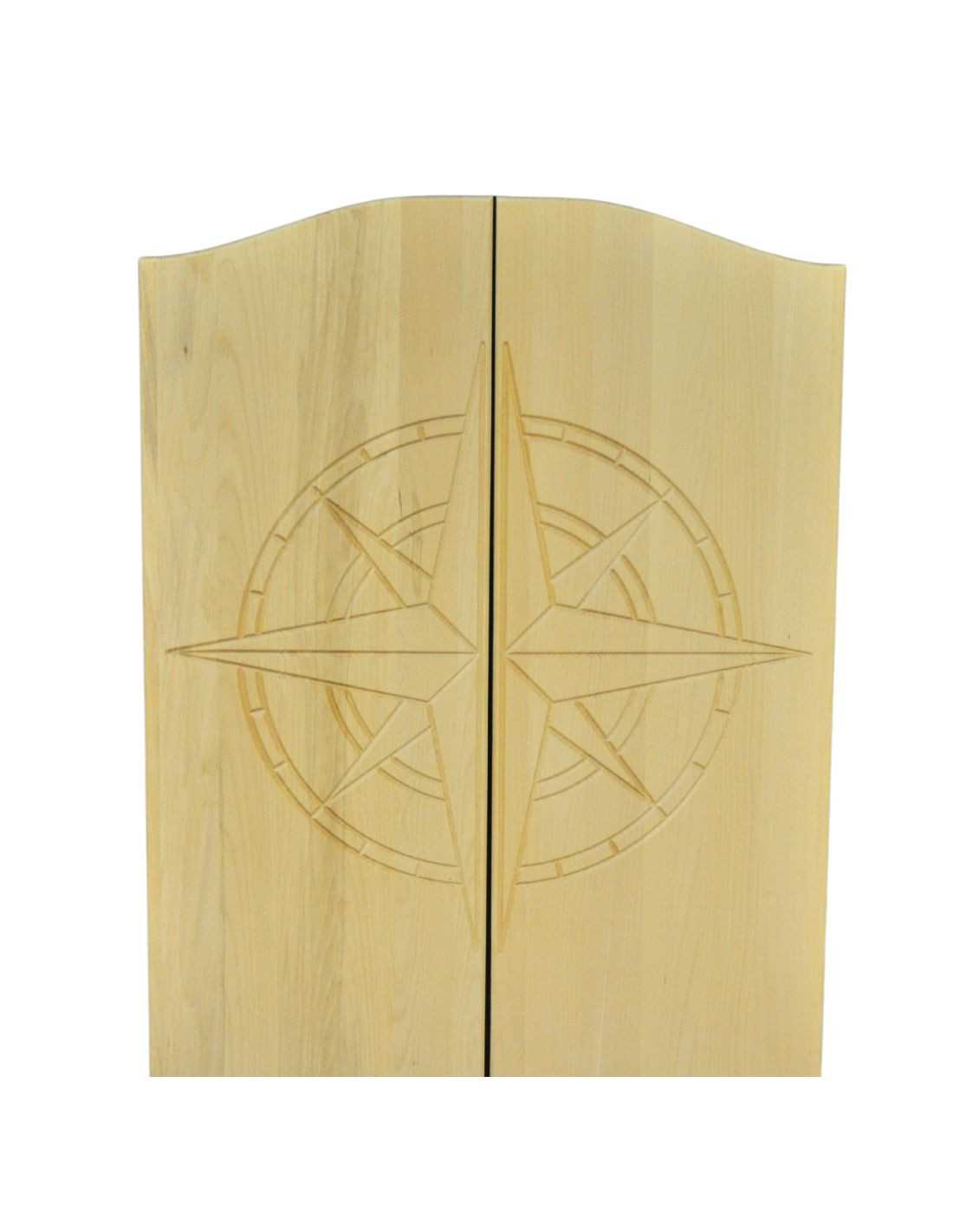

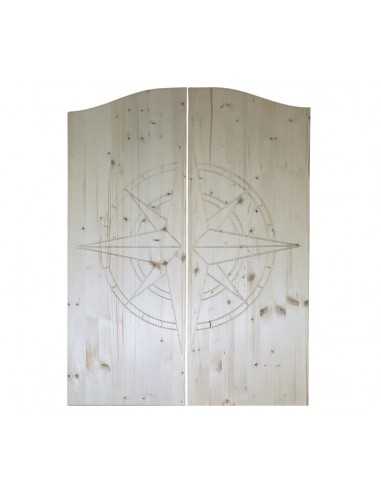

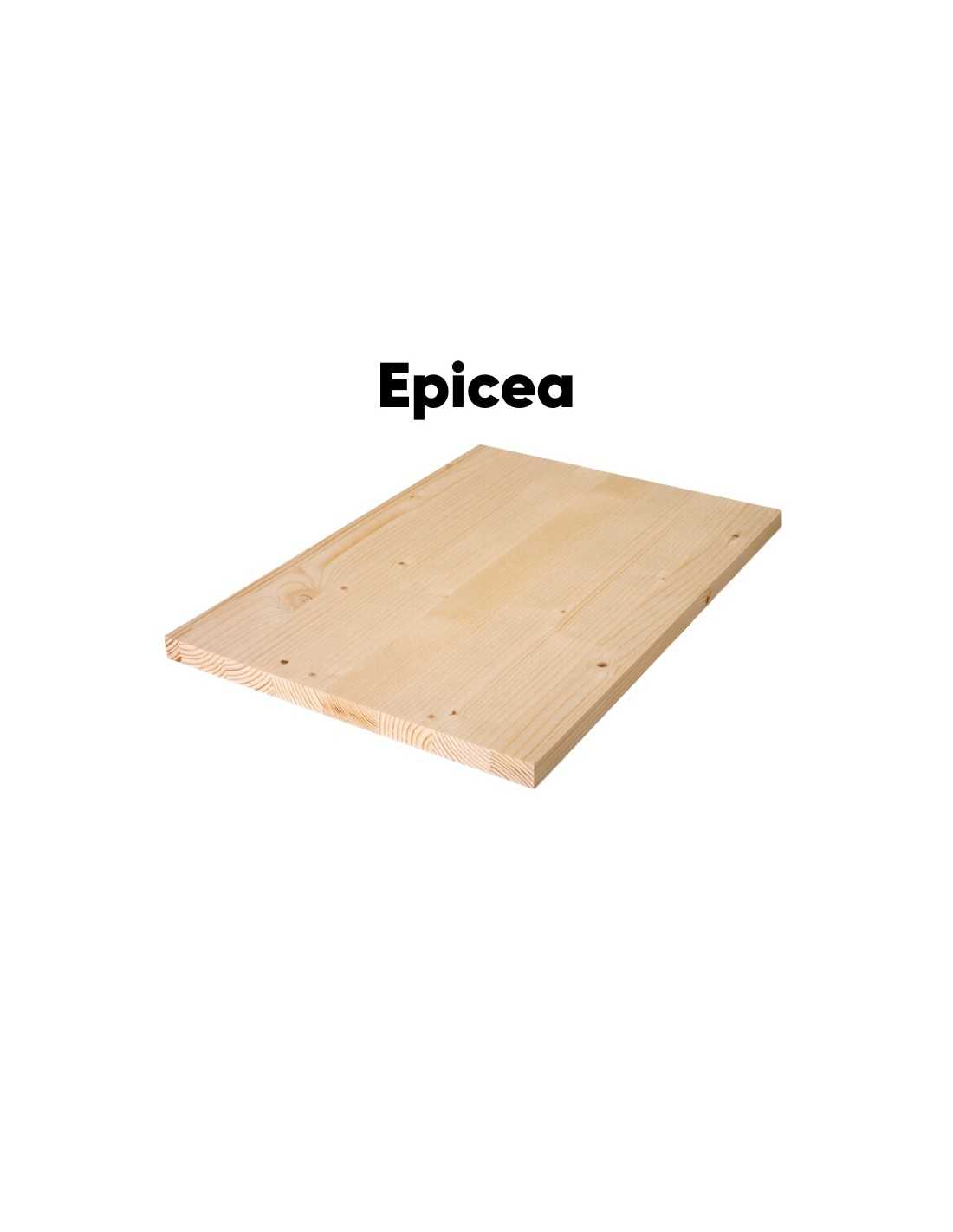

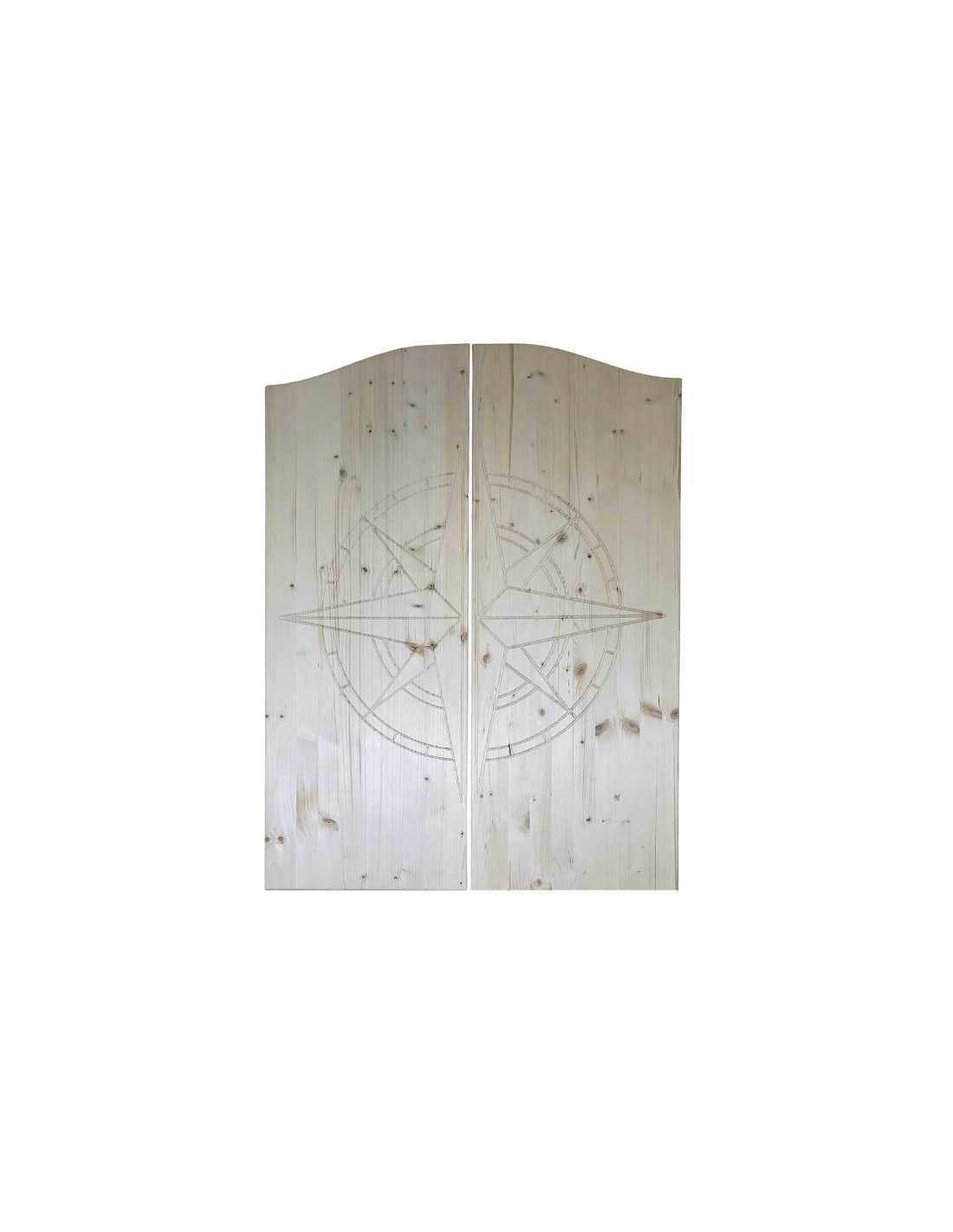

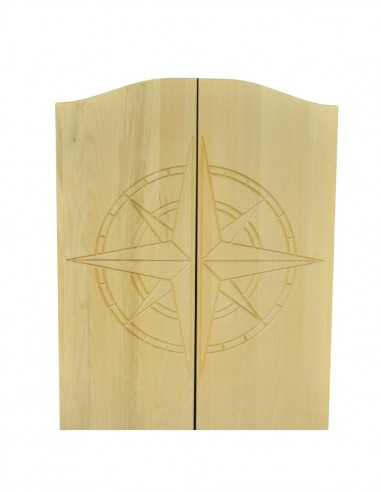

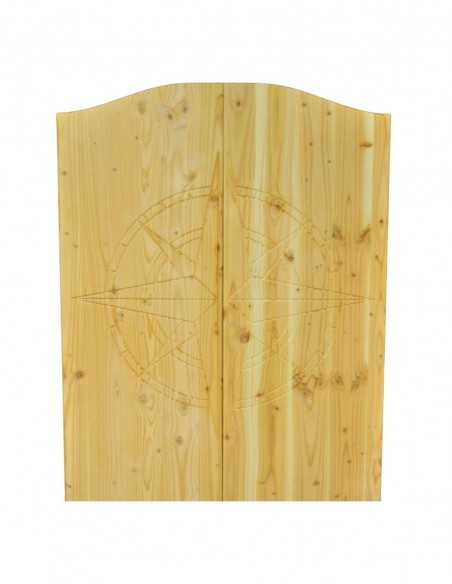

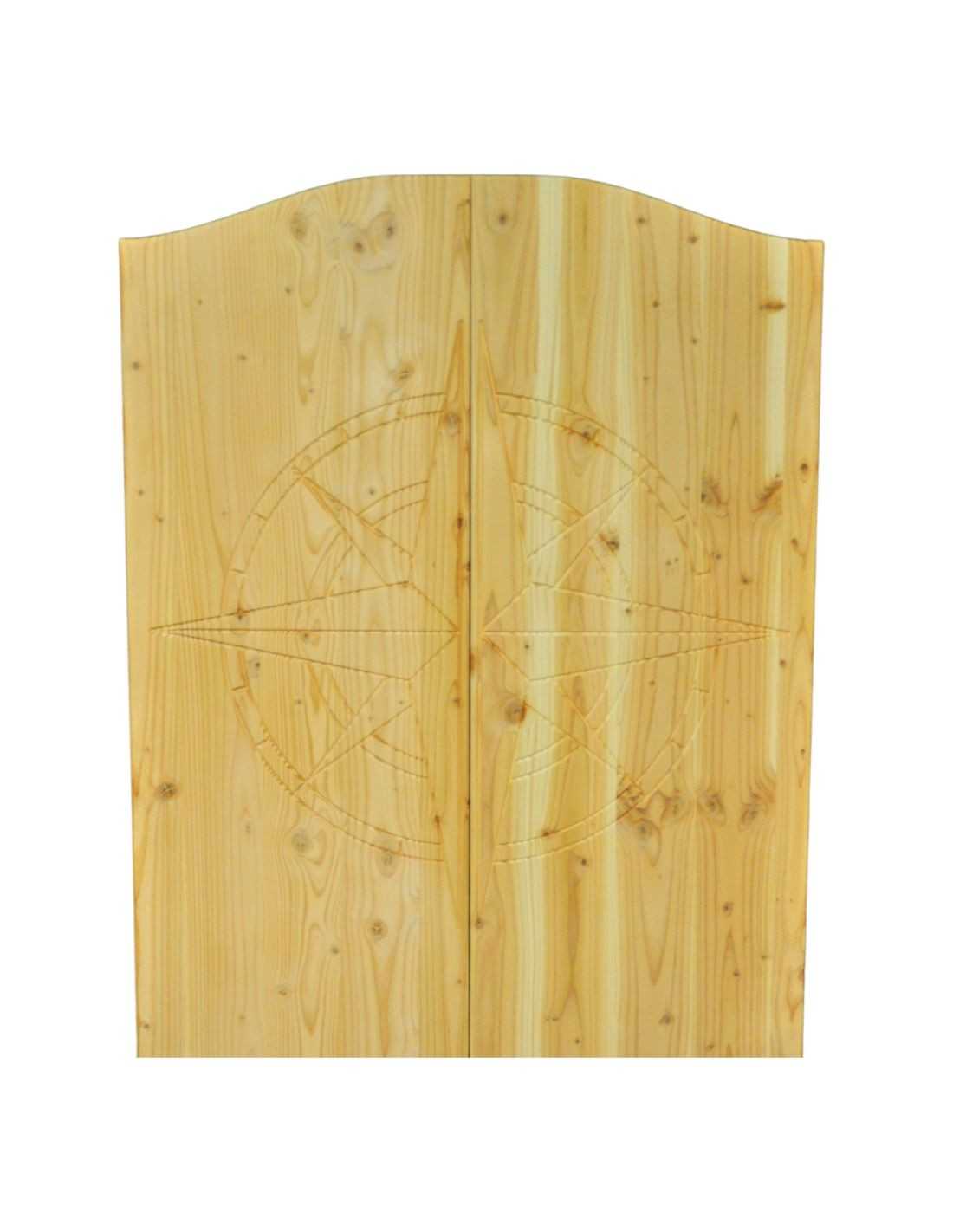

Six materials are available: 3-ply Douglas fir, fir, 3-ply beech, 3-ply spruce with an aged-wood effect, black Valchromat or light grey Valchromat. The compass or line design is engraved on both sides, and both the top and bottom can be cut with a rounded, curved or straight edge.

Two-way swinging pivots or spring hinges can be added directly in the configurator. The door is made to order and dispatched within 10 days to 2 weeks.

Key specifications

Specification	Description
Type	Made-to-measure western-style door
Dimensions	Enter the height and width between the frame uprights to the millimetre
Door leaves	1 or 2

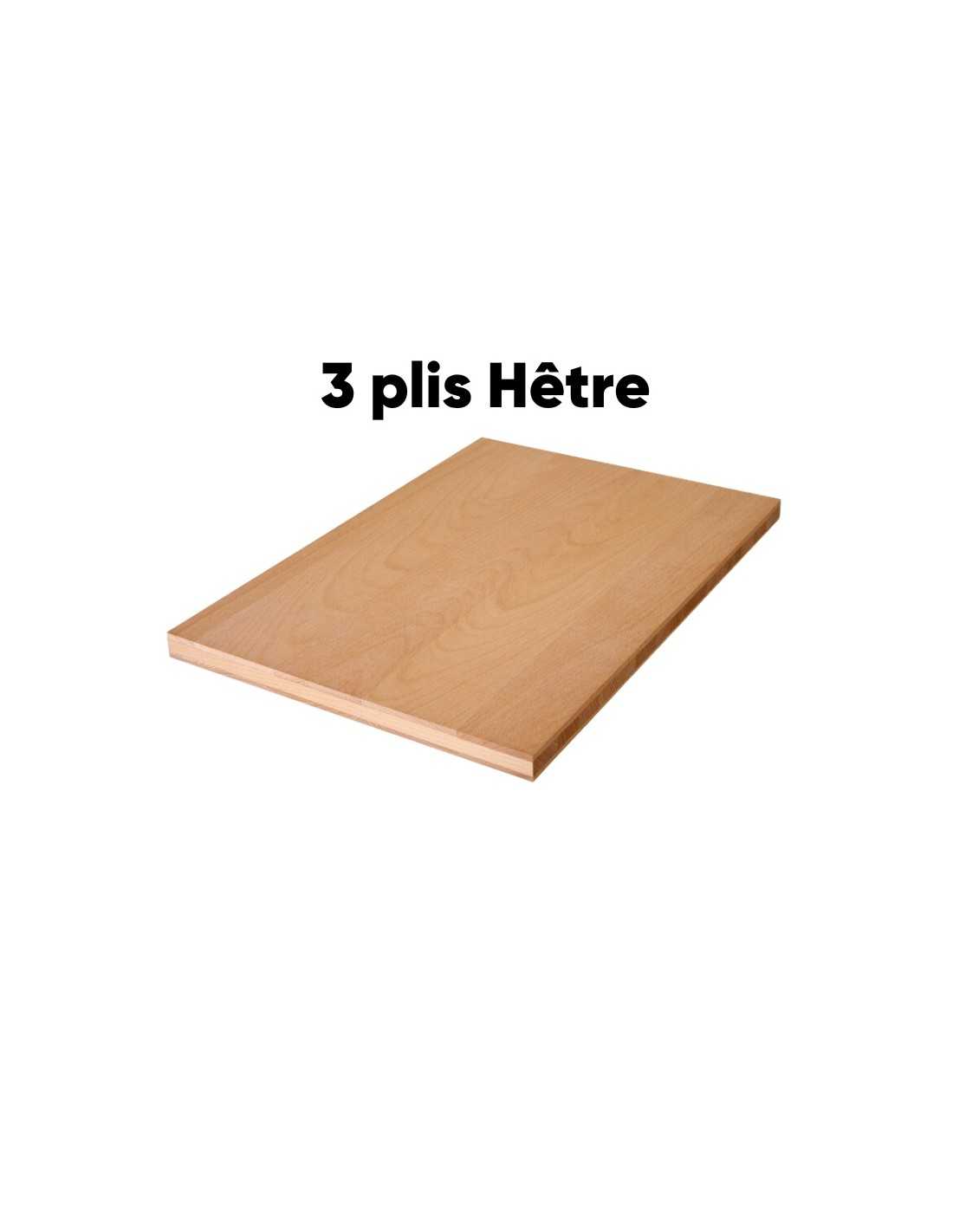

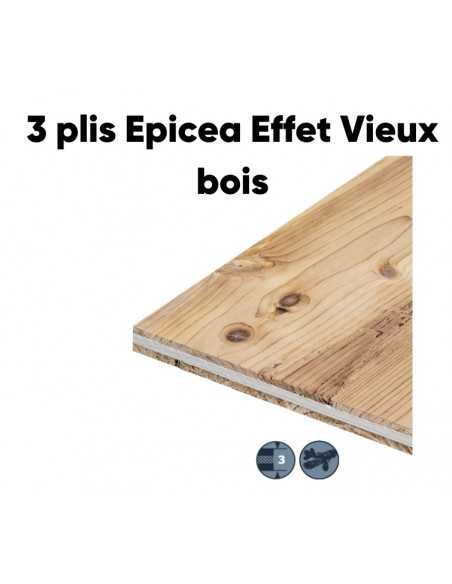

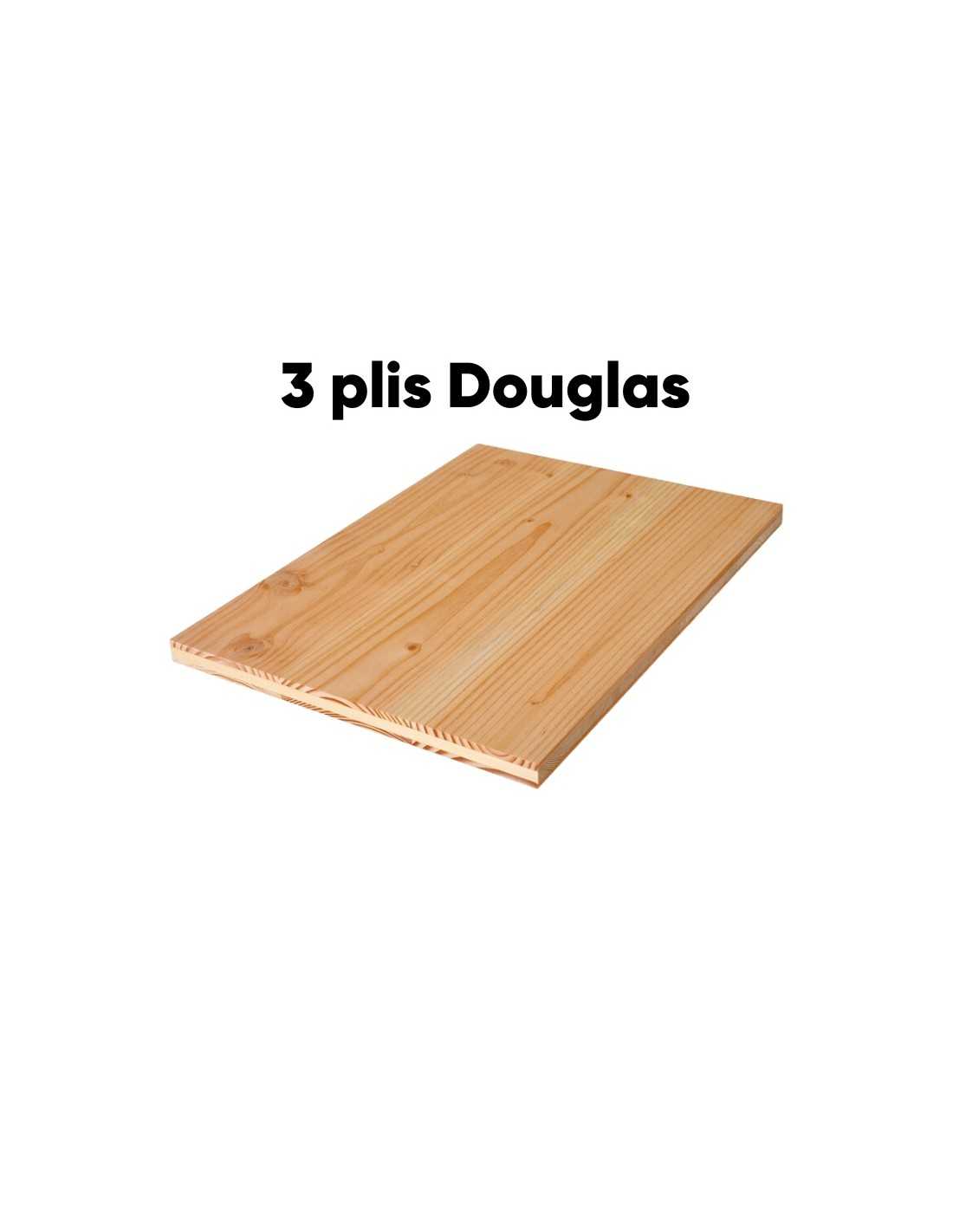

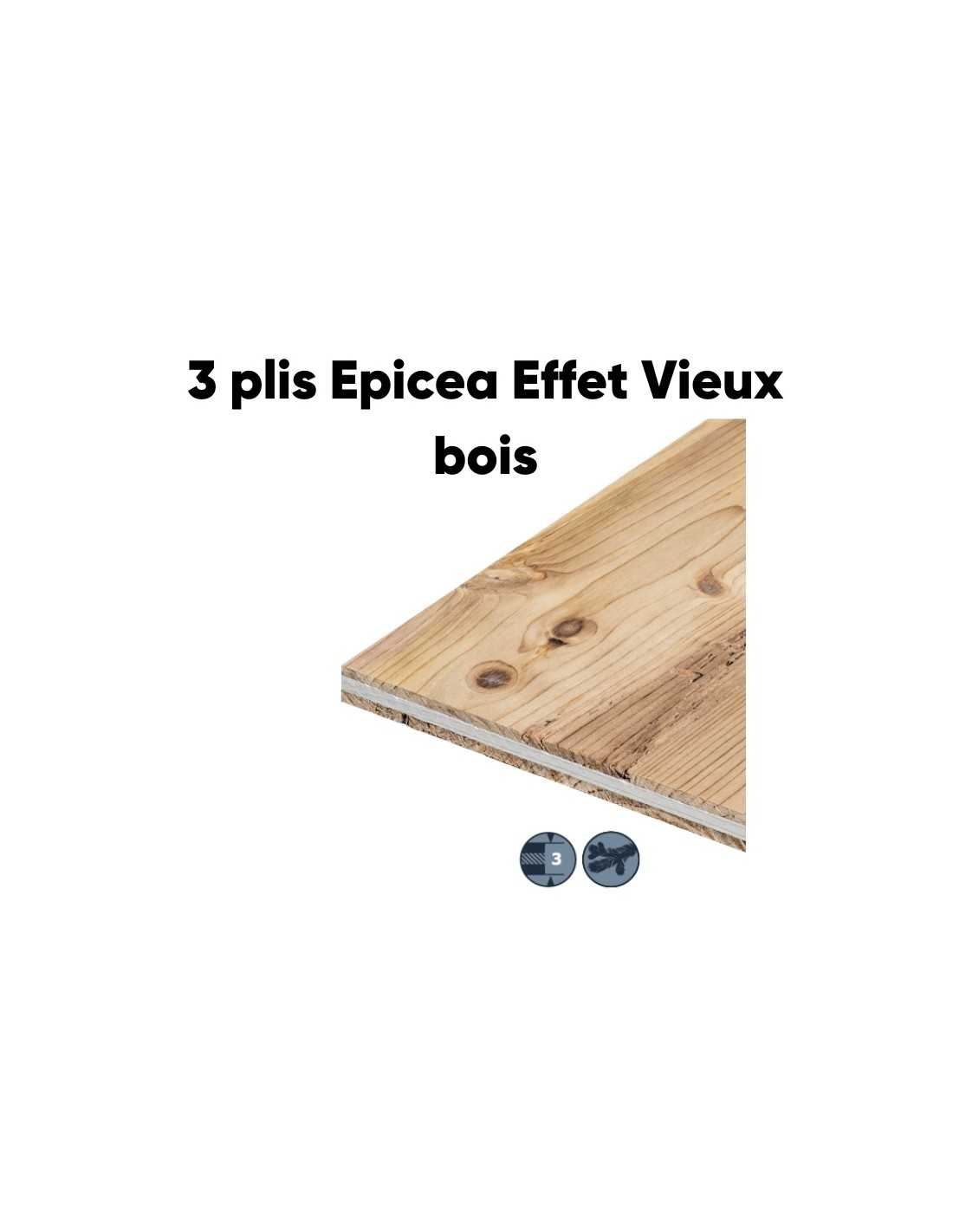

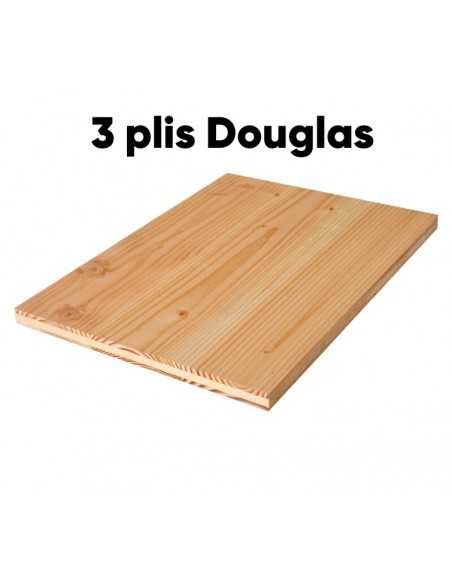

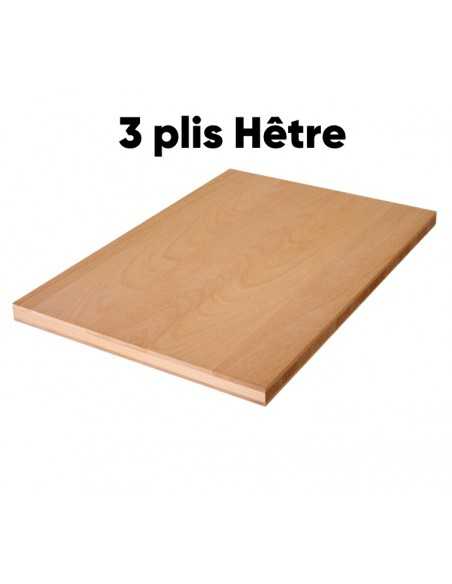

Materials	3-ply Douglas fir, fir, 3-ply beech, 3-ply spruce with an aged-wood effect, black Valchromat, light grey Valchromat

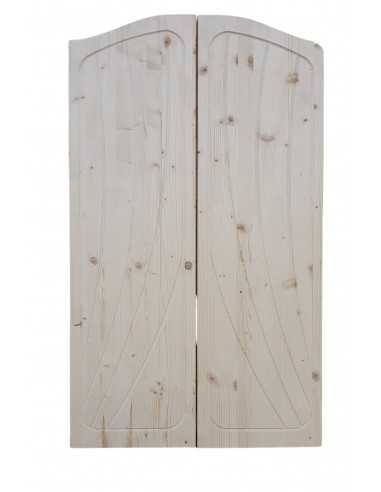

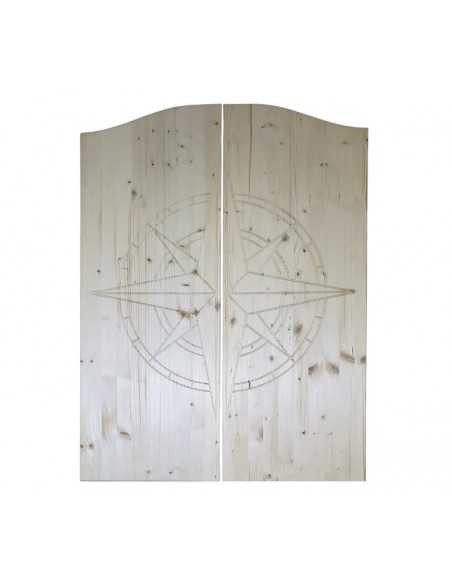

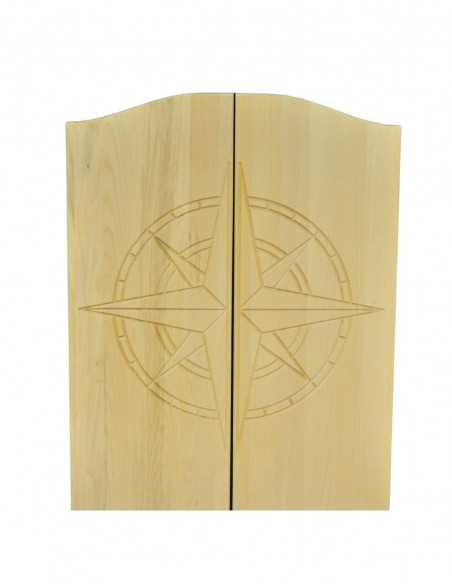

Design	Compass design, lines or no design; engraved on both sides

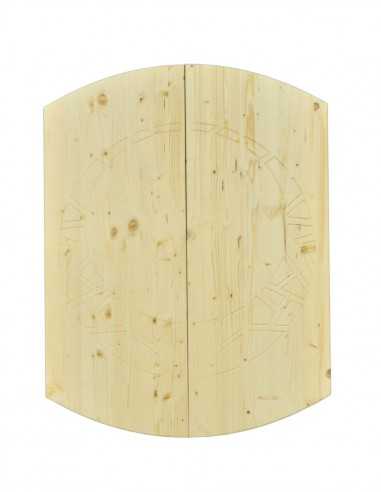

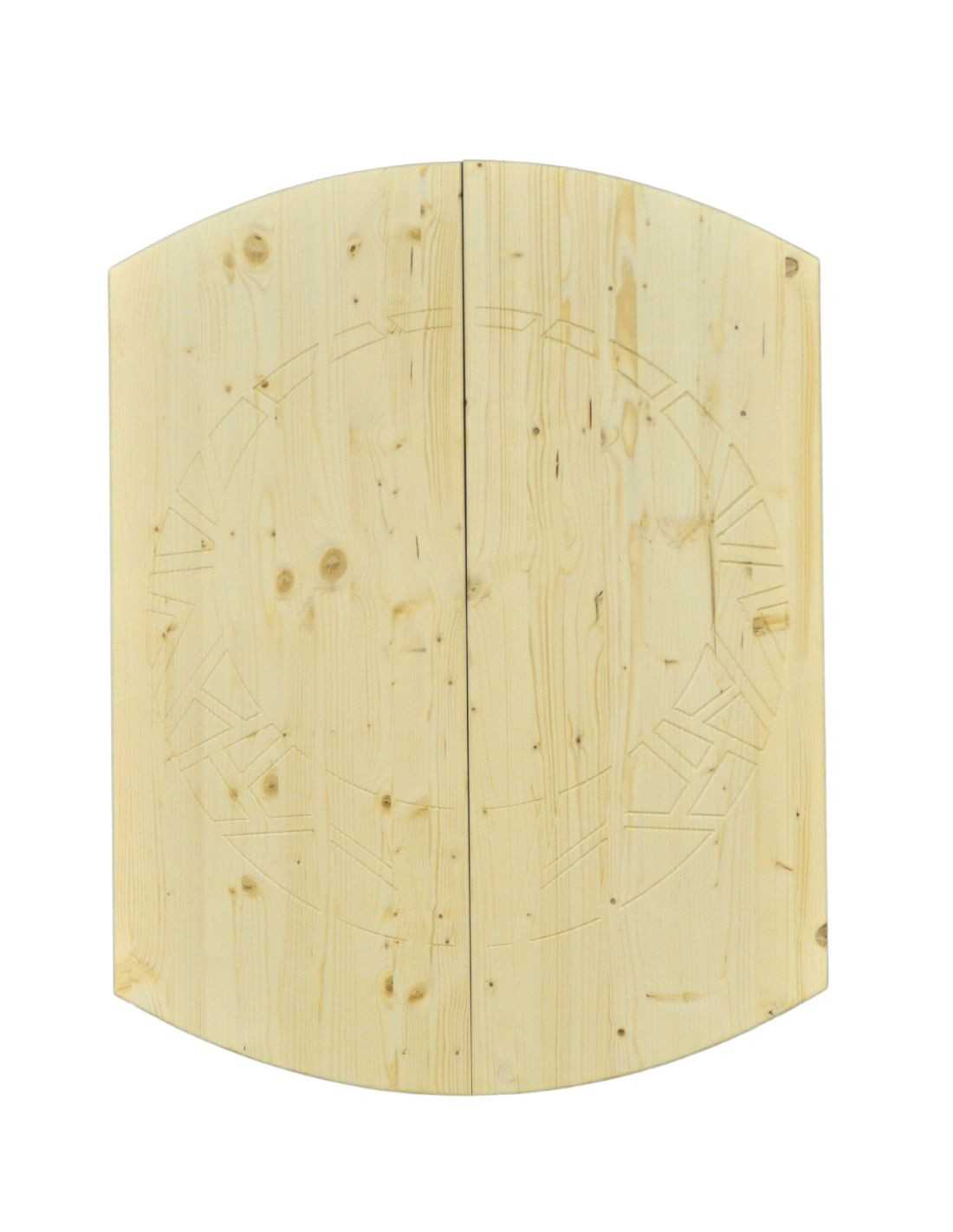

Top edge shape	Rounded, curved or straight
Bottom edge shape	Rounded, curved or straight
Hardware	Optional: two-way swinging pivots or spring hinges
Manufacture	Made to order; cannot be cancelled once production begins
Lead time	Dispatched within 10 days to 2 weeks
Use	Indoor

Pack contents

1 or 2 leaves, depending on the order
Hardware according to the option selected

Key points

✓ Dimensions to the millimetre: for any opening, even an unusual one
✓ 1 or 2 leaves
✓ 6 materials: Douglas fir, fir, beech, aged spruce, black or grey Valchromat
✓ Design engraved on both sides: compass design, lines or no design
✓ Choice of shaped edges: rounded, curved or straight at the top and bottom

Choosing the right western-style door

Three questions will help you choose: should air and light pass through, how wide is the opening, and what finish do you want? The WoodUp range has four models:

Model	Panel	Thickness	Width	Finish
Natural pine louvred	Louvred slats let air and light through	21 mm	68 or 78 cm	Unfinished, ready for finishing
White-painted louvred	Louvred slats let air and light through	21 mm	68 or 78 cm	Painted white, ready to install
Rustic pine, 30 mm	Solid panels block the view and airflow	30 mm	68 or 78 cm	Unfinished, ready for finishing
Made to measure	Engraved design, choice of shaped edges	Depends on wood species	Made to measure, 1 or 2 leaves	Depends on wood species

For standard models, choose the width according to the wall opening:

Combined width of the 2 leaves	Recommended wall opening
68 cm (2 leaves of 34 cm)	73 cm
78 cm (2 leaves of 39 cm)	83 cm

Western-style doors can be fitted with two-way swinging pivots, attached to the floor and lintel, or double-action spring hinges, screwed to the side of the doorway. Both allow the door to swing in either direction and return to the closed position.

Set-up advice

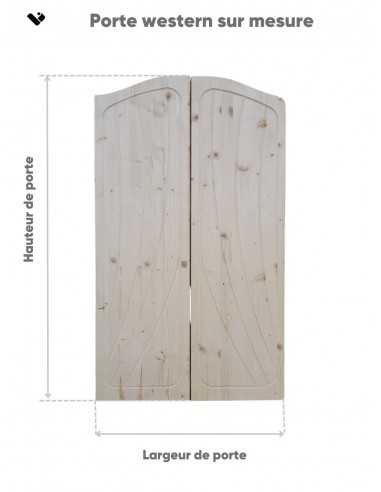

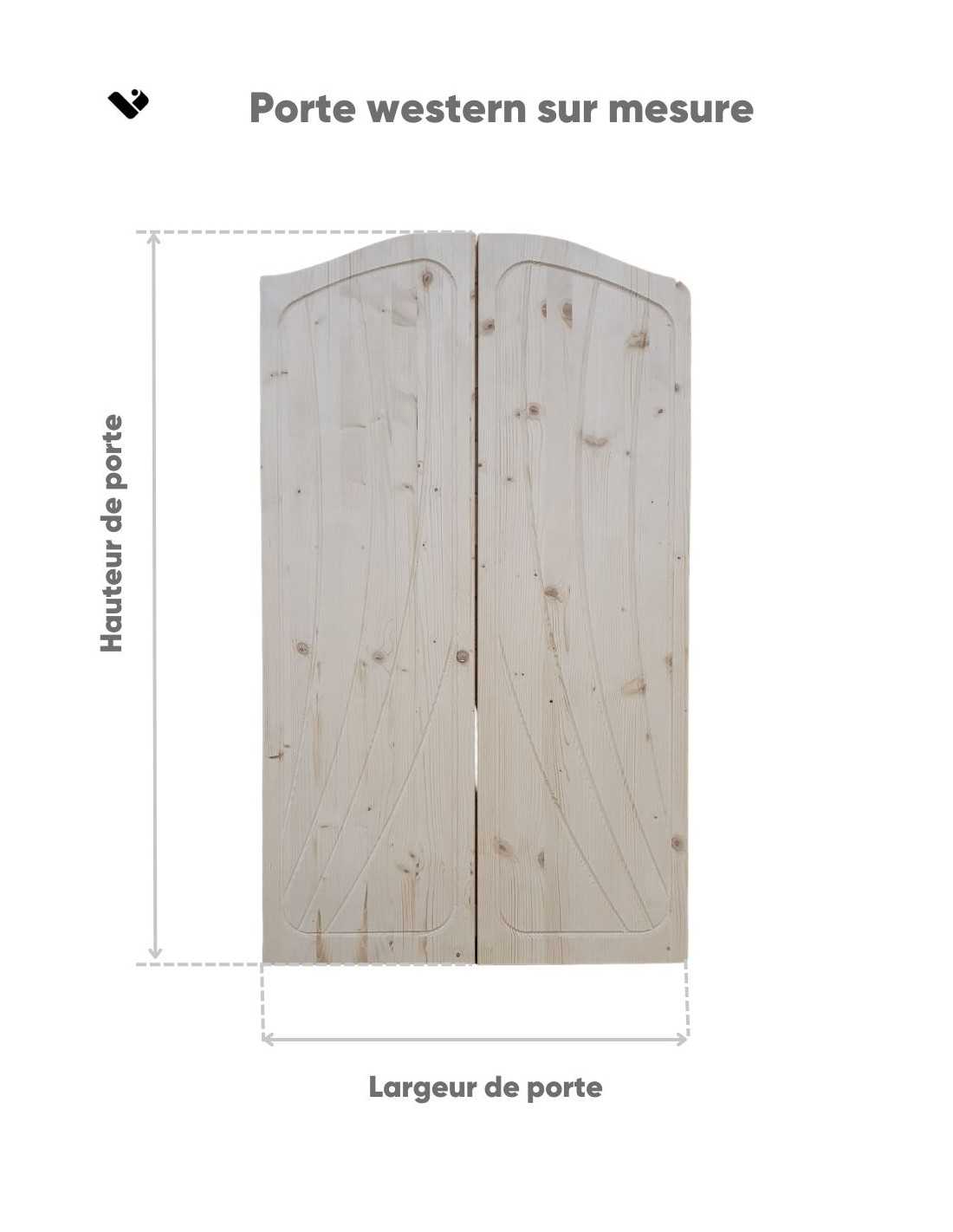

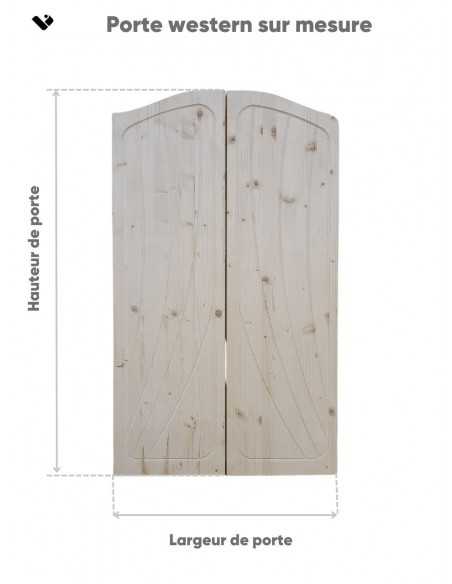

Measurements: measure the width between the frame uprights and the desired height in millimetres. If fitting hinges, allow for the space they take up and the gap between the leaves.

Installation: pivots attach to the floor and lintel; spring hinges screw to the side of the doorway, 2 per leaf. Drill pilot holes in natural wood before screwing.

Care and protection

For natural woods—Douglas fir, fir, beech or spruce—apply an indoor wood varnish, oil or stain to achieve the finish you want. Valchromat is coloured throughout: a slightly damp cloth is all you need to clean it. Lubricate the pivots or hinges once or twice a year.

Frequently asked questions

How do you measure for a made-to-measure western-style door?

Measure the width between the frame uprights—the distance between the two sides of the opening—and the desired door height in millimetres. Enter these in the configurator. Check them twice before confirming: the order cannot be cancelled once production has begun.

One or two leaves: which should you choose?

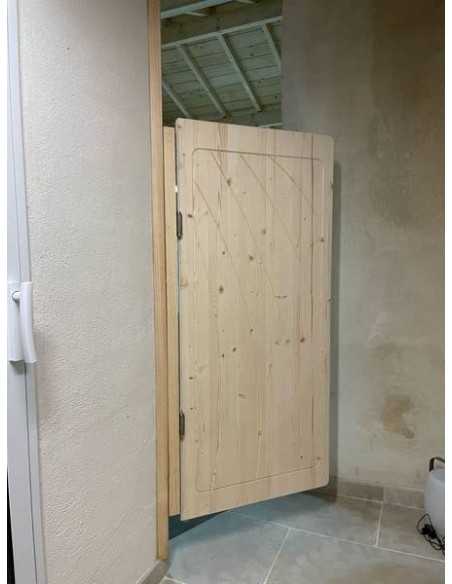

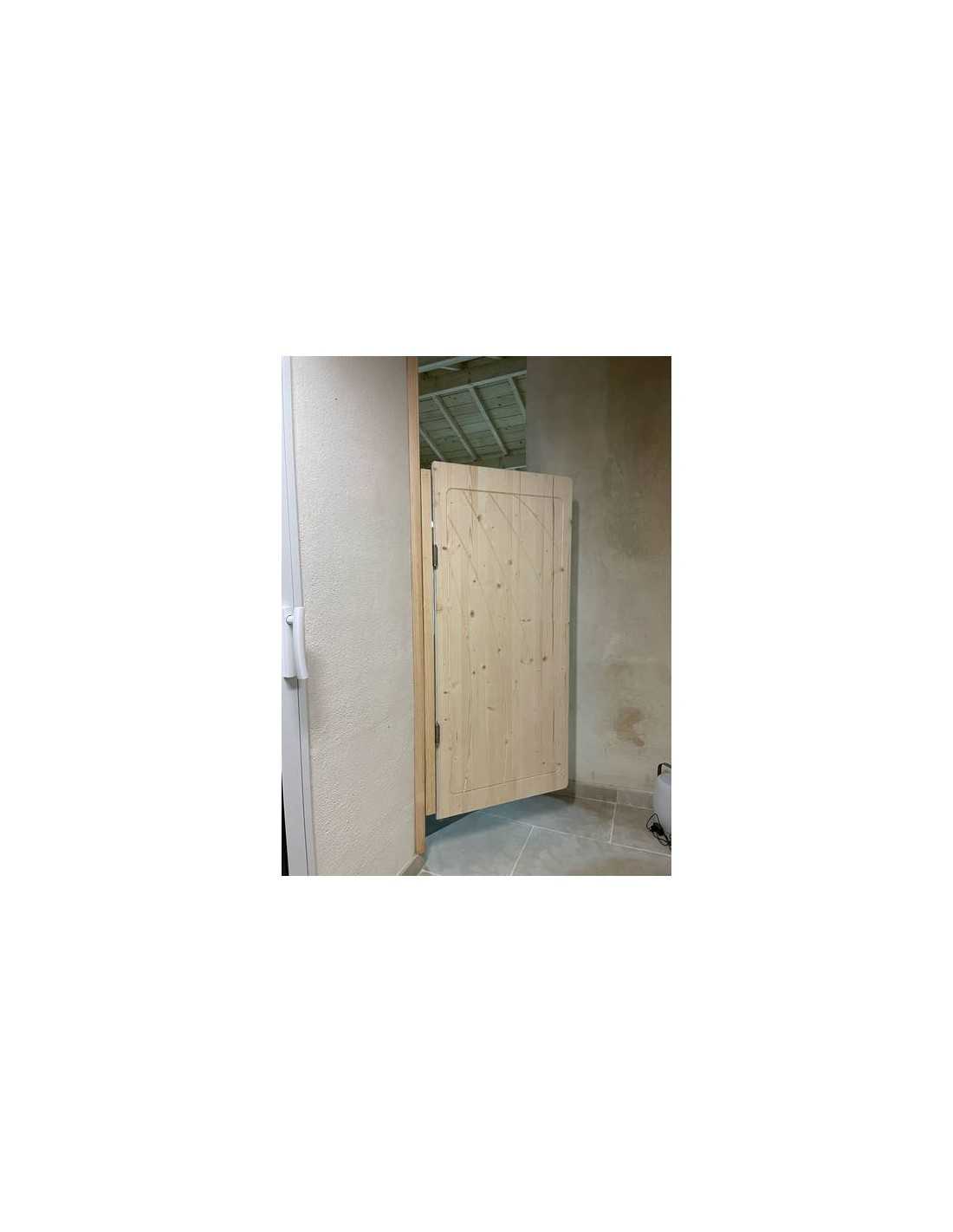

A single leaf suits narrow openings, below approximately 70 cm, or situations where the door needs to swing to one side only. Two leaves give the classic look of saloon doors and each takes up less space when opened.

How long does a made-to-measure western-style door take to arrive?

The door is made to order and dispatched within 10 days to 2 weeks. Once production has begun, the order cannot be cancelled or changed: check the dimensions, material and design before confirming.

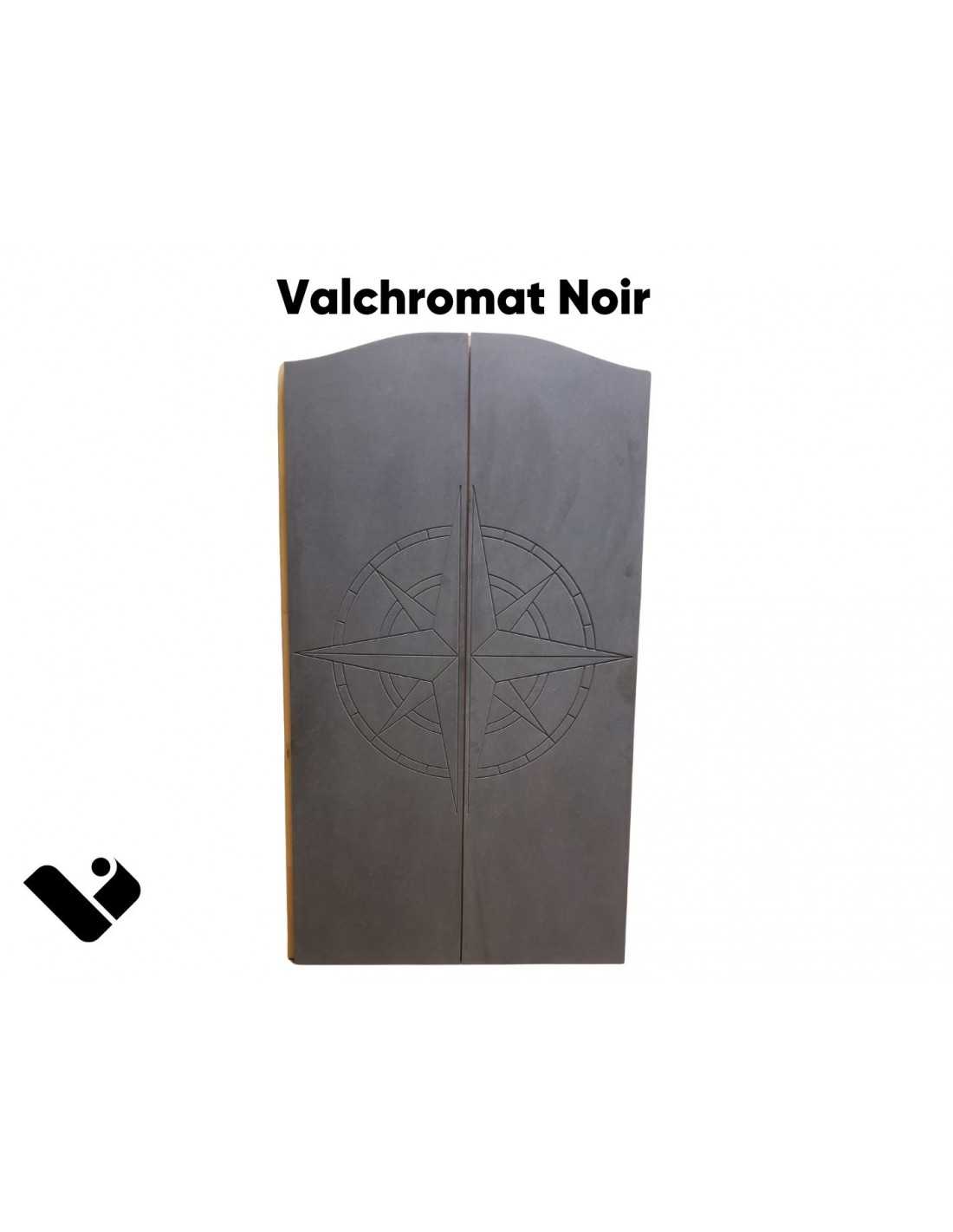

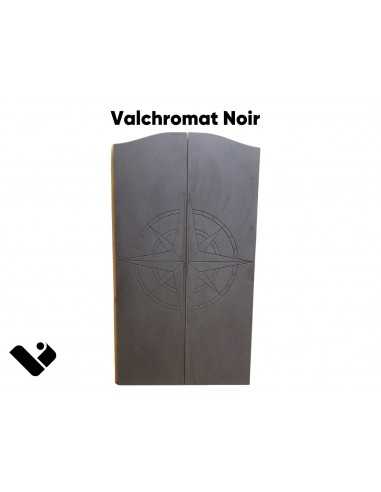

What is Valchromat?

It is a wood-fibre panel coloured throughout: its black or light grey colour is the same at the surface and at its core. The engraved design therefore reveals the same colour, without the contrast of lighter wood, giving it a contemporary look.
