Swing pivots for western doors

Name: Swing pivots for western doors
Brand: Levigne
SKU: CPW03
Price: 27 EUR
Availability: InStock

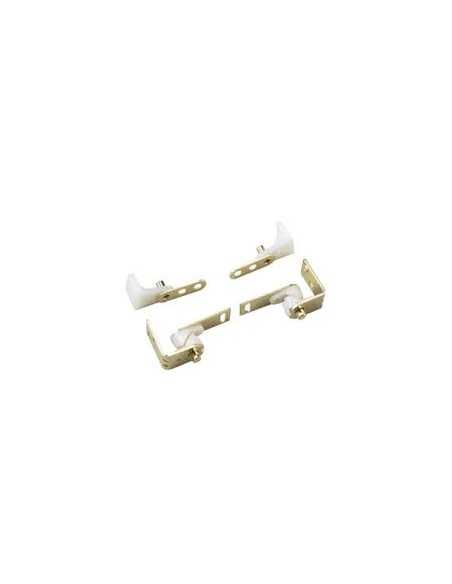

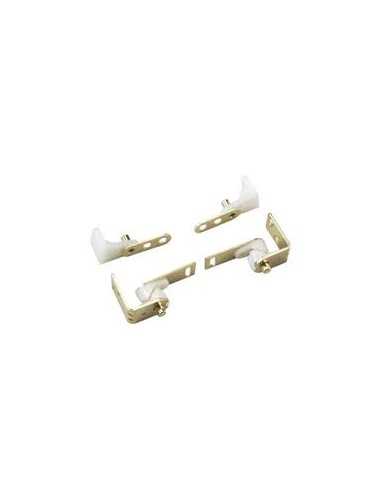

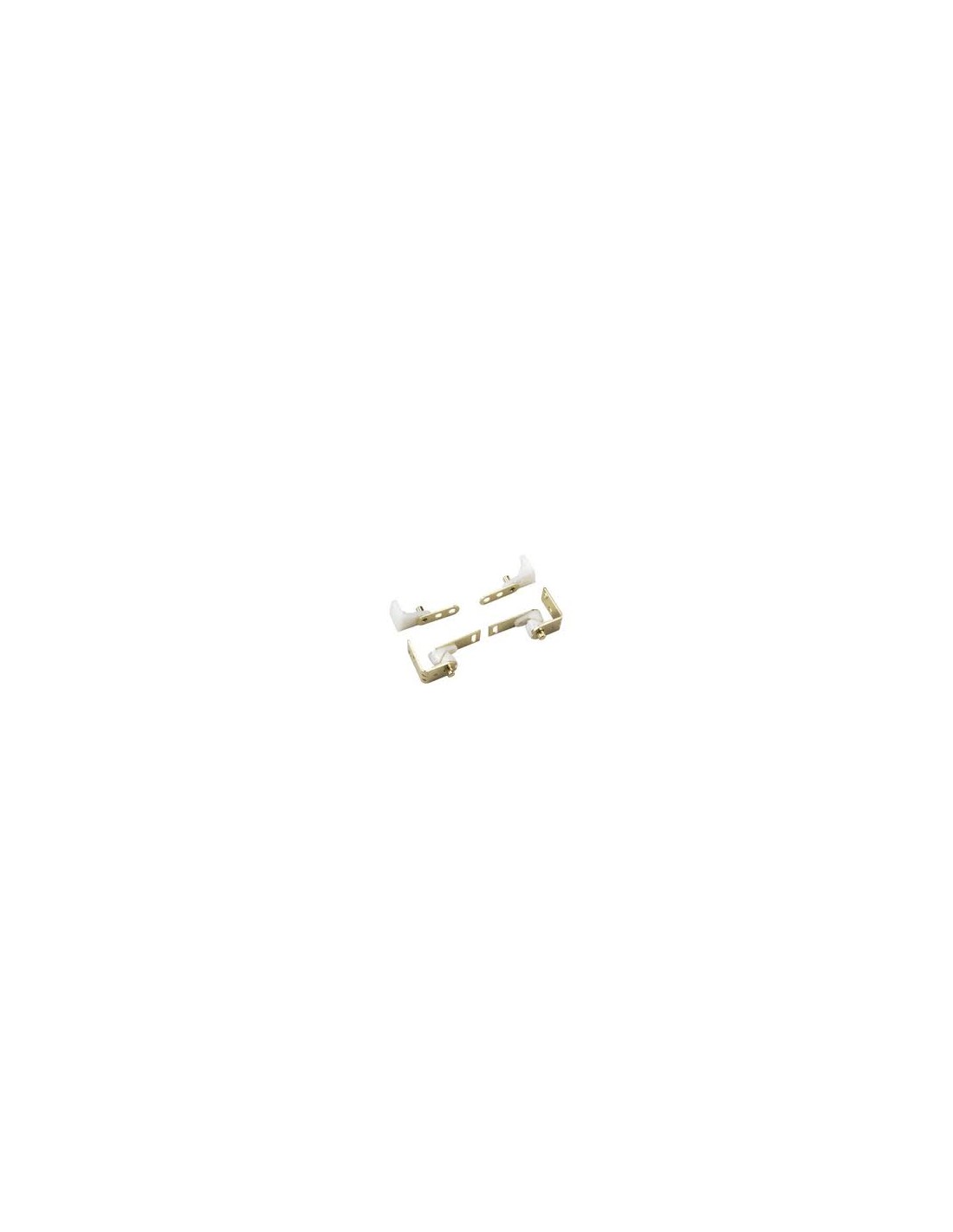

Metal swing pivot kit for western doors, smooth opening in both directions with automatic return to the closed position. Complete kit for 2 leaves: top and bottom pivots and fixing screws included. Compatible with Woodup western doors White lacquered western door, Natural pine western door, Rustic western door (widths 68 and 78 cm). Floor pre-drilling required for bottom pivots. Suitable for high-traffic spaces (kitchen, hallway, commercial space). Indoor use only.

Reference CPW03

€27.00 VAT included

In stock Ships within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Swing Pivots for Western Doors – Metal Kit, Double-Direction Opening

This metal swing pivot kit is designed for saloon-style western doors. It allows opening in both directions with automatic return to the closed position. The kit includes all elements required for installation: top and bottom pivots, fixing screws. It is compatible with western doors from the Woodup range (White lacquered western door or Natural pine western door or Rustic western door) and with other doors of comparable dimensions.

The pivots are fixed at the top and bottom of each leaf on a vertical axis. Their mechanism ensures smooth movement in both directions, suited to high-traffic spaces such as kitchens, hallways or commercial spaces. The metal used is treated for durability with daily indoor use.

Main features

Characteristic	Description
Material	Treated metal
Type	Swing pivots – opening in both directions
Automatic return	Yes – automatic closing after passage

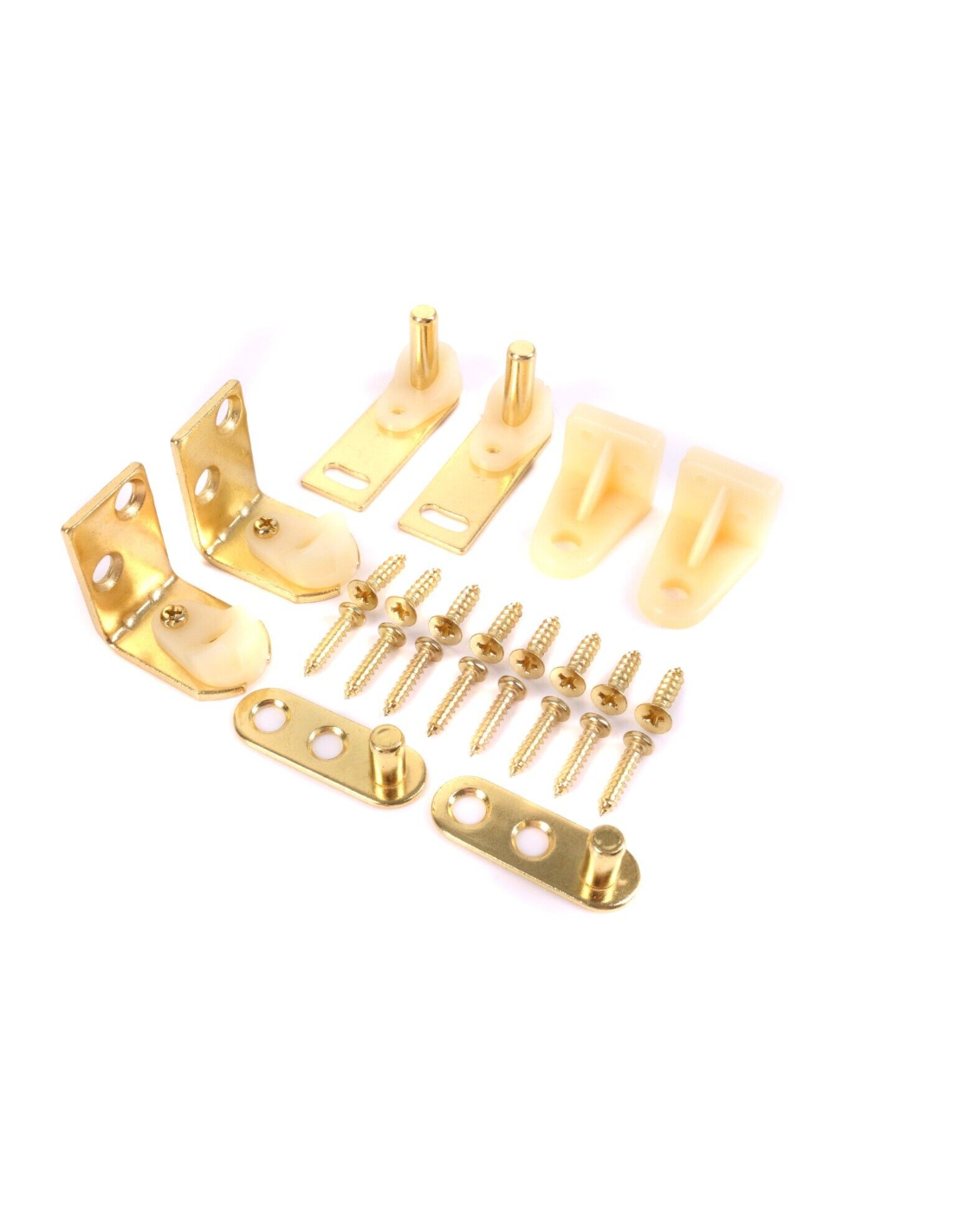

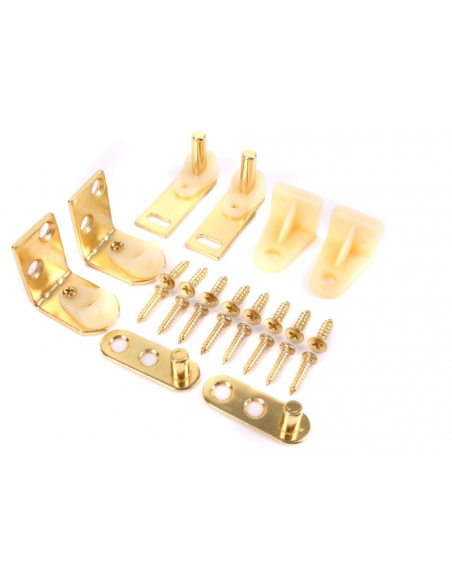

Kit contents	Top and bottom pivots + fixing screws
Compatibility	Woodup western doors White lacquered western door, Natural pine western door, Rustic western door and comparable formats

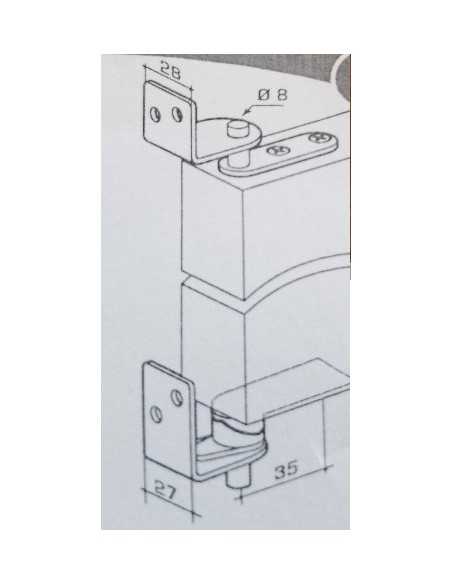

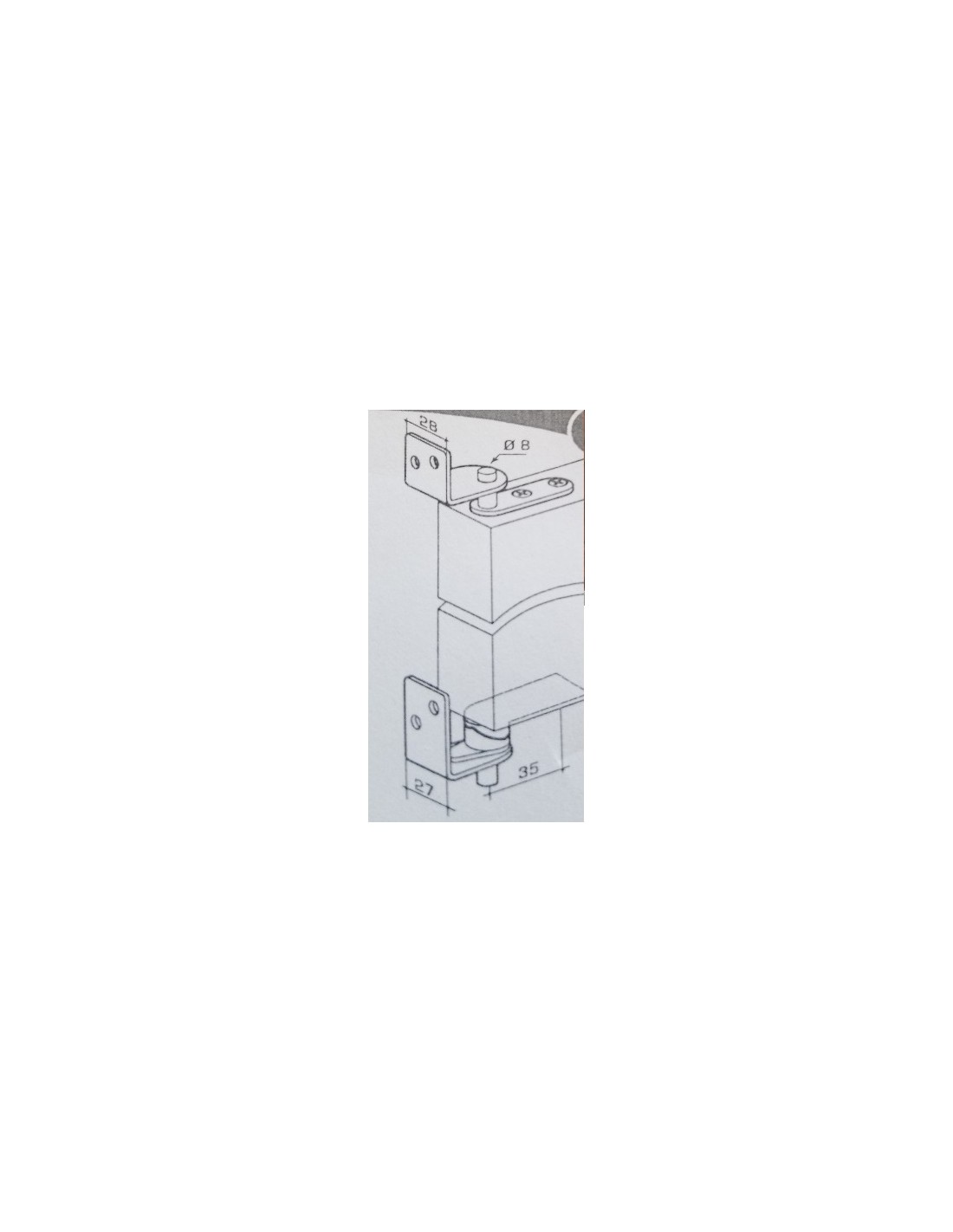

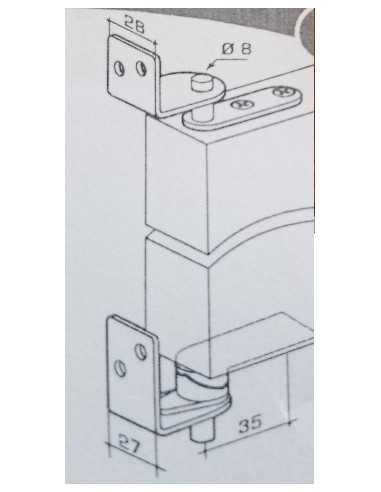

Fixing	At the top and bottom of each leaf (vertical axis)
Sold	Per pair (fits 2 leaves)
Usage	Indoor use only

Packaging

Kit for 2 leaves (top + bottom pivots + screws)
Doors sold separately

Key points

✓ Double-direction opening: smooth passage in both directions without pushing or pulling
✓ Automatic return: systematic closing after each passage
✓ Complete kit: top and bottom pivots + screws, installation without additional purchase
✓ Compatible with the Woodup range: designed for western doors White lacquered western door, Natural pine western door, Rustic western door
✓ Durable metal: resistance to intensive indoor use

Installation advice

Position the bottom pivot on the floor, centred beneath the leaf, pre-drilling the floor according to the template holes. Then fix the top pivot to the lintel or upper cross member of the frame, in perfect vertical alignment with the bottom pivot. Fit the leaf onto both pivots and check for free movement in both directions. A vertical misalignment creates resistance when opening: check with a spirit level. Refer to the assembly document provided in the kit for precise drilling dimensions.

Maintenance and protection

Lubricate the pivots with a few drops of light oil once or twice a year to maintain smooth movement. In the event of squeaking, cleaning followed by lubrication is generally sufficient. Check the tightness of the fixing screws annually, particularly on wooden floors which may move slightly with the seasons.

Frequently asked questions

Is this kit sufficient to fit a double-leaf door?

Yes. The kit is designed to fit two leaves (a pair of western doors). It contains the top and bottom pivots for each leaf as well as the necessary screws.

What is the difference between a swing pivot and a double-action hinge Double-action hinge H75?

The swing pivot is fixed at the top and bottom of the leaf with a central vertical axis. The double-action hinge Double-action hinge H75 is fixed to the side of the leaf like a standard hinge. Both allow opening in both directions, but the pivot offers smoother movement on standard western formats.

Are these pivots compatible with rustic western doors Rustic western door?

Yes. This kit is designed for Woodup range western doors, including the rustic models Rustic western door in 30 mm natural pine. Check that the leaf thickness is compatible with the pivot housing.

Does the floor need to be drilled to install the bottom pivots?

Yes. The bottom pivot is fixed to the floor by screwing. On a wooden floor, pre-drilling is essential. On tiles or concrete, use plugs suitable for the material. The drilling template is provided in the kit.

Can these pivots be used on doors other than western doors?

Yes, subject to dimensional compatibility. These pivots are suitable for any interior leaf requiring bidirectional opening with automatic return, of comparable height to western doors (105–115 cm).
