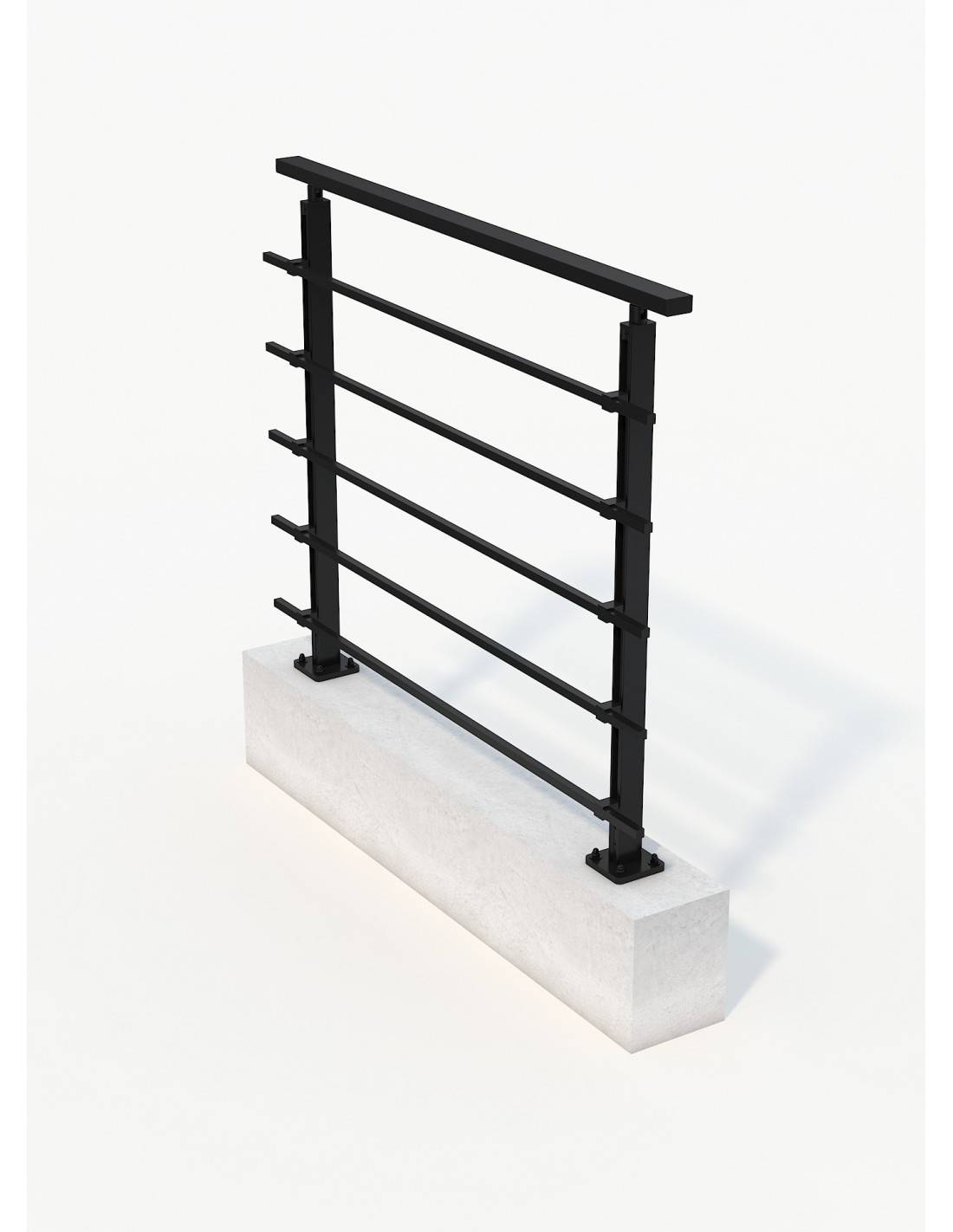

Quadrum Aluminium Starter Kit Balustrade – Square Rails Gloss Black or Gloss Stainless Steel

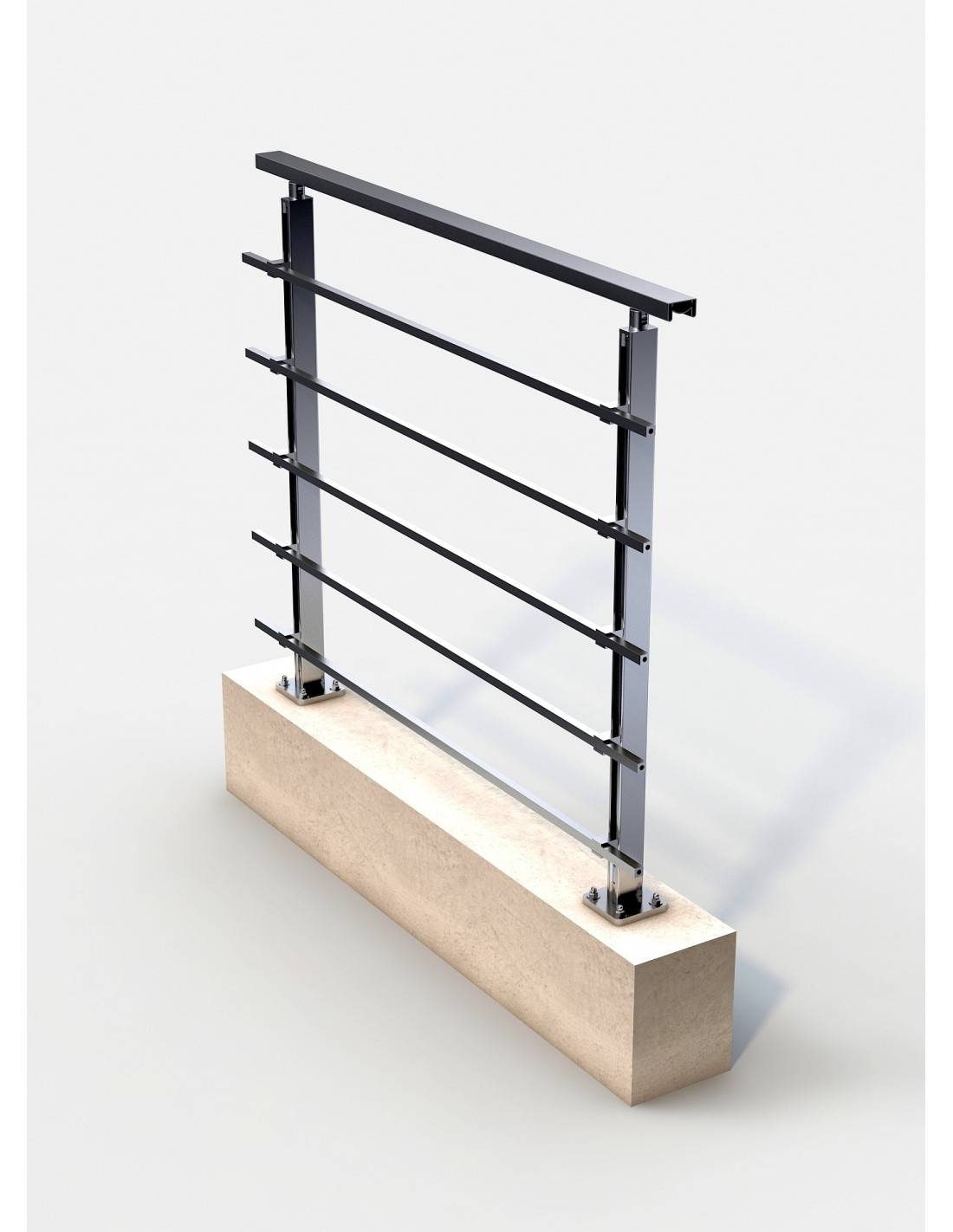

The Quadrum starter kit is the starting section of an anodised aluminium horizontal square rail balustrade system. It covers a length of 120 cm for a finished height of 1 metre, compliant with landing balustrade standards. Available in two finishes — gloss black for a bold contemporary look, gloss stainless steel for a timeless aesthetic — it is suitable for both indoor and outdoor use thanks to the corrosion resistance of anodised aluminium.

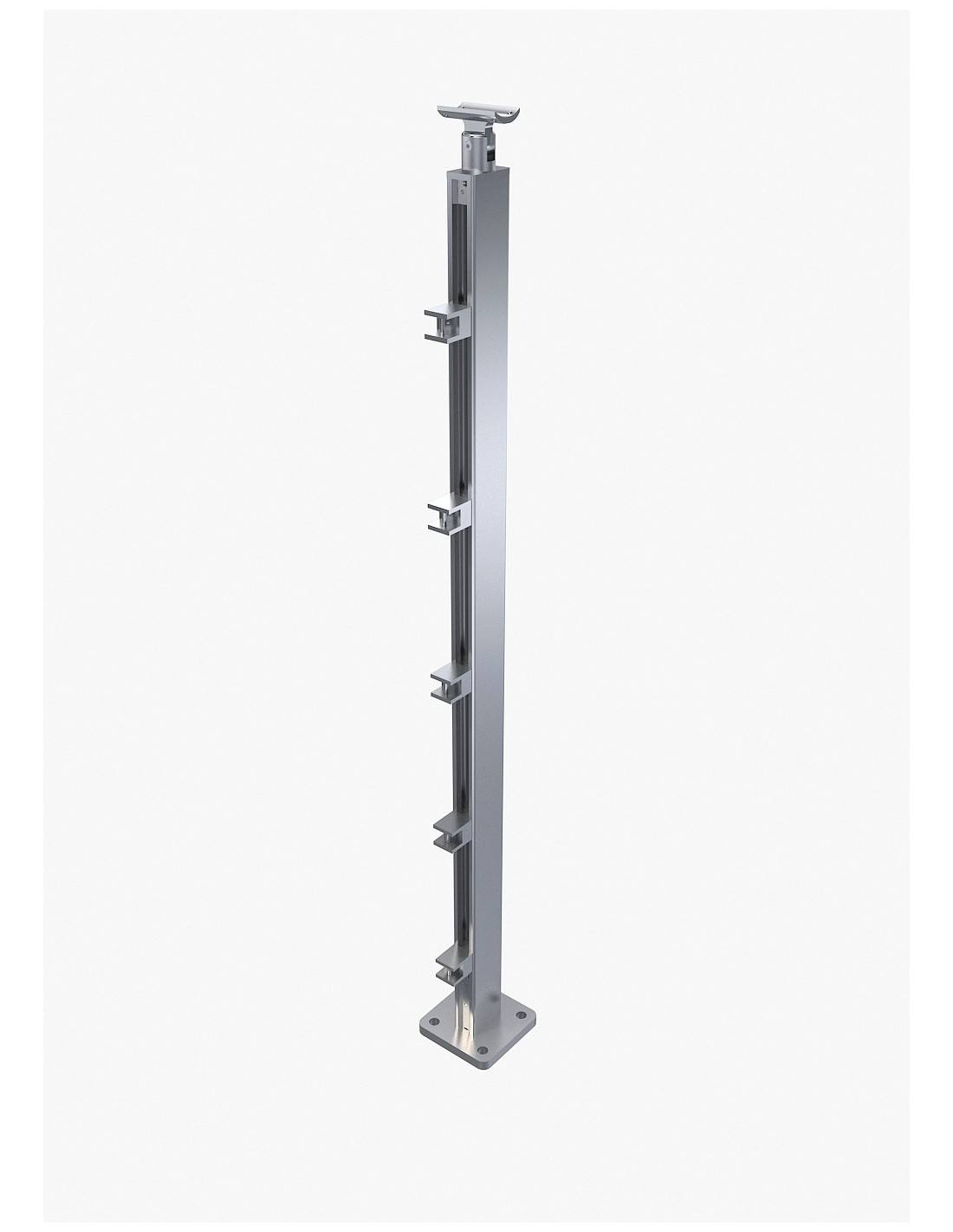

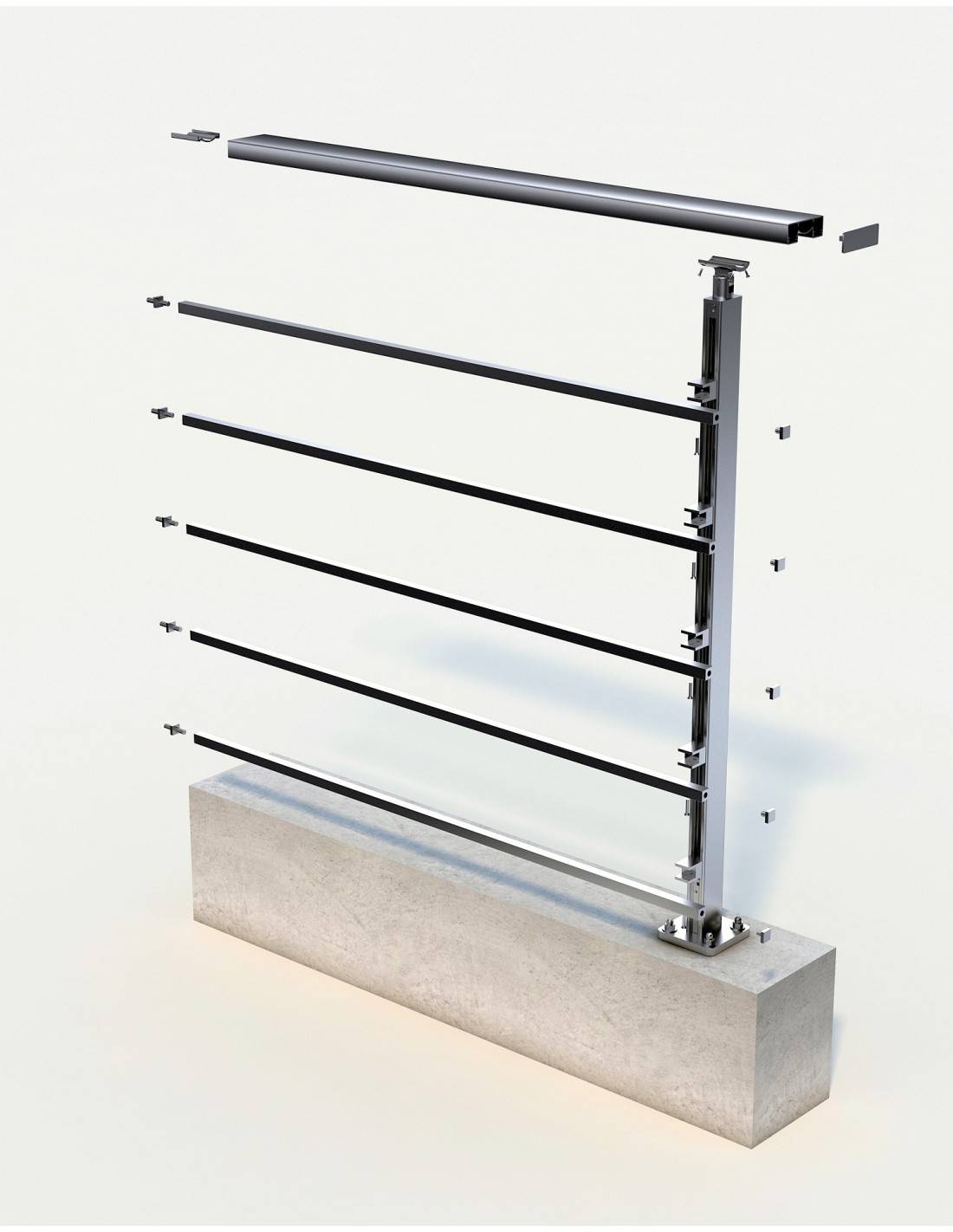

The kit includes pre-assembled posts, square-section aluminium handrail and five horizontal square rails — it is ready to install upon receipt. Floor fixing screws are not included as they depend on the substrate. To cover spans greater than 120 cm, pair this starter kit with one or more Quadrum extension kits, each adding 100 cm of additional span.
Main characteristics
| Characteristic | Value |
| Material | Anodised aluminium |

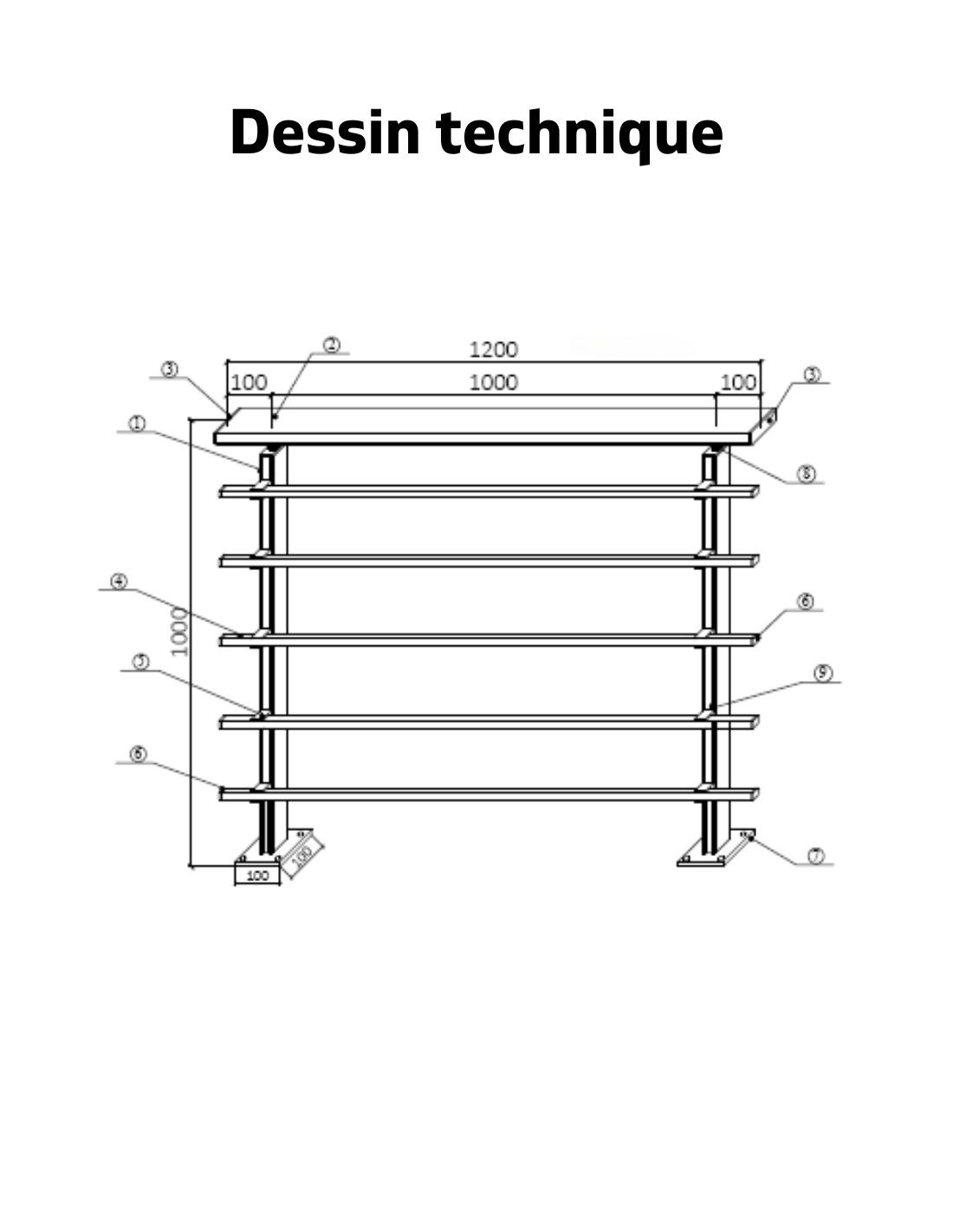

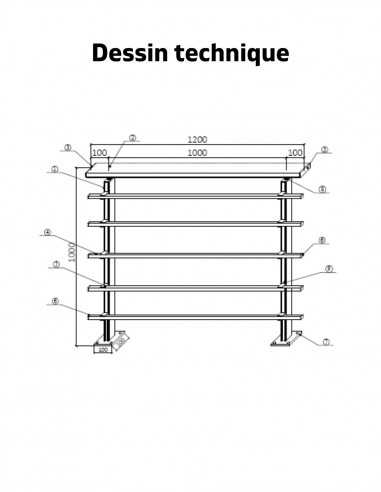

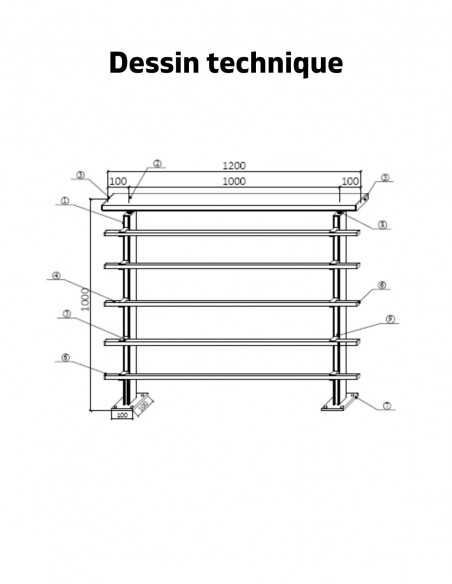

| Starter kit length | 1,200 mm |
| Balustrade height | 1,000 mm |
| Rails | 5 horizontal square rails |
| Finishes | Gloss black / Gloss stainless steel |

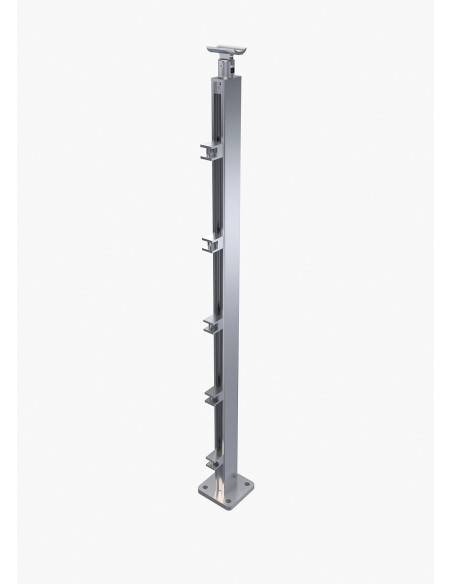

| Posts | Pre-assembled — ready to install |
| Floor fixing screws | Not included |
| Extendable | Yes — Quadrum aluminium extension kit 100 cm each |
| Use | Indoor and outdoor |
Key points
- ✓ Anodised aluminium — corrosion resistance, virtually no maintenance, suitable for outdoor use
- ✓ Pre-assembled posts — no prior assembly required, direct installation
- ✓ 5 horizontal square rails — compliant infill, spacing ≤ 18cm between rails
- ✓ 2 finishes — gloss black or gloss stainless steel to suit your décor
- ✓ Modular system — extendable with Quadrum extension kits (+ 100cm per module)
- ✓ Indoor and outdoor use — no exposure restrictions
Installation tips

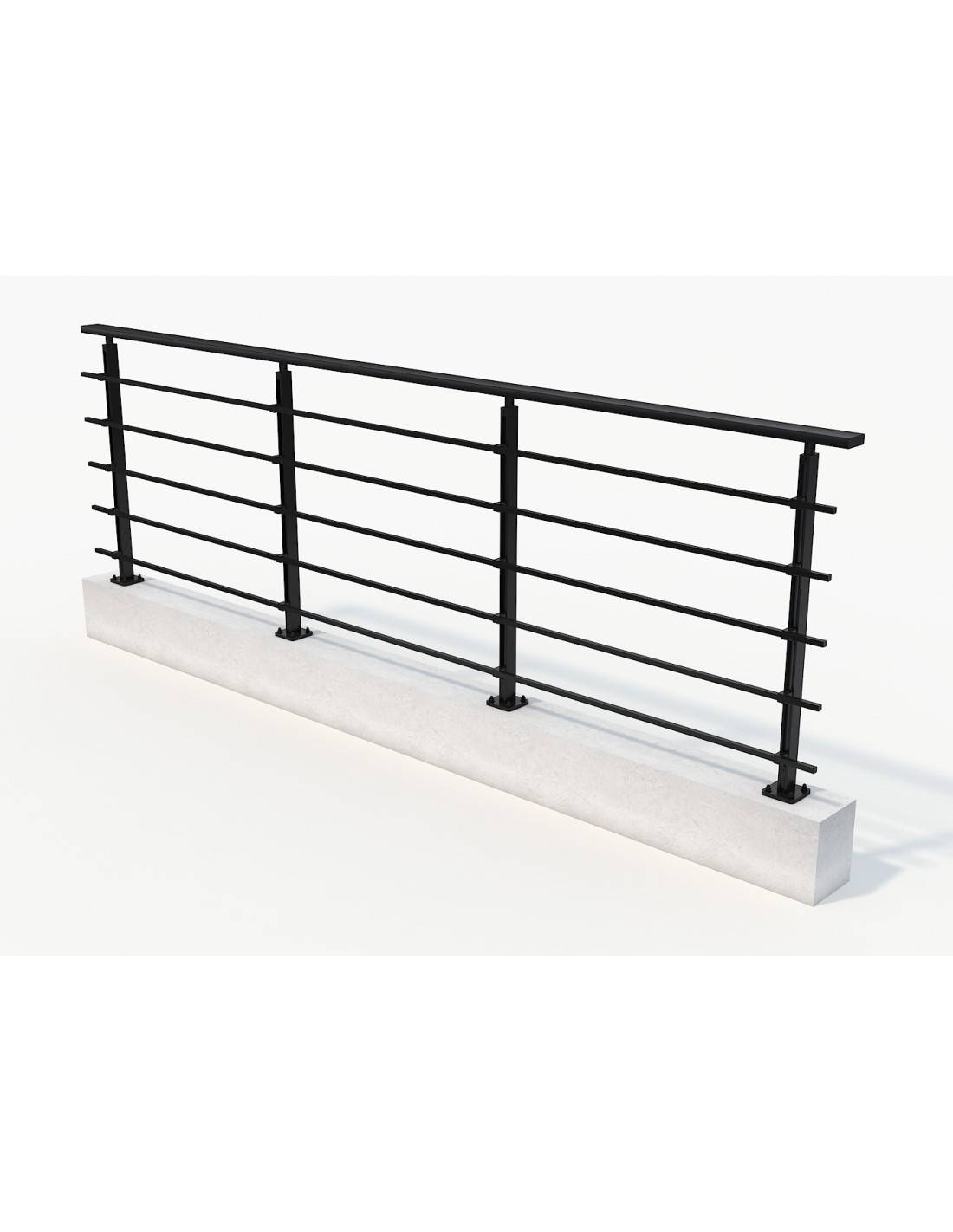

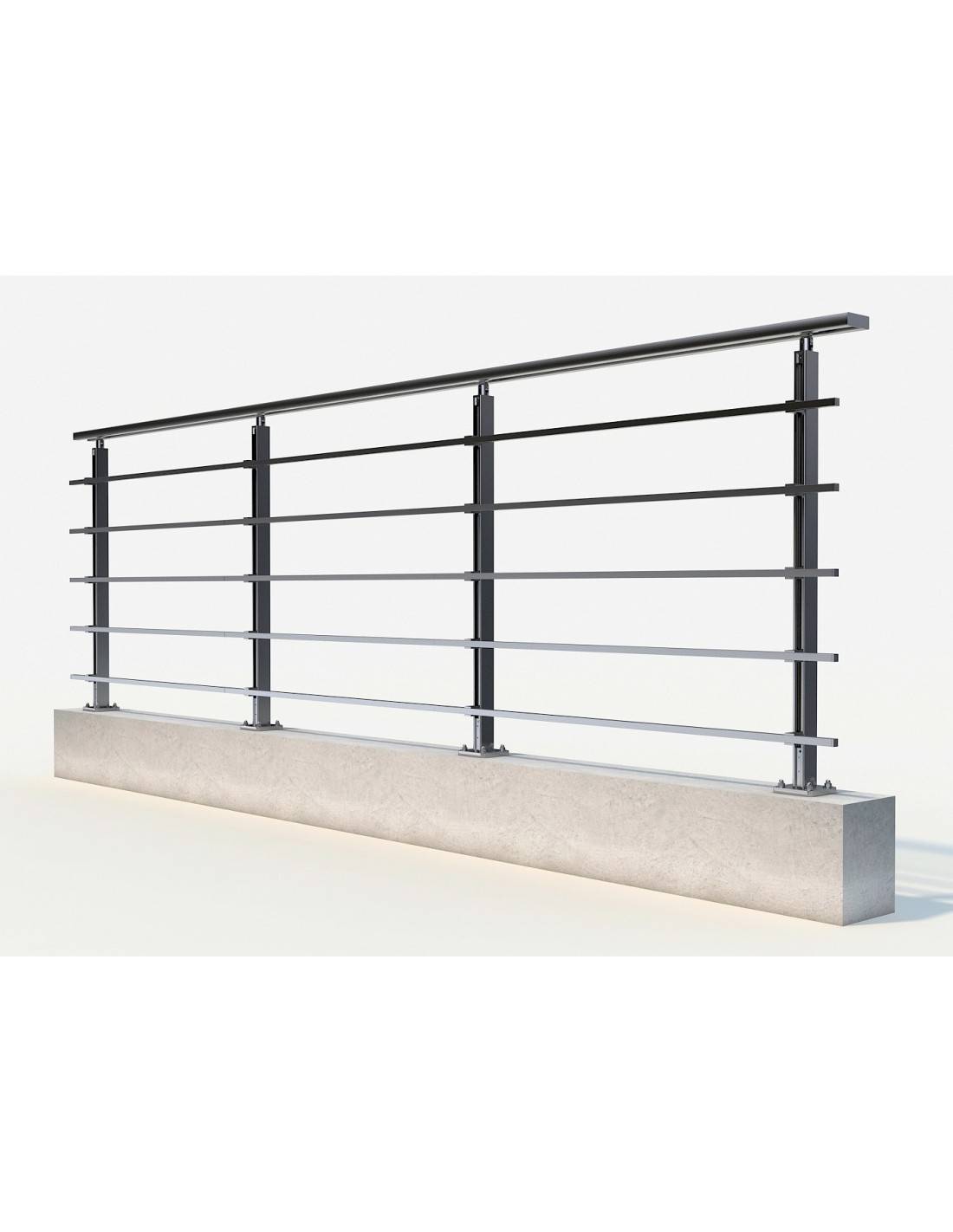

Planning: For a span of 220 cm, combine 1 starter kit (120cm) + 1 extension kit (100cm). For 320 cm: 1 starter kit + 2 extension kits. The final span can be adjusted by cutting on site. Allow for joining accessories (rail connectors and handrail connectors) between each module.
Floor fixing: Posts are fixed via the included base shoes. Choose the fixings according to your substrate: Ø6mm stainless steel screws for wooden floors, Ø8mm expansion anchors for concrete. Floor fixing screws are not supplied — plan for this purchase. Check the vertical alignment of each post with a spirit level before final tightening.

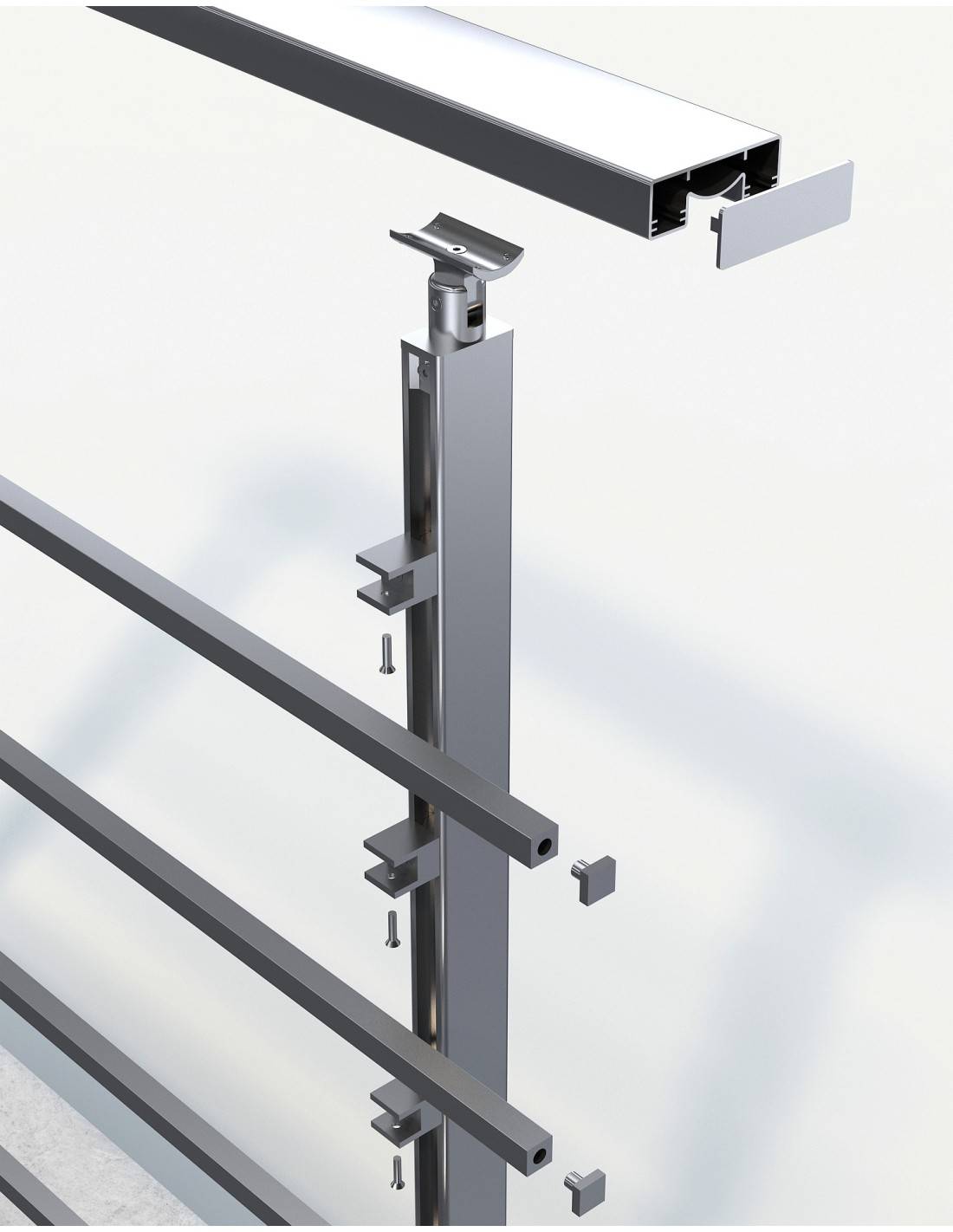

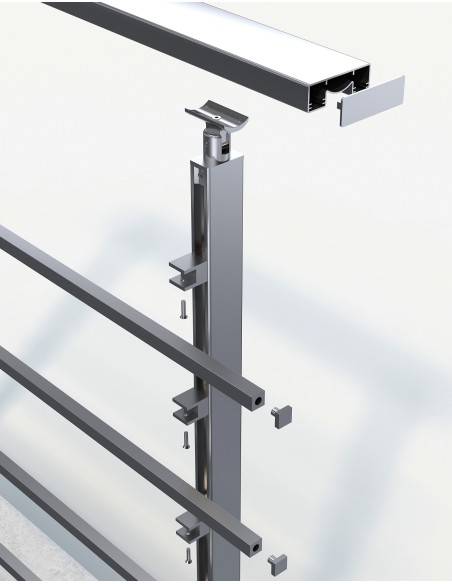

Connections between modules: Connect the square rails between modules with the Quadrum connectors and the handrail with the horizontal connectors Articulated handrail connector Quadrum 80x30mm. These accessories are not included in the starter kit — order them separately according to your configuration.
Maintenance and protection
Anodised aluminium is virtually maintenance-free. An annual clean with soapy water and a soft sponge is sufficient to maintain the glossy appearance. Avoid abrasive products that would scratch the anodising. In coastal areas, rinse with fresh water after episodes of sand or sea spray to preserve the finish's shine.
Frequently asked questions
How do I calculate how many Quadrum extension kits to order?
Subtract the length of the starter kit (120cm) from your total span, then divide by 100cm (length of one extension kit). Example: for 320cm → (320 − 120) ÷ 100 = 2 extension kits. For 270cm → (270 − 120) ÷ 100 = 1.5 → order 2 extension kits and cut the last one to 50cm on site.
Is the Quadrum kit suitable for a staircase (raking balustrade)?
The Quadrum starter kit is designed for horizontal balustrades (landing, mezzanine, terrace). For a stair balustrade (raking balustrade), inclined posts or angular adaptation accessories are required. Contact WoodUp to check compatibility with your stair configuration before ordering.
What is the difference between the Quadrum range and the Ellipsis range?
The Quadrum range has flat posts and square-section rails — a more angular, industrial look. The Ellipsis range has round posts and round Ø16mm-section rails — a softer, more organic look. Both are available in gloss black and gloss stainless steel, and are suitable for indoor and outdoor use. Accessories are not interchangeable between the two ranges.
Are the floor fixing screws supplied with the Quadrum kit?
No. The floor fixing screws are not included as they depend on the type of substrate. Allow for Ø6mm stainless steel screws minimum 50mm long for wooden floors, or Ø8mm expansion anchors for concrete. For tiles or a slab, use specialist tile anchors with a prior pilot hole drilled with a diamond bit.
