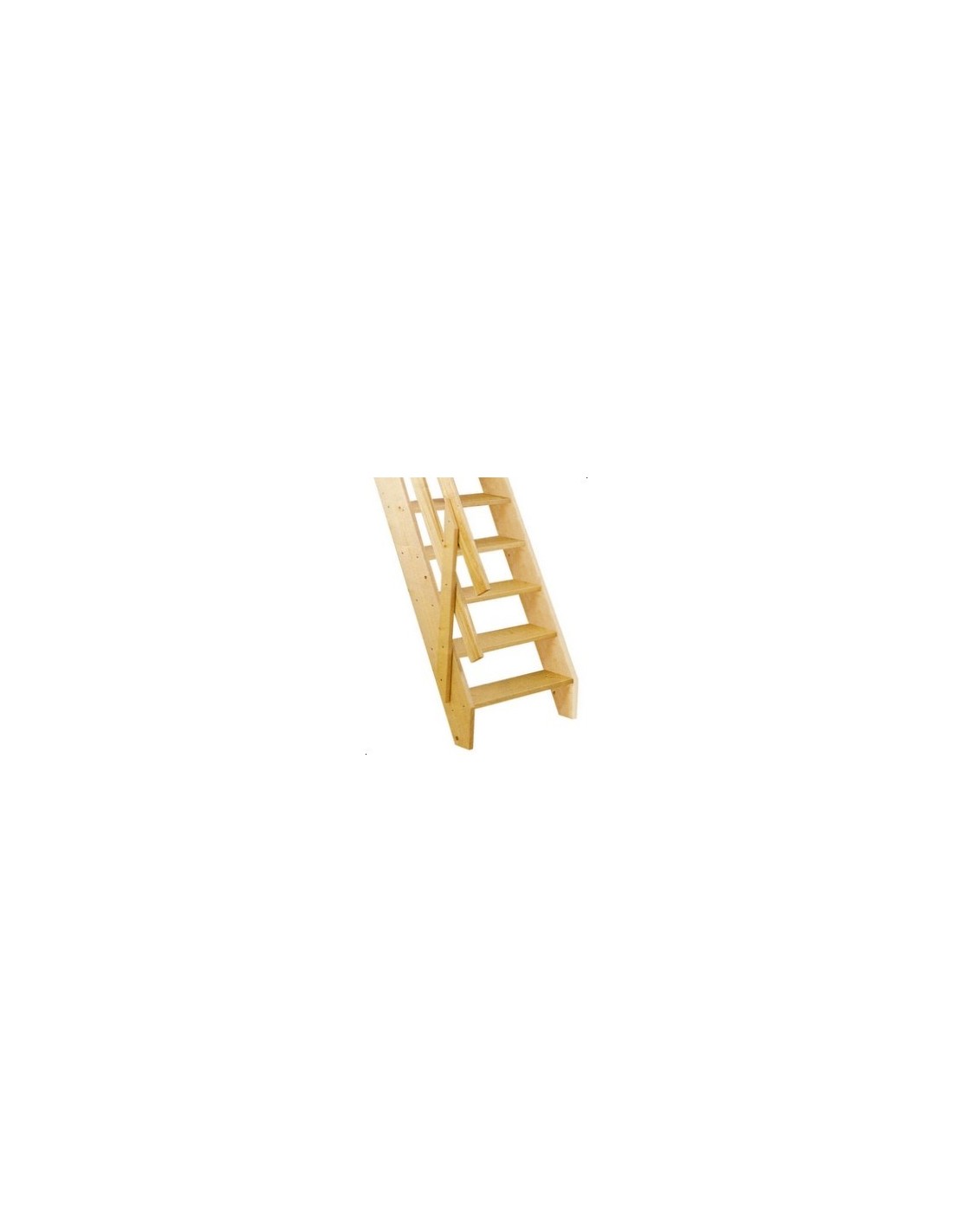

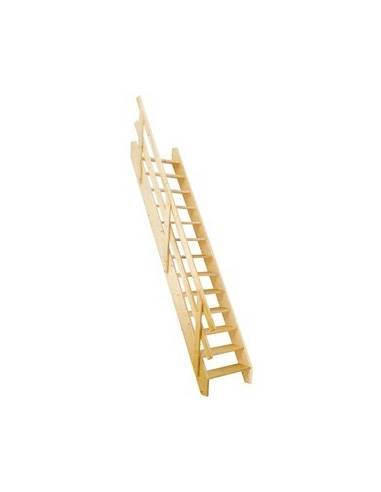

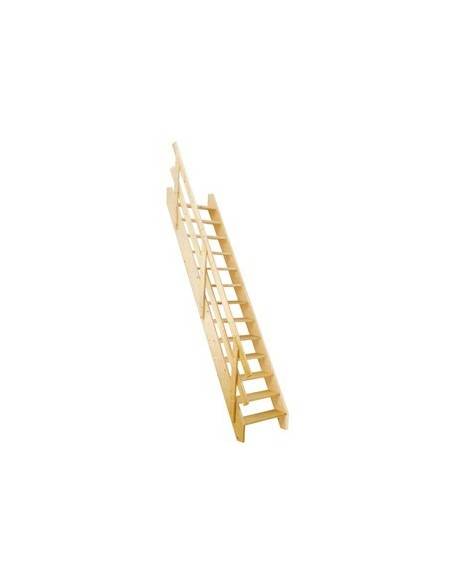

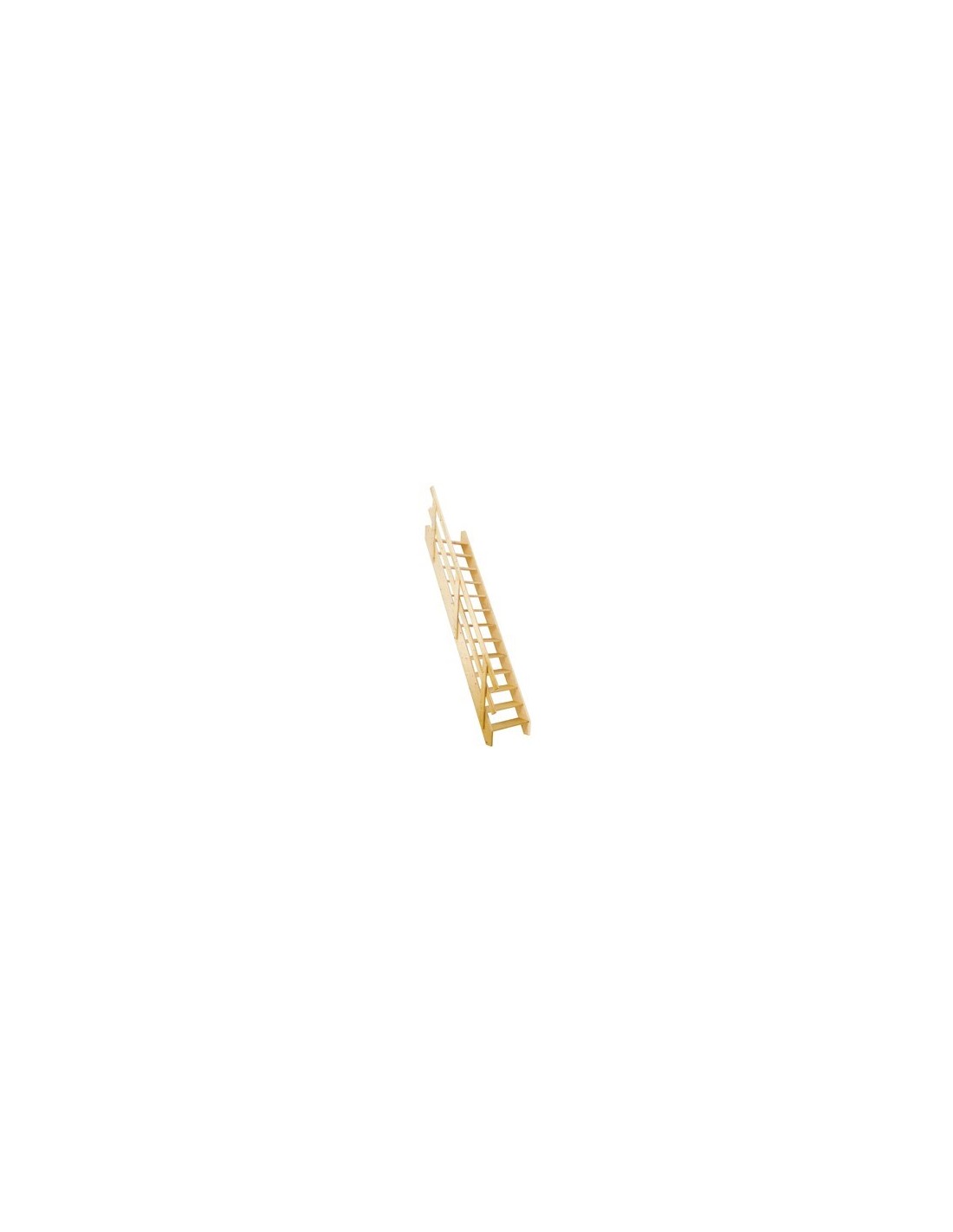

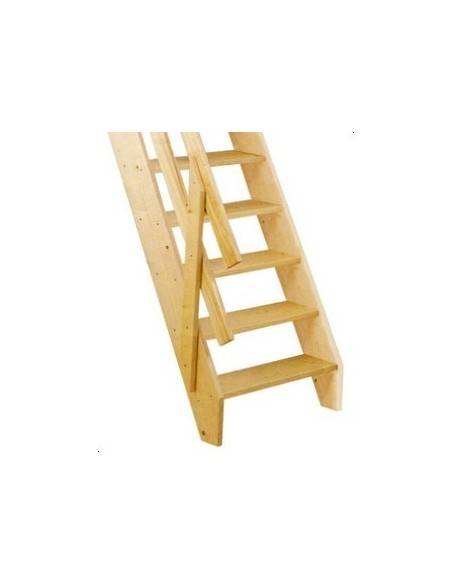

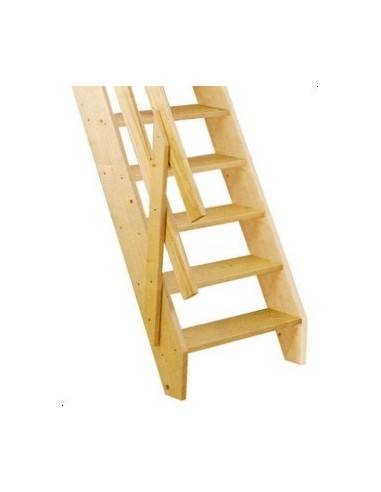

TRELIS wooden handrail with horizontal rails

Name: TRELIS wooden handrail with horizontal rails
Brand: Levigne
SKU: REL10
Price: 98.66 EUR
Availability: PreOrder

TRELIS fir handrail with horizontal rails. Kit: 4 vertical boards 92 x 21 mm (length 1.20 m), 2 horizontal rails 92 x 22 mm (length 3.90 m) and 18 screws 4x40 mm included. Generous 92 mm sections for a length of 3.90 m. Untreated raw fir, to be varnished (2 coats recommended for the handrail subject to contact) or painted before use. Reversible: right or left when going up. Indoor use only.

Wood species

Reference REL10

€98.66 incl. tax

Lead time 5 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

TRELIS fir handrail with horizontal rails

The TRELIS handrail is a horizontal rail handrail in fir. Kit: 4 vertical boards 92 x 21 mm (length 1.20 m), 2 horizontal rails 92 x 22 mm (length 3.90 m) and 18 screws 4x40 mm. Generous sections (92 mm), untreated raw fir. Indoor use only. Reversible.

Main features

Characteristic	Description
Vertical boards	4 x 92 x 21 mm - length 1.20 m
Horizontal rails	2 x 92 x 22 mm - length 3.90 m
Fixings	18 screws 4x40 mm included
Material	Untreated raw fir
Usage	Indoor use only
Reversibility	Reversible

Key points

? 92 mm sections: sturdy rails for a length of 3.90 m
? Complete kit: 4 boards, 2 rails and 18 screws
? Reversible: right or left when going up
? Raw fir: customisable with varnish, paint or wood stain
? Horizontal lines: clean, contemporary design

Installation tips

Fix the 4 vertical boards to the string or steps at regular intervals. Check the plumb before tightening. Then fix the 2 horizontal rails. Spacing less than 11 cm, height 90 cm minimum from the nosing of the step.

Maintenance and protection

The wood is delivered untreated. Apply a protective finish before use: 2-coat satin varnish (maximum durability), oil-wax (natural appearance, renewal every 1–2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.

Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

Frequently asked questions

Can this handrail be fitted on the right or left side of the staircase?

Yes, this handrail is reversible - it can be fitted on either the right or left side when going up, depending on your configuration. No modification is required.

What finish should be applied to this wooden handrail?

The handrail requires an abrasion-resistant finish: 2-coat satin varnish is recommended. Oil-wax or paint for the balusters and posts depending on the décor. Apply the finish before final fixing.

Does the spacing between the balusters comply with the safety standard?

The spacing must be less than 11 cm (standard NF P01-012). Check the actual spacing after installation. The minimum height of the handrail is 90 cm from the nosing of the step.

Should the wood be treated before or after installation?

Before, preferably: apply the finish to all components before final fixing to treat hidden areas as well. Allow to dry completely before fixing.

Is the included hardware sufficient to fix the handrail to the steps?

The included fixings cover the assembly of the handrail components together. For fixing to the steps and floor, provide screws or coach screws suited to the staircase material (wood: screws 5x60 mm min., concrete: wall plug + stainless steel screw).
