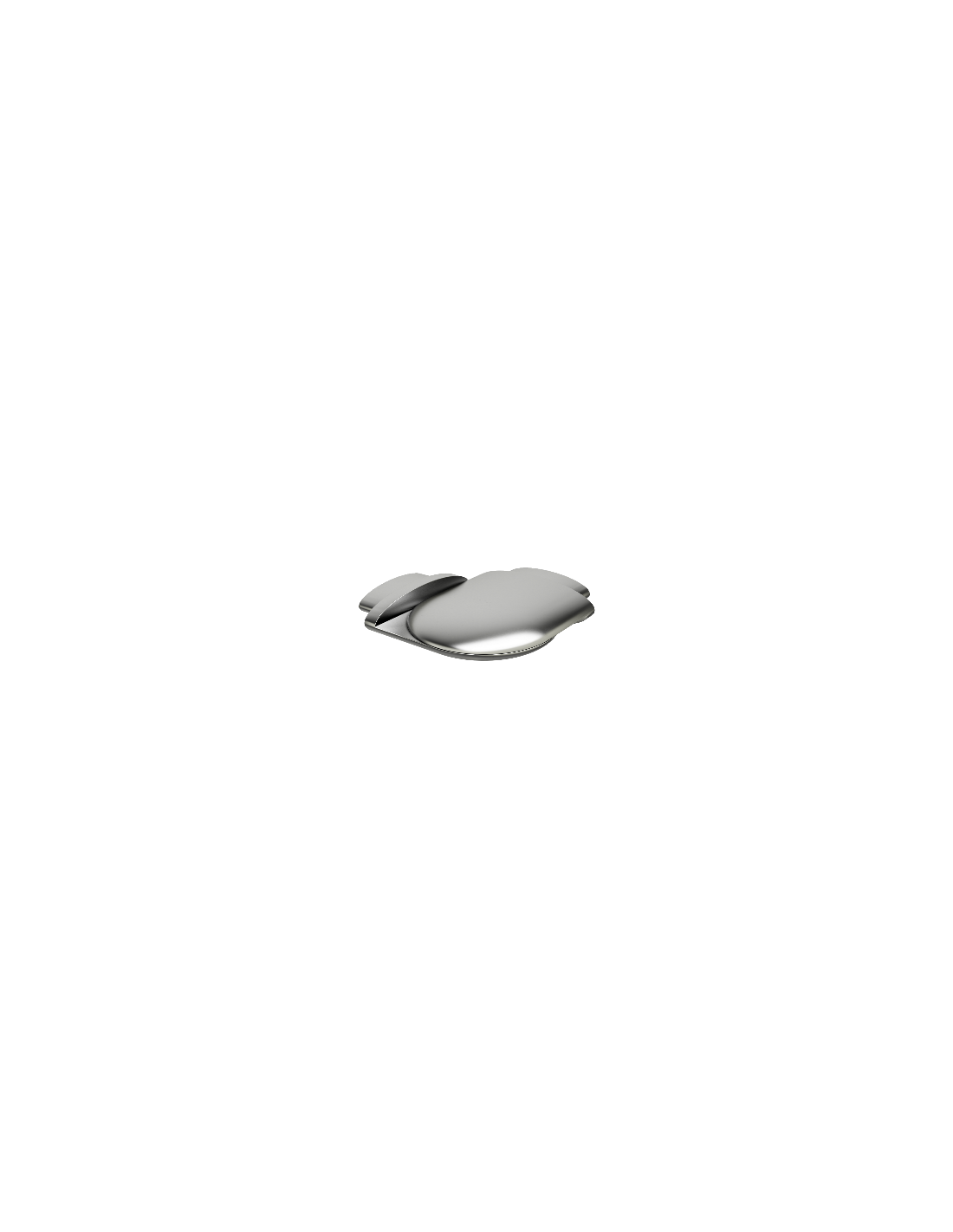

Articulated handrail connector for Ellipsis range

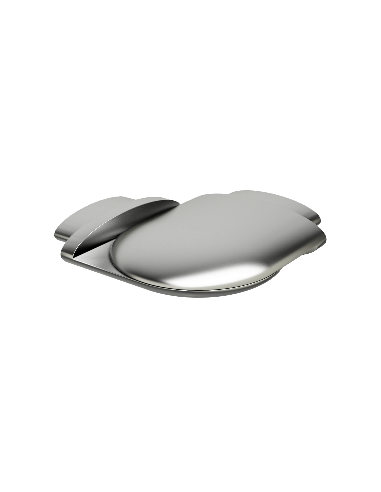

Articulated handrail connector for the ELLIPSIS range

Articulated joiner for aluminium handrail - Ellipsis range. Anodised aluminium. Variable angle connection between two sections of Ellipsis Ø50mm handrail for landing angles or changes of direction. Angle adjustable and locked by screw. Finishes: gloss black or gloss stainless steel. Compatible only with the Ellipsis Ø50mm handrail - not compatible with the Quadrum 80x30mm handrail. Maintenance: check tightness annually. Indoor and outdoor use. Sold individually.

Metal colour

Reference ELRACINBHOR

€82.68 incl. tax

In stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

Ellipsis Range Articulated Handrail Connector - Variable Angle Aluminium Junction

This articulated joint connects two sections of Ellipsis handrail at a variable angle, for configurations where the balustrade changes direction — landing angle, mezzanine return, L-shaped staircase. It is designed specifically for the rounded-profile handrail of the WoodUp Ellipsis range (Ø50mm cross-section) and is not compatible with the Quadrum range. Available in gloss black and gloss stainless steel finishes, it ensures the visual continuity of the installation.

Sold individually, it is used at each handrail direction change. For right angles (90°) or non-standard variable angles, this articulated joint is the simplest solution — it avoids having to mitre-cut the ends and weld or glue the junctions.

Main features

Feature	Value
Material	Anodised aluminium
Use	Variable angle joint - Ellipsis handrail
Handrail compatibility	Ellipsis handrail Ø50mm
Finishes	Gloss black / Gloss stainless steel
Range	Ellipsis only - not compatible with Quadrum
Sold	Sold individually

Key points

✓ Variable angle - adapts to all direction changes without mitre cutting
✓ Compatible with Ellipsis Ø50mm handrail - clips on without modification
✓ Consistent finishes - gloss black or gloss stainless steel identical to the rest of the range
✓ Sold individually - order as many as there are direction changes required
✓ Exclusive to the Ellipsis range - not interchangeable with the Quadrum range

Installation tips

Position the articulated joint at the desired angle between the two handrail sections. Set the angle before tightening the locking mechanism — once tightened, the joint holds the angle permanently. Then insert the ends of the handrail sections into the joint's sockets and fix according to the manufacturer's instructions. This joint works in tandem with the round rail articulated joints Ellipsis Ø16mm articulated rail joint to ensure a consistent angle across the full height of the balustrade.

Maintenance and protection

Clean with soapy water. Check the tightness of the locking mechanism annually — a poorly tightened articulated joint can create play in the handrail under load. Outdoors, rinsing with fresh water after salt exposure (seaside, de-icing) prevents mineral deposits on the articulation mechanism.

WoodUp tip

What to know before buying: this articulated joint is exclusively for the ELLIPSIS range handrail (100x30mm rounded profile cross-section) — it is not compatible with the QUADRUM handrail (80x30mm). It allows a variable angle between two sections, but does not replace a straight connector (ID 809) for in-line junctions. Allow one joint per direction change. The clamping fixings are included.

Frequently asked questions

Is this articulated joint compatible with the WoodUp Quadrum range?

No. This joint is designed for the Ellipsis handrail with a rounded Ø50mm profile. The Quadrum range uses a handrail with an 80x30mm cross-section — the connectors are different. For the Quadrum range, order the articulated horizontal connector for the 80x30mm handrail: Quadrum 80x30mm articulated handrail connector.

How many articulated joints should be ordered for a U-shaped balustrade?

A U-shaped balustrade (three sides) requires 2 articulated handrail joints (one for each 90° angle) and 2 sets of articulated rail joints Ellipsis Ø16mm articulated rail joint — one set of 5 joints per angle, making 10 rail joints in total. The fixings are included with these accessories.

Can the articulated joint handle angles of less than 90° (rake staircase balustrade)?

This joint is designed for horizontal direction changes on landings and mezzanines. For a staircase rake balustrade, the incline requires different specific accessories. Consult WoodUp before ordering to confirm compatibility with your staircase configuration.

Should the articulated handrail joint be ordered at the same time as the rail joints?

Yes, always. A direction change on an Ellipsis balustrade means managing the angle on the 5 rails AND on the handrail simultaneously. Always order both accessories together for each angle in your configuration.

Is this Ellipsis articulated joint suitable for outdoor use?

Yes, anodised aluminium resists outdoor exposure without treatment. The Ellipsis range is designed for both indoor and outdoor use. Outdoors, check the tightness of the articulation locking screw once a year to maintain the set angle. In coastal environments, rinsing with fresh water after periods of intense exposure is sufficient to maintain the finish.
