BAVAT Exterior spindle handrail quarter-turn upper landing

BAVAT handrail outer side wooden spindles

BAVAT handrail outer side wooden spindles for BAVAT QT Haut WoodUp staircase. Wooden spindles 65 x 20 mm, newel posts 70 x 70 mm, handrail 50 x 50 mm, bottom rail 50 x 35 mm, fixings included. Available in Oak LC / Beech LC / Fir LC depending on choice, raw untreated wood to be varnished or painted - 2-coat satin varnish recommended for the handrail. Non-reversible: you must check the quarter-turn configuration before ordering. Interior use only.

Wood species

Glued laminated beech
Fir

Quarter turn

Top left
Top right

Reference RAFBEXTQTHSAG

€359.00 incl. tax

Made to order 5 6 weeks

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

BAVAT handrail outer side wooden spindles

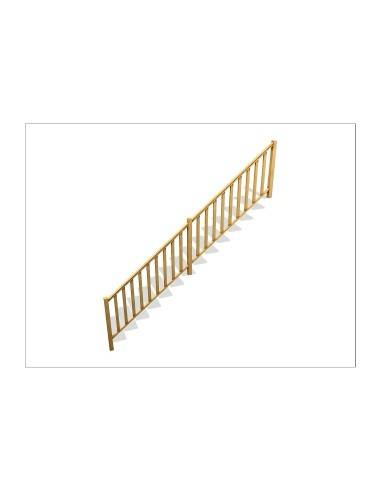

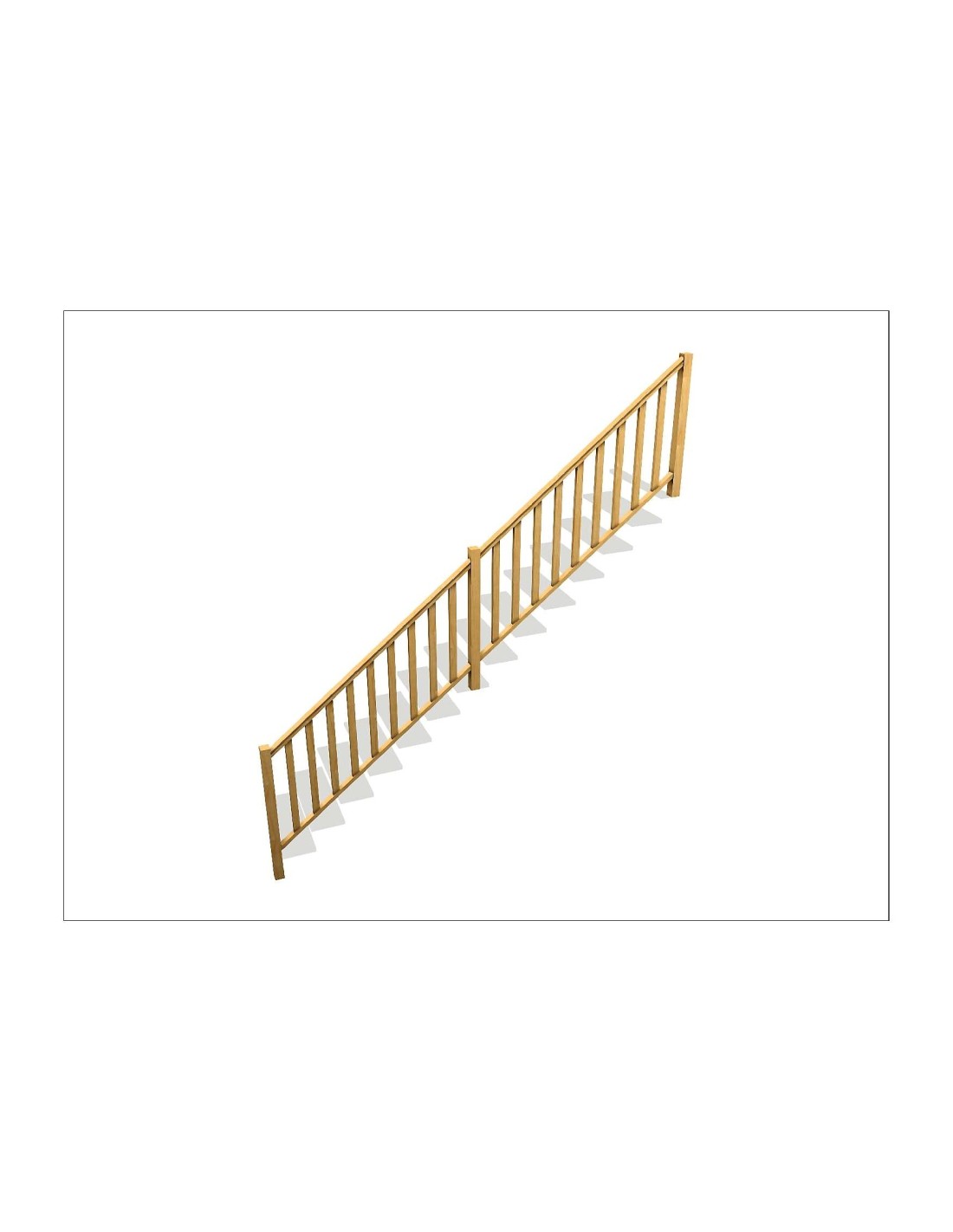

The BAVAT outer side wooden spindles handrail is a wooden spindle handrail 65 x 20 mm for the BAVAT QT Haut staircase. It includes wooden spindles 65 x 20 mm, newel posts 70 x 70 mm, a handrail 50 x 50 mm and a bottom rail 50 x 35 mm. Fixings included. Available in Oak LC / Beech LC / Fir LC. Non-reversible: you must check the position of the quarter turn and the direction of ascent before ordering.

Interior use only - LC wood species are not suitable for outdoor use. Must be installed at the same time as the staircase.

Main characteristics

Characteristic	Description
Compatible staircase	BAVAT QT Haut (ID NC)
Position	Outer side
Wooden spindles	65 x 20 mm
Newel posts	70 x 70 mm
Handrail	50 x 50 mm
Bottom rail	50 x 35 mm
Available wood species	Oak LC / Beech LC / Fir LC
Fixings	Included
Reversibility	Non-reversible
Use	Interior use only

Key points

✓ Wooden spindles 65x20 mm: warm traditional aesthetic
✓ Outer side: outer side of the curve
✓ Available wood species: Oak LC / Beech LC / Fir LC
✓ Fixings included: complete installation kit
✓ Non-reversible: choose according to the quarter-turn configuration

Installation advice

To be installed at the same time as the staircase. Fix the newel posts, bottom rail, spindles then handrail in that order. Check the height of 90 cm minimum from the nosing and spacing of less than 11 cm (standard NF P01-012). Apply varnish or paint before final fixing. Two people recommended.

Maintenance and protection

The wood is delivered raw and untreated. Apply a protective finish before use: 2-coat satin varnish (maximum resistance), oil-wax (natural look, renewal every 1-2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.

Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

Frequently asked questions

What is the outer side of a staircase?

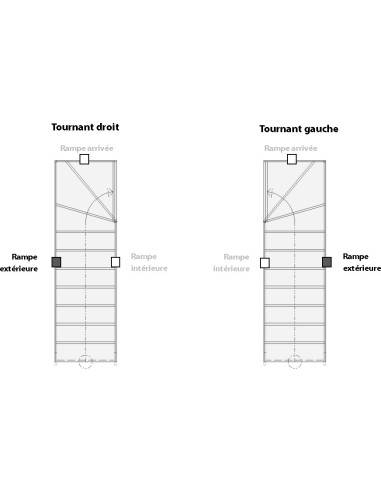

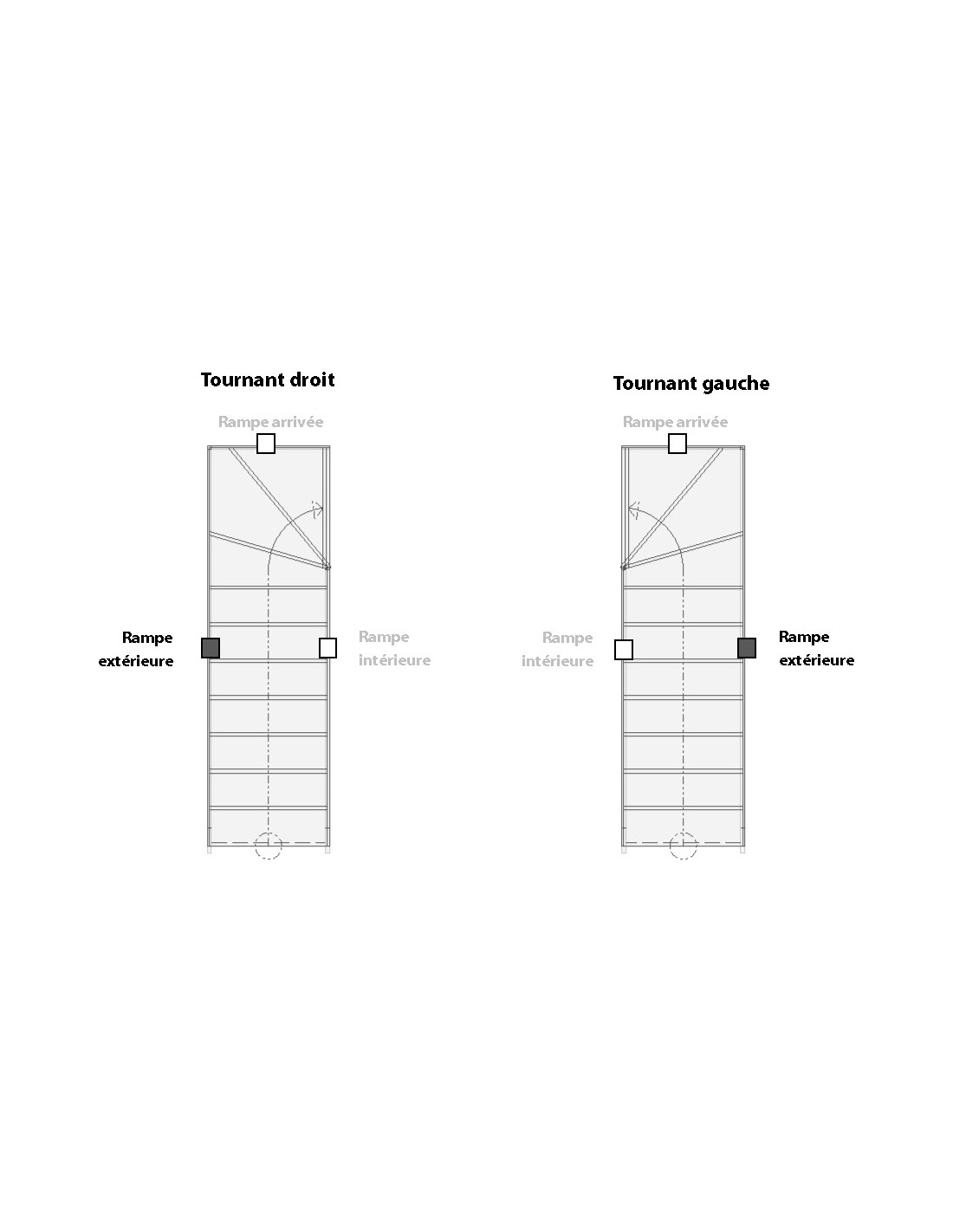

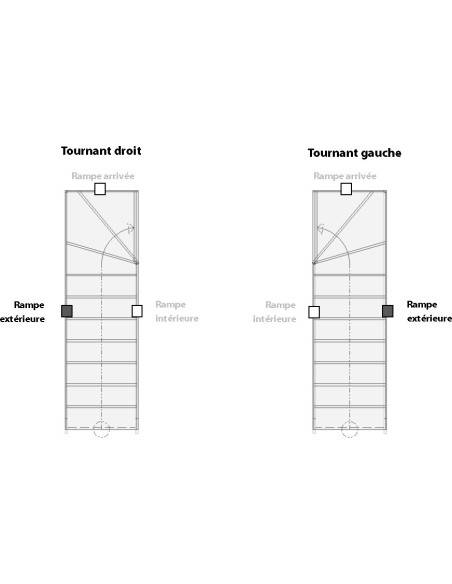

On a quarter-turn staircase, there is the inner side (the side towards which the staircase turns, inside the curve) and the outer side (the side opposite the curve, the free side of the flight). This handrail is positioned on the outer side. To determine it, walk up your staircase and observe which side the quarter turn is on.

Why is this handrail non-reversible?

The geometry of the quarter turn imposes a specific shape on the handrail. An outer-side handrail cannot be reversed to become an inner-side handrail - the angles and lengths of each section differ. You must check your configuration before ordering: position of the quarter turn and direction of ascent.

Can this handrail be installed after fitting the BAVAT staircase?

This handrail must be installed at the same time as the staircase - certain fixings are only accessible during assembly. Plan the installation at the same time.

What finish should be applied to this wooden handrail?

The handrail, subject to daily contact, requires an abrasion-resistant finish: 2-coat satin varnish is recommended. For the spindles and newel posts, an oil-wax (natural look) or paint depending on the décor. Apply the finish before final fixing to treat hidden areas.

Does the spacing between the spindles comply with the safety standard?

The spacing must be less than 11 cm to prevent the passage of an 11 cm sphere (standard NF P01-012). Check the actual spacing after installation according to the configuration of your staircase, particularly at the bottom of the flight where the handrail is more open.
