BAVAT BEECH + SPINDLE HANDRAIL

Quarter-turn top staircase in laminated beech, left or right hand

With/without risers

Trimmable tread by tread

Delivered with a wooden spindle handrail

Delivered as a kit

Delivered with support post

Quarter-turn top staircase BAVAT Beech

€1,112.00

€1,056.55 Save 5%

0 In stock Restocking in progress

Riser

Quarter turn

Top left
Top right

BAVAT handrail interior side wooden balusters

€289.00

€274.55 Save 5%

3 In stock Dispatched within 10 days

Wood species

Glued laminated beech

Quarter turn

Top left
Top right

€1,401.00 incl. tax -€69.90 €1,331.10 incl. tax

Including €2.50 for ecotax (not impacted by the discount)

Restocking in progress

Quantité

Pack contents

Quarter-turn top staircase BAVAT Beech
BAVAT handrail interior side wooden balusters

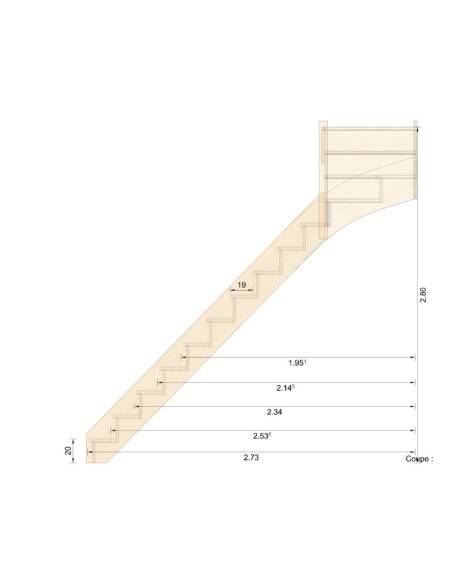

Top quarter-turn staircase BAVAT in glued laminated beech — height 280 cm. 13 steps + landing nosing, width 80 cm, step rise 20 cm, going 19 cm, stairwell opening 273x82 cm. Delivered in 5 parcels. Handrail available as an option — to be ordered separately. Available in right or left direction. Fixings and instructions included. Raw glued laminated beech — varnish finish recommended before installation. Pre-drilling required. Interior use only. Right or left direction — specify at time of order.

Quarter-Turn Top Staircase BAVAT - Glued laminated beech, 280 cm, Standard Range

The BAVAT staircase in glued laminated beech is a top quarter-turn staircase from the Standard range, available in several wood species (beech, oak, fir depending on the version). The BAVAT Beech version presented here is designed for a floor-to-floor height of 280 cm with 13 treads + 1 landing nosing (14 total risers). The width is 80 cm, the recommended stairwell opening is 273x82 cm, the step rise is 20 cm and the going is 19 cm.

The BAVAT is delivered in 5 parcels (stringers, quarter-turn, newel posts, treads, risers). The handrail is available as an option. The direction (right or left) must be specified at time of order and is non-reversible. The footprint is 273 cm in the direction of ascent.

Main specifications

Specification	Description
Type	Top quarter-turn, interior, kit
Range	Standard (rise 20 cm / going 19 cm)
Species	Glued laminated beech
Floor-to-floor height	280 cm (trimmable)
Number of steps	13 steps + 1 landing nosing (14 risers)
Step rise	20 cm
Going	19 cm
Width	80 cm
Tread section	210×30 mm
Footprint	273 cm
Recommended stairwell opening	273x82 cm
Risers	With or without, your choice
Direction	Right or left - non-reversible, must be specified at time of order
Handrail	Optional - non-reversible, direction to be specified at time of order
Finish	Raw beech - finishing required before use
Use	Interior use only

Packaging

✓ Parcel 1: Stringers - 3060x220x70 mm / 17 kg
✓ Parcel 2: Quarter-turn - 1060x550x120 mm / 24 kg
✓ Parcel 3: Newel posts - 2000x150x80 mm / 7 kg
✓ Parcel 4: Treads - 770x330x220 mm / 23 kg
✓ Parcel 5: Risers (depending on version) - 750x200x220 mm / 14 kg

Packaging

✓ Parcel 1: Stringers - 3060x220x70 mm / 17 kg
✓ Parcel 2: Quarter-turn - 1060x550x120 mm / 24 kg
✓ Parcel 3: Newel posts - 2000x150x80 mm / 7 kg
✓ Parcel 4: Treads (with or without groove) - 770x330x220 mm / 23 kg
✓ Parcel 5: Risers (depending on version) - 750x200x220 mm / 14 kg

Key points

✓ Glued laminated beech: stable, wear-resistant, suited to intensive everyday use
✓ Landing nosing included: neat flush finish at upper floor level
✓ Detailed packaging in 5 parcels: optimised handling, each component identified
✓ Footprint 273 cm: compact for a top quarter-turn with landing nosing
✓ Direction non-reversible: must be determined before ordering - final
✓ Pre-drilling required: dense beech - always pre-drill before screwing

Installation tips

Check the footprint (273 cm) and the stairwell opening (273x82 cm) before ordering. Determine the direction (right or left) - finalised at time of order. Sort the 5 parcels according to the instructions before beginning assembly. Pre-drill on beech before any screwing. Minimum two people. The handrail can be added after assembly.

Maintenance and protection

Apply a staircase varnish in 2-3 coats before first use. Glued laminated beech marks quickly without protection. Renew every 5-7 years. The landing nosing, subject to direct foot traffic, may require more frequent renewal. Cleaning: damp cloth, neutral pH.

WoodUp tip

The BAVAT Beech is a quality top quarter-turn staircase with detailed packaging that facilitates assembly: each component is packaged separately and identified, which reduces assembly errors. The 5 separate parcels also allow for handling in constrained spaces - bringing up the stringers (parcel 1) separately from the quarter-turn components (parcel 2) avoids unpleasant surprises in narrow corridors.

Important before purchasing: the BAVAT is available in several versions (beech, oak, fir) - make sure you are ordering the beech version if that is your choice. The tread thickness is 30 mm.

Frequently asked questions

What is the landing nosing and how is it fitted?

The landing nosing is a beech piece fitted at the edge of the stairwell opening, in line with the last step. It creates a clean transition between the last step of the staircase and the floor covering of the upper level. It is fitted as the final step, once the staircase is fully assembled and secured. It is fixed by screwing or gluing depending on the adjacent floor covering.

What is the difference between the BAVAT Beech and the NERONNE fir in top quarter-turn?

The NERONNE is in fir, Standard range (rise 20 cm / going 19 cm), footprint 287 cm, stairwell opening 85x287 cm, likely delivered in 3 parcels. The BAVAT Beech is in beech, Standard range (same dimensions), footprint 273 cm, stairwell opening 273x82 cm, 5 parcels. The BAVAT has a slightly smaller footprint and is in beech - more durable. The NERONNE is in fir - more economical.

Does the BAVAT Beech exist in an oak or fir version?

Yes. The BAVAT is available in several wood species: beech (this model), glued laminated oak (BAVAT Oak) and fir (BAVAT FIR). The dimensions are identical (same footprint, same stairwell opening, same floor-to-floor height). The choice of species determines the aesthetics and durability. Refer to the BAVAT Oak and BAVAT FIR product sheets for details.

Can the handrail be fitted after the BAVAT has been assembled?

Yes. The handrail is optional and can be installed after the staircase has been assembled. It is not reversible on a top quarter-turn - its direction corresponds to the direction of the staircase. The fixings are supplied with the handrail.

Why is the BAVAT delivered in 5 parcels rather than 2 or 3?

Packaging in 5 separate components (stringers / quarter-turn / newel posts / treads / risers) optimises handling and reduces the risk of damage during transport. The stringers (parcel 1) are 3060 mm long and the quarter-turn section (parcel 2) is bulky - separating them allows them to be brought up one by one in narrow spaces. This packaging also makes it easier to sort the parts before assembly.

Can the BAVAT be trimmed for a height of 260 cm?

Yes. For 260 cm, remove one step (13 steps x 20 cm = 260 cm exactly) or trim the stringers slightly according to the diagram in the instructions. The first option (removing a step) is simpler. The second (trimming the stringers) allows you to keep the same number of steps with a slightly adjusted rise. Check on finished floor and ceiling before any work.

Our complementary staircases

BAVAT Oak - Top quarter-turn in oak, same dimensions

BAVAT FIR - Top quarter-turn in fir, same dimensions

SELA - Bottom quarter-turn, Comfort range, rise 18 cm going 22 cm

Data sheet

Width (cm): 80
Species/material: Glued laminated beech
Number of treads: 13+1/2
Footprint (cm): 273
Recommended stairwell opening (cm): 273 x 82
Floor-to-floor height (cm): 280
Step height (cm): 20
Range: Standard
Tread depth (cm): 19
Number of parcels: 4
Step thickness (cm): 3
Staircase type: Upper quarter turn

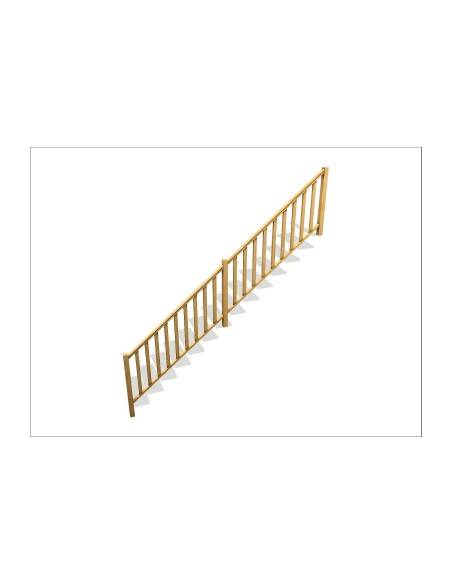

BAVAT railing inner side spindles beech for BAVAT QT High WoodUp staircase. wooden spindles 65 x 20 mm, posts 70 x 70 mm, handrail 50 x 50 mm, bottom rail 50 x 35 mm, screws included. Beech LC delivered raw and untreated, to be varnished (2 coats recommended for the handrail subject to contact) or painted before use. Non-reversible: always check the quarter turn configuration before ordering. Indoor use only.

BAVAT railing inner side spindles beech

The BAVAT inner side spindles beech handrail is a wooden spindle handrail 65 x 20 mm for the BAVAT QT High staircase. It comprises wooden spindles 65 x 20 mm, posts 70 x 70 mm, a handrail 50 x 50 mm and a bottom rail 50 x 35 mm. Screws included. Available in Beech LC. Non-reversible: always check the position of the quarter turn and the direction of ascent before ordering.

Indoor use only – LC species are not suitable for outdoor use. To be installed at the same time as the staircase.

Main features

Feature	Description
Compatible staircase	BAVAT QT High (ID NC)
Position	Inner side
Wood spindles	65 x 20 mm
Posts	70 x 70 mm
Handrail	50 x 50 mm
Bottom rail	50 x 35 mm
Available species	Beech LC
Screws	Included
Reversibility	Non-reversible
Use	Indoor use only

Key points

✓ Wood spindles 65x20 mm: warm traditional aesthetic
✓ Inner side: outer side of the curve
✓ Available species: Beech LC
✓ Screws included: complete kit for fitting
✓ Non-reversible: choose according to the quarter turn configuration

Installation advice

To be installed at the same time as the staircase. Fix posts, bottom rail, spindles then handrail in that order. Check the height of minimum 90 cm from the nosing and spacing less than 11 cm (standard NF P01-012). Apply varnish or paint before final fixing. Two people recommended.

Maintenance and protection

The wood is delivered raw and untreated. Apply a protective finish before use: satin varnish 2 coats (maximum resistance), oil-wax (natural look, renewal every 1–2 years) or paint. The handrail, subject to frequent contact, benefits from an abrasion-resistant varnish.

Annual maintenance with a product suited to the chosen finish. Avoid abrasive or solvent-based products.

Frequently asked questions

What is the inner side of a staircase?

On a quarter-turn staircase, a distinction is made between the inner side (the side towards which the staircase turns, inside of the curve) and the outer side (the side opposite the curve, the free side of the flight). This handrail is positioned on the outer side. To determine this, go up your staircase and observe which side the quarter turn is on.

Why is this handrail non-reversible?

The geometry of the quarter turn imposes a specific shape on the handrail. An outer-side handrail cannot be reversed to become an inner-side one – the angles and lengths of each section differ. Always check your configuration before ordering: position of the quarter turn and direction of ascent.

Can this handrail be installed after the BAVAT staircase has been fitted?

This handrail must be installed at the same time as the staircase – some fixings are only accessible during assembly. Plan the installation at the same time.

What finish should be applied to this wooden handrail?

The handrail subject to daily contact requires an abrasion-resistant finish: satin varnish 2 coats is recommended. For the spindles and posts, an oil-wax (natural look) or paint depending on the décor. Apply the finish before final fixing to treat hidden areas.

Does the spacing between spindles comply with the safety standard?

The spacing must be less than 11 cm to prevent the passage of an 11 cm sphere (standard NF P01-012). Check the actual spacing after installation according to your staircase configuration, particularly at the bottom of the flight where the handrail is more open.
