Articulated fitting for square rails 16*16

Articulated fitting for 16x16 square rails

Name: Articulated fitting for 16x16 square rails
Brand: Levigne
SKU: RACART1616
Price: 4.31 EUR
Availability: InStock

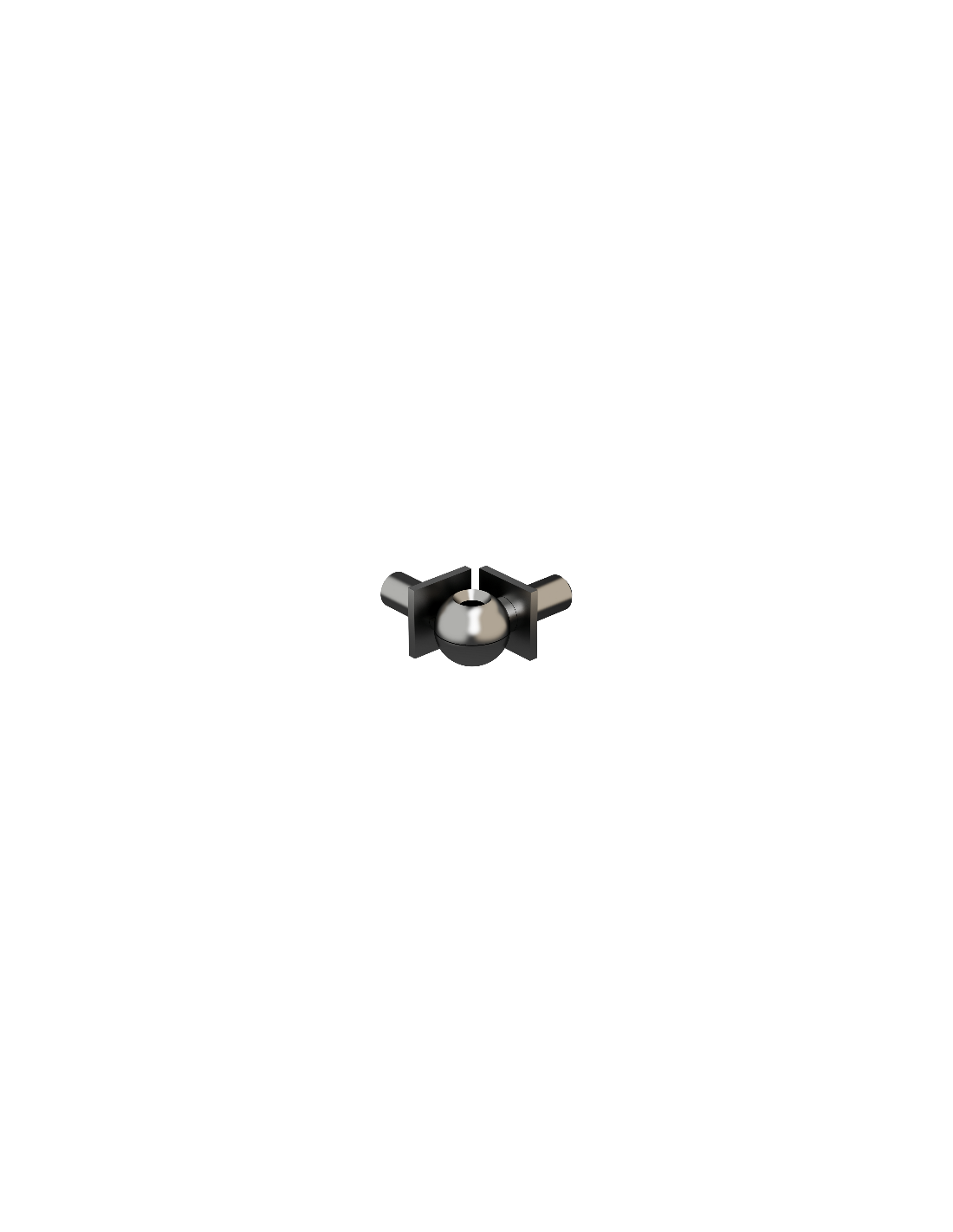

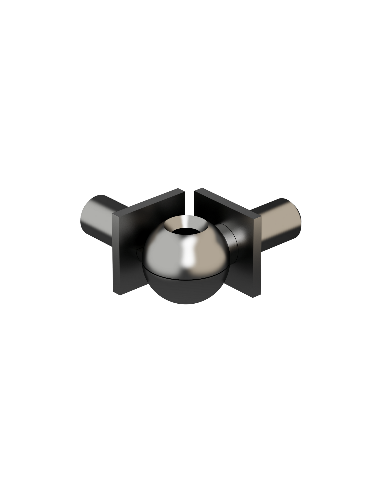

Articulated fitting for square rails 16x16mm – Quadrum range. Anodised aluminium. Variable-angle connection between two square rails 16x16mm for corner passages or staircases. Adjustable angle locked by screw. Finishes: gloss black or gloss stainless steel. Compatible only with 16x16mm rails from the WoodUp Quadrum range – not compatible with the Ellipsis range. Minimal maintenance: check the tightness of the locking screw once a year. Indoor and outdoor use. Sold individually.

Metal colour

Reference RACART1616IB

€4.31 incl. tax

In stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Description
Product Details

Articulated Fitting for 16x16mm Square Rails Quadrum Range – Variable Angle

This articulated fitting connects two 16x16mm Quadrum range square rails at a variable angle, for configurations where the balustrade changes direction. It is used in combination with the 80x30mm articulated horizontal handrail fitting – together, they handle the complete angle of the balustrade across its full height. Each balustrade angle requires 5 rail fittings (one per horizontal rail) and 1 handrail fitting.

Available in gloss black and gloss stainless steel finishes, this fitting maintains the visual consistency of the Quadrum installation. It is exclusively compatible with 16x16mm square rails in the Quadrum range – not interchangeable with Ø16mm round rails in the Ellipsis range, which require their own articulated fittings Ø16mm Ellipsis articulated rail fitting.

Main characteristics

Characteristic	Value
Material	Anodised aluminium
Compatible rail section	16x16mm – Quadrum range
Use	Variable-angle fitting between two square rails
Finishes	Gloss black / Gloss stainless steel
Range	Quadrum only – not compatible with Ellipsis
Quantity per angle	5 fittings per change of direction (1 per rail)
Sold	Sold individually

Key points

✓ Variable angle – adapts to all changes of direction without complex cutting
✓ 16x16mm Quadrum – exact section of WoodUp square rails
✓ 5 fittings per angle – one per horizontal rail of the balustrade
✓ To be combined with Quadrum articulated handrail fitting 80x30mm – 80x30mm handrail fitting to handle the complete angle
✓ Consistent finishes – gloss black or gloss stainless steel identical to the Quadrum kit
✓ Exclusive to Quadrum range – not compatible with Ellipsis (Ø16mm round rails)

Installation advice

Order this fitting in batches of 5 units per angle. Adjust the angle of each fitting identically before insertion – use a protractor or adjustable square to measure the exact angle of your configuration. Insert the rail ends into the fittings without tightening, check the alignment of all rails across both sections of the balustrade, then tighten progressively post by post. Always combine with the handrail fitting Quadrum articulated handrail fitting 80x30mm for the same angle at the top of the balustrade.

Maintenance and protection

Clean with soapy water. Check the tightness of the articulated mechanism annually – thermal variations outdoors can slightly loosen the angle locking screws. Rinse with fresh water in marine environments to prevent salt deposits in the mechanism.

WoodUp tip

What to know before buying: this fitting is exclusively compatible with 16x16mm square rails in the QUADRUM range — do not use with Ø16mm round rails in the ELLIPSIS range, which have a different section. Plan for one fitting per angle of change of direction. For straight-line joints between modules, use the straight connector (ID 805). The clamping screws are included.

Frequently asked questions

Is this fitting compatible with Ø16mm round rails in the Ellipsis range?

No. This fitting is designed for 16x16mm square rails in the Quadrum range. The Ø16mm round rails in the Ellipsis range have a different profile and require the specific Ellipsis articulated fittings Ø16mm Ellipsis articulated rail fitting. The two fittings have different internal housings – they are not interchangeable even if the nominal dimensions appear similar.

How many fittings should be ordered for a Quadrum balustrade at a 90° angle?

For a 90° angle: 5 articulated fittings for 16x16mm rails 16x16mm Quadrum articulated rail fitting + 1 articulated horizontal handrail fitting 80x30mm Quadrum articulated handrail fitting 80x30mm. If your balustrade has multiple angles (L-shaped, U-shaped), multiply these quantities by the number of angles. Order in one go to guarantee batch and finish consistency.

Can this articulated fitting handle angles of less than 90°?

The articulated mechanism covers common balustrade angles (approximately 60° to 120°). For very acute or very obtuse angles outside this range, contact WoodUp before ordering to validate compatibility. Non-standard angles may require specific adaptation solutions.

Should this fitting always be combined with the handrail fitting Quadrum articulated handrail fitting 80x30mm?

Yes, in all cases involving an angle. A change of direction in the balustrade requires managing the angle across all 5 rails and the handrail simultaneously. Ordering only the rail fittings without the handrail fitting makes it impossible to complete the installation correctly. Always order both accessories together for each angle.

Is this Quadrum articulated rail fitting suitable for outdoor use?

Yes, anodised aluminium is suitable for outdoor exposure without treatment. Check the tightness of the joint locking screws once a year to maintain the set angle, particularly outdoors where temperature variations can cause slight expansion. In coastal environments, rinsing with fresh water after periods of exposure to salt spray is sufficient.
