ELLIPSIS aluminium handrail connector

Name: ELLIPSIS aluminium handrail connector
Brand: Levigne
SKU: CONMCELLIPSIS
Price: 9.48 EUR
Availability: InStock

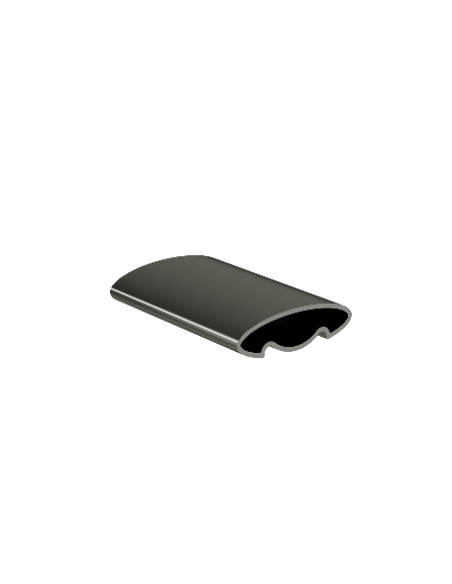

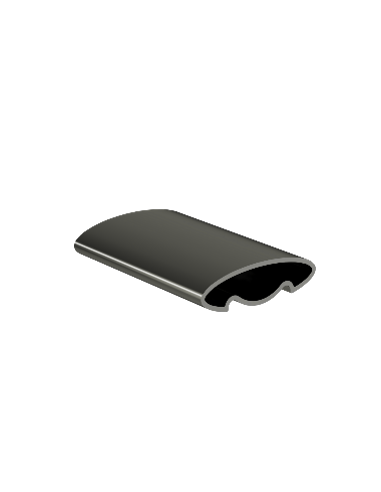

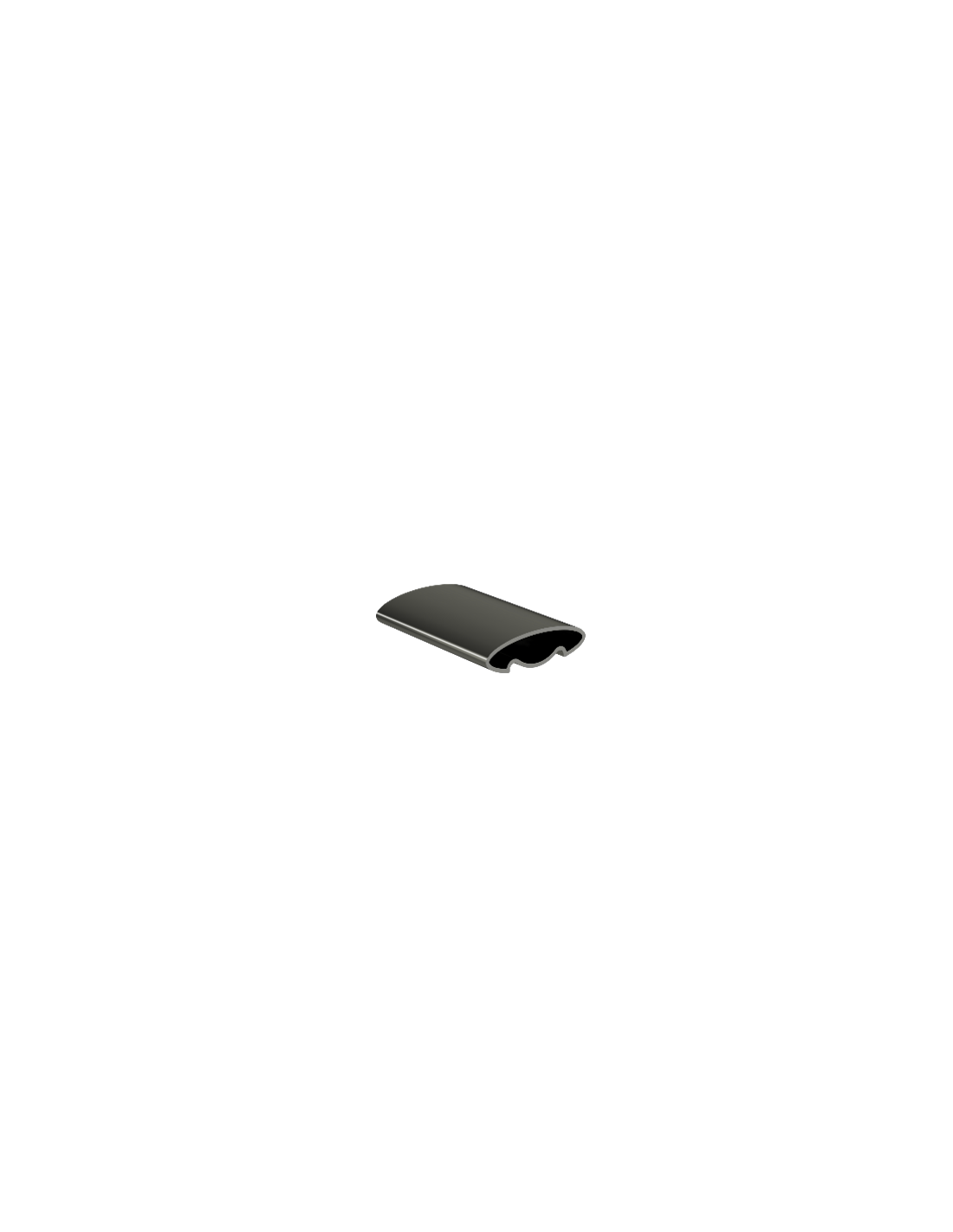

Aluminium handrail connector 100x30mm - Ellipsis range. Anodised aluminium. Straight junction between two Ellipsis handrail sections (100x30mm section) for in-line extension. Finishes: gloss black or gloss stainless steel. Compatible only with the 100x30mm handrail from the WoodUp Ellipsis range - not compatible with Quadrum 80x30mm handrail. Maintenance: anodised aluminium, no treatment required. Indoor and outdoor use. Sold individually. Fixings included.

Section (cm)

Reference CONMCELLIPSIS10030

€9.48 incl. tax

In stock Dispatched within 10 days

Quantité

Paiement :

Paiement en 2x, 3x, 4x avec

Ellipsis Aluminium Handrail Connector - Straight Junction 100x30mm Section

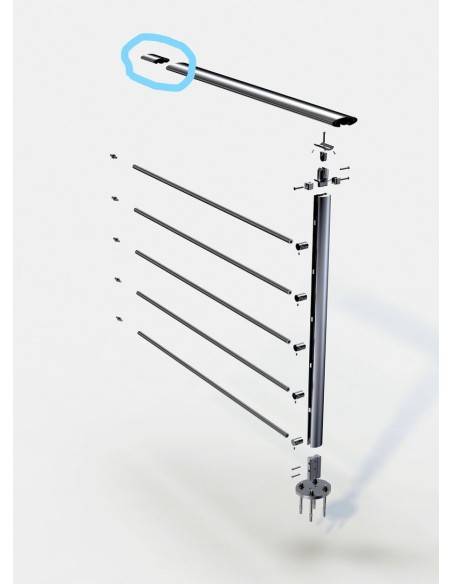

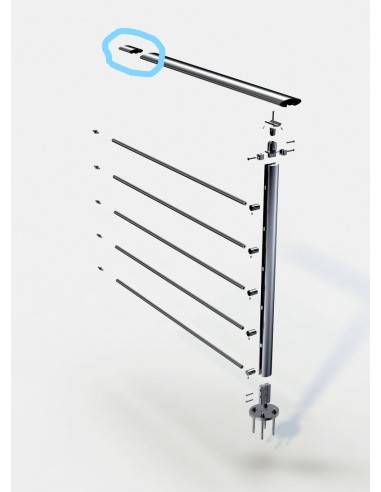

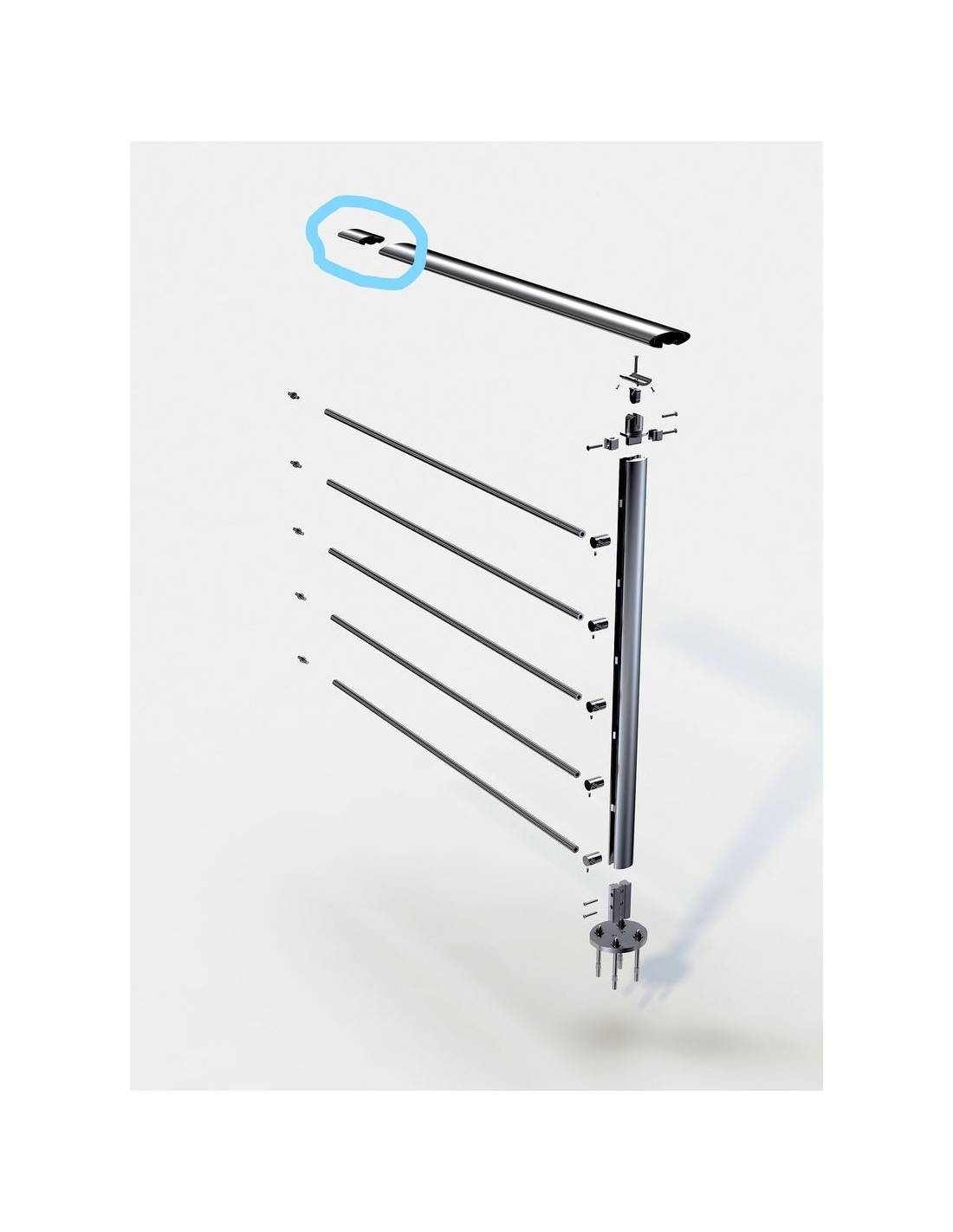

This connector provides a straight-line junction between two sections of handrail from the Ellipsis range (100x30mm section with rounded profile). It is used at every connection between modules - between a starter kit and an extension kit, or between two extension kits - to ensure continuity of the handrail without visual interruption. Available in gloss black and gloss stainless steel finishes, it maintains the consistency of the installation.

Sold individually, this connector should be ordered at the same time as the extension kits - each straight-line junction between two modules requires 1 handrail connector and 5 rail connectors Ø16mm Ellipsis rail connector. For junctions with a change of direction, replace this straight connector with the Ellipsis articulated handrail connector.

Main features

Feature	Value
Material	Anodised aluminium
Compatible handrail section	100x30mm - Ellipsis handrail with rounded profile
Use	Straight junction between two handrail sections
Finishes	Gloss black / Gloss stainless steel
Range	Ellipsis only - not compatible with Quadrum (80x30mm)
Sold	Sold individually
Quantity per junction	1 connector per straight junction between modules

Key points

✓ Straight junction - inline connection between Ellipsis modules
✓ 100x30mm section - compatible with WoodUp Ellipsis rounded profile handrail
✓ 1 connector per junction - to be used with 5 rail connectors Ø16mm Ellipsis rail connector
✓ Consistent finishes - gloss black or gloss stainless steel
✓ Not compatible with Quadrum - the Quadrum handrail is 80x30mm, a different section

Installation tips

Insert the ends of both handrail sections into the connector and tighten according to the instructions. Order this connector at the same time as your extension kits to avoid any delays - each straight-line junction between modules requires 1 handrail connector + 5 rail connectors. For the best result, cut the handrail ends perpendicularly before inserting them into the connector.

Maintenance and protection

Anodised aluminium requires no surface treatment or application of a protective product. Anodising is an oxide layer integrated into the metal, not a surface coating: it does not flake or peel over time.

Occasional cleaning with clean water and a soft cloth is sufficient to maintain the appearance of the connectors. Avoid abrasive products, metal pads and strong solvents that could scratch the anodising. Outdoors, when exposed to salt spray or pollution, rinsing with clean water once or twice a year keeps the finish looking its best with minimal effort.

The gloss black and gloss stainless steel finishes react differently to fingerprints: the black finish shows them more. A slightly damp microfibre cloth is sufficient to wipe them away without any risk to the anodising.

WoodUp Tip

What to know before purchasing: this connector provides straight-line junctions between ELLIPSIS modules — it is essential at every connection between a starter kit and an extension kit, or between two extension kits. Do not confuse with the articulated connector (ID 763) which handles changes of direction. The fixing hardware is included. Allow one connector per straight-line junction in your installation.

Frequently asked questions

Is this connector compatible with the Quadrum 80x30mm handrail?

No. This connector is designed for the Ellipsis handrail with a 100x30mm rounded profile section. The Quadrum handrail is 80x30mm with a square profile - the two connectors are different and not interchangeable. For the Quadrum range, order the articulated horizontal handrail connector for 80x30mm Quadrum articulated handrail connector 80x30mm.

For an L-shaped balustrade with 2 Ellipsis modules, what accessories should I order?

For an L-shaped balustrade (straight junction between the two modules, then a corner): at the straight junction between modules? 1 handrail connector Ellipsis handrail connector + 5 rail connectors Ø16mm Ellipsis rail connector. At the corner? 1 articulated handrail connector + 5 articulated rail connectors. Total: 2 distinct types of accessories depending on whether the junction is straight or angled.

How do I avoid a visible gap between the two handrail sections at the connector?

Cut the ends of the handrail sections perpendicularly and cleanly with a hacksaw. Deburr the edges with a fine file. The two cut faces must be in direct contact inside the connector - any residual gap is usually due to a non-perpendicular cut. The connector is designed for a butt-end insertion with no gap if the cuts are clean.

Does this connector withstand the stresses of an outdoor handrail?

Yes. Anodised aluminium resists corrosion, UV and thermal variations. Outdoors, check the tightening annually - repeated thermal expansion can slightly loosen the assembly screws over time.

Is this Ellipsis handrail connector suitable for outdoor use?

Yes, anodised aluminium withstands outdoor exposure without any additional treatment. The Ellipsis range is designed for indoor and outdoor use. In exposed environments (terrace, balcony), opt for the gloss stainless steel finish, which resists marks and salt spray better than the black finish. Check that the Ellipsis 100x30mm handrail is also compatible with your level of exposure.
