Ellipsis 180° Connector Stainless or Shiny Black

ELLIPSIS aluminium handrail connector

€9.48

In stock Dispatched within 10 days

Section (cm)

x 5

Connector for alu rails diam 16 mm

€23.40

In stock Dispatched within 10 days

Metal colour

€32.88 incl. tax

In stock Dispatched within 10 days

Quantité

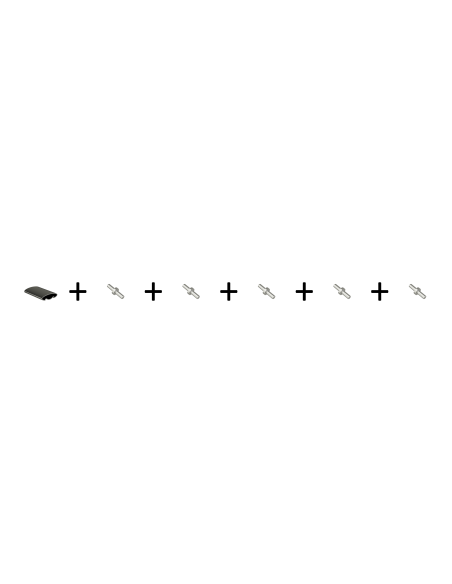

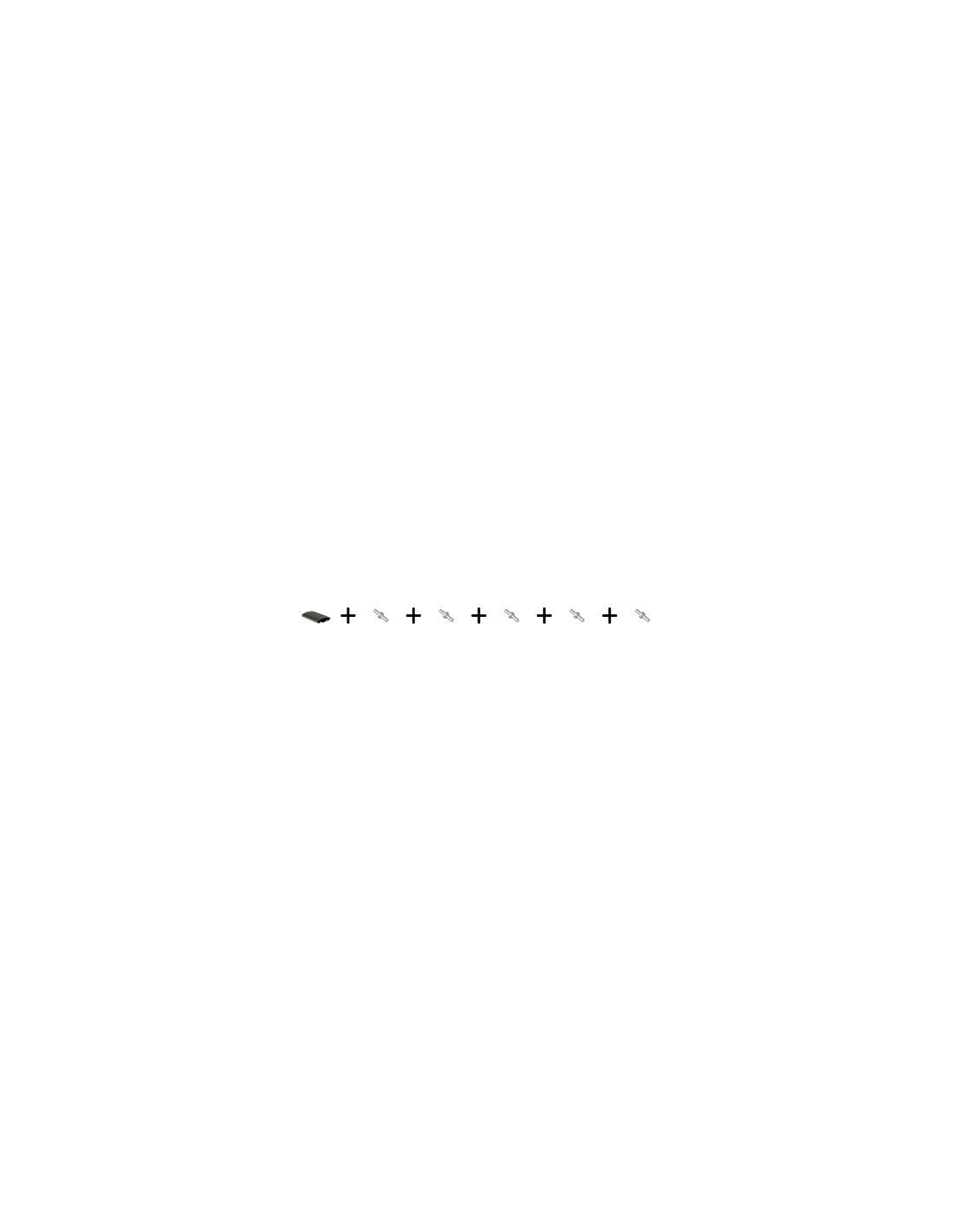

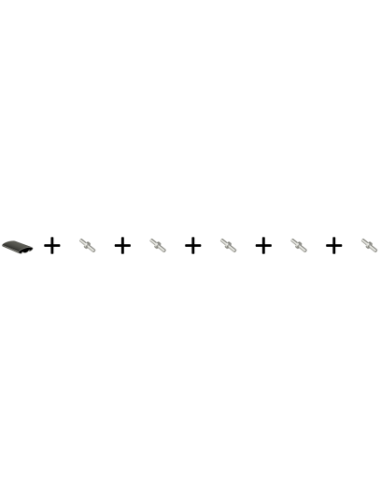

Pack description

1 handrail connector

5 rail connectors

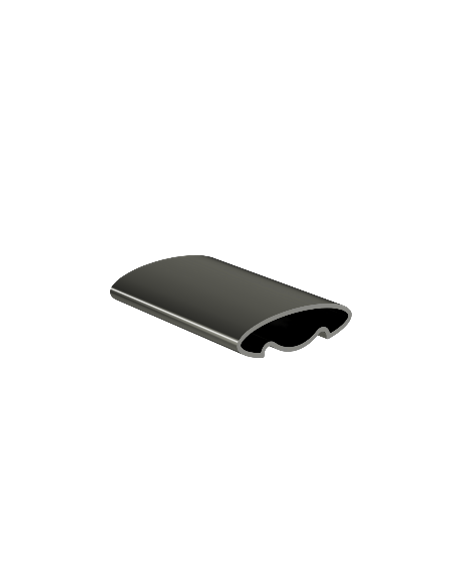

Aluminium handrail connector 100x30mm - Ellipsis range. Anodised aluminium. Straight junction between two Ellipsis handrail sections (100x30mm section) for in-line extension. Finishes: gloss black or gloss stainless steel. Compatible only with the 100x30mm handrail from the WoodUp Ellipsis range - not compatible with Quadrum 80x30mm handrail. Maintenance: anodised aluminium, no treatment required. Indoor and outdoor use. Sold individually. Fixings included.

Ellipsis Aluminium Handrail Connector - Straight Junction 100x30mm Section

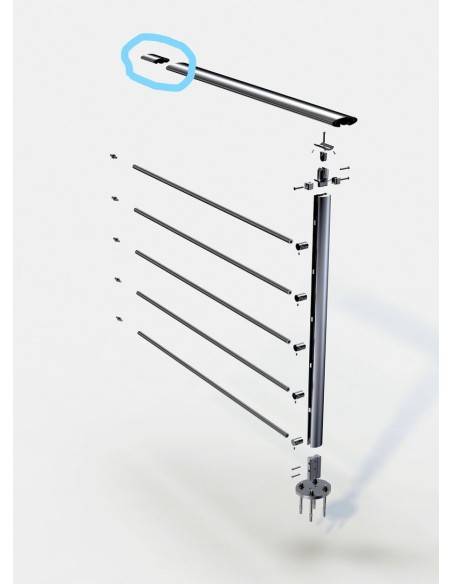

This connector provides a straight-line junction between two sections of handrail from the Ellipsis range (100x30mm section with rounded profile). It is used at every connection between modules - between a starter kit and an extension kit, or between two extension kits - to ensure continuity of the handrail without visual interruption. Available in gloss black and gloss stainless steel finishes, it maintains the consistency of the installation.

Sold individually, this connector should be ordered at the same time as the extension kits - each straight-line junction between two modules requires 1 handrail connector and 5 rail connectors Ø16mm Ellipsis rail connector. For junctions with a change of direction, replace this straight connector with the Ellipsis articulated handrail connector.

Main features

Feature	Value
Material	Anodised aluminium
Compatible handrail section	100x30mm - Ellipsis handrail with rounded profile
Use	Straight junction between two handrail sections
Finishes	Gloss black / Gloss stainless steel
Range	Ellipsis only - not compatible with Quadrum (80x30mm)
Sold	Sold individually
Quantity per junction	1 connector per straight junction between modules

Key points

✓ Straight junction - inline connection between Ellipsis modules
✓ 100x30mm section - compatible with WoodUp Ellipsis rounded profile handrail
✓ 1 connector per junction - to be used with 5 rail connectors Ø16mm Ellipsis rail connector
✓ Consistent finishes - gloss black or gloss stainless steel
✓ Not compatible with Quadrum - the Quadrum handrail is 80x30mm, a different section

Installation tips

Insert the ends of both handrail sections into the connector and tighten according to the instructions. Order this connector at the same time as your extension kits to avoid any delays - each straight-line junction between modules requires 1 handrail connector + 5 rail connectors. For the best result, cut the handrail ends perpendicularly before inserting them into the connector.

Maintenance and protection

Anodised aluminium requires no surface treatment or application of a protective product. Anodising is an oxide layer integrated into the metal, not a surface coating: it does not flake or peel over time.

Occasional cleaning with clean water and a soft cloth is sufficient to maintain the appearance of the connectors. Avoid abrasive products, metal pads and strong solvents that could scratch the anodising. Outdoors, when exposed to salt spray or pollution, rinsing with clean water once or twice a year keeps the finish looking its best with minimal effort.

The gloss black and gloss stainless steel finishes react differently to fingerprints: the black finish shows them more. A slightly damp microfibre cloth is sufficient to wipe them away without any risk to the anodising.

WoodUp Tip

What to know before purchasing: this connector provides straight-line junctions between ELLIPSIS modules — it is essential at every connection between a starter kit and an extension kit, or between two extension kits. Do not confuse with the articulated connector (ID 763) which handles changes of direction. The fixing hardware is included. Allow one connector per straight-line junction in your installation.

Frequently asked questions

Is this connector compatible with the Quadrum 80x30mm handrail?

No. This connector is designed for the Ellipsis handrail with a 100x30mm rounded profile section. The Quadrum handrail is 80x30mm with a square profile - the two connectors are different and not interchangeable. For the Quadrum range, order the articulated horizontal handrail connector for 80x30mm Quadrum articulated handrail connector 80x30mm.

For an L-shaped balustrade with 2 Ellipsis modules, what accessories should I order?

For an L-shaped balustrade (straight junction between the two modules, then a corner): at the straight junction between modules? 1 handrail connector Ellipsis handrail connector + 5 rail connectors Ø16mm Ellipsis rail connector. At the corner? 1 articulated handrail connector + 5 articulated rail connectors. Total: 2 distinct types of accessories depending on whether the junction is straight or angled.

How do I avoid a visible gap between the two handrail sections at the connector?

Cut the ends of the handrail sections perpendicularly and cleanly with a hacksaw. Deburr the edges with a fine file. The two cut faces must be in direct contact inside the connector - any residual gap is usually due to a non-perpendicular cut. The connector is designed for a butt-end insertion with no gap if the cuts are clean.

Does this connector withstand the stresses of an outdoor handrail?

Yes. Anodised aluminium resists corrosion, UV and thermal variations. Outdoors, check the tightening annually - repeated thermal expansion can slightly loosen the assembly screws over time.

Is this Ellipsis handrail connector suitable for outdoor use?

Yes, anodised aluminium withstands outdoor exposure without any additional treatment. The Ellipsis range is designed for indoor and outdoor use. In exposed environments (terrace, balcony), opt for the gloss stainless steel finish, which resists marks and salt spray better than the black finish. Check that the Ellipsis 100x30mm handrail is also compatible with your level of exposure.

Complementary products

Connector for Ø16mm Ellipsis rails - to be ordered with this connector

Articulated ELLIPSIS handrail connector - for angled junctions

Ellipsis starter kit - complete balustrade with round rails

Ellipsis extension kit - 100cm extension per module

Data sheet

Species/material: Alu
Range: Ellipsis
Usage: Interior and Exterior

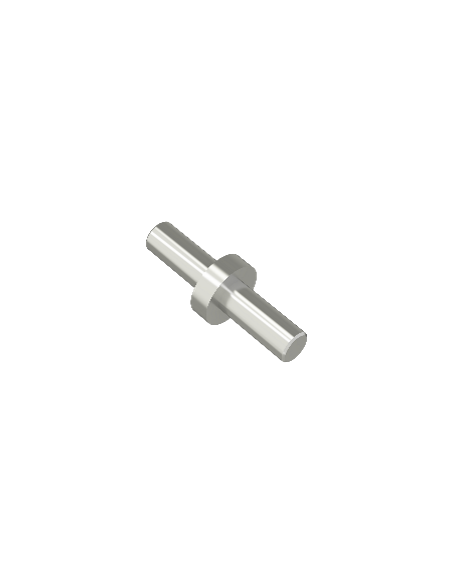

Connector for round rails Ø16mm – Ellipsis range. Anodised aluminium. Straight junction between two round rails Ø16mm end-to-end or on an intermediate inline post. Finishes: gloss black or gloss stainless steel. Compatible only with Ø16mm rails from the WoodUp Ellipsis range – not compatible with 16x16mm square rails from the Quadrum range. Minimal maintenance: anodised aluminium requires no treatment. Indoor and outdoor use. Sold individually. Fixings included.

Connector for Ø16mm Aluminium Rails – Straight Joint Ellipsis Range

This connector for Ø16mm round rails provides a straight-line joint between two rail sections in an Ellipsis range balustrade. It is used at each joint between modules (between a starter kit and an extension kit, or between two extension kits) to assemble the 5 horizontal rails in continuity. Available in gloss black and gloss stainless steel finishes, it maintains the visual consistency of the whole installation.

Sold individually, it should be ordered in batches of 5 per joint – one connector per rail. For joints with a change of direction, use the articulated rail fitting instead of this straight connector.

Main characteristics

Characteristic	Value
Material	Anodised aluminium
Compatible rail diameter	Ø16mm – Ellipsis range
Use	Straight joint between two end-to-end rails
Finishes	Gloss black / Gloss stainless steel
Range	Ellipsis only – not compatible with Quadrum
Sold	Sold individually
Quantity per joint	5 connectors per joint (1 per rail)

Key points

✓ Straight joint – for inline connections between Ellipsis modules
✓ Ø16mm Ellipsis compatible – exact dimensions of WoodUp round rails
✓ 5 connectors per joint – one per horizontal rail
✓ Consistent finishes – gloss black or gloss stainless steel
✓ For angles: use Ø16mm Ellipsis articulated rail fitting – articulated fitting instead of this straight connector

Installation advice

Order 5 connectors per straight joint between modules. Insert each rail end into the connector and tighten according to the manufacturer's instructions. For a perfectly aligned joint, begin by inserting all the rails into their connectors without tightening, check the horizontal alignment along the entire length, then tighten progressively post by post.

Maintenance and protection

Anodised aluminium requires no protective treatment. Anodisation forms an oxide layer integrated into the metal: it resists corrosion, UV rays, and temperature variations without any special maintenance.

To maintain the appearance of the connectors, an occasional wipe with a damp cloth is sufficient. Avoid abrasive products or acid cleaners that could dull the anodised surface. In exposed outdoor environments (coastal, polluted urban areas), rinsing with clean water once a year is sufficient.

No repassivation or surface touch-up is required over the normal service life of the balustrade.

WoodUp tip

What to know before buying: this connector is reserved for Ø16mm round rails in the ELLIPSIS range — do not use with 16x16mm square rails in the QUADRUM range. It is essential at every straight-line joint between two rail sections. For changes of direction, use the articulated fitting (ID 781). Plan for as many connectors as there are joints per rail and per connected module.

Frequently asked questions

How many rail connectors are needed to join 3 Ellipsis modules?

3 modules (1 starter kit + 2 extension kits) include 2 joints – therefore 10 rail connectors (5 per joint) and 2 handrail connectors Ellipsis handrail connector are needed. Remember to order all these accessories at the same time as the kits to avoid construction delays.

Can this connector be used mid-length on a rail to extend it?

Yes, technically. If a rail is too short to reach the next post, a connector can join two sections side by side. However, this is not the standard configuration – ensure the connector is properly positioned on a support or post to avoid bending mid-span on the rail.

What is the difference between the straight Ø16mm Ellipsis rail connector and the articulated fitting?

The Ø16mm Ellipsis rail connector provides a straight-line joint (180° angle). The articulated fitting allows a variable angle for changes of direction. For a straight-line installation, use the Ø16mm Ellipsis rail connector. For any angle other than 180°, use the Ø16mm Ellipsis articulated rail fitting.

Is this connector visible once the rails are in place?

The connector is visible between the two rail sections. In gloss black or gloss stainless steel, it integrates naturally into the rail line. To minimise visibility, position the joint at a post rather than mid-span – the support naturally frames the assembly.

Does this straight connector work for a rail in a corner?

No. For an angle (change of direction), use the articulated rail fitting. This connector is exclusively designed for straight-line joints (180° angle). A straight connector used at an angle would bend the rails and damage the post supports.
