Aluminium sliding system for wardrobe doors up to 70 kg, minimum door thickness 16 mm. 120 cm rail for 2 doors or 200 cm for 3 doors. Complete kit: 2 rails, top guides, bottom rollers, door stops and screws. Silent sliding, simplified installation with fitting video included. Allow 8 mm clearance in the frame. Compatible with Woodup panels Crossbar pine door, Louvred pine door 21 mm, Black lacquered louvred door, Louvred pine door 28 mm. Indoor use only.

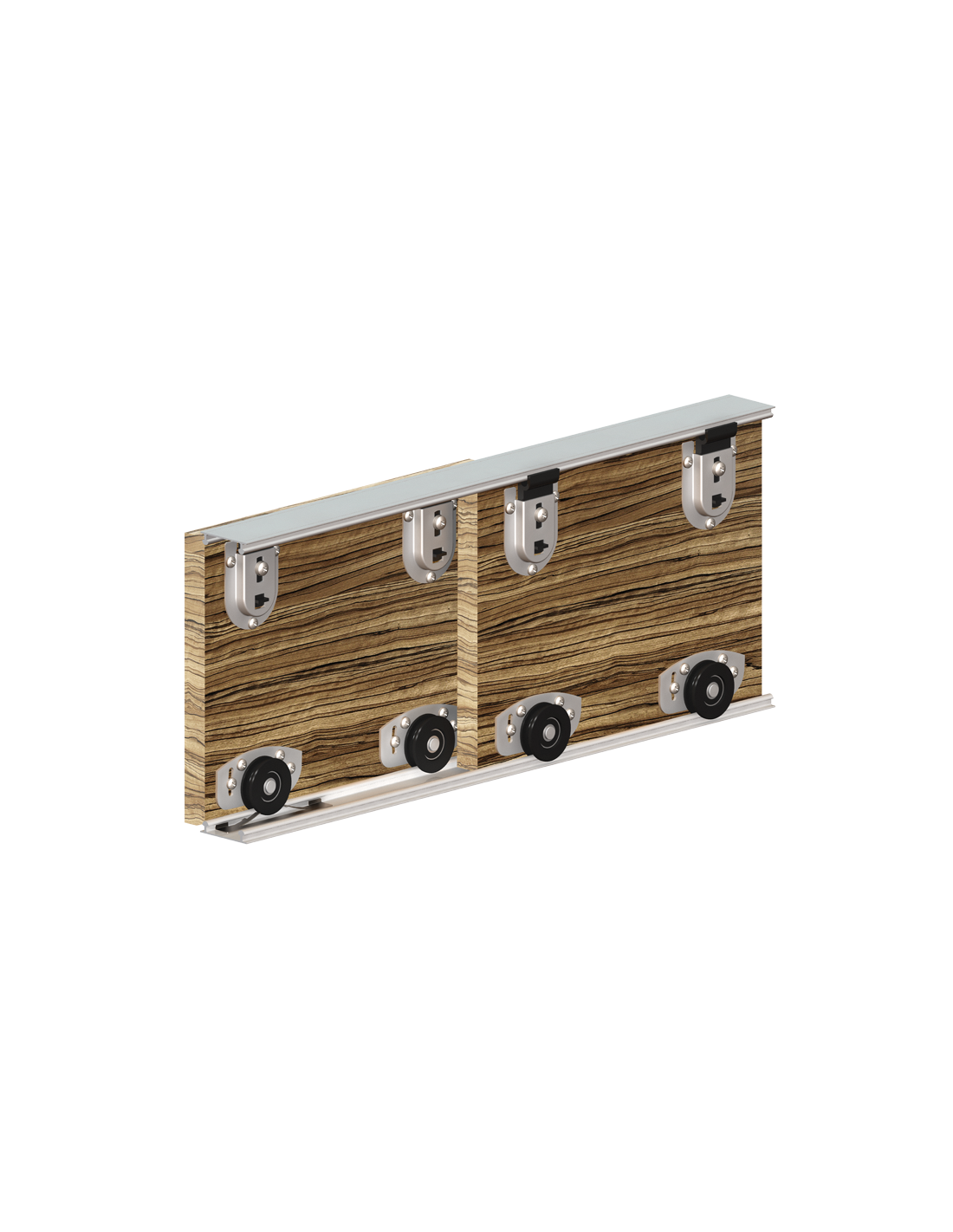

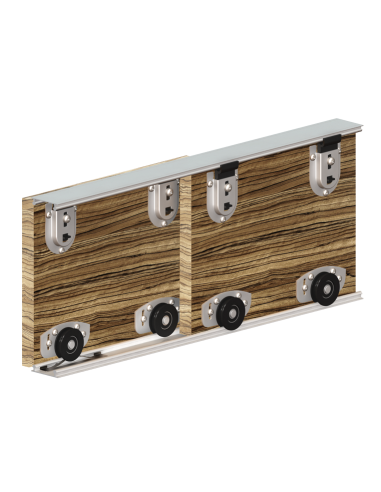

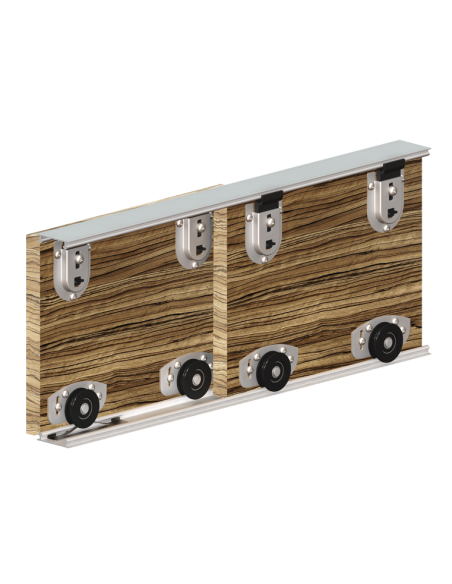

This aluminium sliding system is designed for wooden wardrobe doors or panels, supporting panels up to 70 kg and a minimum thickness of 16 mm. It is available in two rail lengths: 120 cm for a 2-door configuration and 200 cm for 3 doors. Each kit is complete: rails, top guides, bottom rollers, door stops and screws are included.

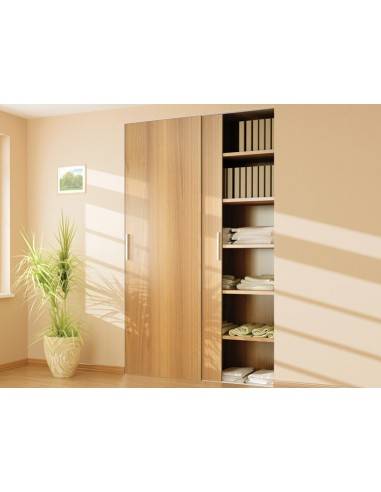

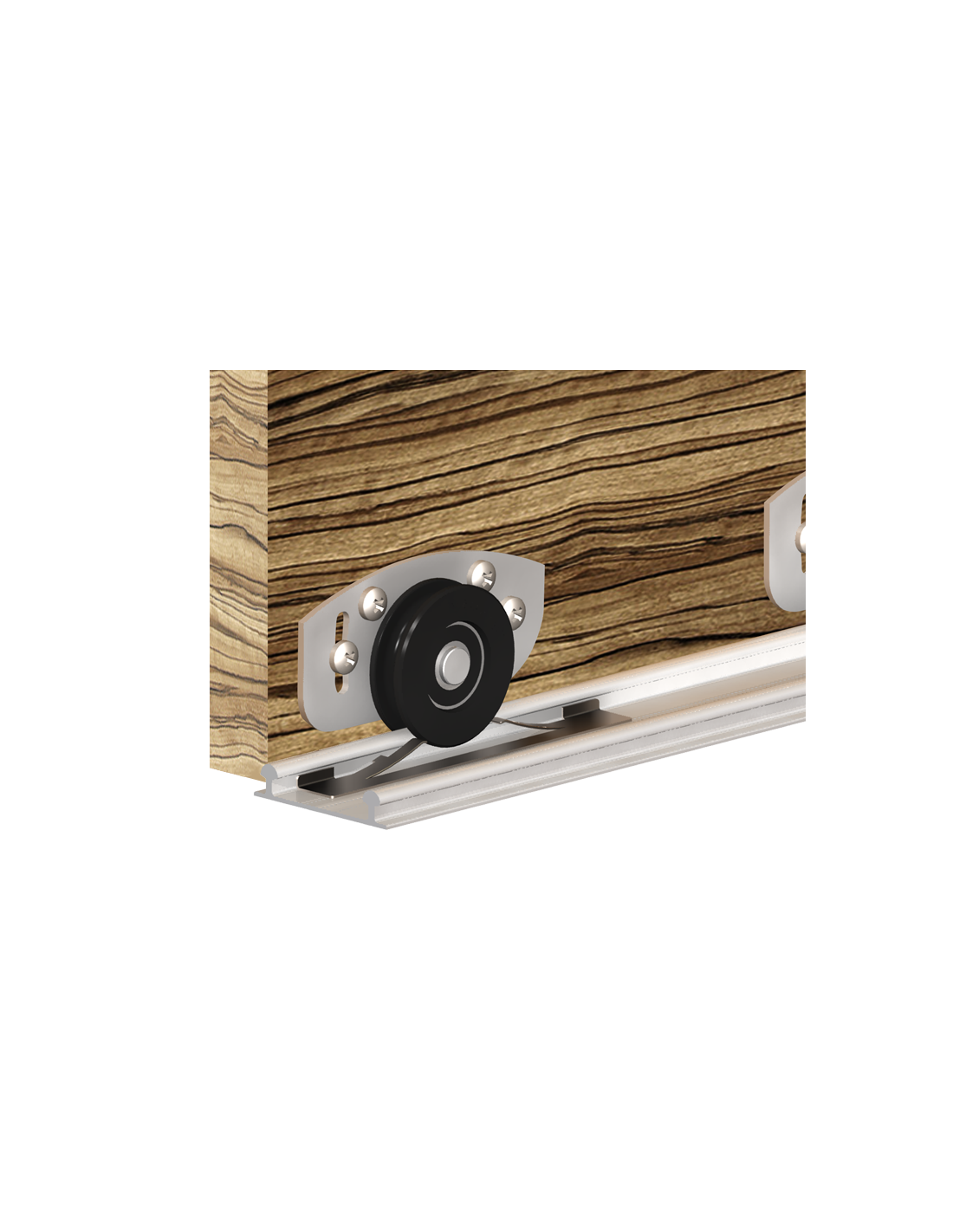

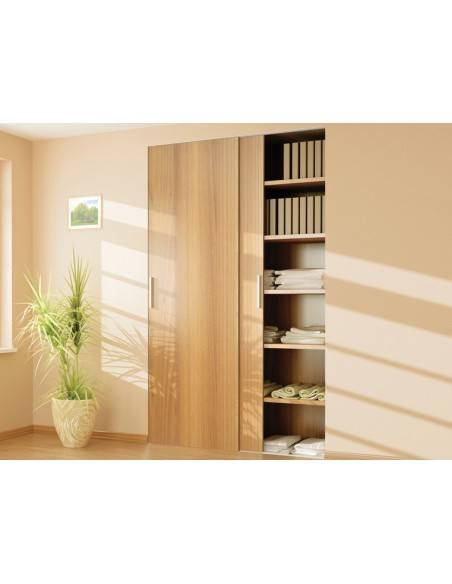

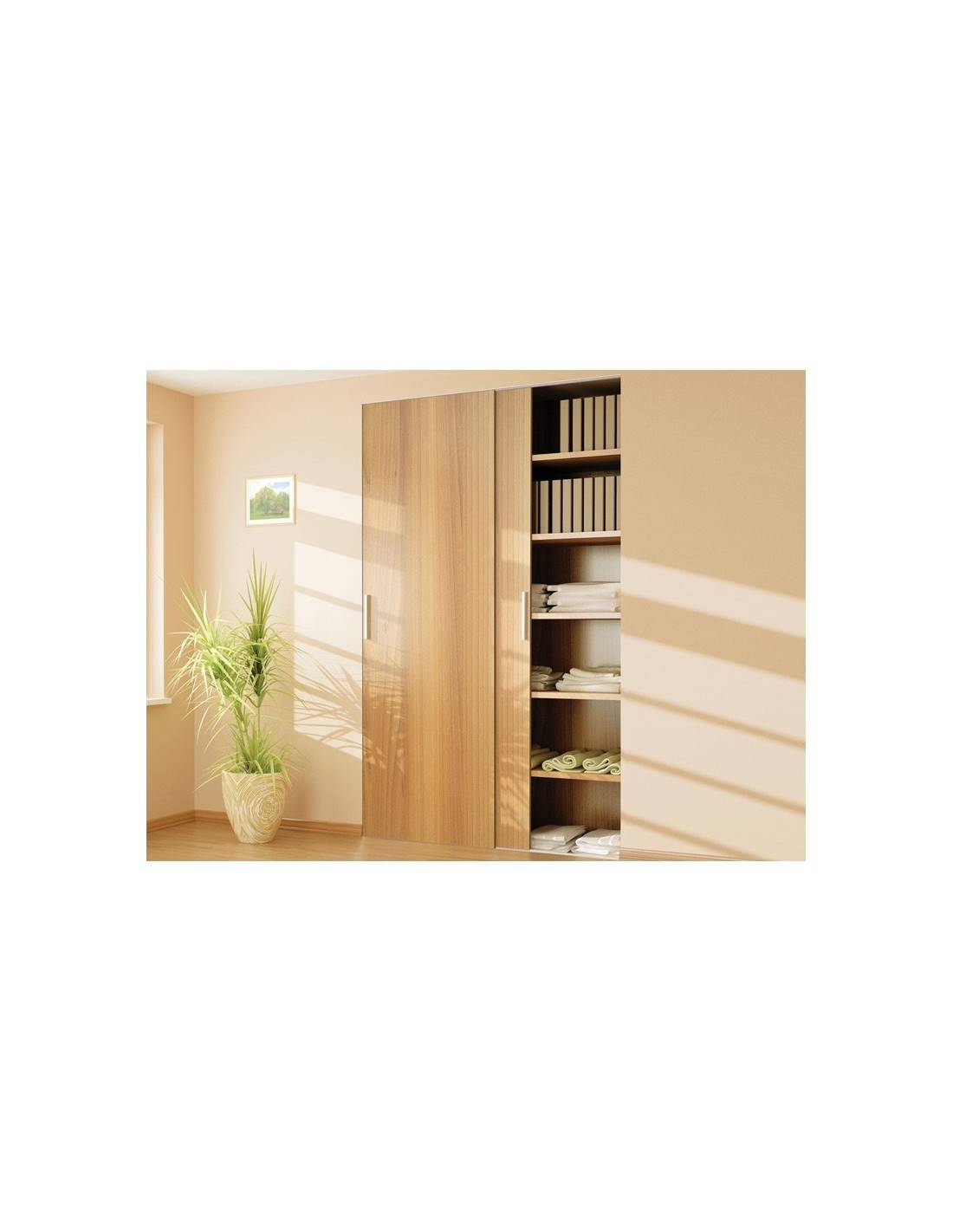

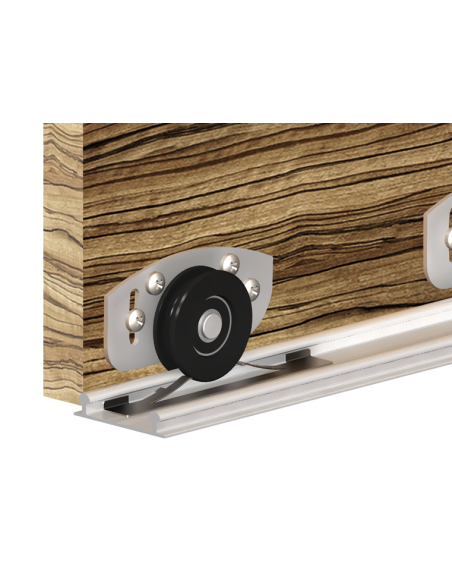

The roller mechanism ensures smooth and silent sliding, suitable for intensive daily use. This system eliminates hinged doors and frees up floor space in front of the wardrobe. Allow an 8 mm clearance in the frame for optimal installation. This product is designed for indoor use only.
| Specification | Description |
|---|---|
| Material | Aluminium |
| Maximum load | 70 kg per door |
| Minimum door thickness | 16 mm |

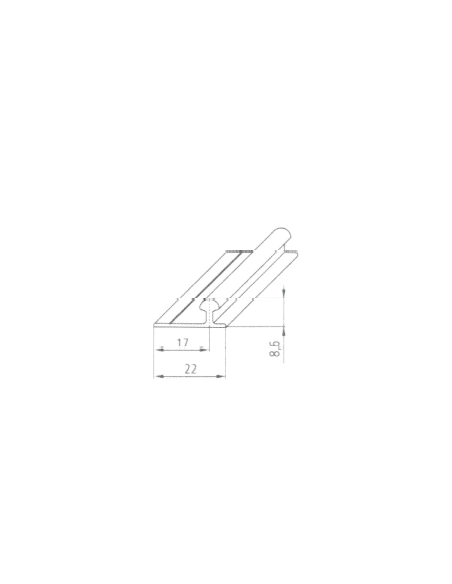

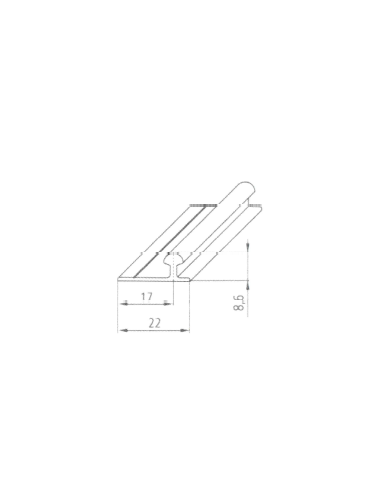

| Rail lengths | 120 cm (2 doors) or 200 cm (3 doors) |
| Required frame clearance | 8 mm |
| 120 cm kit (2 doors) | 2 rails, 4 top guides, 4 bottom rollers, 2 stops, screws |

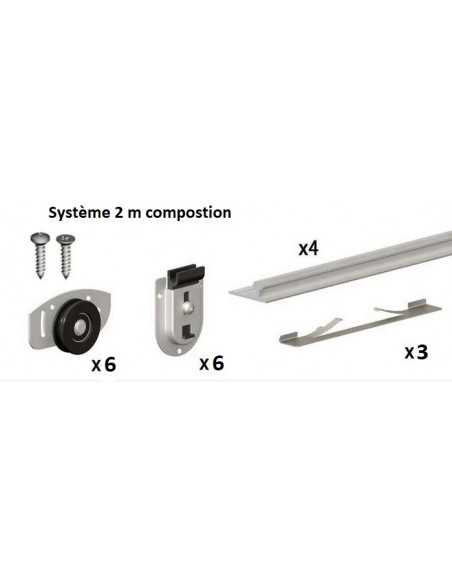

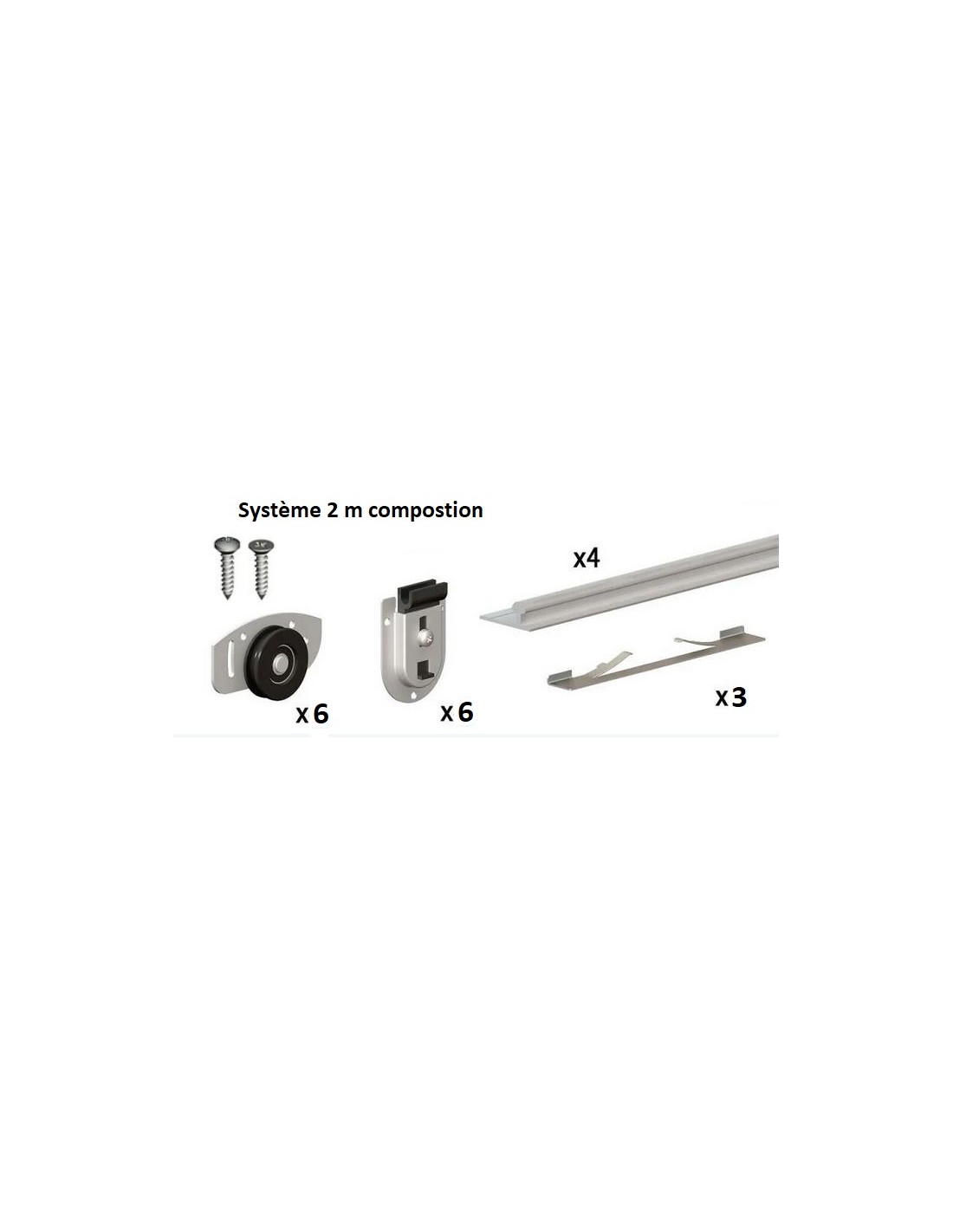

| 200 cm kit (3 doors) | 2 rails, 6 top guides, 6 bottom rollers, 3 stops, screws |
| Door compatibility | Wooden or panel doors ≥ 16 mm (Crossbar pine door or Louvred pine door 21 mm or Black lacquered louvred door or Louvred pine door 28 mm) |
| Use | Indoor use only |

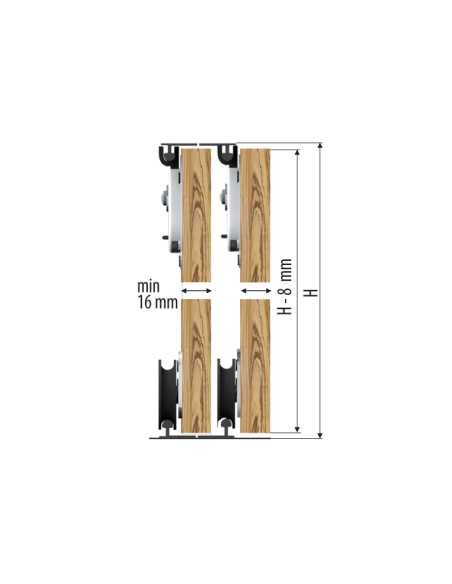

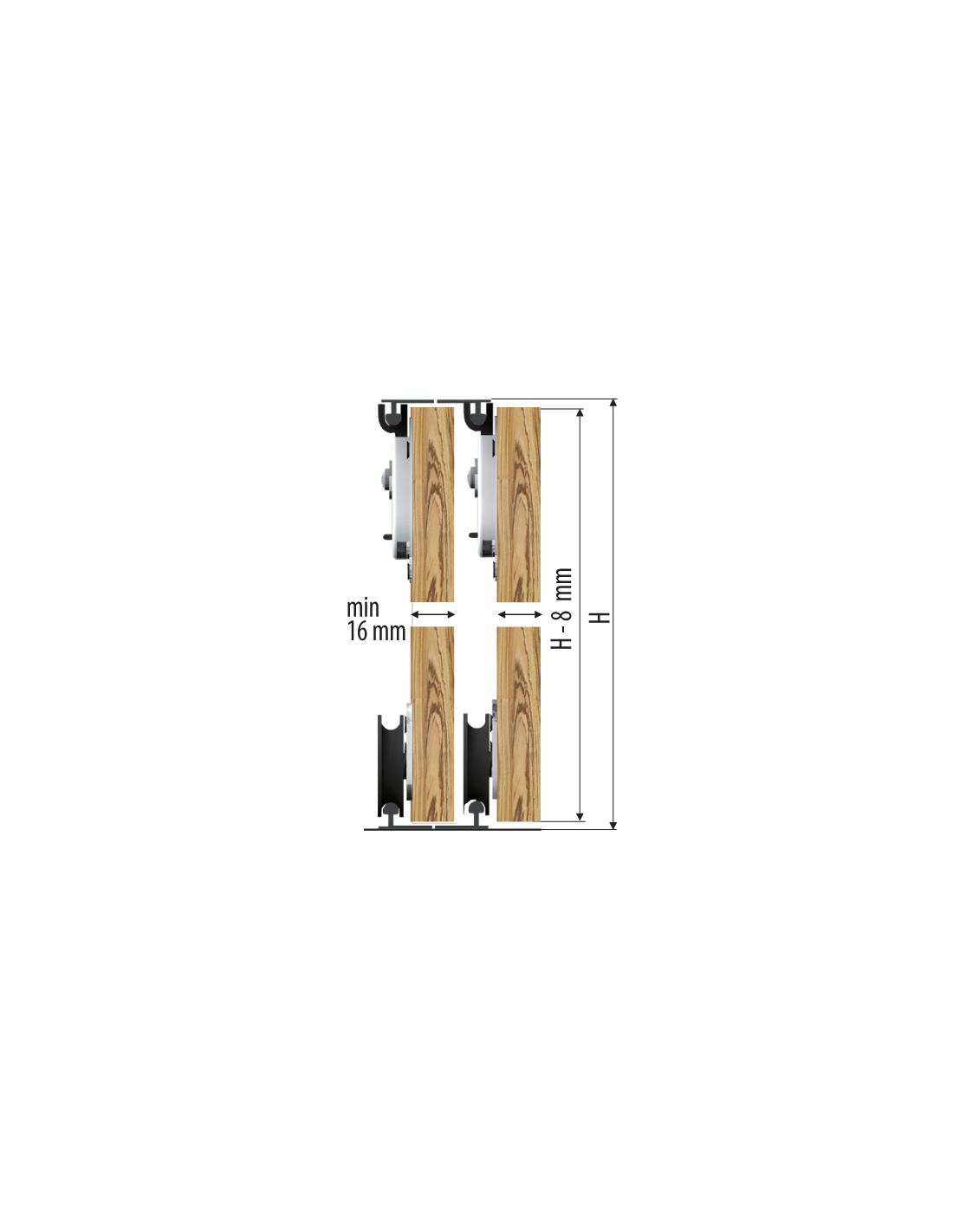

Allow an 8 mm clearance in your frame above the opening to fit the top rail. Fix the two rails at the top of the opening, perfectly parallel and level. Then fit the bottom rollers to each panel according to the dimensions of the template provided. Slot the panels into the top rails, then guide the bottom rollers into the bottom rail. Adjust the door stops to define the travel of each panel. A fitting video is available on the Woodup website to follow the steps one by one.
Clean the aluminium rails with a slightly damp cloth to remove dust and residue. Lubricate the rollers with a silicone spray (non-greasy) once or twice a year to maintain smooth sliding. Avoid greasy lubricants that attract dust and clog the rails. Check the tightness of the rail fixing screws annually.
Choose the 120 cm rail for a 2-door configuration and the 200 cm rail for 3 doors. The rail length must match the total width of your wardrobe opening.
Yes. The sliding system is compatible with all Woodup panels with a thickness ≥ 16 mm, including the crossbar models Crossbar pine door, louvred 21 mm Louvred pine door 21 mm and louvred 28 mm Louvred pine door 28 mm.
The rails are fixed to the top face of the wardrobe frame or directly to the ceiling. No drilling into the panels is required for the rails — only the bottom rollers are fixed to the doors.
Yes, provided the opening has a clearance of 8 mm in height to accommodate the rail. If the current frame is too tight, a structural adjustment may be required.
No. This kit includes only the sliding rail system. The panels (louvred, crossbar, lacquered) must be ordered separately from the Woodup range according to your configuration.
